This command allows you to display the current firewall ruleset configuration on an ESXi host. It will show the ruleset names, whether they are enabled or disabled, and the services and ports that the ruleset applies to.

For example, you can use the command " esxcli network firewall ruleset list " to list all the firewall rulesets on the host.

You can also use the command " esxcli network firewall ruleset rule list -r < ruleset_name > " to display detailed information of the specific ruleset, where < ruleset_name > is the name of the ruleset you want to display.

It ' s important to note that you need to have access to the ESXi host ' s command-line interface (CLI) and have appropriate permissions to run this command.

https://docs.vmware.com/en/VMware-vSphere/6.7/com.vmware.vcli.ref.doc/esxcli_network_firewall_ruleset.html

NSX-T Endpoint Protection provides agentless antivirus protection for virtual machines running on VMware ESXi hosts. It uses the VMware vShield Endpoint API to scan the virtual machines without requiring the installation of antivirus agents. The service is integrated with third-party antivirus solutions, such as McAfee and Symantec, to provide real-time protection against malware and other threats.

For more information on NSX-T Endpoint Protection, please refer to the NSX-T Data Center documentation:  https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/nsx-t-3.0-endpoint-protection/GUID-25C22F02-4B30-47D4-8F0C-3BC9F9C3AFD3.html

The NSX Edge nodes require access to the Internet to download category and reputation definitions, and a layer 7 gateway firewall rule must be configured on the tier-1 gateway uplink to capture DNS traffic. This will allow the URL Analysis service to analyze incoming DNS traffic and block malicious requests. For more information, please see this VMware Documentation article[1], which explains how to configure URL Analysis on NSX.

[1]  https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.1/nsxt_31_url_analysis/GUID-46BC65F3-7A45-4A9F-B444-E4A1A7E0AC4A.html

NSX Manager needs to be reconfigured. Guest Introspection requires additional configuration of the NSX Manager in order to collect information from the Windows based VMs. This configuration includes setting up the Guest Introspection service with the appropriate credentials and configuring the rules to allow the traffic through the firewall. Once this is done, the Windows VMs will start reporting information to the NSX Manager.

For more information on setting up Guest Introspection, please refer to the NSX-T Data Center documentation:  https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/nsx-t-3.0-installing/GUID-3B7F12AD-D8F7-44B9-A56B-E71F64C2F6A0.html

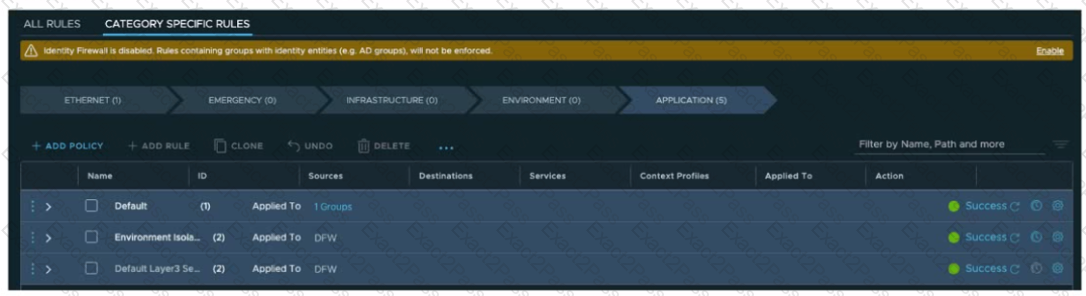

In NSX-T, Identity firewall rules allow you to specify security controls based on the identity of the user, rather than the IP address or other network-based attributes. User identity can be used as a source in the firewall rule.

NSX Gateway Firewall is a distributed firewall that provides security for east-west traffic within a virtual environment.

B. Firewall rules in Pre Rule category are applied to all gateways. This category contains system-defined rules that are always applied first to all gateways and cannot be modified. These rules include the default deny all rule and others that control basic connectivity.

D. Security Groups can be used in Applied-To column. Security groups allow you to group together VMs that have similar security requirements and then apply firewall policies to those groups. This way you can apply the same security rules to multiple VMs at once, instead of configuring the rules on each individual VM.

References:

VMware NSX-T Data Center documentation https://docs.vmware.com/en/VMware-NSX-T-Data-Center/index.html

VMware NSX-T Data Center Gateway Firewall documentation https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.1/com.vmware.nsxt.firewall.doc/GUID-4C5D5A5F-8FDF-4F2A-9C5A-2C1903A3E5A5.html

For further reading, see the VMware NSX-T Data Center Administration Guide ( https://pubs.vmware.com/NSX-T-Data-Center/index.html#com.vmware.nsxt.admin.doc/GUID-D12A8AE7-B9E9-4C79-8FE4-7F4BECD4F71B.html)  for more information on configuring firewall rules.

For further reading, see the VMware NSX-T Data Center Administration Guide ( https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.1/com.vmware.nsxt.admin.doc/GUID-4A4E9FBE-50B3-4F8F-B6C4-8527E7A08A67.html)  for more information on user accounts and permissions in NSX-T Data Center.

The three CU commands required to configure remote logging on an ESXi host are esxcli syslog config set " loghost-udp:// < log server IP > : < port > " , esxcli network firewall ruleset set -r syslog -e true, and esxcli system syslog reload. The first command sets the remote log server IP address and port for the ESXi host, the second command enables the syslog ruleset, and the third command reloads the syslog configuration. This will ensure that all syslog messages generated by the ESXi host will be sent to the remote log server. References: [1]  https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.security.doc/GUID-CFE0E8FC-7C27-4F45-A037-CACCD8A1E9A2.html  [2]  https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.security.doc/GUID-A2F2A3D2-076A-4FE6-

The two statements that are true about NSX Intelligence are that it assists to build service insertion with Partner SVM and that it supports planning of NSX-T Edge Firewall rules and policy. NSX Intelligence can be used in conjunction with vRealize Network Insight to provide visibility and insights into the network, but it cannot be used to visualize the physical infrastructure. Additionally, while it can help to plan firewall rules and policy, it does not support planning of distributed firewall rules and policy.
