 Create or Modify Dimension Style : Type DIMSTYLE in the command line and press Enter. Create a new dimension style or modify an existing one.

 Set as Annotative : In the Dimension Style Manager, go to the Fit tab and check the Annotative option.

 Apply to Dimensions : Ensure that all dimensions in your drawing use this annotative dimension style.

 Set Annotation Scale : Set the annotation scale for each viewport so that the dimensions scale correctly in each one. Use the Properties palette to set the Annotation Scale for each viewport.

References :

AutoCAD Help Documentation on Using Annotative Dimensions

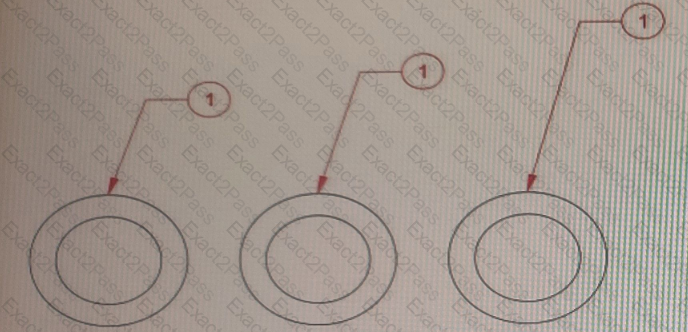

The command that you should use is  B. Collect Leader 1 .  The collect leader option groups multiple leaders into one multileader object with a common landing line 1 .  This option is useful when you want to create a single label or callout for multiple objects 2 .

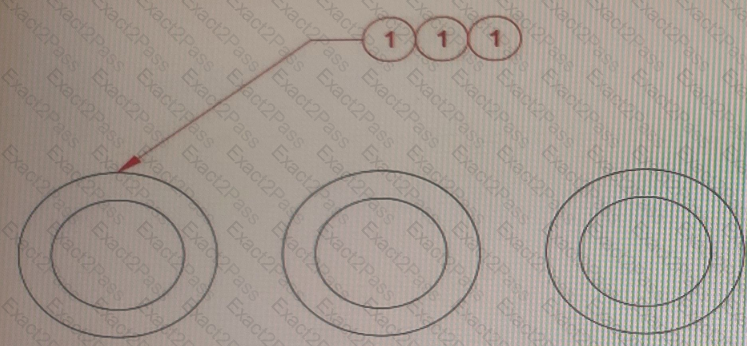

To use this option, you need to select the MLEADER command and then select Collect Leader from the Options menu. Then you can select two or more existing multileaders that have similar properties and press Enter.  The selected multileaders will be collected into one multileader object with a common landing line 1 .

The type of object that is conventionally used for this purpose is  D. A revision cloud 1 2 3 .  A revision cloud is a way to highlight changes or revisions in a drawing by creating a cloud-shaped polyline around them 1 2 .  You can create a revision cloud by moving the mouse or by converting existing objects 2 .  You can also change the style, color, layer and properties of the revision cloud 1 3 .

Issue with PDF Text Objects :

When importing a PDF into AutoCAD, text objects may be converted to polylines.

This happens because AutoCAD interprets the text as vector graphics rather than editable text.

Conversion Process :

Option A : The Combine Text tool (TXT2MTXT) is used to combine multiple text objects into a single multiline text object. It does not convert polylines back to text.

Option C : The Edit Polyline (PEDIT) command and Join option are used to join polylines, not convert them to text.

Option D : The JOIN command is similar to PEDIT and is used for joining polylines.

Correct Tool :

Option B : The Recognize SHX Text tool (PDFSHXTEXT) is specifically designed to recognize text that has been converted to polylines during PDF import. It converts these polylines back into text objects.

Conclusion :

Use the Recognize SHX Text tool to select all polyline text objects and convert them back to editable text.

References :

AutoCAD Knowledge Base on PDF Import and Text Recognition.

AutoCAD 2024 User Guide on PDF Import Tools.

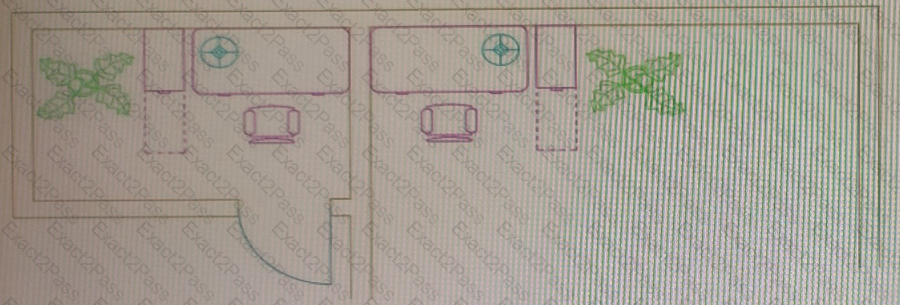

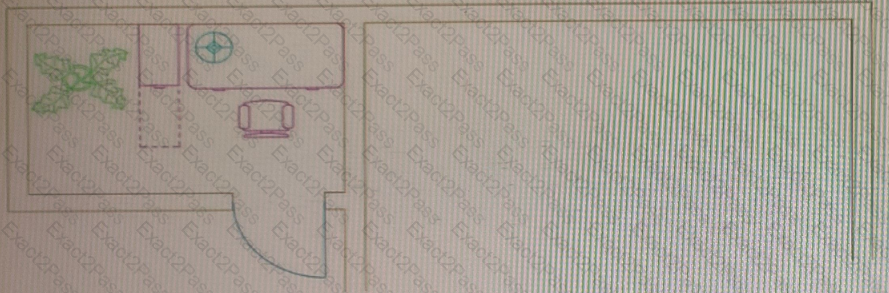

the command that should be used to create a new drawing file from selected objects is  WBLOCK .  This command allows you to export a group of objects as a drawing, which can be inserted into other drawings as a block 2 .

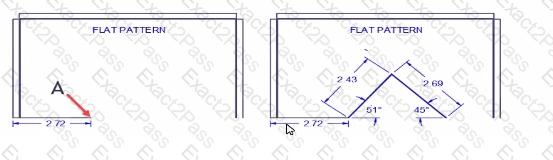

Dynamic input in AutoCAD allows you to enter coordinates and angles directly in the command line, providing real-time feedback on the drawing. To draw lines at specific angles and lengths, you use the format length < angle .

Start Point (A): Begin drawing from point A.

Enter Length and Angle: For the first line, input 2.43 < 51 to draw a line that is 2.43 units long at an angle of 51 degrees from the horizontal.

Enter Length and Angle for Second Line: For the second line, input 2.69 < -45 to draw a line that is 2.69 units long at an angle of -45 degrees from the horizontal.

Using dynamic input in this manner ensures precise drawing and proper alignment as per the given angles and lengths.

UCS is a command that sets a new user coordinate system (UCS) by specifying points or by selecting an object. You can use the Object option to align the UCS with a selected object such as a line.

Based on  3  and  4 , UCSBASE is a system variable that sets the name of the current UCS base. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices. LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-E658D5E7-EE5C-4A06-BF34-F71CDB363A71-htm.html

 Open the WBLOCK Command : Type WBLOCK in the command line and press Enter.

 Define the Block : Select the objects you want to include in the block.

 Specify the Base Point : Select the base point for the block insertion.

 Insert Units : Ensure to set the Insert Units option to match the desired unit for automatic scaling when the block is inserted into other drawings. This setting will control how the block is scaled based on the units of the target drawing.

References :

AutoCAD Help Documentation on Write Block (WBLOCK) command

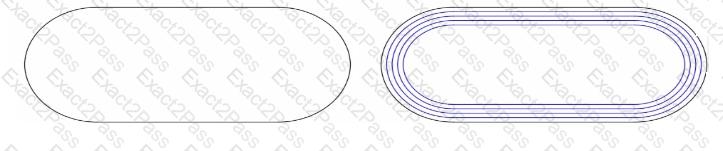

To create multiple parallel lines (lanes) for a running track using the OFFSET command in AutoCAD, and to ensure they are placed on the current layer (LANES), follow these steps:

Initiate the OFFSET command:

Type OFFSET in the command line and press Enter.

Set the offset distance:

When prompted for the offset distance, type 10 and press Enter.

Use the Layer option:

To place the offset lines on the current layer, type L for Layer and press Enter.

Select Current to ensure the new offset lines are created on the current layer (LANES).

Select the Multiple option:

To create multiple offsets at the same distance, type M for Multiple and press Enter.

Create the offsets:

Select the polyline (outside lane) as the object to offset.

Click to the side where the offsets are to be created (inside of the original polyline).

Repeat the clicks to create the necessary number of lanes.

This method ensures that each new lane is created at a consistent distance of 10 units from the previous one and that all new lanes are placed on the current layer.
