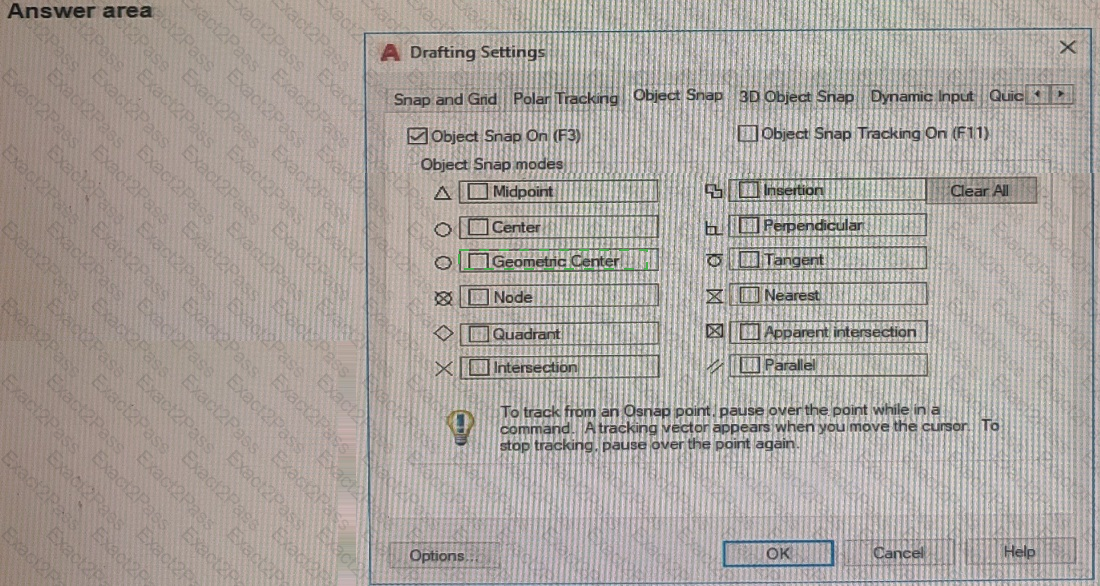

object snaps are modes that allow you to snap to specific points on objects. To snap to the centroid of a closed polyline, you should use the  Geometric Center  object snap mode. This mode will display an asterisk (*) marker when you move the cursor over the geometric center of a closed polyline or spline.

To use this mode, you can either:

Click on the Object Snap icon in the Status bar and select Geometric Center from the menu.

Type GCE at the command prompt or when prompted for a point and press Enter.

Now you can snap to the centroid of a closed polyline by using Geometric Center object snap.

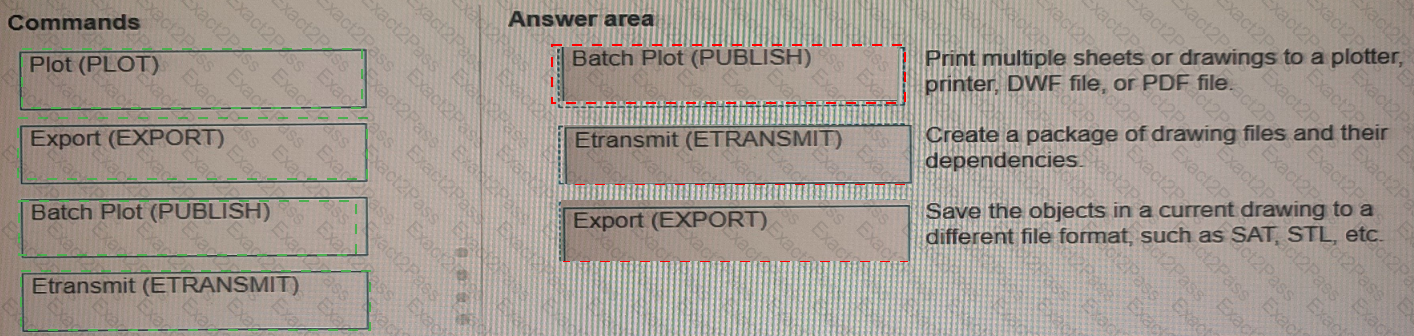

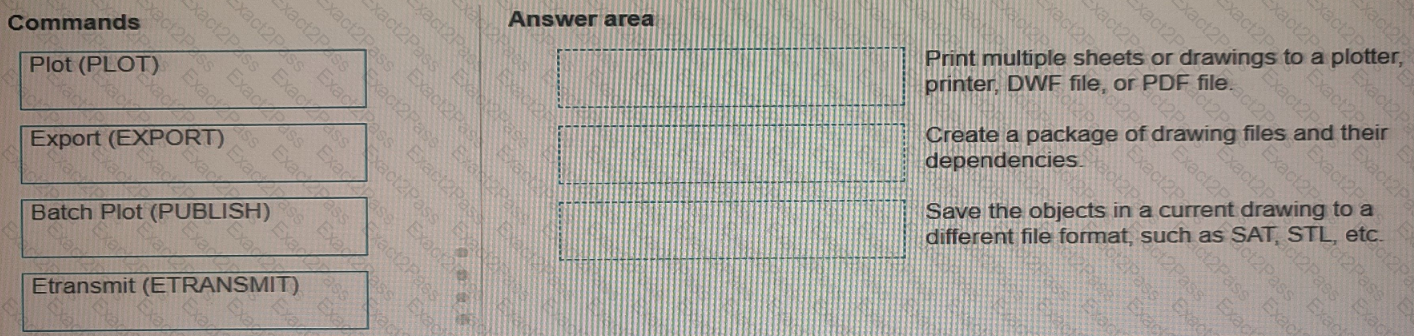

Box 1 : Batch plot

One of the topics covered in this course is  Plotting Drawings 2 . In this topic, you can learn how to print multiple sheets or drawings to a plotter, printer, DWF file, or PDF file.  The applicable command for this function is  Batch plot (PUBLISH) 2 .

https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional

Box 2: Etransmit One of the topics covered in this course is  Sharing Drawings 2 . In this topic, you can learn how to create a package of drawing files and their dependencies.  The applicable command for this function is  Etransmit (ETRANSMIT) 2 . https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional

Box3: Export One of the topics covered in this course is  Exporting Drawings 2 . In this topic, you can learn how to save the objects in a current drawing to a different file format, such as SAT, STL, etc.  The applicable command for this function is  Export (EXPORT) 2 . https://www-int.autodesk.com/certification/learning-pathways/autocad-design-drafting

 Access the Xref Manager : Type XREF in the command line and press Enter.

 Select the Xref : Choose the Xref you want to modify from the list.

 Modify the Path : Click on the Path Type and select Make Relative . This ensures that the references will correctly point to the ALT-1_Xrefs folder relative to the current drawing location.

References :

AutoCAD Help Documentation on Attach and Overlay External References

When creating a path array in AutoCAD, the objects being arrayed typically align with the direction of the path by default. To maintain the original orientation of the objects while following the curved path, you should turn off the " Align items " option.

Select the Object: Choose the object you want to array along the path.

Path Array Command: Use the ARRAYPATH command or go to the Array command and choose Path Array.

Select Path: Select the path (curved line or arc) along which the objects will be arrayed.

Turn Off Align Items: In the Array options, turn off the " Align items " checkbox to ensure that the objects maintain their original orientation.

This will keep the orientation of each object the same as the original, regardless of the curvature of the path.

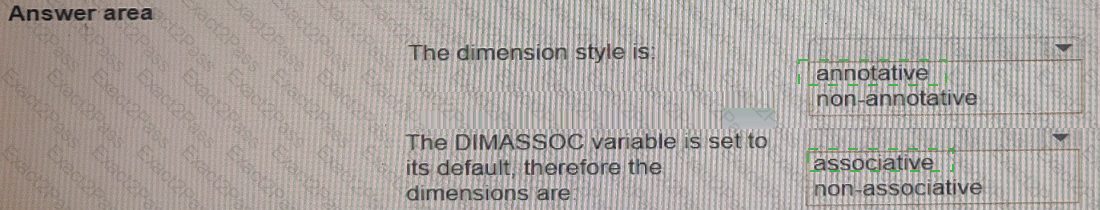

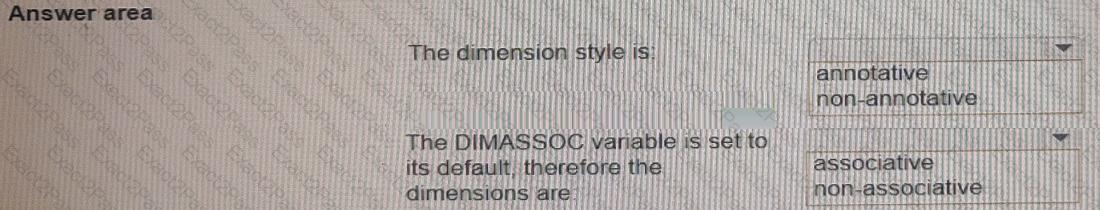

Box 1 = annotative

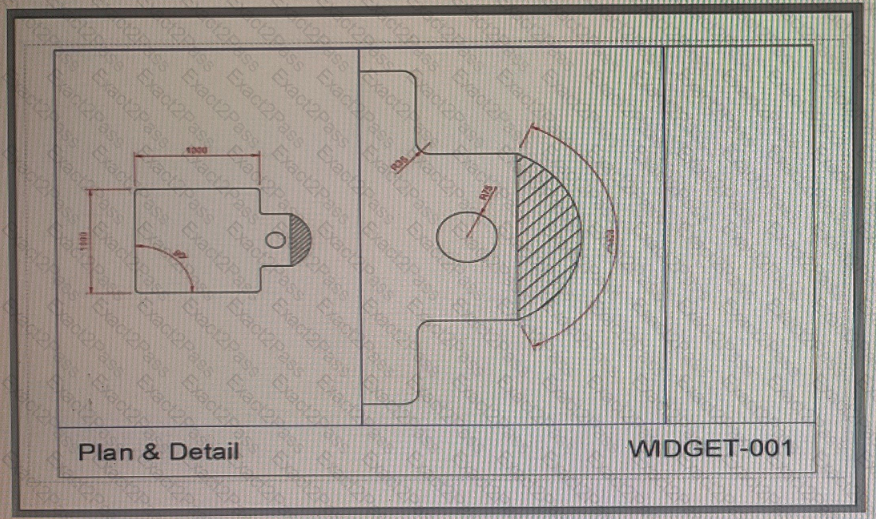

an annotative dimension style is a dimension style that automatically adjusts the size of dimensions based on the viewport scale. An annotative dimension style has an icon next to its name in the Dimension Style Manager dialog box. The dimension style is annotative because the dimension text height is the same for both viewports in the layout, even though they have different viewport scales 1 .

Box 2 = associative The DIMASSOC is at its default value of 2, therefore the dimensions are associative because they are linked to and update with the measured geometry 3 .

When working with arcs in AutoCAD, you can use different methods to draw them. The given exhibit shows a dimensioned arc which looks to be defined by three points: the starting point, the center point, and the ending point. This is typically how the " Start, Center, End " method works.

Start Point: The initial point where the arc begins.

Center Point: The center of the circle from which the arc is a segment.

End Point: The final point where the arc ends.

This method is useful for accurately defining the curve and ensuring it passes through the desired points.

 Open ETRANSMIT Command : Type ETRANSMIT in the command line and press Enter to open the Create Transmittal dialog box.

 Open Transmittal Setup : Click on the Transmittal Setup button to modify the settings.

 Modify Transmittal Setup : In the Transmittal Setup dialog box, make sure to select the option Include fonts to ensure SHX files (fonts) are included in the transmittal package.

 Save Changes : Click OK to save the settings and then create the transmittal package. This will ensure that all necessary SHX files are included with the drawings sent to the client.

References :

AutoCAD Help Documentation on ETRANSMIT Command

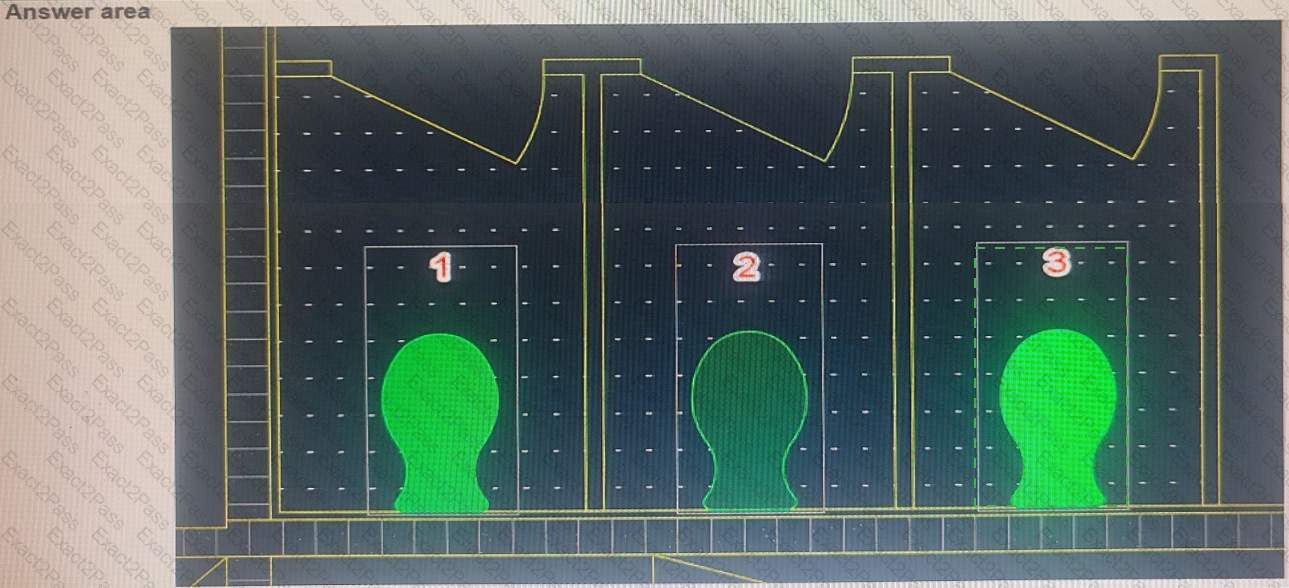

According to the AutoCAD for Design and Drafting documents, layer transparency is a property that makes objects on a layer appear translucent or opaque. The higher the transparency value, the more transparent the layer appears. Therefore, the object that has layer transparency set to 90 is the one that appears the most faded or dimmed in the drawing. In this case, it is  the object on the right . You can click on it to select your answer.

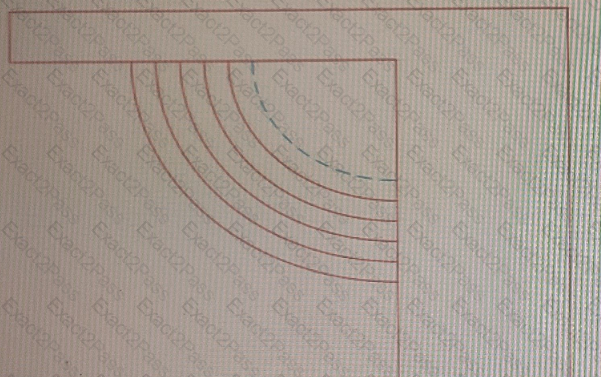

The Current prompt should be used to make sure that the edge of the top step is shown in a different linetype, as shown by the dashed line in the exhibit.  This way, you can set a different linetype for your current layer before using the OFFSET command 4 .

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD-Core/files/GUID-C0E4246D-C420-42BD-A6FC-8B1852EFD005-htm.html
