Task 12: Configure Iterations in Project1 for Azure Boards

Step 1: Navigate to Project Settings

In your Azure DevOps Project (Project1), click on the Project settings gear icon in the lower-left corner.

Step 2: Manage Project Iterations (Sprints)

In the Boards section of the Project settings, click Project configuration .

In the left menu, click on Iterations .

Step 3: Add Iterations

Click on the + New child link to add a new iteration under the root node (e.g., Project1).

Enter the following details:

Name: Sprint 1

Leave the start and end dates empty (or set them as needed for your planning).

Click Save and close .

Repeat the process:

Click + New child again.

Name: Sprint 2

Leave the start and end dates empty.

Click Save and close .

Finally, create Sprint 3 with specific dates:

Click + New child .

Name: Sprint 3

Start date: January 1 of next year (e.g., 2026-01-01).

End date: January 31 of next year (e.g., 2026-01-31).

Click Save and close .

Step 4: Assign Iterations to Work Items

With these iterations created, you can now assign them to work items (e.g., tasks, bugs, features) using Azure Boards.

In Boards , click on Work items .

Open any work item.

In the Iteration Path field, select one of your newly created iterations (Sprint 1, Sprint 2, or Sprint 3).

This ensures that work items can be tracked under the appropriate sprint.

Step 1: Log in to the Azure Portal

Go to https://portal.azure.com .

Log in with your Azure account.

Step 2: Create an Azure App Configuration Instance

In the search bar at the top, type “App Configuration” and select App Configuration from the search results.

Click + Create .

Fill in the required fields:

Subscription: Your Azure subscription.

Resource Group: Create a new one or select an existing one.

Name: Provide a globally unique name (for example, myappconfig-instance).

Location: Choose a region close to your application.

Click Review + Create , then Create .

The instance will take a few seconds to deploy.

Step 3: Access the App Configuration Instance

Once the deployment is complete, click Go to resource .

You are now in the App Configuration resource.

Step 4: Enable Feature Management

In the left menu, click on Feature Manager (Preview) .

Click + Add to create a new feature flag.

Step 5: Create the Feature Flag

Provide the following details:

Feature flag name: feature1

Label: (optional)

Description: (optional)

State: Set to Enabled .

Click on the Add filters link if you want to add targeting filters (optional).

Click Save to create the feature flag.

Step 6: Set the Expiration Date for the Feature Flag

In the Feature Manager list, find the newly created feature1 flag.

Click on the three dots (context menu) next to feature1 and select Edit .

In the Edit feature pane, look for the Expiration date setting. If there is no direct UI for expiration date, you can store it as a custom key-value (metadata).

Here’s how to store expiration as metadata:

In the App Configuration left menu, click on Configuration Explorer .

Locate the key: .appconfig.featureflag/feature1.

Click on the key to edit.

Add a new label or add a custom key in the Content type or tags section to store expiration metadata:

Key: expiration

Value: yyyy-MM-dd (set to today + 7 days)

For example, if today is June 4, 2025, set the expiration as 2025-06-11.

Step 1: Navigate to the Library

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access the Library:

In the left-hand menu, select Pipelines  >  Library.

Step 2: Create a Variable Group

Create a New Variable Group:

On the Library page, click on + Variable group.

Configure the Variable Group:

Name: Enter varGroup1.

Description: Optionally, add a description for thevariable group.

Add Variables:

Click on + Add to add a new variable.

Variable Name: Enter serverName.

Value: Enter server1.

Click OK.

Click on + Add again to add another variable.

Variable Name: Enter dbName.

Value: Enter db1.

Click OK.

Save the Variable Group:

Click on Save to save the variable group.

By following these steps, you will have successfully created a variable groupnamed varGroup1 containing the specified variables

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: Bydefault, Azure DevOps Server uses TCP Port 8080.

To enable streaming of diagnostic telemetry for a single or a pooled database, follow these steps:

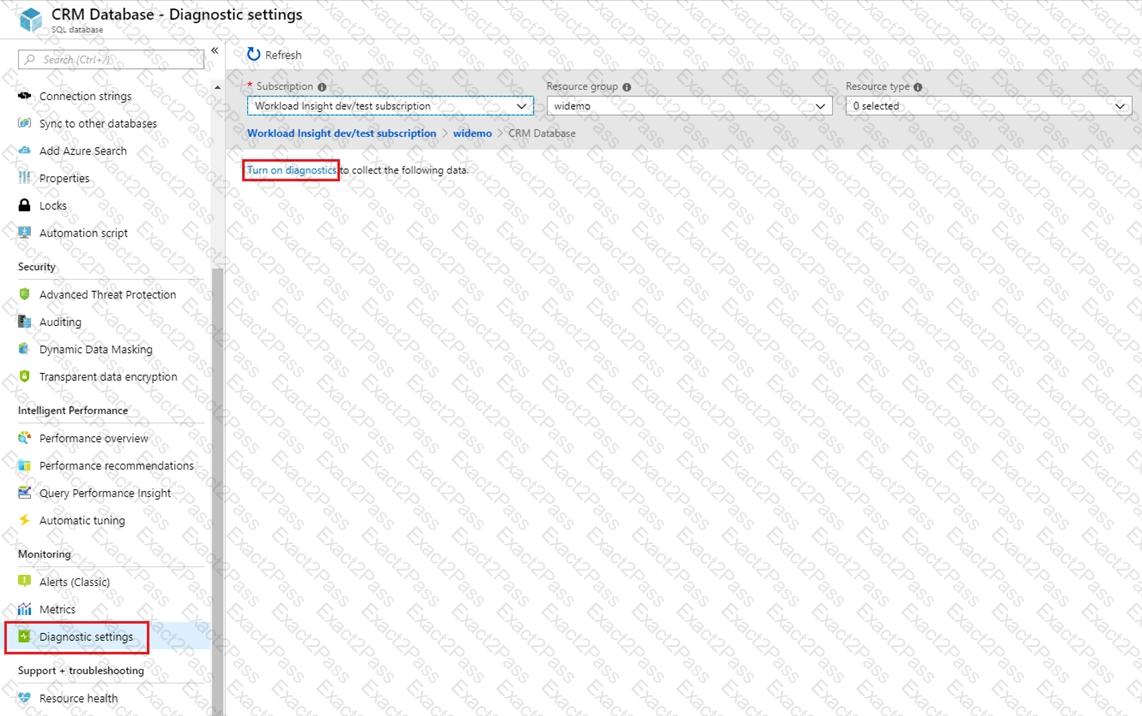

1. Go to Azure SQL database resource.

2. Select Diagnostics settings.

3.Select Turn on diagnostics if no previous settings exist, or select Edit setting to edit a previous setting. You can create up to three parallel connections to stream diagnostic telemetry.

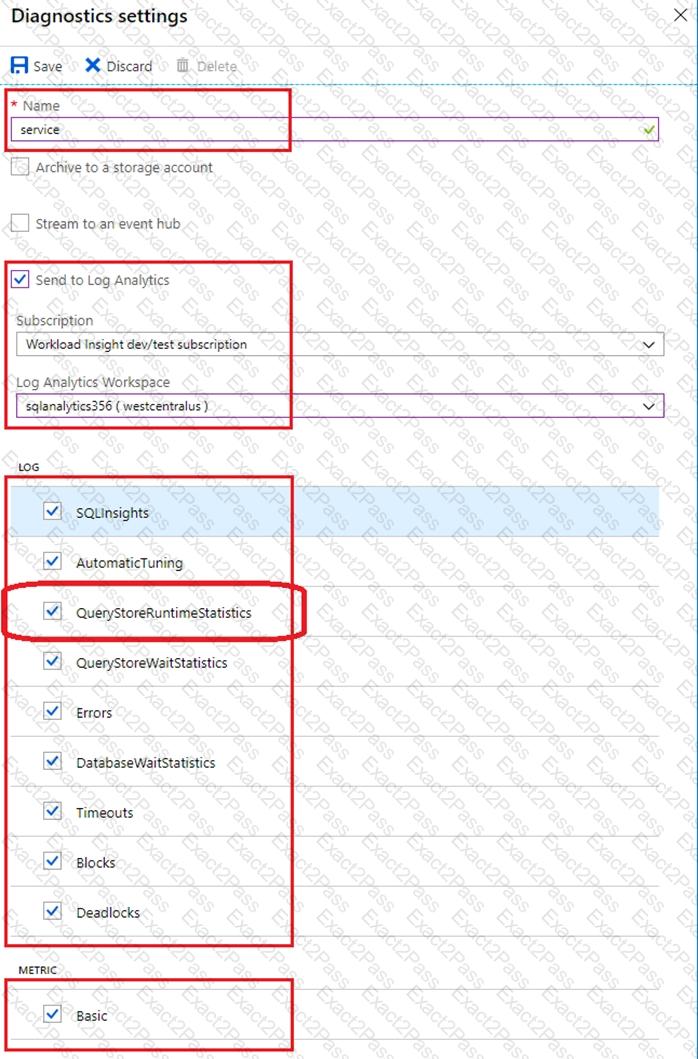

4. Select Add diagnostic setting to configure parallel streaming ofdiagnostics data to multiple resources.

5. Enter a setting name for your own reference.

6. Select a destination resource for the streaming diagnostics data: Archive to storage account, Stream to an event hub, or Send to Log Analytics.

7. For the standard, event-based monitoring experience, select the following check boxes for database diagnostics log telemetry: QueryStoreRuntimeStatistics

8. For an advanced, one-minute-based monitoring experience, select the check box for Basic metrics.

9. SelectSave.

anation:

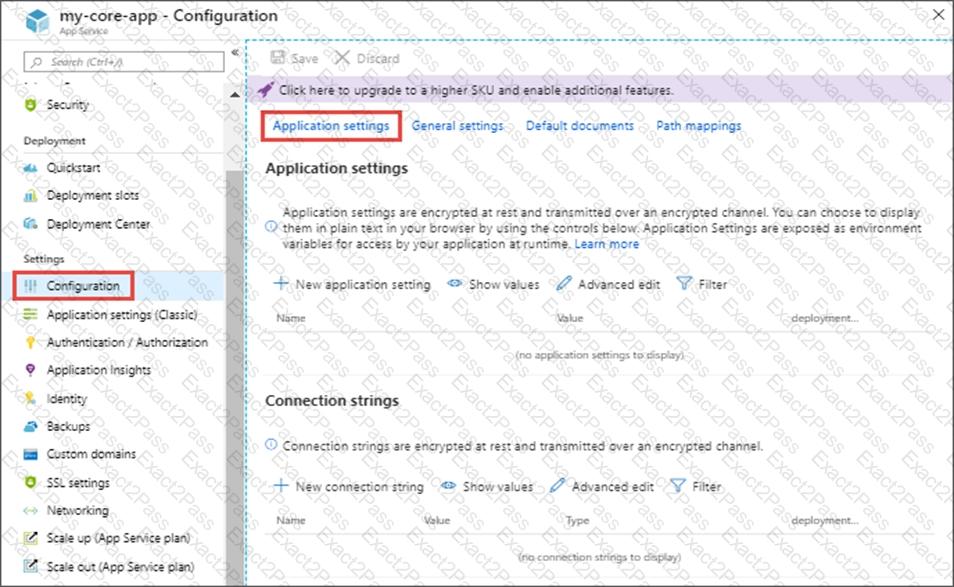

1. In the Azure portal, navigate to the az400-9940427-main app ' s management page. In the app ' s left menu, click Configuration > Application settings.

2. Click New Application settings

3. Enter the following:

Name: MAX_ITEMS

Value: 50
