Concrete compressive strength is verified using standardized specimens that represent the delivered concrete. A typical field/lab testing program prepares a set of cylinders so strength can be checked at standard ages and so at least one specimen remains available if a test is invalid or confirmation is required. In Experiment Design for Civil Engineering , the compressive strength procedure explicitly states that sets of four cylinders should be prepared and then one cylinder from each set is tested at 7, 14, 21, and 28 days . This “four-cylinder set” directly supports the minimum needed to obtain a time-history of strength development through the common curing ages used in practice and referenced by ASTM C39 age tolerances. While many projects may require additional cylinders (for 7-day early breaks, hold cylinders, or additional acceptance tests), the question asks the minimum number, and the documented testing set described is four .

Compaction requirements are verified by measuring in-place density (and often moisture) as the soil is being placed and compacted in lifts , not after the work is buried or after unrelated activities occur. Soil compaction acceptance is typically expressed as relative compaction based on a Proctor/Modified Proctor maximum dry density and acceptable moisture range. Lindeburg notes that soils near optimum moisture require less compactive effort to achieve required relative compaction and that specifications usually define a range of acceptable water contents plus the target relative compaction. Field verification uses in-place density tests (listed as standardized procedures in the same reference). Since trench backfill is placed and compacted progressively in lifts to meet those requirements, the proper time to test is during backfill operations —while corrections (reworking moisture/compaction) are still feasible before the trench is completed and surfaced.

Construction staking is intended to communicate location and grade to the crew in a form they can build from. For pipe and culvert work, the controlling grade is the invert (flow line), because pipe installation, bedding, and hydraulic performance are governed by the invert elevations at key points (typically inlet/outlet ends and along stationing). Standard staking practice records the offset distance from a control line/centerline and the vertical information needed to establish the required grade at the feature being built. Civil surveying references describe that stake markings commonly include distances from control (left/right offsets) and elevation/grade relationships to the feature staked. For culvert/pipeline staking specifically, invert elevations are a primary requirement so that the installed pipe meets design slope and elevation. Therefore, the appropriate stake information is the culvert invert elevations along with the offset to the end of the culvert , enabling accurate placement without occupying the excavation line.

A silt fence is an erosion and sediment control measure intended to retain sediment carried by runoff, reducing offsite sedimentation. Lindeburg describes temporary silt fences as measures using posts and filter cloth (e.g., filter fabric) placed on the upstream side to retain suspended silt particles in runoff water . This purpose is to reduce soil movement (sediment transport) caused by erosion processes during construction, especially oalong drainage paths where siltation is expected. The fence does not “stop water” (runoff still passes through while sediment is filtered), is not primarily a site limit marker, and is not an access control barrier for the public. Therefore, the correct statement is that a silt fence is used to prevent soil from moving through the site due to erosion .

Municipal land development commonly requires an approved statutory plan that establishes the framework for land use, servicing, staging, and transportation within the development area before detailed subdivision/engineering can proceed. In many Alberta municipalities (e.g., Edmonton), a Neighbourhood Structure Plan (NSP) is the statutory neighbourhood-level plan used to initiate and guide new neighbourhood development, and municipal documents describe NSPs as being initiated by landowners/developers and prepared in cooperation with municipal administration for council consideration/approval. While Area Structure Plans (ASPs) can also be used in some contexts, the document explicitly associated with initiating a new neighbourhood-level land development project in the referenced municipal framework is the Neighbourhood Structure Plan . A historical resources overview and transportation network analysis may be required supporting studies, but they are not the primary statutory plan used to initiate the development. Therefore, the correct answer is Neighbourhood Structure Plan .

The optimum moisture content (OMC) is the moisture content at which a soil achieves maximum dry density for a given compactive effort on the Proctor curve. Granular materials (sands/gravels with low plastic fines) typically require relatively low moisture to reach peak density because their structure densifies primarily by particle rearrangement; only a small amount of water is needed to lubricate contacts and aid compaction. Training/compaction manuals define OMC as the peak of the moisture–density relationship and highlight that coarse-grained materials generally peak at lower moisture than fine-grained soils. A maximum dry density range of about 2100–2200 kg/m³ (≈2.10–2.20 Mg/m³) is consistent with well-compacted granular base/subbase, which commonly has an OMC in the single-digit percent range. Therefore, the typical OMC range that best matches granular materials at these densities is 4–7% .

The Atterberg litent boundaries between consistency states of fine-grained soils. The plastic limit (PL) is the water content at the boundary between the plastic and semi-solid states—below this moisture condition, the soil can no longer be rolled/deformed without crumbling , indicating it has transitioned out of the plastic range. Civil engineering references define PL explicitly as the water content corresponding to the transition between the semi-solid and plastic state (i.e., the lower boundary of plastic behavior). Similarly, soils testing references define PL as the boundary between plastic and semi-solid states (with liquid limit defining plastic-to-liquid boundary).

Municipal sidewalks are commonly placed using a workable, moderately stiff concrete that can be finished and edged without excessive segregation or bleeding. Typical sidewalk mixes target a slump that provides enough workability for placement and finishing while remaining stable in thin slab applications. Civil engineering materials references describe slump as the standard field measure of fresh concrete consistency and note common target slumps for typical flatwork are often in the mid-range rather than very low (hard to place) or very high (risk of segregation unless admixtures are used). In many municipal specifications and standard practice for sidewalk flatwork, a slump range around 50–100 mm is commonly used, balancing finishability and quality. Therefore, among the choices, 50–100 mm best matches a typical municipal sidewalk slump range.

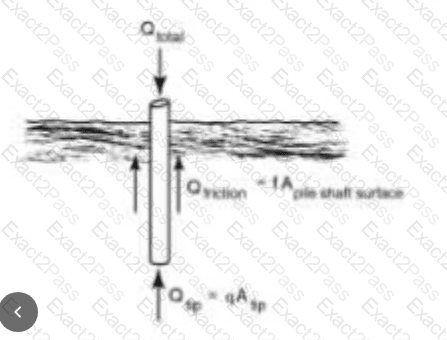

For an axially loaded pile in compression, the resisting capacity comes from two primary components: end bearing at the tip and skin friction along the shaft . These components act together, and total pile resistance is typically expressed as the sum of tip resistance and shaft resistance. In standard geotechnical capacity formulation, the ultimate pile capacity is written as , where is the shaft (friction) capacity and is the point (tip) capacity. Lindeburg’s deep foundation section similarly explains that point-bearing and skin-friction capacities are simultaneously present to some degree in piles, and total support is based on their combined contribution. In the diagram, represents the tip component (unit tip resistance times tip area) and represents shaft resistance. Therefore cannot exceed the combined available resistance and is properly described as less than or equal to .

A site instruction must be issued by the discipline responsible for the design scope affected by the conflict. Here, the technologist works for a structural consulting firm , and the issue is a conflict between the structural design and existing site conditions discovered during construction. Structural conflicts may involve member sizes/locations, bearing details, reinforcement, connections, or foundation interfaces; correcting these requires structural review and direction to maintain code compliance and safety. Construction-phase administration practice is that deviations or conflicts identified on site are documented and routed to the responsible professional for resolution and issuance of direction consistent with the design intent. Because the conflict is within structural scope and must be resolved by structural engineering authority, the appropriate site instruction type is Structural .
