Context of the Problem :

The software component handles sensor management.

It is used in manufacturing processes that work at SIL 2 and avionics systems.

Failure could lead to a " major " incident.

The code contains decisions with multiple conditions and no loops.

Safety Integrity Level (SIL) 2 :

SIL 2 indicates that the software must adhere to stringent safety standards.

Avionics systems also require high safety standards due to the potential consequences of failure.

Testing Options :

MC/DC (Modified Condition/Decision Coverage) :

MC/DC is essential for high-integrity and safety-critical systems like avionics.

Ensures each condition in a decision has been shown to independently affect the outcome.

Required by standards such as DO-178C for avionics software at certain levels.

API Coverage :

Focuses on testing the interfaces between components.

Important but not sufficient alone for high-integrity, safety-critical systems.

Decision Coverage :

Ensures that each decision point (i.e., if statements) is evaluated as both true and false.

Less comprehensive than MC/DC for safety-critical applications.

Statement Coverage :

Ensures that each statement in the code has been executed at least once.

Basic level of coverage, insufficient for safety-critical systems like those at SIL 2.

Best Option :

Given the high safety requirements (SIL 2, major incident potential), MC/DC coverage is the best option. It provides a thorough level of testing needed to meet safety standards.

In the context of safety-critical systems, particularly in the medical domain, reliability is of utmost importance. For such systems, it is crucial to ensure that the software can handle unexpected input values and continue to operate without failure. This is essential to ensure patient safety and compliance with FDA requirements. Vulnerability scans (option A) are more related to security testing, whereas scalability (option C) and installation/de-installation (option D) are important but not specifically related to the reliability and safety criticality of the system in the medical domain.

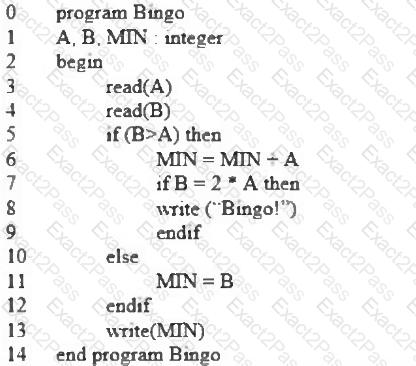

In the provided pseudo-code for the Bingo program, the variable MIN is used in the statement MIN = MIN + A without being initialized with a value beforehand. This represents a classic ' use before define ' anomaly, as the variable MIN must have an initial value before any operation like addition can be performed on it.

To achieve 100% decision coverage, you must ensure every decision in the code has been evaluated both to true and false. Given the code:

If x > y and z = 3 statement1 elseif z = 4 statement2 endif;

Two tests are required:

Test 1 : Set x > y true and z = 3 to evaluate the first decision as true and execute statement1 .

Test 2 : Set z = 4 (ensuring the first condition x > y and z = 3 evaluates to false) to evaluate the elseif condition as true and execute statement2 .

This testing ensures that both branches of the decision have been evaluated.

A common technical issue causing automation projects to fail in delivering the planned return on investment is the lack of maintainability in their design. Automation frameworks and scripts that are not designed with maintainability in mind can become cumbersome to update and scale as the software evolves. This results in increased costs and effort over time to keep the automation relevant and effective, which can erode the expected returns on investment from the automation initiative .

Test automation extends beyond just automating the test execution process; it also includes setting up and managing test environments and may involve configuring hardware, software, network settings, and other necessary services to enable comprehensive and effective testing. This holistic approach is crucial for maintaining consistency and reliability in testing across different stages and conditions .

For an exploratory test session, it is important to consider: a) The user roles specified in the user stories, to ensure testing aligns with user expectations and requirements. b) The level of coverage and efficiency to be achieved, to ensure the session is comprehensive and effective. d) The need for documentation of findings from the session, to ensure insights and issues are captured and communicated effectively.

These factors ensure that the exploratory testing is focused, efficient, and its outcomes are actionable and beneficial to the development process .

The fault attack described involves forcing all possible incoming errors from software/operating system interfaces. The type of failure being sought is one where the application does not handle erroneous or unexpected input correctly, which can lead to crashes or other unintended behavior. Thus, an application crash when unsupported characters are pasted into an input field is a typical failure that this kind of fault attack would aim to uncover.

To achieve full Modified Condition/Decision Coverage (MC/DC), each condition within a decision must be shown to independently affect the outcome of the decision. For the decision IF X < 5 OR Y > 10 THEN, the conditions are:

Condition 1: X < 5

Condition 2: Y > 10

We need to test these conditions in such a way that each condition independently influences the decision outcome. Let ' s analyze the options:

Option A :

X=4 and Y=7 (X < 5 is true, Y > 10 is false; overall decision true)

X=6 and Y=12 (X < 5 is false, Y > 10 is true; overall decision true)

X=5 and Y=10 (X < 5 is false, Y > 10 is false; overall decision false)

This set achieves full MC/DC coverage because each condition is shown to independently affect the outcome.

Option B :

X=4 and Y=11 (X < 5 is true, Y > 10 is true; overall decision true)

X=7 and Y=10 (X < 5 is false, Y > 10 is false; overall decision false)

This set achieves full MC/DC coverage because it demonstrates both conditions independently affecting the outcome.

Option C :

X=5 and Y=8 (X < 5 is false, Y > 10 is false; overall decision false)

X=2 and Y=12 (X < 5 is true, Y > 10 is true; overall decision true)

X=4 and Y=4 (X < 5 is true, Y > 10 is false; overall decision true)

This set does not fully achieve MC/DC coverage as it does not demonstrate the impact of Y > 10 being false while X < 5 is false.

Option D :

X=3 and Y=10 (X < 5 is true, Y > 10 is false; overall decision true)

X=5 and Y=15 (X < 5 is false, Y > 10 is true; overall decision true)

X=0 and Y=15 (X < 5 is true, Y > 10 is true; overall decision true)

This set does not achieve MC/DC coverage because it does not show the decision outcome when both conditions are false.

Therefore, the correct answer is B. X=4 and Y=11, X=7 and Y=10.

Maintainability refers to how easily software can be maintained over time to correct faults, improve performance, or adapt to a changed environment. This quality factor becomes increasingly important the longer the system remains in the production environment because as systems age, they often require updates and modifications to continue meeting user needs effectively. This factor is critical for ensuring the system can be efficiently updated without causing downtime or significant expense.
