WUXGA stands for Wide Ultra Extended Graphics Array and has a resolution of 1920 x 1200 pixels. To determine the aspect ratio, we divide the width by the height:

=1.6:1\text{Aspect Ratio} = \frac{1920}{1200} = 1.6:1 Aspect Ratio = 12001920 ​ = 1.6 : 1

Therefore, the aspect ratio for WUXGA is 1.6:1. This aspect ratio is common for widescreen monitors and provides a wider display format compared to traditional 4:3 screens, enhancing the viewing experience for multimedia content.

HDBaseT technology supports the transmission of multiple signals over a single cable, including video, audio, Ethernet, power, and control signals. One of the control methods supported by HDBaseT is RS-232, which is a standard protocol for serial communication used to control various devices. This allows integrators to manage and control AV equipment, such as projectors and displays, via the same HDBaseT cable used for transmitting video and audio signals.

To ensure a functioning audio solution for staff meetings, the most important question to ask is whether there are any remote participants. This information is crucial because it affects the system ' s requirements for microphones, speakers, and possibly video conferencing capabilities. Ensuring that the system can effectively support remote participation will lead to better integration and a more effective communication setup. Axis Technology Specialist documentation highlights the necessity of considering remote participants to provide a comprehensive audio-visual solution that meets all user needs.

This is the ideal stage for confirming and adjusting cable pathways , as conduit, wall boxes, and cable access are exposed. Once drywall goes up, rework becomes costly and labor-intensive.

“Pre-drywall inspection is the critical time to verify cable paths, conduit runs, and accessibility for future service.”

— CTS Exam Guide, Installation Coordination and Site Readiness

While institutional policies, existing infrastructure, and organizational standards are important considerations in AV project planning, local safety ordinances and building codes are legal requirements that must be adhered to. Non-compliance can result in legal penalties, project delays, or safety hazards. Therefore, they take precedence over other considerations.

When a single panel in a video wall is flickering, the issue is likely isolated to that specific panel or its connections. Starting troubleshooting at the non-responsive panel allows the technician to check for loose cables, faulty connections, or individual panel issues before looking at system-wide components.

CTS Technology Specialist Reference

CTS troubleshooting protocols recommend starting with the component that is exhibiting the issue, which is efficient for isolating localized problems within AV systems.

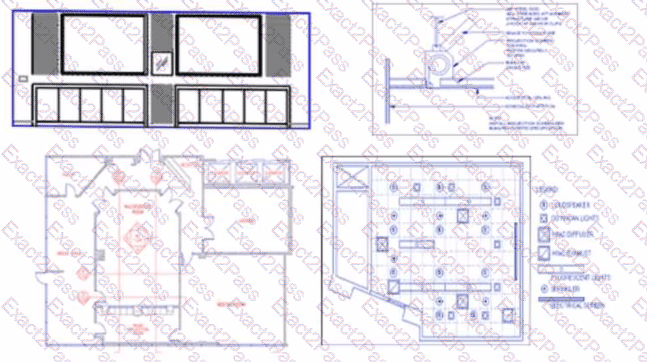

The image in the bottom right represents a Reflected Ceiling Plan (RCP).

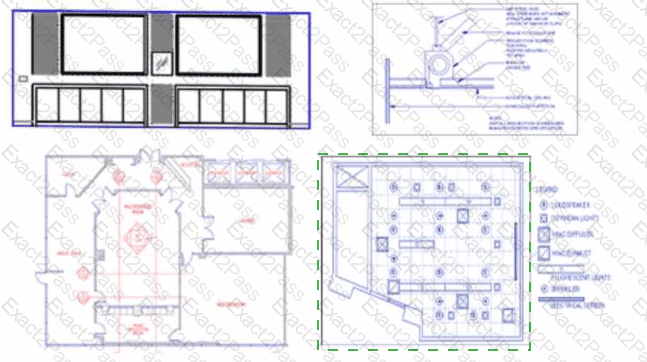

A Reflected Ceiling Plan (RCP) is a drawing that shows the layout of the ceiling as if it were reflected onto a mirror on the floor. It typically includes details like lighting fixtures, HVAC diffusers, sprinkler heads, and ceiling-mounted AV equipment. In this image, the bottom-right drawing displays these elements, with symbols for speakers, lights, diffusers, and other ceiling-mounted devices, which are characteristic of an RCP.

RCPs are essential in AV installations as they allow AV professionals to plan the placement of ceiling-mounted components, ensuring proper coverage and aesthetics within a room. Other drawings, such as those in the top left and bottom left, depict elevations and floor plans, which do not include ceiling-specific information. The top right diagram is a side view detail, possibly of a projector mount, rather than a ceiling layout.

CTS References: AVIXA CTS Exam Guide, Chapter on Project Documentation and Architectural Drawings; CTS Handbook, Section on Reading and Interpreting Architectural Drawings.

A needs analysis should identify all stakeholders involved, as they influence project requirements, decision-making, and the approval process. Understanding stakeholders ensures that all perspectives are considered, leading to a more comprehensive solution.

CTS Technology Specialist Reference

CTS guidelines stress identifying stakeholders early to ensure project alignment with all key parties and address specific needs or preferences.

When conflicts arise between codes and standards, the local authority having jurisdiction (AHJ) takes precedence. The AHJ is responsible for enforcing regulations and has the final say in interpretations to ensure compliance with local requirements.

CTS Technology Specialist Reference

CTS guidelines state that the AHJ has ultimate authority over code interpretation and compliance, which is critical in AV installations to ensure safety and legal adherence.

During an initial site survey, understanding the overall scope of the AV solution provides the foundational insight needed for designing a system that meets client requirements. This ensures alignment with objectives and informs subsequent phases of the project.

CTS Technology Specialist Reference

The CTS curriculum advises focusing on the AV solution scope to guide design and implementation processes effectively, ensuring client needs are addressed.
