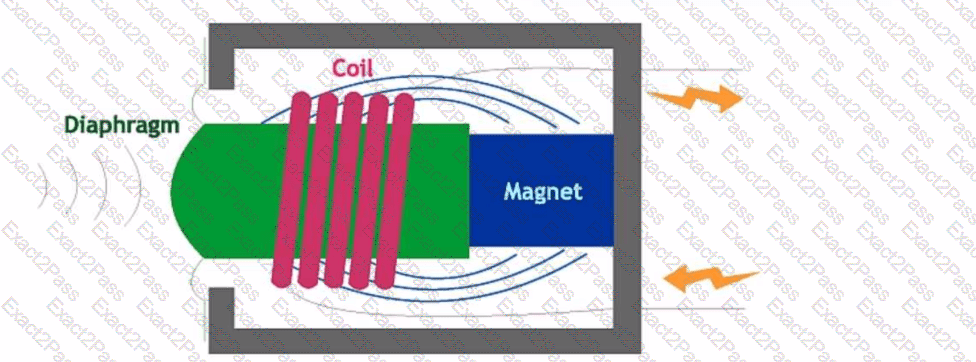

The image shows a dynamic microphone , which works through electromagnetic induction. In a dynamic microphone, sound waves cause the diaphragm to move, which in turn moves a coil of wire within the magnetic field of a magnet. This movement generates an electrical signal that corresponds to the sound. The visible components, such as the diaphragm, coil, and magnet, are characteristic of a dynamic microphone’s internal structure.

CTS Technology Specialist Reference

The CTS curriculum details the workings of various microphone types, explaining that dynamic microphones are durable and suitable for live sound due to their ability to handle high sound pressure levels.

Amplitude refers to the strength or intensity of a sound wave and is directly related to how loud the sound is perceived. The greater the amplitude, the louder the sound. Pitch (Option A) relates to frequency, not amplitude, while tone (Option B) is more about the quality or character of sound. Frequency (Option D) determines the pitch, not the loudness.

CTS References: AVIXA CTS Exam Guide, Chapter on Audio Basics; CTS Handbook, Section on Sound Wave Properties.

=========================

In a cardioid subwoofer array, phase shift is employed along with delay and equalization to control the directivity of the sound, focusing bass energy forward and minimizing it behind. Phase shifting alters the waveforms of sound signals, contributing to the cardioid pattern that reduces bass spill to unwanted areas.

CTS Technology Specialist Reference

The CTS materials on sound system design explain that phase manipulation, alongside delay, is essential for cardioid subwoofer arrays to control low-frequency dispersion effectively.

A condenser microphone requires a power source to operate because it uses an electrostatic principle to convert sound into an electrical signal. This power is typically provided by phantom power supplied by a mixer or an audio interface. Without this power source, the condenser microphone will not function. It is crucial to include a power source in the system design to ensure the microphone operates correctly.

The color of a light wave is determined by its frequency. Different frequencies of light waves correspond to different colors in the visible spectrum. For instance, higher frequencies correspond to blue/violet light, while lower frequencies correspond to red light. Axis Technology Specialist documentation includes explanations of light properties, emphasizing the relationship between frequency and color to ensure proper selection and use of lighting in AV installations.

Top of Form

Bottom of Form

" Shock Loads " for equipment mounts refer to sudden additional loads from earthquakes or personnel hanging from the mounts. Shock loads are unexpected forces that can be significantly higher than normal operating loads and can cause structural failures if not properly accounted for. This is particularly important in areas prone to seismic activity or where equipment might be subjected to additional stresses. Axis Technology Specialist documentation highlights the need to design mounts and supports to withstand such shock loads to ensure the safety and durability of the installation.

A detail drawing provides specific, comprehensive information about particular elements of a project, such as how to hang a loudspeaker line array. These drawings include precise measurements, materials, and installation instructions, allowing technicians to understand the exact requirements and procedures for mounting the equipment. Detail drawings ensure that all aspects of the installation are clearly communicated and followed, preventing errors and ensuring a safe and effective setup.

Upon completion of hardware installation and configuration for a new deployment, the next thing the AV Project Manager should have scheduled is testing and verification. This step ensures that all installed equipment functions correctly and meets the project specifications. It involves checking system performance, resolving any issues, and confirming that the setup works as intended. Axis Technology Specialist documentation underscores the critical role of thorough testing and verification in delivering a successful AV project.

Top of Form

Bottom of Form

Before selecting equipment, it ' s essential to understand how the system will be used . This includes the application (e.g., video conferencing, digital signage, education) and user requirements. This insight drives all design and equipment decisions.

“Understanding the application allows the integrator to tailor the system design to user needs, functionality, and budget.”

— CTS Exam Guide, AV Needs Analysis Chapter

The main benefit of an inventory tracking system in an AV rental and staging business is having an accurate record of the current state and commitments of assets. This allows the business to manage inventory efficiently, track availability, schedule rentals, and ensure that equipment is maintained and ready for use. According to Axis Technology Specialist documentation, maintaining accurate records of asset status and commitments is crucial for operational efficiency and customer satisfaction in the AV rental industry.
