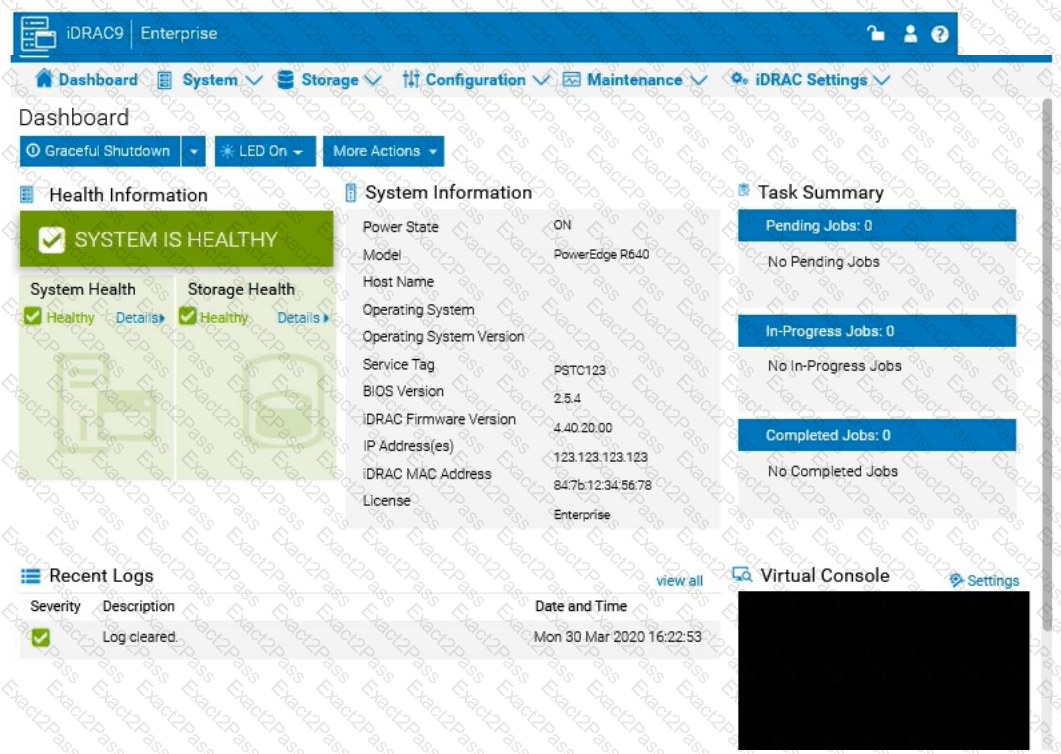

 Launch the Simulator :

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information :

In the top menu bar, select the " Configuration " tab.

From the options that appear, choose " Storage " . This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller :

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled " Cache Memory Size " . This will provide the cache memory size value for the controller.

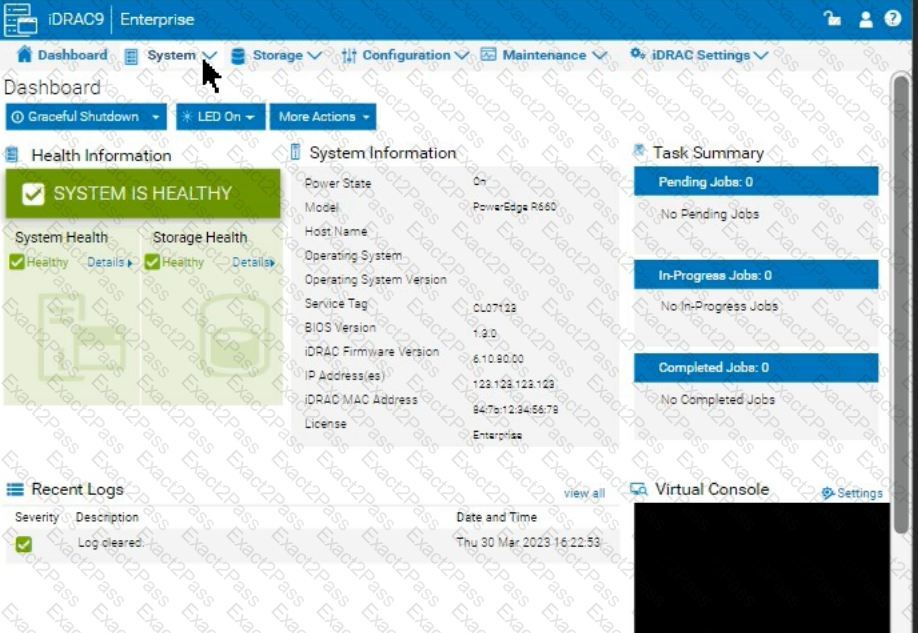

To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration .

Change the NIC Selection to Shared . This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared , additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port . This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.

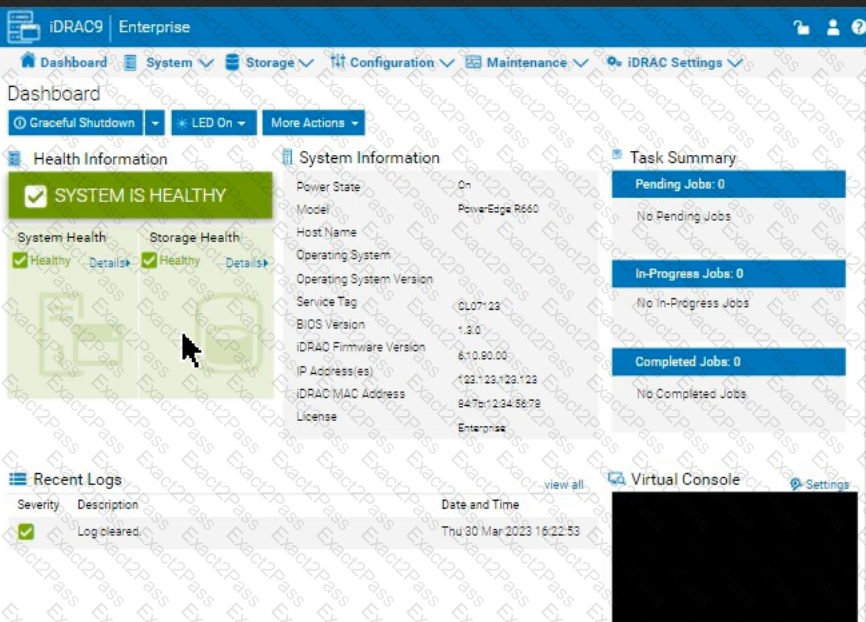

To create and save a server configuration profile with specific components in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access Configuration Profiles:

Go to the " Configuration " tab on the top menu bar.

From the dropdown options, select " Server Configuration Profile. "

Create a New Profile:

Within the Server Configuration Profile section, choose the option to Create a New Profile .

You will likely see options to specify which components to include in the configuration profile.

Select Components:

When prompted, select only the components required for the configuration:

NIC : Network Interface Card settings.

RAID : Storage controller and RAID configuration.

iDRAC : iDRAC management settings.

Ensure that other components are not selected to meet the requirement.

Save the Configuration:

Enter the file name " PE-server " for the profile.

Choose the option to Save or Export the configuration profile. This should save the configuration to the specified name, typically on the server or local storage available through iDRAC.

Verify the Profile Creation:

After saving, verify that the profile appears in the list of server configuration profiles with the name " PE-server. "

Confirm that it includes only the selected components.

By following these steps, you should successfully create and save the configuration profile with the specified components.

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture .

Enable Verbose Mode or Capture Full POST Sequence . This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs , enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save .

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

To reconfigure the iDRAC network settings with a new IP address, gateway, and DNS servers, follow these steps in the iDRAC interface:

Step-by-Step Guide:

Access iDRAC Network Settings:

Log into the iDRAC interface.

Go to the iDRAC Settings tab in the top menu.

Select Network from the dropdown options. This will open the network configuration page.

Change IP Address and Subnet Mask:

In the Network settings, locate the section for IPv4 Settings .

Set the IP Address to 192.168.0.120 .

For the Subnet Mask , since it’s a /24 CIDR, set it to 255.255.255.0 .

Configure the Gateway:

In the same section, find the field for Default Gateway .

Enter the Gateway as 192.168.0.1 .

Update DNS Server Information:

Scroll down to the DNS Server settings.

Enter DNS Server 1 as 10.10.0.1 .

Enter DNS Server 2 as 10.10.0.2 .

Apply the Settings:

After entering all the new network information, click on Apply or Save to confirm the changes.

The iDRAC interface may prompt for a restart to apply network changes. Follow any prompts as needed.

Verify the Configuration:

After applying the changes, check that the iDRAC is accessible at the new IP address 192.168.0.120 .

Confirm that the gateway and DNS settings are properly configured by testing connectivity or accessing the iDRAC from a device within the same network segment.

By completing these steps, you will have reconfigured the iDRAC network settings for the new network segment, allowing remote management of the Dell PowerEdge server at the edge location.

Identifying the AMD-Powered Server that Supports Dual CPU, 16G, and iDRAC Express

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Server Components (26%)

Define the different processor, memory options, and memory configurations

Understanding the Server Models

Option A: R7625

Features :

Processor : AMD EPYC processors

CPU Support : Dual-socket (supports two CPUs)

Generation : 16th Generation (16G)

Management : Comes with iDRAC9, supporting iDRAC Express

Analysis :

Meets all the specified criteria:

AMD-powered

Supports dual CPUs

Is a 16G server

Supports iDRAC Express

Conclusion : Correct Answer

Explanation of Other Options

Option B: R7525

Features :

Processor : AMD EPYC processors

CPU Support : Dual-socket

Generation : 15th Generation (15G)

Management : Supports iDRAC9

Analysis :

Does not meet the 16G requirement (it ' s a 15G server)

Option C: R960

Features :

Processor : Typically Intel Xeon processors

CPU Support : Quad-socket (supports up to four CPUs)

Generation : 14th or 15th Generation

Analysis :

Not AMD-powered

Does not meet the dual CPU and 16G requirements

Option D: R6615

Features :

Processor : AMD EPYC processors

CPU Support : Single-socket (supports one CPU)

Generation : 16th Generation (16G)

Analysis :

Does not support dual CPUs (only supports a single CPU)

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications : Knowing the specifications of each server model is crucial for matching customer requirements.

Server Components (26%)

Define the different processor, memory options, and memory configurations : Understanding CPU support and generation compatibility.

Conclusion

The Dell PowerEdge R7625 is the AMD-powered server that supports dual CPUs, is part of the 16th Generation, and comes with iDRAC Express. It aligns perfectly with the specified requirements.

Understanding Granular User Privileges in iDRAC9

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

Granular User Privileges in iDRAC9

iDRAC9 provides the ability to assign specific privileges to user accounts, allowing for fine-grained control over what actions users can perform.

Explanation of Options

Option A: Access virtual console

Explanation : Access to the virtual console is a specific privilege that can be granted or denied to individual users in iDRAC9. This allows administrators to control who can remotely access the server ' s console.

Conclusion : Correct Answer .

Option B: Readonly

Explanation : The Readonly privilege is a role that allows users to view settings without making changes. It is not considered a granular privilege but a predefined user role.

Conclusion : Not as granular as specific privileges.

Option C: Edit logs

Explanation : iDRAC9 does not provide a specific privilege to edit logs, as logs are critical records that should not be altered for security and auditing purposes.

Conclusion : Incorrect.

Option D: Change dashboard view

Explanation : Changing the dashboard view is a user interface preference and not typically a privilege that is controlled or assigned in iDRAC9.

Conclusion : Incorrect.

Dell Operate References

System Administration (18%)

Configure user access : Understanding how to assign and manage user privileges in iDRAC9.

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods : Emphasizes the importance of controlling access to management functions.

Conclusion

Access virtual console is a granular user privilege configurable in iDRAC9, allowing administrators to control remote console access on a per-user basis.

Disabling Password Changes in BIOS

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

Understanding the Requirement

The system administrator wants to prevent any changes to passwords within the BIOS. This means disabling the ability for any user to modify BIOS passwords, ensuring that the system ' s security settings remain intact.

Methods to Disable BIOS Password Changes

Set a System Board Jumper

Explanation : Dell PowerEdge servers have a physical jumper on the system board (motherboard) known as the Password Disable Jumper . When this jumper is set, it disables the ability to change or clear BIOS passwords.

Purpose : This hardware-level setting overrides any software configurations, providing a secure method to prevent unauthorized password changes.

Implementation Steps :

Power down the server and disconnect it from the power source.

Locate the Password Disable Jumper on the system board. Refer to the server ' s hardware manual for the exact location.

Move the jumper to the " Enabled " position as per the manufacturer ' s instructions.

Reconnect power and boot the server.

Other Options Analysis

Option B: Press the System ID Button

Explanation : The System ID button is used to identify the server in a data center by illuminating an LED or displaying identification information. It does not affect BIOS password settings.

Conclusion : Not a method to disable password changes.

Option C: Ensure that no other users can log in to the iDRAC

Explanation : Restricting iDRAC access prevents remote management but does not disable password changes in the BIOS through local access.

Conclusion : Does not fulfill the requirement.

Option D: Disable the password setting in the System Setup Utility

Explanation : The System Setup Utility allows enabling or disabling password requirements but may not provide an option to disable password changes altogether.

Conclusion : May not effectively prevent password changes, as the setting could potentially be re-enabled.

Dell Operate References

Server Components (26%)

Understanding hardware features such as system board jumpers is crucial for managing server security.

System Administration (18%)

Emphasizes configuring user access and security settings, including BIOS configurations.

Conclusion

Setting the system board jumper is a reliable and hardware-enforced method to disable the ability to change BIOS passwords, ensuring that the security settings remain unaltered.

Understanding the Last Crash Tool in iDRAC

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST

What is the Last Crash Tool in iDRAC?

Last Crash Screen : A feature in iDRAC that captures the last crash screen output from the operating system before a system crash or unexpected reboot.

Purpose : Provides valuable information for diagnosing the cause of a system crash, aiding in troubleshooting efforts.

Operating System Support

The Last Crash Screen feature is dependent on the operating system ' s ability to output crash information to the VGA console, which iDRAC can then capture.

Explanation of Options

Option A: MS Windows

Explanation : While Windows systems do produce crash screens (Blue Screen of Death), capturing this screen via iDRAC requires specific configurations and may not be fully supported.

Conclusion : Less likely to be the correct answer.

Option B: ESXi

Explanation : VMware ESXi can produce Purple Screen of Death (PSOD), but capturing this via iDRAC ' s Last Crash Screen feature is not typically supported without additional configuration.

Conclusion : Less likely to be the correct answer.

Option C: SUSE Linux

Explanation : SUSE Linux supports kernel crash dumps and can output crash information to the console, which iDRAC can capture using the Last Crash Screen feature.

Conclusion : Correct Answer .

Option D: Unix

Explanation : " Unix " is a broad term encompassing various operating systems. Without specifying, it ' s unclear which Unix variant is being referred to, and support may vary.

Conclusion : Less specific; not the best answer.

Dell Operate References

Server Troubleshooting (32%)

Explain Configuration Validation, crash capture, and minimum to POST : Emphasizes the importance of understanding features like the Last Crash Screen for troubleshooting.

System Administration (18%)

Verify health status and iDRAC license : Ensuring that the necessary features are enabled and supported on the operating system in use.

Conclusion

SUSE Linux supports the Last Crash Screen tool in iDRAC, allowing for the capture and analysis of crash information directly from the server ' s console output.

Selecting the Appropriate PowerEdge Model for GPU Density and High-Capacity Storage

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Position the server in the market landscape

Understanding Customer Requirements

Optimize GPU Density for Maximum Performance : The customer needs a server that supports a high number of GPUs for intensive computational tasks.

High-Capacity Storage : Requires substantial storage capabilities within the server.

Evaluation of PowerEdge Models

Option A: XR12

Explanation : The PowerEdge XR12 is a ruggedized server designed for edge computing environments. It offers limited GPU support and is optimized for space-constrained, harsh conditions.

Conclusion : Not suitable for maximizing GPU density and high-capacity storage.

Option B: R660

Explanation : The PowerEdge R660 is a 1U rack server optimized for performance and density but has limited GPU support due to its size. It is ideal for virtualization and database applications but not for high GPU density.

Conclusion : Does not meet the GPU density requirement.

Option C: XE9640

Explanation : The PowerEdge XE9640 is designed for extreme compute performance and supports high GPU density. It can accommodate multiple high-performance GPUs and offers substantial storage options, making it ideal for HPC, AI, and data analytics workloads.

Features :

Supports up to eight double-width GPUs.

Offers high-capacity storage configurations.

Conclusion : Correct Answer .

Option D: C6620

Explanation : The PowerEdge C6620 is a high-density compute server optimized for scale-out environments. It focuses on compute density rather than GPU density and has limited support for GPUs.

Conclusion : Not the best fit for maximizing GPU density and storage.

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications : Understanding the capabilities of different server models to meet specific customer needs.

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU : Knowledge of which servers support high GPU density.

Conclusion

PowerEdge XE9640 is the optimal choice for the customer ' s requirements, providing maximum GPU density and high-capacity storage for peak performance.
