MAC Masquerade allows a traffic group to use a shared MAC address to speed up failover. When the system DB variable tm.macmasqaddr_per_vlan is enabled, the BIG-IP generates a unique MAC address for each VLAN by algorithmically modifying the base MAC address using the VLAN ID .

The calculation for VLAN 1501 works as follows:

Base MAC: The administrator set the base to 02:12:34:56:00:00.

VLAN ID Conversion: The decimal VLAN ID (1501) must be converted into hexadecimal.

$1501 \div 16 = 93$ remainder 13 ( D in hex)

$93 \div 16 = 5$ remainder 13 ( D in hex)

$5 \div 16 = 0$ remainder 5

Result: $1501$ (Decimal) = 05DD (Hex).

Substitution: The BIG-IP replaces the last two octets of the base MAC address with the hexadecimal representation of the VLAN ID.

Final Result: 02:12:34:56:05:dd.

In the BIG-IP system object hierarchy, health monitors can be applied at three levels: Node , Pool , and Pool Member .

Pool Level (Properties): Applying a monitor at the Pool > Properties level is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked "down" specifically for that pool.

Node Level: If a monitor is applied at the Node level ( Local Traffic > Nodes ), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

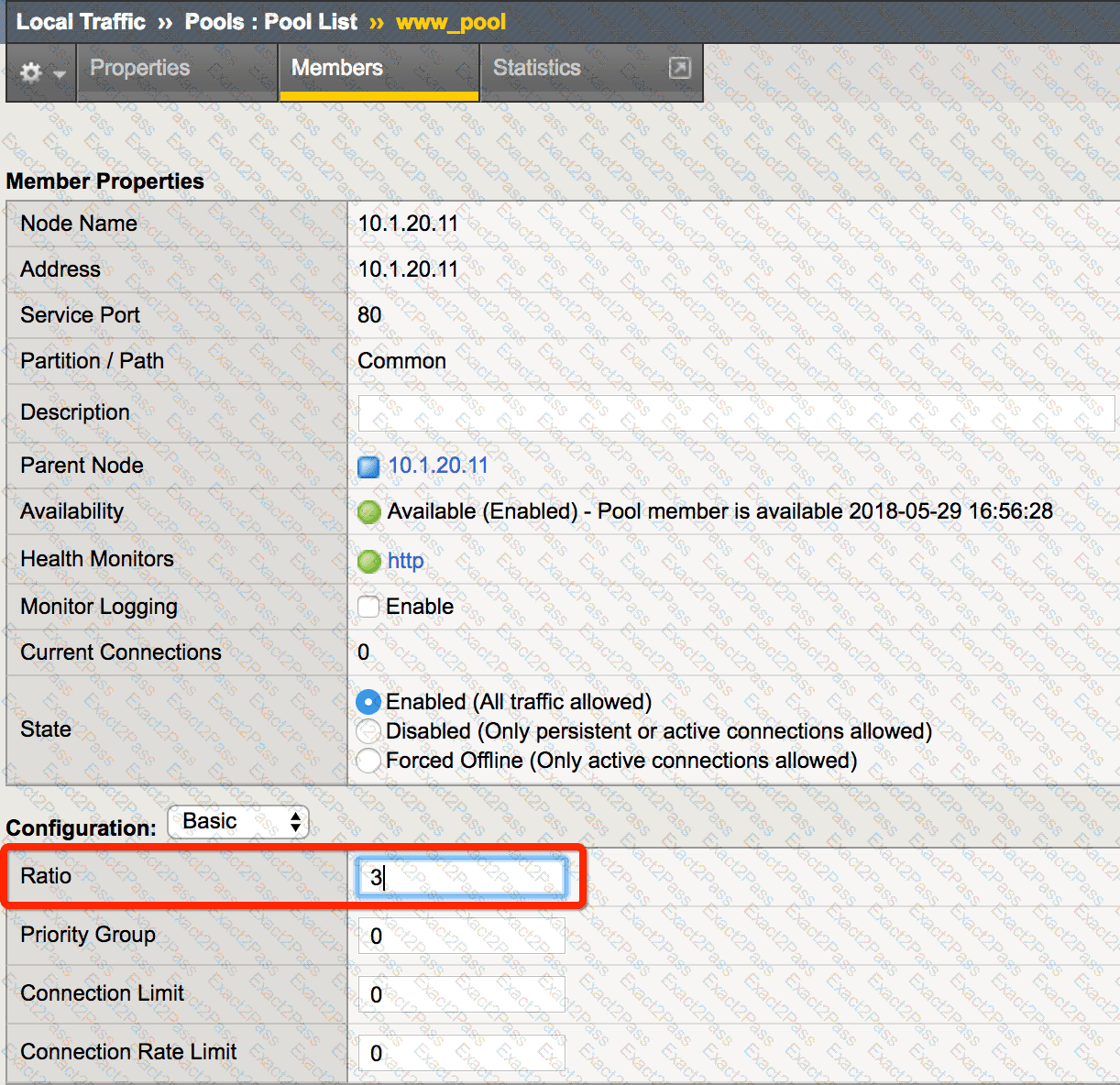

Member Level: Applying a monitor at the Pool > Members level allows for specific "per-member" monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case: For a standard database pool like DB_Pool, the administrator should navigate to Local Traffic > Pools > DB_Pool > Properties and select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the "Health Monitors" configuration section.

SNAT Automap is a feature that automatically selects a self-IP address to use as the source address for translated packets. The selection logic follows a strict hierarchy to ensure that traffic is routable back to the BIG-IP:

Egress VLAN Priority: The BIG-IP first looks at the VLAN through which the traffic is exiting toward the pool member (the egress VLAN).

Floating Self-IP Preference: If the egress VLAN has a floating self-IP address , the BIG-IP will always prefer it for SNAT Automap. This is critical for High Availability (HA) because, during a failover, the floating IP moves to the new active device, allowing existing connections to be maintained or correctly timed out.

Non-Floating Fallback: If no floating self-IP is available on the egress VLAN, the system will use a floating self-IP from a different VLAN. If no floating IPs exist at all, it will then fall back to the non-floating self-IP.

Key Data Plane Concept:

The management IP is never used for data plane traffic. In this scenario, since the administrator has configured a floating self-IP, that specific address becomes the source for all SNAT Automap traffic leaving that VLAN to ensure symmetric routing during HA events.

The behavior of a health monitor is determined by its Send String and Receive String .

Default HTTP Monitor: The pre-configured default HTTP monitor on a BIG-IP system has an empty Receive String .

Success Criteria: When the Receive String is blank, the BIG-IP system considers the health check successful if it receives any valid HTTP response from the server.

Status Code Interpretation: Because a 404 Not Found is a valid HTTP status code (it is a properly formatted response from a running web server process), the BIG-IP interprets this as the application being "alive".

Result: All three members (including the two returning 404s and the one returning 200) will be marked as UP/Available (Green).

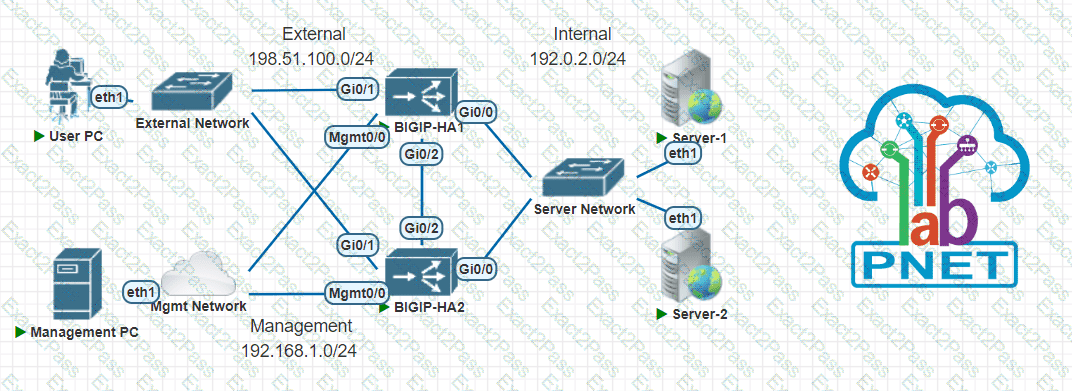

In an Active/Standby BIG-IP design, application availability during failover depends on both units having equivalent data-plane connectivity for the networks that carry application traffic. Specifically:

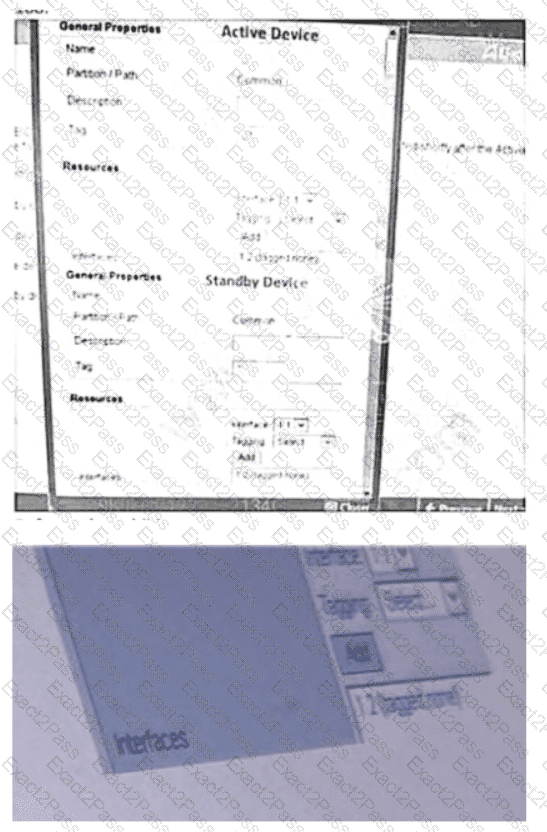

VLANs are bound to specific interfaces (and optionally VLAN tags).

Floating self IPs / traffic groups move to the new Active device during failover.

For traffic to continue flowing after failover, the new Active device must have the same VLANs available on the correct interfaces that connect to the upstream/downstream networks.

What the symptom tells you:

Traffic works when Device A is Active

Traffic fails when Device B becomes Active

Failback immediately restores traffic

This pattern strongly indicates the Standby unit does not have the VLAN connected the same way (wrong physical interface assignment), so when it becomes Active, it owns the floating addresses but cannot actually pass traffic on the correct network segment.

Why Interface mismatch is the best match:

If the Active unit is already working, its interface mapping is correct.

The fix is to make the Standby unit’s VLAN/interface assignment match the Active unit.

That corresponds to changing the Standby device interface to 1.1 .

Why the Tag options are less likely here (given the choices and the exhibit intent):

Tag issues can also break failover traffic, but the question/options are clearly driving toward the classic HA requirement: consistent VLAN-to-interface mapping on both devices so the data plane remains functional after the traffic group moves.

Conclusion: To avoid an outage on the next failover, the BIG-IP Administrator must ensure the Standby device uses the same interface (1.1) for the relevant VLAN(s) that carry the application traffic, so when it becomes Active it can forward/receive traffic normally.

In a High Availability (HA) environment, a failover event occurs when the active BIG-IP system stops processing traffic and the standby unit takes over. This transition can cause a brief disruption in network traffic because the surrounding switches need to update their ARP tables to associate the Virtual IP (VIP) and floating Self-IPs with the MAC address of the new active unit.

MAC Masquerade Functionality: To minimize this impact, an administrator can configure MAC masquerading . This feature allows the administrator to assign a unique, "shared" MAC address to a traffic group.

Seamless Transition: When a failover occurs, the new active unit begins using this shared MAC address immediately. Since the MAC address for the traffic group remains the same regardless of which physical device is active, the upstream switches do not need to update their ARP tables or learn a new MAC-to-port mapping.

Packet Loss Reduction: By maintaining a constant MAC address, MAC masquerading significantly reduces the time it takes for traffic to resume, effectively eliminating the "gratuitous ARP" dependency and minimizing packet loss during the handover.

Why other options are incorrect:

External monitors: These are used for advanced health checking of pool members and do not directly impact the speed or smoothness of a device-level failover.

OneConnect profile: This is a performance optimization tool that aggregates multiple client-side requests into a single server-side TCP connection; it is not a failover mechanism.

Clone pool: This is used to replicate traffic for IDS or monitoring purposes and has no role in high availability or failover optimization.

In BIG-IP terminology, a Trunk is the object used to implement Link Aggregation (IEEE 802.3ad/802.1AX). When a network engineer refers to "interface binding" or "EtherChannel" with LACP, the BIG-IP equivalent is a Trunk.

LACP (Link Aggregation Control Protocol): This is a protocol that allows the BIG-IP system to communicate with the upstream switches to negotiate the bundling of multiple physical links into a single logical link.

Resilience and Redundancy: By creating a trunk that includes interfaces connected to two different switches (typically configured as a VPC, VSS, or MLAG cluster on the switch side), the administrator ensures that the BIG-IP remains reachable even if one physical interface or one switch fails.

Data Plane Logic: The BIG-IP treats the trunk as a single Layer 2 interface. VLANs are then associated with the trunk rather than individual physical ports.

Why the other options are incorrect:

Option B: Trunks aggregate physical interfaces. While VLANs are associated with trunks, the trunk configuration itself does not "list" MAC addresses of the switches; it uses LACP to negotiate the connection.

Options C & D: Virtual Servers are Layer 4-7 objects used for traffic processing and load balancing. They do not possess "LACP profiles," nor are physical interfaces or management IPs treated as pool members for the purpose of link aggregation.

When managing a large environment with hundreds of Virtual Servers, the most efficient way to identify the relationship between an iRule and the objects it manages is to view the properties of the iRule itself.

iRule Properties: Within the BIG-IP Configuration Utility, navigating to Local Traffic > iRules and selecting a specific iRule provides a "Statistics" or "Usage" tab (depending on the version). This view explicitly lists all Virtual Servers currently associated with that specific iRule.

Centralized Management: Instead of manually checking 235 individual Virtual Servers under the "Virtual Servers" menu, the iRules menu acts as a central point of reference for that specific logic.

Data Plane Impact: Because iRules can modify traffic flow, headers, and load balancing decisions, seeing the full list of affected Virtual Servers is critical before making adjustments to avoid unintended side effects across the application portfolio.

A Self IP is an IP address on the BIG-IP system that you associate with a specific VLAN .

VLAN Association: A Self IP cannot exist independently; it must be bound to a VLAN to define which network segment the BIG-IP can communicate with.

Layer 2 to Layer 3 Mapping: While a VLAN is associated with physical interfaces or trunks (Layer 2), the Self IP provides the Layer 3 identity for the BIG-IP on that VLAN.

Traffic Processing: Self IPs are used by the BIG-IP for health checking backend servers, acting as a default gateway for servers, and for HA heartbeat communication.

In the F5 BIG-IP ecosystem, a trunk is a logical grouping of two or more physical interfaces that the system treats as a single data path. This configuration is based on the Link Aggregation Control Protocol (LACP) or static link aggregation.

Trunks provide two primary benefits to the data plane:

Increased Bandwidth: By aggregating multiple physical interfaces (e.g., combining two 10Gbps interfaces), the aggregate throughput of the logical connection is increased. This allows the BIG-IP to handle higher traffic volumes than a single interface could support.

Link Redundancy: Trunks provide high availability at the physical layer. If one physical interface within the trunk fails or the cable is disconnected, the BIG-IP system automatically redistributes traffic across the remaining active interfaces in the trunk. This prevents a single cable or port failure from causing a network outage.

Why the other options are incorrect:

Option C: While VLAN tags are often used on trunks, the ability to use tagged VLANs is a property of the VLAN configuration and 802.1Q tagging, not the trunk itself. A single interface can support tagged VLANs without being part of a trunk.

Option D: Trunks are agnostic to the type of application traffic (such as VoIP) passing through them. They operate at Layer 2 to provide a reliable pipe for any Layer 3+ traffic.
