The BIG-IP system uses the audit log to track administrative actions and configuration changes.

Audit Logging Functionality: When a user modifies the configuration via the Configuration Utility (GUI), the Traffic Management Shell (tmsh), or iControl, the system records the event in the audit log. This includes the name of the user who made the change, the timestamp, and the specific command or object that was modified.

Log Location: The audit log is stored at /var/log/audit .

Evaluation of Other Options:

/var/log/messages (Option A) contains general system and kernel messages but is not the primary source for configuration change details.

/var/log/secure (Option B) primarily logs authentication and authorization attempts (logins and logouts).

/var/log/user.log (Option D) is a generic Linux log file for user-level applications and does not track BIG-IP LTM configuration changes.

According toofficial F5 documentation (K52015891 – Troubleshooting BIG-IP power supply issues),hardware-related alerts for power supplies, fans, and chassis components are logged in /var/log/ltm.

When a BIG-IP device experiences a power supply issue—such as failure, intermittent outages, or fan-related faults—the system generates alerts through internal platform monitoring services. These alerts are written to the/var/log/ltmfile and often appear with messages similar to:

Chassis power supply 2 has experienced an issue. Status is as follows: FAN=bad; STATUS=bad.

This makes /var/log/ltm theauthoritative log filefor identifying and verifying power supply and chassis-related problems on BIG-IP systems.

The other log files are not appropriate for this purpose:

/var/log/daemon.logcontains general daemon messages but isnot the primary sourcefor chassis hardware alerts.

/var/log/kern.loglogs kernel-level events, not platform power status.

/var/log/auditrecords administrative actions and configuration changes.

Conclusion:

Per F5-supported guidance, when suspecting power supply outages or chassis hardware issues, the BIG-IP Administrator shouldalways check /var/log/ltm first.

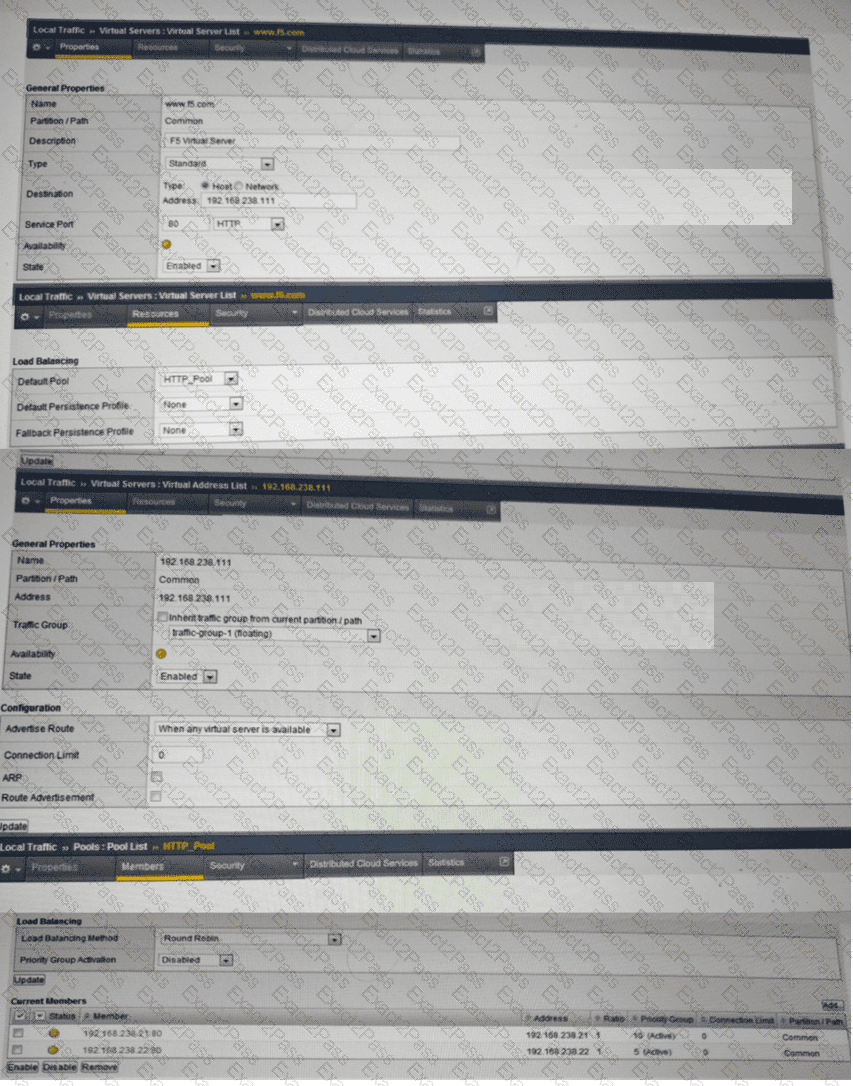

Based on the configuration screens provided in the exhibit, the primary reason for the connectivity failure is the disabled ARP setting on the Virtual Address.

Virtual Address ARP Setting: In a standard BIG-IP deployment, the Address Resolution Protocol (ARP) must be enabled for the Virtual Address (192.168.238.111 in this case). When enabled, the BIG-IP system responds to ARP requests from the local network gateway or adjacent devices for that specific IP address.

Exhibit Analysis: Looking at the " Virtual Address List > > 192.168.238.111 " properties section, the ARP checkbox is unselected (unchecked) . Because ARP is disabled, the upstream router or client cannot resolve the MAC address for 192.168.238.111, and the traffic never reaches the BIG-IP LTM.

Availability Indicators: Note the yellow circle (status indicator) on both the Virtual Server and the Pool Members. In F5 BIG-IP, a yellow status typically indicates that the object is " Available " (Enabled) but its monitors are not currently identifying it as " Up " (which would be a green circle), or it is in a " Monitor Unknown " state. However, even if a pool is available, the traffic must first reach the Virtual Server, which is prevented here by the lack of ARP.

Incorrect Options Analysis:

Priority Group Activation (A): The exhibit shows this is " Disabled " . While this affects how load balancing picks members between groups, it does not prevent all content from being received; the system would simply use all members in the pool.

Route Advertising (C): While " Route Advertisement " is also unchecked, this is generally only required if the BIG-IP needs to dynamically propagate the Virtual Address route via protocols like BGP or OSPF. For local segment connectivity, ARP is the fundamental requirement.

Pool Failing Health Check (D): While the yellow status suggests the health checks aren ' t " Green " (Successful), the critical misconfiguration shown is at the network layer (ARP), which blocks traffic before health checks or load balancing even come into play for the user session.

In complex network environments, " SNAT Automap " is frequently used to ensure that backend servers send return traffic through the BIG-IP. However, SNAT hides the original client ' s IP address, replacing it with the BIG-IP ' s self-IP. When interpreting traffic flow for security or logging purposes, backend servers often need that original IP. To resolve this without breaking the network-layer routing provided by SNAT, the administrator should apply an HTTP profile to the virtual server and enable the " Insert X-Forwarded-For " option. When this is enabled, the BIG-IP inserts a standard HTTP header containing the client ' s original IP address before forwarding the request to the pool member. This troubleshooting method allows the backend application to log the actual user ' s identity while maintaining a functional L3/L4 traffic flow where the server responds to the BIG-IP ' s local address. This is a standard troubleshooting solution for " web server not working as expected " scenarios where applica8tion logic depends on knowing the geography or specific identity of the connecting user.

Monitoring granular resource utilization is essential when troubleshooting performance degradation for specific applications. While global system stats show overall hardware health, they do not pinpoint which virtual server is overconsuming resources during traffic spikes. To identify the specific application causing a high CPU load, the administrator should navigate to Statistics > Module Statistics > Local Traffic > Virtual Servers7474. This section provides detailed metrics for each virtual server, including CPU cycles used for traffic processing and iRule execution75. Identifying a " top-talker " or a problematic virtual server allows the administrator to take targeted action, such as optimizing an inefficient iRule, adjusting compression levels, or offloading the virtual server to a different device group76. This targeted troubleshooting ensures that one high-demand virtual server does not negatively impact the performance of other services running on the same BIG-IP hardware, maintaining overall system stability and resource availability

The pool member is markedDOWNbecause it is monitored bymultiple health monitors, specifically anHTTPmonitor and anHTTP/2monitor. The status message clearly shows that theHTTP monitor is UP, while theHTTP/2 monitor is DOWN. In BIG-IP, when multiple monitors are assigned to a pool member, the default behavior isAND logic, meaningall assigned monitors must succeedfor the pool member to be considered healthy.

In this scenario, the server is responding successfully to standard HTTP (likely HTTP/1.1) requests but does not support or respond correctly to HTTP/2 requests. As a result, the HTTP/2 monitor fails, which causes the overall monitor status to beDOWN, even though HTTP traffic itself is working.

This behavior is expected and documented in BIG-IP monitoring logic. Unless the monitor rule is explicitly changed to“at least one of”, a single failing monitor will mark the pool member down. Therefore, the correct conclusion is that the pool member isonly serving HTTP traffic, not HTTP/2.

The resolution would be to either remove the HTTP/2 monitor, correct the application to support HTTP/2, or adjust the monitor rule to match the intended health-check logic.

Before upgrading a BIG-IP system to a newer TMOS version, it is critical to review known issues to avoid introducing instability or regressions.F5 Bug Tracker (Option B)is a primary resource for this purpose. It allows administrators to search for documented software defects by TMOS version, module, symptom, or bug ID. Using Bug Tracker, an administrator can identify unresolvedissues, fixed bugs, and behavioral changes that may affect their specific deployment, such as traffic handling, high availability, or module-specific functionality. This directly supports proactive troubleshooting and informed upgrade planning.

F5 iHealth (Option D)is another essential tool used during upgrade preparation. iHealth analyzes uploaded UCS or QKView files and correlates the device configuration and software version with F5’s known issues database. It provides actionable reports highlighting critical defects, upgrade risks, interoperability concerns, and recommended target versions. iHealth is especially valuable because it contextualizes known issues based on the actual configuration running on the device.

The other options are not appropriate for verifying known software issues.F5 End User Diagnostics (Option A)is a client-side troubleshooting tool,F5 University (Option C)is a training platform, andF5 Downloads (Option E)is primarily used to obtain software images and release notes, not to analyze known defects in depth.
