The AFF A250 provides eight Ethernet ports that can be used for Ethernet-based host connectivity, depending on adapter configuration. FC ports are separate and do not count toward Ethernet host connections.

In ONTAP SAN concepts, a Logical Interface (LIF) represents a logical network access point used by clients, hosts, or internal cluster services to communicate with storage. A LIF is not a physical port; rather, it is an abstraction that allows ONTAP to provide network resiliency and flexibility.

A LIF can be defined as either an IP address (used for NAS, management, and intercluster traffic) or a World Wide Port Name (WWPN) (used for SAN protocols such as FC and FCoE). Each LIF is associated with a physical port but can fail over to other ports based on defined policies, ensuring continuous access during failures or maintenance.

Broadcast domains define Layer 2 network groupings for ports, but they do not contain pools of IP addresses. IP address pools are defined in subnets , not broadcast domains. Physical ports provide connectivity, but they do not represent LIFs themselves. Separating network domains is handled by IPspaces , not LIFs.

Therefore, the correct description of a LIF is that it is an IP address or WWPN associated with a port , making option C correct.

SAN LIFs (iSCSI, FC, NVMe) do not use LIF migration . Instead, host multipathing handles path redundancy. Therefore, iSCSI LIFs do not migrate during storage failover.

When adding new nodes to an existing ONTAP cluster, proper cabling to the cluster interconnect switches is mandatory. The cluster interconnect network is a dedicated, private network used exclusively for internal cluster communication such as configuration synchronization, data movement, and quorum maintenance.

In AFF A400 systems, the cluster interconnect ports are fixed high-speed Ethernet ports that are clearly identified and reserved for cluster connectivity. These ports are typically 25GbE or 40GbE depending on configuration and are grouped together physically on the controller chassis.

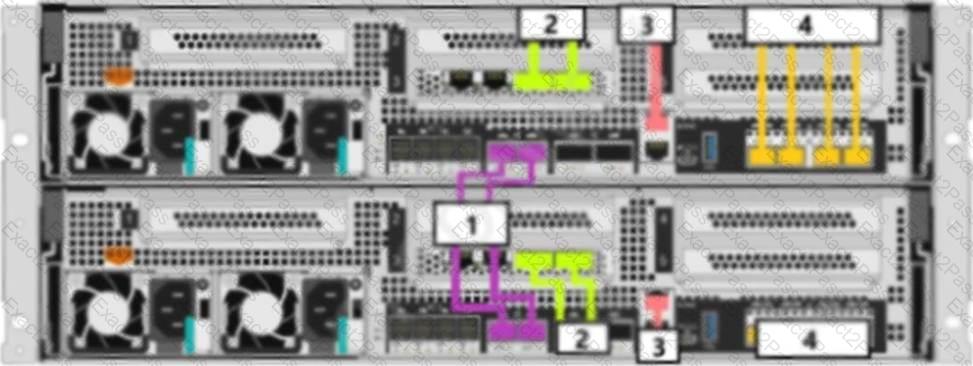

Referring to the exhibit, the ports labeled with number 2 correspond to the cluster interconnect ports. These are the only ports that must be connected to the cluster interconnect switches when adding nodes to an existing cluster. ONTAP requires that each node have redundant connections to both cluster switches to maintain high availability and cluster quorum.

Ports labeled as other numbers in the exhibit represent different functions, such as management ports, data ports, or shelf connectivity ports, none of which are valid for cluster interconnect cabling.

NetApp installation procedures emphasize that incorrectly cabling non-cluster ports to cluster switches can prevent nodes from joining the cluster or cause cluster instability. Therefore, identifying and using the correct cluster interconnect ports is a critical installation step.

As shown in the exhibit, number 2 clearly identifies the correct ports used to cable the new AFF A400 nodes into the existing cluster interconnect infrastructure.

During post-installation and handover, NetApp provides diagnostic and guidance tools through the support dashboard. Two critical widgets used to identify and resolve issues are Guide Me and Active IQ .

Guide Me provides step-by-step workflows, recommended actions, and guided troubleshooting based on system state. It helps administrators follow NetApp best practices during deployment, validation, and issue resolution.

Active IQ delivers proactive analytics, risk detection, configuration validation, and health insights. It identifies potential issues before they impact operations and provides corrective recommendations.

Contracts and Warranties is administrative, and ASE Corner is informational, not operational.

Thus, the correct answers are A and B .

SnapMirror Synchronous requires the base SnapMirror license on both source and destination clusters to enable replication functionality. In addition, the SnapMirror Synchronous license is required on the source cluster , which initiates and controls synchronous replication operations.
