NetApp Windows Host Utilities are used to configure Windows hosts correctly for ONTAP SAN storage and include support for Microsoft Multipath I/O configuration. During Host Utilities installation, multipathing support can be selected when multiple paths exist between the Windows server and the storage system. The package also configures required Windows registry and storage parameters so the host correctly handles ONTAP pathing behavior. Device Mapper Multipathing is primarily associated with Linux and is therefore inappropriate for Windows Server. An iSCSI target represents the storage endpoint and does not itself configure host multipathing. ANA is the NVMe multipathing mechanism and does not apply to an iSCSI LUN. Relevant SAN ONTAP topics include Windows Host Utilities, Microsoft MPIO, iSCSI host configuration, ALUA, redundant SAN paths, and Windows Server interoperability.

The network port reachability show command is the best troubleshooting choice because it validates Layer-2 reachability for ONTAP Ethernet ports against their expected broadcast domains. NetApp documents that this command reports expected reachability, actual reachability, and conditions such as misconfigured reachability, making it directly useful when an NVMe/TCP LIF repeatedly disconnects because of an underlying network-path or VLAN/broadcast-domain problem. ipspace show only displays IPspace configuration, and vserver nvme subsystem show focuses on NVMe subsystem objects rather than Ethernet path health. cluster ping-cluster tests the cluster network and is not the correct diagnostic for a client-facing NVMe/TCP data LIF. Relevant SAN ONTAP topics are NVMe/TCP networking, Ethernet port reachability, broadcast domains, VLAN connectivity, and SAN network troubleshooting.

A LUN created with the ONTAP CLI is not automatically visible to a host merely because the storage object exists. For FCP or iSCSI access, ONTAP must associate the LUN with an initiator group by creating a LUN mapping. NetApp’s SAN provisioning workflow explicitly creates the LUN, creates or identifies the igroup containing the host initiators, and then maps the LUN to that igroup. The mapping assigns host access and a LUN ID that the initiator uses to discover the device. Bringing the LUN online does not grant host access, mounting a volume is not part of SAN LUN presentation, and export policies apply to NAS protocols rather than FCP/iSCSI LUN access. Relevant SAN ONTAP topics are LUN provisioning, igroups, LUN mapping, LUN IDs, and host discovery.

The port address shown for node n2, adapter 2a is 10020. ONTAP reports the FC host port address as a hexadecimal fabric address. Fibre Channel port addresses are interpreted as a 24-bit FC address; when the displayed value is zero-padded to six hexadecimal digits, 10020 becomes 010020. The high-order byte is therefore 01, identifying switch domain ID 1. NetApp’s network fcp adapter show command reference confirms that the command reports the Host Port Address and also exposes a domain-id field for the connected fabric. The other choices do not match the domain portion of this FC address. Therefore, the V9.02 supplied answer of D is incorrect for the displayed output. Relevant SAN ONTAP topics are FCP adapter diagnostics, FC port addresses, domain IDs, and fabric connectivity.

The recommended setting for using the NetApp ONTAP LUN fractional reserve is to set the space guarantee to " volume " . This setting ensures that the required space for overwrites in the volume is reserved, preventing potential write failures when snapshot copies are created. This setup helps in maintaining the performance and reliability of the storage system by ensuring there is always enough space allocated for the LUN.

For further details, you can refer to:

NetApp Community Discussion on Fractional Reserve

NetApp Documentation on Space Management

ONTAP supports iSCSI LIF migration between nodes specifically on All-Flash SAN Array (ASA) platforms running ONTAP 9.11.1 or later. The migration is restricted to ports on the LIF’s home node or its HA partner, and the applicable CLI operation is network interface migrate. Standard AFF and FAS configurations do not provide the same cross-node iSCSI LIF migration capability described in this scenario. For those systems, an iSCSI LIF normally must be created on the required destination node rather than migrated between nodes. The ucadmin modify command changes unified adapter personality and is unrelated to LIF migration. Therefore, option D correctly combines the supported ASA platform with the appropriate ONTAP command. Relevant topics include ASA SAN networking, iSCSI LIF mobility, HA partners, LIF migration, and nondisruptive SAN operations.

The Auto FabricPool tiering policy permits ONTAP to identify cold blocks in both the active filesystem and Snapshot data and move those blocks from the performance tier to the configured object-store capacity tier, including Microsoft Azure Blob Storage. Unlike the all policy, Auto does not immediately classify all blocks as cold; active data remains on the performance tier until it satisfies the cooling criteria. The default cooling period for Auto is 31 days and can be adjusted within supported limits. snapshot-only restricts tiering primarily to Snapshot-related blocks, while none prevents additional blocks from being tiered. Because the customer specifically wants to reclaim performance-tier capacity while retaining active SAN workload behavior, the Auto policy provides the appropriate balance between cloud-tier space reclamation and performance.

NetApp Hardware Universe is the authoritative resource for platform-specific hardware compatibility, supported adapter configurations, and slot priorities. When adding an FC adapter or another I/O module to an ONTAP controller, the administrator must verify that the adapter is supported by the specific controller model and determine the correct or preferred PCIe slot. NetApp installation documentation explicitly directs administrators to Hardware Universe when multiple slots are available so that the documented slot priorities are followed. The Interoperability Matrix Tool validates interoperability among ONTAP releases, hosts, HBAs, drivers, firmware, switches, and related components, but it is not the primary source for controller slot placement. Relevant SAN ONTAP topics include Hardware Universe, controller I/O architecture, FC adapters, PCIe slot priorities, hardware compatibility, and installation planning.

The correct available capacity is 20 GB. Both 20 GB LUNs are space-reserved, so ONTAP reserves their full provisioned capacity rather than only the 10 GB currently consumed in each LUN. The two LUN reservations therefore account for 40 GB. Because the volume uses a 100% fractional reserve and a Snapshot copy exists, ONTAP also reserves sufficient overwrite space for 100% turnover of the reserved objects. That represents another 40 GB. Consequently, 80 GB of the 100 GB volume is committed: 40 GB for the two space-reserved LUNs and 40 GB to guarantee their overwrites. This leaves 20 GB available. NetApp describes fractional reserve 100 as reserving 100% of the space necessary for overwrites of reserved objects. Relevant topics include LUN space reservation, fractional reserve, thick provisioning, and Snapshot overwrite guarantees.

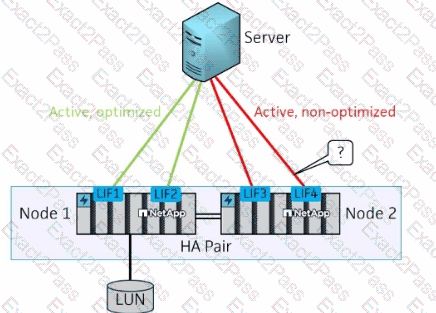

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA
