In Autodesk Revit Electrical Design, when customizing a family—such as a transformer with a housekeeping pad —each element within the family can have its own subcategory under the parent category (in this case, Electrical Equipment ). Subcategories are critical for controlling line weight, color, and material properties independently in project views and visibility settings.

The issue described is that the transformer and its concrete pad currently share the same default category ( Electrical Equipment ) and therefore use identical line weights and colors in plan view. The designer wants the housekeeping pad to display differently — for example, with a lighter or dashed outline.

According to the Autodesk Revit MEP User’s Guide (Chapter: Creating and Editing Families) :

“To control the visibility or graphical appearance of individual components within a family, create a new Object Styles subcategory under the parent category. You can then assign any solid or void geometry in the family to that subcategory. When loaded into a project, the subcategory can be independently controlled through Visibility/Graphics (VG) settings.”

This is the exact and recommended workflow for differentiating line appearances between elements in the same family.

Steps to achieve this:

In the Family Editor , open Manage tab ➤ Object Styles .

Under the Model Objects tab, click New to create a new subcategory (e.g., “Housekeeping Pad”).

Set the desired line weight , color , or material properties.

Select the housekeeping pad extrusion in the model.

In the Properties palette , under Identity Data → Subcategory , choose Housekeeping Pad .

Reload the family into the project.

You can now modify or control its visibility independently in project views.

Why the other options are incorrect:

A. Change to void: A void removes geometry, not graphical appearance.

B. Override Graphics in View: Applies only in a single view, not globally across the project.

D. Visibility from context menu: Controls whether the object is visible, not its line properties.

Thus, the most efficient, parametric, and Revit-standard method is to use subcategories within the family to apply distinct graphical controls.

In Autodesk Revit Electrical Design , the Circuit Number for a branch circuit in a panelboard is automatically generated based on the Circuit Naming Scheme specified in the project’s Electrical Settings . This naming scheme defines how each circuit is labeled by combining predefined fields such as Panel Name , Slot Index , and Phase Label .

From the exhibit, the Circuit Naming Parameter setup is configured as:

Name

Prefix

Sample Value

Suffix

Separator

Panel

Panel

Panel

—

“-”

Slot Index

Slot Index

Slot Index

—

“/”

Phase Label

Phase Label

Phase Label

—

—

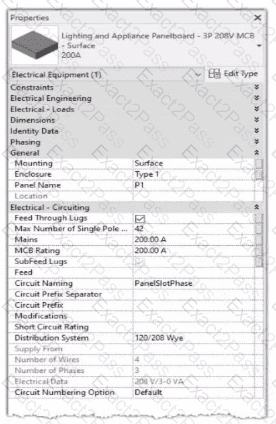

The panelboard properties show that its Circuit Naming method is set to PanelSlotPhase , which means that Revit will generate circuit numbers using the following structure:

[Panel Name] – [Slot Index] / [Phase Label]

From the exhibit:

Panel Name: P1

Slot Index (Breaker Position): 1 (since the question refers to the first breaker position )

Phase Label: A (default value for the first phase in a three-phase 120/208V Wye system)

Therefore, the Circuit Number for a single-pole circuit in the first breaker slot will be:

✅ P1-1/A

This follows Revit’s documented logic for circuit naming. According to the Autodesk Revit MEP User’s Guide (Chapter 17 “Electrical Systems”):

“The circuit numbering format is controlled by the Electrical Settings > Circuit Naming template. The default scheme combines panel name, circuit number, and phase label, using the separators defined by the user.”

Furthermore, the Smithsonian Facilities Revit Template User’s Guide confirms:

“In the default electrical configuration, circuit numbers use the format [Panel Name]-[Circuit Number] /[Phase], such as ‘P1-1/A’ for the first single-pole circuit on phase A.”

Hence, based on the provided configuration and standard electrical setup, the correct circuit number for the first single-pole breaker position in panelboard P1 is P1-1/A .

Discipline: Common

Type of Parameter: Yes/No

When an electrical designer is developing a panelboard family in Autodesk Revit and wants to control the visibility of an element—such as a clearance zone (typically used for equipment maintenance space, NEC 110.26 compliance, or access areas)—the correct method is to create a Family Parameter with a Yes/No (Boolean) value under the Common discipline .

According to the Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”):

“Use a Yes/No parameter to control the visibility of geometry or symbolic lines in a family. When checked, the geometry displays in the project; when unchecked, it is hidden.”

This visibility control is typically applied to reference geometry such as safety clearance volumes or working spaces around electrical panels. These geometries are modeled within the family environment and linked to visibility parameters that the designer can toggle on or off in the Family Types dialog.

Additionally, the parameter must be created under the Common discipline, not Electrical or HVAC, because visibility controls are not discipline-specific—they apply to all Revit element types.

“Discipline defines the context of the parameter type. Visibility parameters are categorized under Common , as they are used across multiple disciplines.”

Step-by-step setup:

1️ ⃣ In the Family Editor, open the Family Types dialog.

2️ ⃣ Click Add Parameter → Name it Clearance Zone Visible .

3️ ⃣ Under Parameter Type , select Family Parameter .

4️ ⃣ Choose Discipline: Common and Type of Parameter: Yes/No .

5️ ⃣ Assign this parameter to the Visible checkbox of the clearance zone geometry.

This allows the designer to easily control whether the clearance zone appears in plan, elevation, or 3D views—useful for coordination and documentation.

Incorrect Options Explanation:

HVAC, Electrical, Energy: Used for discipline-specific parameters like voltage, airflow, or load calculations.

Text or Number: Would not allow toggling visibility.

Visible (as type): Refers to linking geometry visibility, not defining a parameter type itself.

The correct command in Revit used to map (assign or browse to) a Keynote Table file is Keynoting Settings .

In Revit, keynotes are driven by an external keynote table , typically a tab ‑delimited TXT file that must be assigned (mapped) in the project so keynote tags can read values correctly. The official Autodesk Revit MEP documentation clearly identifies that the Keynoting Settings dialog is where this mapping is performed.

From the documentation:

To access the Keynoting Settings dialog , the instructions state: “click Annotate tab ➤ Tag panel drop ‑down ➤ (Keynoting Settings).”

Regarding keynote table file location mapping: “Keynote Table — Full Path displays the entire path of the keynote file… Saved Path displays the file name of the keynote file that is loaded.”

It goes further to explain file path types: “Absolute identifies a specific folder… Relative finds the keynote file where the project file… is located… At Library Locations finds the keynote file where the stand ‑alone installation or network deployment specified.”

The command is explicitly referenced again when fixing a missing mapping: “Unable to Load Keynote data. Check keynote table locations in Keynoting Settings .” “To specify the location of the keynote text file… click (Keynoting Settings).”

Other listed options do not perform keynote file mapping:

Keynote Manager does not exist as a command in native Revit.

Element Keynote is a tagging method.

Keynote Legend only displays already ‑mapped keynote information.

In Revit, when editing a family in the Family Editor and reloading it into a project, Revit handles type changes using specific update rules. Types that are renamed overwrite their earlier version in the project because they retain the same internal type ID. Types that are added to the family also appear in the project once reloaded.

Initially, the family contains two types :

Above Counter

Plain

The changes made in the Family Editor are:

1️ ⃣ Rename Plain → Standard

2️ ⃣ Add a new type named GFCI

According to documented Revit behavior for type updates:

“When a family is reloaded into the project, any renamed family type replaces its previous version while maintaining its parameter assignments. Newly created types are added as additional family types available for placement within the project.”

Therefore:

Plain no longer exists because it was renamed

Standard now exists in its place

GFCI is added as a new family type

Above Counter remains unchanged

Thus, the family in the project now contains:

✅ Above Counter

✅ GFCI

✅ Standard

???? This matches answer choice:

B. Above Counter, GFCI, Standard

In Autodesk Revit Electrical Design , when an electrical designer needs to directly connect Panel B to Panel A without a breaker —such that Panel A’s load includes the total load from Panel B —the correct method is to configure both panels to use the same distribution system and to set Panel B’s connection type to Feed Through Lugs .

According to the Autodesk Revit MEP User Guide, Chapter 17: Electrical Systems , under “Creating Power and Lighting Circuits” and “Panel Properties” sections:

“When connecting panels in series, ensure both devices share the same distribution system . If a subpanel is required to pass its total load through to another panel without circuit protection, specify the connection type as Feed Through Lugs . This connection allows the upstream panel to include the total connected load from the subpanel in its own load summary.”

The feed-through lugs configuration enables the second panel (Panel B) to be electrically tied to the first (Panel A) as though it were an extension of the same bus. Unlike breaker or main-lug-only setups, the feed-through configuration does not insert a protective breaker between the two panels. Instead, it provides a continuous feeder connection where the parent panel’s load schedule automatically aggregates the downstream panel’s total load .

This setting is found in Revit’s Properties Palette for electrical equipment:

Under Electrical - Circuiting , the designer must ensure both panels use the same Distribution System (e.g., 208Y/120V 3Φ 4W).

Then, under Connection Type , select Feed Through Lugs .

The Smithsonian Facilities Revit Template Electrical Standards Guide also confirms this best practice:

“Feed-through panels are used when a subpanel’s total load must be reported in the main distribution panel without additional breakers. Both panels must share identical voltage and phase configurations within the same distribution system.”

Why the Other Options Are Incorrect:

A. The “subfeed lug breaker” introduces a breaker, contradicting the requirement of no breaker .

B. “Circuit subfeed panel type” is not a standard Revit configuration; Revit uses connection types instead.

D. Transformers alter the voltage distribution; the question specifies a direct connection within the same system.

Therefore, the correct configuration that meets all design and load reflection requirements is:

✅ C. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.

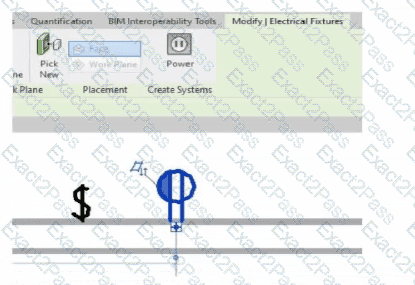

In Autodesk Revit Electrical Design , when an electrical designer attempts to control a receptacle (an Electrical Fixture family) with a switch (a Lighting Device family) as part of a switch system , Revit will only allow this connection if the receptacle’s family has been configured as Switchable within the Family Editor .

According to the Autodesk Revit MEP User’s Guide (Chapter 17 – “Electrical Systems”):

“Revit allows you to add elements such as lighting fixtures or receptacles to a switch system only if the family includes a switchable connector. The ‘Switchable’ parameter must be enabled in the Family Editor to allow this connection.”

This means that for the receptacle shown in the exhibit to appear as an available component for switching, the Electrical Connector within its family must have the Switchable property checked. This parameter is found under:

Family Editor → Select Connector → Properties Palette → Electrical - Data → Switchable.

If this option is not enabled , Revit treats the receptacle as a standard unswitched outlet and will not display it in the switch system creation dialog. Once the option is checked, the designer can reload the family into the project and associate it with a switch system normally.

Additionally, the Smithsonian Facilities Revit Template User’s Guide explains this concept as follows:

“To associate receptacles with lighting switches, ensure that the receptacle family has a switchable connector. Without this setting, the device will not appear as an assignable component to a switch system.”

This distinction is important in residential electrical modeling, where switched receptacles are common for plug-in lamps. Lighting circuits can include both Lighting Fixtures and Switchable Receptacles when the family configuration supports it.

Incorrect Options Explanation:

A. A switch system not being created is irrelevant — the issue occurs before system creation.

C. Being on the same circuit doesn’t affect switchability; it affects electrical load connection.

D. Incorrect — Revit supports switchable receptacles if properly configured.

Therefore, the correct answer is B. The receptacle’s “Switchable” option is not selected within the family editor.

When working in a workshared Revit model , elements without ownership can be visually identified using Worksharing Display Settings .

As per Revit MEP Worksharing Guide – Worksharing Display Modes section :

“Worksharing display modes include options such as Checkout Status , Owners , and Worksets .

The Checkout Status mode shows elements that are not owned or are available for editing.

The Owners mode highlights elements based on who owns them, allowing unowned elements to appear as ‘none.’”

Therefore:

✅ B. Checkout Status — shows elements that are editable or not owned.

✅ E. Owners — displays which elements are owned and highlights those without ownership.

Incorrect options:

A. Worksets: Shows which workset an element belongs to, not ownership.

C. Gray Inactive Worksets: Only grays out inactive worksets.

D. Model Updates: Not a valid worksharing display setting.
