On a Cisco Catalyst 9800 Series Wireless Controller, the command set that prevents a FlexConnect AP from allowing wireless clients to connect when its Ethernet connection is nonoperational is the  fallback-radio-shut  command within the FlexConnect profile configuration. This command disables the radios on the AP, thus preventing client connections during Ethernet link failure.  References : CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

When planning an image upgrade for a large number of Access Points (APs) across remote sites with limited WAN bandwidth, it’s crucial to minimize WAN utilization. The best approach in this scenario is:

Predownload the new code to the APs (Option A) : This method involves sending the new firmware image to all APs before actually rebooting them with the new image. It allows APs to download firmware when network usage is low, thus minimizing impact during peak hours.

References  := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

When configuring multicast for two WLCs in different physical locations, each handling around 500 wireless clients, it is important to assign a unique multicast group address to each WLC. This ensures that multicast traffic is properly segregated and managed within each controller’s network.

References  := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

 EAP-TLS (Extensible Authentication Protocol-Transport Layer Security) is an EAP method that an Access Point (AP) can use to authenticate to the wired network. EAP-TLS is considered one of the most secure EAP methods because it uses mutual authentication, where both the client and the server authenticate each other using certificates.

The Simple Certificate Enrollment Protocol (SCEP) is used to securely issue certificates to network devices in a scalable manner. When provisioning certificates on a Cisco Catalyst 9800 Series Wireless Controller using a third-party CA server, SCEP is the protocol that facilitates this process. It allows the controller to request and install certificates automatically, which is essential for establishing secure communications within the network.  References  := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)

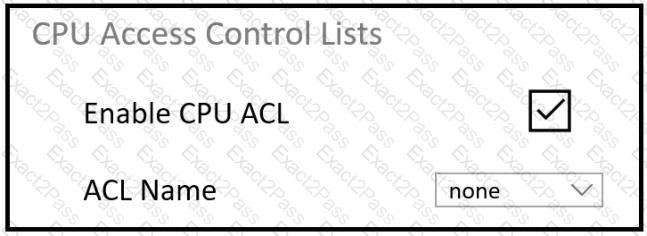

The issue described in the scenario occurs because when creating an Access Control List (ACL) to be used for managing traffic to the Wireless LAN Controller’s (WLC) CPU, it must be explicitly defined as a CPU ACL. If this specification is not made during the creation process, the ACL will not appear in the drop-down list when enabling the CPU ACL function. This is necessary because CPU ACLs are used to protect the WLC against potential Denial-of-Service (DoS) attacks by filtering incoming packets directed at the management interface before they are processed by the CPU.  References : CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

For RADIUS to restrict administrative control effectively, the engineer needs to define a  Network Access Server (NAS)  entry that corresponds to the WLC’s management IP address and the AP subnet. The correct entry would be the NAS IP of the virtual interface (typically used for RADIUS communications) and the specific network range of the AP subnet, which is 192.168.2.0 with a subnet mask of 255.255.255.0.  References : CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

Trusting DSCP is essential for maintaining the QoS markings across the wired and wireless network in a FlexConnect deployment. By trusting DSCP, the WLC and APs will preserve the QoS markings set by applications and devices, ensuring consistent QoS treatment throughout the network.  References  := (CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide)
