Question # 61

Which two descriptions of the Standard Local Route Group deployment are true? (Choose two.)

A.

can be associated under the route group

B.

can be associated only under the route list

C.

chooses the route group that is configured under the device pool of the calling-party device

D.

chooses the route group that is configured under the device pool of the called-party device

E.

can be assigned directly to the route pattern

Question # 62

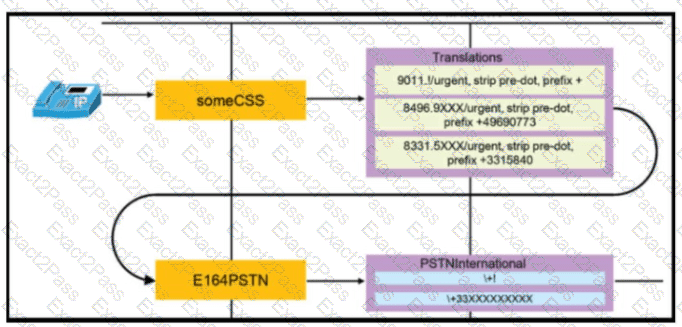

Refer to the exhibit.

A user dials 84969010 and observes that the call is not routed immediately. The administrator notices that after matching the fixed-length translation pattern, the call hits the \+! pattern and waits for interdigit timeout What should be configured to ensure that the call routes out immediately?

A.

Allow Device Override on the route pattern

B.

Route Next Hop By Calling Party Number on the translation pattern

C.

Do Not Wait For Interdigit Timeout On Subsequent Hops on the translation pattern

D.

Do Not Wait For Interdigit Timeout On Subsequent Hops on the route pattern

Question # 63

A Cisco UCM-based solution uses URI-based calling for Cisco Jabber clients. The solution has several clusters in different locations. The solution being configured must have a secure method o* exchanging addresses between the clusters. Which action ensures that a configuration complies with the requirements?

A.

Assign a self-signed certificate to the ILS service trunk.

B.

Apply a secure security profile to the trunk between the clusters.

C.

Select the TLS option on the SIP trunk between the clusters.

D.

Exchange Tomcat certificates

Question # 64

The sales department must answer phones when other sales members are not at their desks. The administrator knows that configuring Call Pickup allows the sales users to answer all the calls in the department by pressing only the softkey. Which call pickup configuration meets this requirement?

A.

Standard Call Pickup

B.

Group Call Pickup

C.

Other Group Call Pickup

D.

Directed Call Pickup

Question # 65

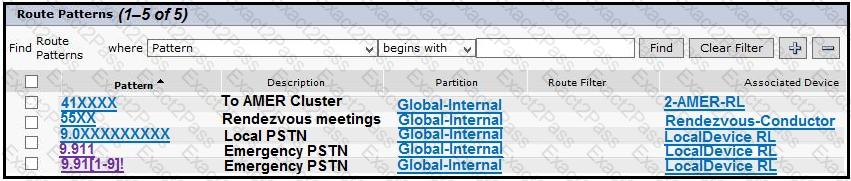

Refer to the exhibit.

Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator. Which action resolves this issue?

A.

Adjust the service parameter T302 timet to the desired value.

B.

Adjust the service parameter T204 timer to the desired value.

C.

Check the Urgent Priority check box under 9.911 pattern.

D.

Point the emergency pattern directly to the PSTN gateway.

Question # 66

Some Cisco mobility users cannot resume calls on the desk phone after they hang up on a mobile phone. The users have Cisco IP phones registered to the Cisco UCM. Which set of configuration steps resolve the issue?

A.

Add voice call disc-pi-off on the voice gateway. On Call Manager, set the Retain Media on Disconnect with PI for Active Call service parameter to True.

B.

Add voice call disc-pi-on on the voice gateway. On Call Manager, set the Retain Media on Disconnect with PI for Active Call service parameter to False.

C.

Add voice call disc-pi-off on the voice gateway. On Call Manager, set the Retain Media on Disconnect with PI for Active Call service parameter to False.

D.

Add voice call disc-pi-on on the voice gateway. On Call Manager, set the Retain Media on Disconnect with PI for Active Call service parameter to True.

Question # 67

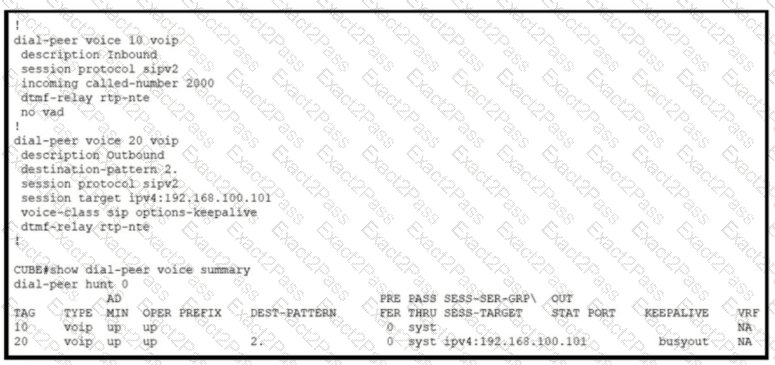

Refer to the exhibit.

A call mode through the Cisco Unified Border Element to pilot 2000 is foiling. What is causing the call to foil?

A.

No codecs are configured on the dial peers

B.

The Cisco Unified Border Element is not receiving a response to its OPTION keepahves.

C.

The destination pattern is incorrect for the dialed number.

D.

VAD was not disabled on the outgoing dial poor.

Question # 68

Which two configuration parameters are prerequisites to set Native Call Queuing on Cisco Unified Communications Manager? (Choose two.)

A.

Cisco IP Voice Media Streaming Service must be activated on at least one node in the cluster.

B.

A unicast music on hold audio source must be configured.

C.

Cisco RIS data collector service must be running on the same server as the Cisco CallManager service.

D.

The maximum number of callers allowed in queue must be 10.

E.

The phone button template must have the Queue Status Softkey configured.

Question # 69

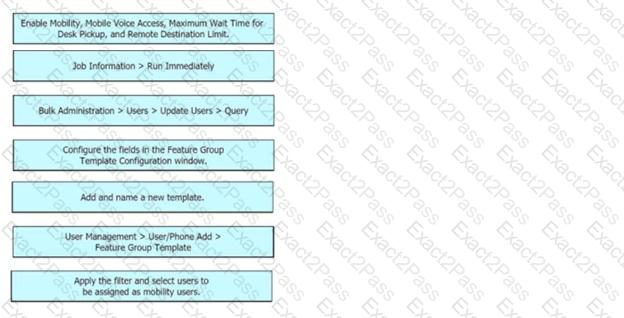

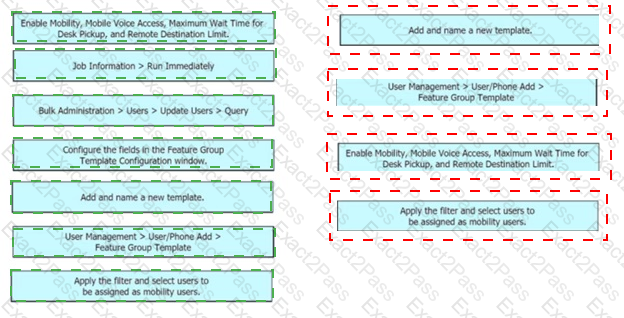

Drag and drop the steps from the left into the order to provision mobility users through LDAP on the right. Not all options are used.

Question # 70

Which set of commands binds SIP media and signaling to interface GigabitEthernet0/0 when dial peer 1 is chosen for call routing?

A.

dial-peer voice 1 voip

voice-class source interface GigabitEthernet0/0

B.

voice service voip

bind sip source-interface GigabitEthernet0/0

C.

voice service voip

sip

bind all source-interface GigabitEthernet0/0

D.

dial-peer voice 1 voip

voice-class bind control source-interface GigabitEthernet0/0

voice-class sip bind media source-interface GigabitEthernet0/0
