vSAN ESA Storage Clusters are the optimal choice because the workload profile is capacity-heavy and benefits from disaggregated storage. The requirement for 2.5 PB of application data, archival workloads, gateways, and development/test applications indicates a need to scale storage capacity independently from compute resources. VMware Cloud Foundation describes a vSAN storage cluster as a disaggregated storage solution based on vSAN ESA. It provides storage resources but not compute resources, and its datastore can be mounted by vSAN compute clusters or vSAN HCI clusters. This model is designed for storage-dense environments where capacity and performance can be expanded without adding unnecessary compute. A standard vSAN ESA HCI cluster is excellent for high-performance workloads, but it scales compute and storage together. vSAN OSA all-flash and hybrid use the older disk-group architecture and are less suitable for this large-capacity, storage-centric design. Therefore, the principal storage recommendation should be vSAN ESA Storage Clusters to meet scalability, performance, and capacity growth requirements. Reference topics: vSAN Storage Cluster, Disaggregated Storage, vSAN ESA, Storage Models.

The failure is host-specific because the KMS is online and reachable from the other hosts, and those hosts remain healthy with encryption enabled. In vSAN Data-at-Rest Encryption, vCenter works with the external KMS to manage the Key Encryption Key (KEK). ESX hosts use the KEK to unlock the Data Encryption Keys that protect encrypted vSAN disk data. When a host reboots, it must retrieve the required encryption key before encrypted vSAN disk groups can be mounted. If the host’s trust relationship, certificate, or KMS identity relationship is invalid or missing, that host cannot retrieve the key, and its encrypted disk groups remain unmounted. A Deep Rekey changes encryption material but does not repair a broken host-to-KMS trust relationship. Restarting vCenter is not the required fix because other hosts are functioning normally. TPM failure is not the best explanation because the error explicitly states that retrieval from the KMS failed. Reference topics: vSAN Data-at-Rest Encryption, External KMS Trust, Key Retrieval, Encrypted Disk Group Mounting.

VMware Live Site Recovery uses VM readiness signals to control recovery sequencing between priority groups. Recovery Priority is used to start and validate higher-priority workloads before lower-priority workloads continue, which is important for application dependency chains such as identity services, databases, middleware, and application servers. A VM being registered or powered on does not prove that the guest operating system is usable. Similarly, final replication completion only confirms storage synchronization, not guest readiness. VMware Tools heartbeat provides a guest-level indication that the operating system has started and is responsive. This makes it the correct mechanism for determining that a recovery priority step has completed and that the recovery plan can continue to the next priority group. The “successfully recovered” state is the result of the recovery workflow, not the signal used to progress between priority groups. Reference topics: VMware Live Site Recovery, Recovery Plans, Recovery Priority, VMware Tools Heartbeat, Application Recovery Sequencing.

The direct action is to convert the latency-sensitive OLTP workload policy from RAID-5/6 erasure coding to RAID-1 mirroring while keeping FTT=1. RAID-5/6 provides space efficiency, but it introduces parity operations and additional backend I/O, which can increase write latency during peak transactional activity and resynchronization. VMware states that RAID-1 mirroring requires fewer I/O operations to the storage devices and can provide better performance; cluster resynchronization also completes faster with RAID-1. This directly addresses the observed symptom: resync I/O and backend congestion increasing latency despite adequate network bandwidth. Increasing Object Space Reservation to 100% changes capacity preallocation but does not remove parity overhead or reduce write amplification from erasure coding. Increasing FTT to 2 with RAID-5/6 would increase protection overhead and backend work, making latency worse. Disabling checksums is not valid for ESA because object checksum is always enabled and cannot be deactivated. For ESA, compression can be controlled by policy, but the most direct protection-compliant performance action is RAID-1 FTT=1 for OLTP objects. Reference topics: vSAN Storage Policies, RAID-1 Mirroring, RAID-5/6 Erasure Coding, vSAN ESA Checksum, Resync and Congestion Metrics.

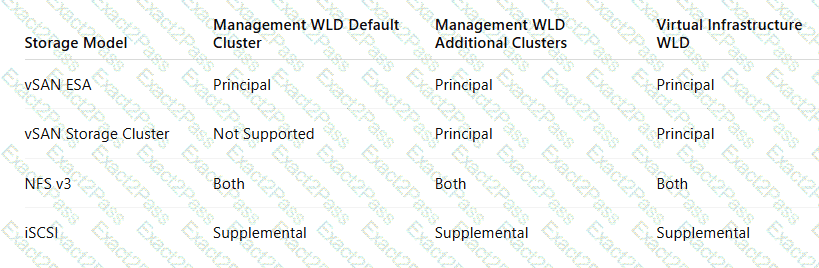

NFS v3 is the best recommendation because the scenario provides only Ethernet-based host connectivity and no budget for additional hardware. Fibre Channel would require appropriate FC HBAs, SAN zoning, and array presentation to all hosts. The provided hosts only have Ethernet NICs and local boot/storage devices, so they are not prepared for FC without additional hardware. VMware Cloud Foundation supports NFS as principal storage for VI workload domains, but the supported principal NFS protocol version is NFS v3. NFS v4.1 is supported as supplemental storage, not as principal storage for this use case. The documentation also states that when NFS is used as principal storage with vSphere Lifecycle Manager images, only two hosts are required, matching this two-host scenario. Fibre Channel over Ethernet is not the appropriate supported principal storage option in this VCF storage model. Therefore, NFS v3 uses the existing network capability, avoids new hardware spend, and aligns with the supported VCF principal storage model. Reference topics: Principal Storage, NFS Storage Model, VI Workload Domain Storage, Fibre Channel Prerequisites.

The correct steps are to create an NFS export on the storage array and mount the NFS datastore on each ESX host in the cluster. NFS datastore creation begins on the storage system, where the storage administrator creates and exports the NFS volume or directory with the required access permissions for the ESX hosts. After the export exists, vSphere mounts that export as a datastore. For a clustered VCF workload domain, the datastore must be mounted consistently across all ESX hosts in the cluster so that HA, DRS, vMotion, and VM placement can operate correctly. Mounting the datastore on only one host would create inconsistent datastore accessibility and could prevent workloads from moving or restarting on other hosts. “Attach NFS as a secondary datastore” is not the correct procedural step; the datastore is created and mounted as a vSphere datastore. Configuring vSAN is irrelevant because the workload domain already uses NFS storage and the task is to add another NFS datastore. Reference topics: NFS Datastore Creation, NFS Export, Host Accessibility, VCF Workload Domain Storage Administration.

Because the vSAN cluster uses vSphere Lifecycle Manager images, the least disruptive remediation method from the provided choices is to enable Quick Boot in the host remediation settings for images. Quick Boot reduces host remediation time by skipping the full hardware reboot, including the BIOS or UEFI firmware reboot. This reduces the amount of time each ESX host spends in maintenance mode and lowers operational disruption during patching. The documentation states that Quick Boot can be configured for clusters or standalone hosts managed with vSphere Lifecycle Manager images, and that it reduces reboot time during remediation. The baseline options are incorrect because the cluster is explicitly managed by images, not baselines. Disabling Quick Boot would increase disruption because hosts would require a full reboot path. Disabling HA admission control is not the least-disruption patching mechanism and is listed for baseline-oriented remediation behavior in the offered answer. In a vSAN cluster, hosts enter maintenance mode one at a time, so reducing each host’s maintenance window through Quick Boot is the appropriate method. Reference topics: vSphere Lifecycle Manager Images, Host Remediation Settings, Quick Boot, vSAN Cluster Remediation.

The available custom recovery steps are top-level commands, message prompts, and per-machine commands. VMware Live Site Recovery recovery plans operate like automated runbooks, and administrators can insert custom steps to match business continuity requirements. Broadcom TechDocs states that custom recovery steps can run commands or present messages to the user during a recovery. Command recovery steps are divided into two categories: top-level commands and per-virtual-machine commands. Top-level commands are inserted directly into the recovery plan and run on the VMware Live Site Recovery server. Per-machine commands are associated with individual recovered VMs and run before or after that VM is powered on, depending on placement in the workflow. Message prompts are interactive steps that pause the plan until an operator acknowledges the message, making them useful for manual validation, external approvals, or runbook checkpoints. IP reconfiguration is handled through recovery plan networking and guest customization, not as a custom step type. Writable storage snapshots are part of test recovery/storage behavior, not a custom recovery step. Reference topics: VMware Live Site Recovery Recovery Plans, Creating Custom Recovery Steps, Top-Level Commands, Message Prompts, Per-VM Commands.

Immutable snapshots are intended to provide hardened recovery points for cyber-recovery scenarios. In vSAN Data Protection, immutability is enabled at the protection group level. Once enabled, snapshots are read-only recovery points that cannot be modified or deleted, even by an attacker with administrative privileges. This immutability model imposes operational restrictions. A VM with immutable snapshots should not have its virtual hardware changed because hardware changes can alter the VM configuration state associated with protected recovery points. In addition, a protection group cannot be configured as both replicated and immutable, because replication and immutable local snapshot protection are separate protection behaviors with different lifecycle and retention handling. The statement that a VM cannot be part of multiple protection groups is not the specific limitation tested here. The number of snapshot schedules is not limited to seven by this requirement. Virtual hardware version 10 is also not the controlling condition for immutable snapshot configuration in this context. Reference topics: vSAN Data Protection, Immutable Snapshots, Protection Groups, Cyber-Recovery Snapshot Restrictions.

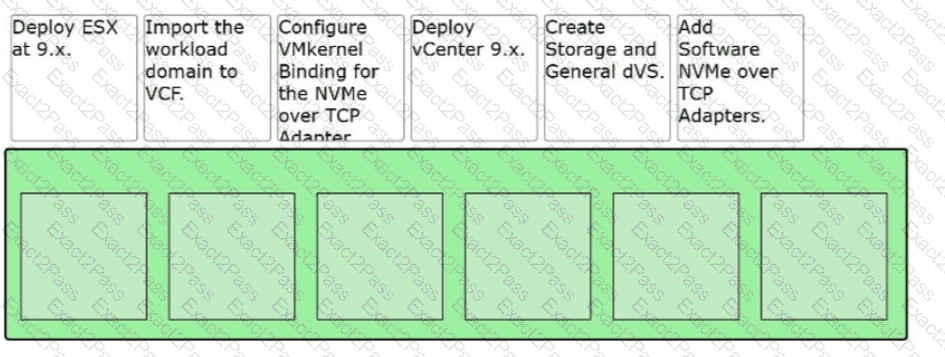

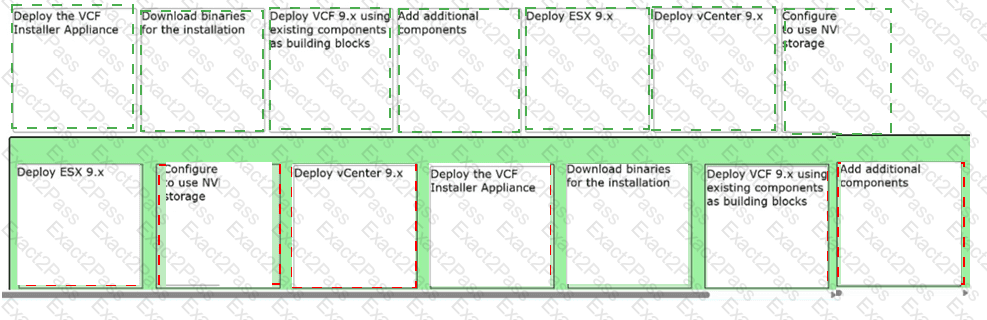

Deploy ESX at 9.x

Deploy vCenter 9.x

Create Storage and General dvS

Configure VMkernel Binding for the NVMe over TCP Adapter

Add Software NVMe over TCP Adapters

Import the workload domain to VCF

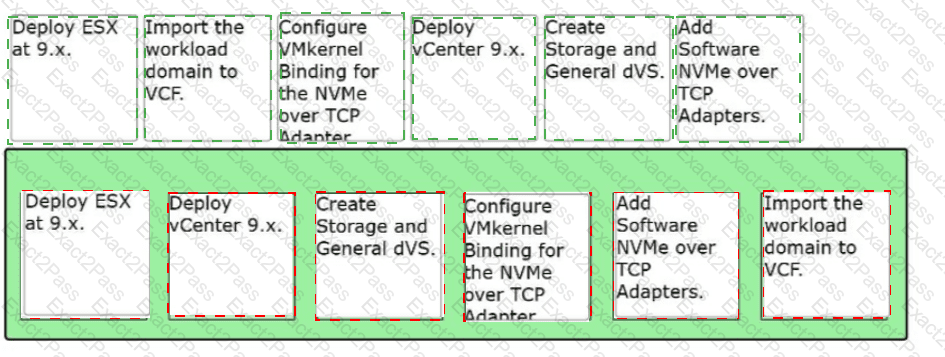

The correct sequence starts by preparing the vSphere environment that will later be imported into VMware Cloud Foundation. ESX 9.x must be deployed first on the six blade hosts because the hosts provide the compute foundation for the workload domain. After the hosts are available, vCenter 9.x is deployed to manage the cluster and provide the required vSphere inventory. The two distributed switches are then created: one for storage isolation and one for general host and workload traffic. Because the external array supports NVMe/TCP only and multipathing is required, VMkernel binding must be configured for the NVMe over TCP adapter before the software NVMe over TCP adapters are added. This ensures the NVMe/TCP storage paths are correctly associated with the intended storage network. After the software NVMe over TCP adapters are created and the hosts can access the external storage, the prepared workload domain can be imported into the existing VCF environment. Reference topics: NVMe over TCP Configuration, VMkernel Binding, Software NVMe/TCP Adapters, Existing vCenter Import, VCF Workload Domain Import.
