VCF 9.0 design guidance for theSupervisor NSX Load Balancer modelstates that theNSX load balancers run on NSX Edges, and sets explicit sizing requirements at theEdge nodelevel. In the “NSX Load Balancer Design Requirements,” VCF 9.0 requires that theNSX Edge cluster must be deployedbecause “NSX Load Balancers run on NSX Edges.” It further requires that“NSX Edge nodes must be deployed with a minimum of Large form factor”because NSX load balancers havefixed resource allocations on NSX Edge nodes, and the Large form factor is needed to accommodate basic system and workload needs.

This directly ties “deployment size” of the load balancer service capacity to theEdge node form factor(Small/Medium/Large, etc.) rather than the number of pods or the number of clusters. The document also notes that if additional load balancers are required, NSX Edges can bescaled up or out, again reinforcing that sizing is anEdge nodesizing decision.

In VMware Cloud Foundation (VCF) 9.0, the vSphere Kubernetes Service (VKS) leverages the vSphere Container Storage Interface (CSI) driver as the standard and supported mechanism for dynamic volume provisioning. The CSI provisioner, specifically identified by the string csi.vsphere.vmware.com, is the modern replacement for the legacy " in-tree " volume plugins. This driver serves as the bridge between the Kubernetes API and vSphere’s Cloud Native Storage (CNS) control plane located within vCenter Server.

When an administrator creates a StorageClass in VCF 9.0, it must reference this CSI provisioner to ensure that persistent volume claims (PVCs) are backed by vSphere datastores (such as vSAN, VMFS, or NFS). The transition to the CSI driver in VKS allows for advanced storage features not available in the legacy in-tree provisioner, including support for First Class Disks (FCD), volume snapshots, and resizing. Furthermore, VCF 9.0 documentation emphasizes that the legacy kubernetes.io/vsphere-volume in-tree provisioner has been deprecated and is not supported for modern VKS workload clusters. By using the csi.vsphere.vmware.com provisioner, VKS ensures that storage lifecycle management is fully integrated into the SDDC, providing developers with automated, policy-driven storage that adheres to the performance and availability profiles defined by the vSphere administrator via Storage Policy Based Management (SPBM).

The failure in this scenario stems from a misunderstanding of the decoupled lifecycle architecture within VMware Cloud Foundation (VCF) 9.0. In a vSphere Kubernetes Service (VKS) environment, the vSphere Supervisor (the management plane) and the Tanzu Kubernetes clusters (the workload plane) are upgraded independently. When the administrator upgraded the vSphere Supervisor to the latest version, they effectively updated the control plane that manages the SDDC resources and Kubernetes APIs, but this action did not automatically upgrade the Kubernetes version of the individual VKS workload clusters where the application was running.

Because the DevOps engineer ' s application required a specific, newer version of Kubernetes, the application remained incompatible because the workload cluster ' s distribution version remained unchanged. To resolve this, after the Supervisor is upgraded, the administrator must explicitly trigger an upgrade of the VKS cluster by updating the tkr.tanzu.vmware.com (Tanzu Kubernetes Release) version in the cluster ' s YAML specification. This triggers the Cluster API (CAPI) controllers to perform a rolling update of the worker and control plane nodes. In VCF 9.0, this separation is a feature designed to prevent global downtime; however, it requires administrators to perform a two-step process: first, the Supervisor Control Plane upgrade (Option D), followed by the individual workload cluster upgrades. Without the second step, the Kubernetes environment seen by the application remains at the legacy version.

The vSphere Kubernetes Service (VKS) in VMware Cloud Foundation (VCF) 9.0 is designed as an " enterprise-ready " Kubernetes distribution that is deeply integrated with the SDDC stack. It provides several core capabilities out-of-the-box that would otherwise require manual configuration in a generic Kubernetes installation. The four primary capabilities identified are Authentication , storage integration , pod networking , and load balancing .

First, Authentication is handled via integration with the vSphere Supervisor, which acts as an identity proxy (using Pinniped and OIDC) to allow users to log in using their vSphere or external identity provider credentials. Second, storage integration is achieved through the vSphere CSI (Container Storage Interface), which connects Kubernetes Persistent Volume Claims (PVCs) directly to vSphere datastores. Third, pod networking is provided by an integrated CNI (typically Antrea), ensuring secure and high-performance communication between containers. Finally, load balancing is managed through the vSphere distributed switch or NSX, allowing for the automatic creation of Layer 4 load balancers for Kubernetes services of type LoadBalancer. While VCF 9.0 supports add-on services for logging and monitoring (as mentioned in Option B), the core architectural pillars provided natively by the VKS cluster lifecycle manager are those that bridge the gap between container orchestration and the underlying vSphere infrastructure, ensuring that pods have the network, storage, and access control they require to run production workloads.

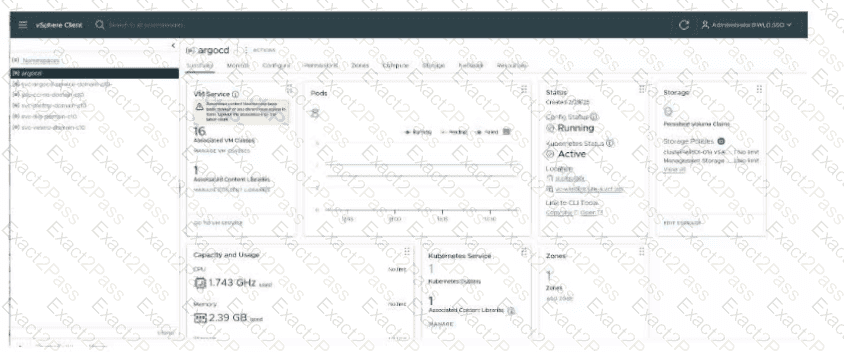

Within the VMware Cloud Foundation (VCF) 9.0 ecosystem, managing security and multi-tenancy in the vSphere Supervisor and associated workload clusters relies on Kubernetes Role-Based Access Control (RBAC). A Role is the specific Kubernetes object used to define a set of permissions that are scoped to a single namespace. While a ClusterRole defines permissions at the cluster level (across all namespaces or for cluster-scoped resources), a Role is explicitly designed to govern what actions a user or service account can perform within the boundaries of a specific Supervisor Namespace.

In a VKS environment, when a platform administrator grants a user access to a namespace, the system creates or references a Role (or a ClusterRole bound to a specific namespace via a RoleBinding) to specify allowed operations such as " get, " " list, " " create, " or " delete " on pods, deployments, and services. VCF 9.0 documentation highlights that utilizing namespaced Roles is a best practice for implementing the principle of least privilege, ensuring that developers or applications in one namespace cannot impact or view resources in another. This granular control is essential for enterprise environments where multiple teams share the same vSphere infrastructure. While " User " represents the identity and " Networkpolicy " handles traffic flow, the Role is the foundational object that defines the administrative or operational capabilities allowed within the namespace ' s logical boundary.

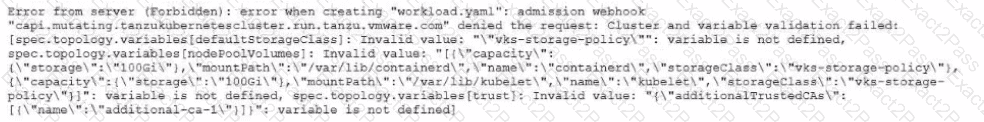

The errors described—specifically the memcache.go failure, the inability to fetch resource lists for Antrea, and the YAML context error—are classic symptoms of aConfiguration Context mismatch. In VCF 9.0, there are two distinct layers of API interaction: theSupervisor Cluster API(used for management tasks like creating clusters) and theGuest Cluster API(used for deploying workloads within the VKS).

When an administrator upgrades a Supervisor, the API endpoint or the available API groups may change. If the administrator attempts to run kubectl commands against a VKS cluster while their kubeconfig context is still pointing to the Supervisor (or vice versa), the client will encounter " mapping values " errors and " unable to handle request " errors because it is sending requests to an endpoint that does not recognize those specific resource definitions (like Antrea stats in the wrong context). To resolve this, the administrator must ensure they have switched to the correct context using kubectl config use-context < cluster-name > after the Supervisor update to ensure the local client is communicating with the correct API server and version of the Kubernetes binaries.

Contour is a high-performance Ingress controller for Kubernetes that serves as the control plane for the Envoy edge and service proxy. Within the VMware Cloud Foundation (VCF) 9.0 and vSphere Kubernetes Service (VKS) architecture, Contour is a critical component used to manage how external traffic reaches services running inside a cluster. It functions specifically at the application layer (Layer 7 of the OSI model), enabling sophisticated routing based on HTTP paths, hostnames, and headers.

By utilizing the Envoy proxy, Contour provides a scalable and maintainable way to handle standard Kubernetes Ingress resources as well as the more advanced HTTPProxy custom resource definitions (CRDs). In a VKS environment, once the Supervisor is configured and a workload cluster is deployed, Contour is typically installed as a managed package to provide ingress services. It handles essential tasks such as SSL/TLS termination, which offloads the encryption overhead from individual application pods, and supports advanced traffic management patterns like canary deployments or blue-green updates. Unlike traditional load balancers that may operate only at Layer 4, Contour’s deep integration with the Kubernetes API allows it to dynamically update routing rules as pods scale or fail, ensuring high availability and fine-grained control for containerized applications. This makes it the standard solution for application-layer ingress management across the VMware Tanzu and VKS ecosystem.

For administrators managing modern application workloads within VMware Cloud Foundation (VCF) 9.0, the vSphere Kubernetes Service (VKS) provides the infrastructure layer required for advanced networking via service meshes. While VKS offers various integrated services, Istio is typically deployed as a manual add-on to the workload clusters to provide advanced traffic management, observability, and security.

The official method for deploying Istio into a VKS-managed cluster is via the istioctl command-line utility. While curl (Option B) is frequently used to download the installation script and binary to the administrator ' s workstation, it does not perform the installation itself. The command that actually executes the logic to deploy the Istio control plane (istiod), configures the necessary Custom Resource Definitions (CRDs), and sets up the required namespaces is istioctl install. In many enterprise environments and documentation contexts, this utility is integrated or utilized as a plugin, often referred to in the context of the kubectl toolset (Option A). This command applies the selected configuration profile (such as ' default ' or ' demo ' ) to the cluster, enabling features like mutual TLS (mTLS) and fine-grained routing policies. In VCF 9.0, ensuring Istio is correctly installed is a prerequisite for implementing Zero Trust security architectures across the SDDC, as it allows for policy-driven communication between microservices running on Supervisor-managed Kubernetes clusters.

VCF 9.0 explicitly states: “The VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster,” and then enumerates those layers. The first layer is the set of components that integrate the workload cluster with Supervisor-backed resources, including aCloud Provider Plug-inthat integrates with the Supervisor and enables infrastructure integrations such as persistent volume requests being passed to the Supervisor (which is integrated with Cloud Native Storage). The second layer isCluster API, described as providing “declarative, Kubernetes-style APIs for cluster creation, configuration, and management,” driven by resources that represent the cluster, the VMs making up the cluster, and cluster add-ons. The third layer is theVirtual Machine Service, which provides a declarative API for managing VMs and associated vSphere resources and is used to manage the lifecycle of the control plane and worker node VMs hosting a VKS cluster.

Therefore, optionAis the only answer that matches the three lifecycle controller layers defined in the VCF 9.0 documentation.

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported " in-place " migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial " Workload Management " setup phase.
