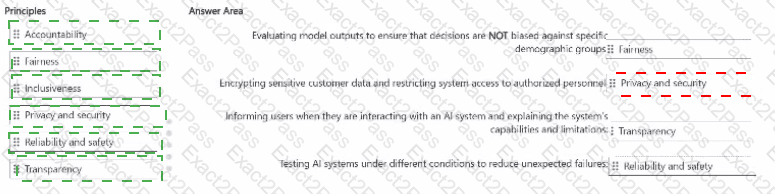

Providing users with clear information about an AI system’s purpose, functionality, and limitations is an example of the Microsoft responsible AI principle of transparency . Transparency means users should be able to understand when and how AI is being used, what the system can do, and what its limitations are.

The completed sentence is:

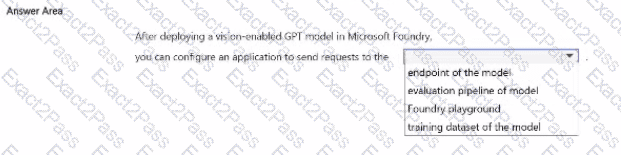

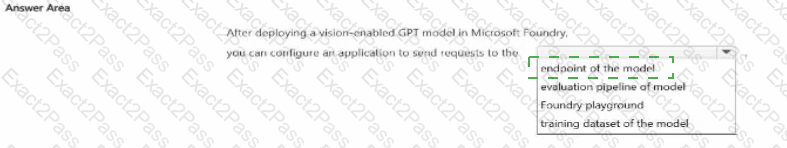

After deploying a vision-enabled GPT model in Microsoft Foundry, you can configure an application to send requests to the endpoint of the model .

To call a deployed model from an application, the application must send requests to the deployed model’s endpoint and include the required authentication credentials. The Foundry playground is used for testing interactively, but application code calls the deployed model endpoint.

The other options are incorrect:

evaluation pipeline of model is used to evaluate model performance, not to receive inference requests from an app.

Foundry playground is an interactive testing environment, not the production target for application requests.

training dataset of the model is used for training or fine-tuning, not for sending inference requests.

Therefore, the correct answer is endpoint of the model .

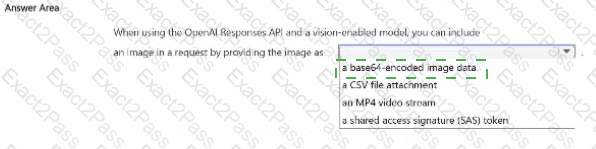

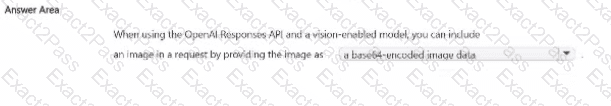

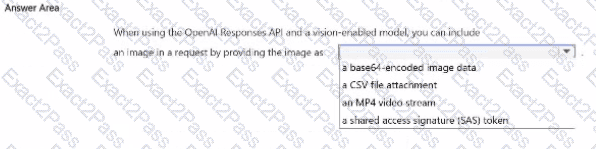

When using the OpenAI Responses API and a vision-enabled model, you can include an image in a request by providing the image as a base64-encoded image data .

Azure OpenAI / Microsoft Foundry vision requests support image input as an input_image item. The image can be provided by URL or as base64-encoded image data in the request. Microsoft documentation for Azure OpenAI batch examples also lists Base64 encoded image and Image URL as supported input patterns for Responses API requests.

The other options are incorrect:

a CSV file attachment is not an image input format for vision analysis.

an MP4 video stream is video content, not an image format.

a shared access signature (SAS) token is only an access token for a protected resource; it is not the image data itself.

When calling a Foundry agent programmatically by using the Microsoft Foundry SDK, the application needs the agent’s configuration values, including the agent ID . The Foundry playground provides a Code view that shows sample application code and environment variables needed to call the agent.

The other options are incorrect:

A. copy the tool name used by the agent identifies a tool, not the agent.

B. copy the model family name identifies the model family, not the agent instance.

C. copy the project name identifies the project, not the specific agent ID.

The requirement is to extract structured fields, including nested values, from invoices by using a defined schema . In Azure Content Understanding, an analyzer is the processing unit that defines how content is analyzed, what information is extracted, and how the output is structured, including JSON fields.

Microsoft’s Content Understanding document solutions documentation states that Content Understanding uses customizable analyzers to extract essential information, fields, and relationships from documents and forms. Microsoft’s quickstart also shows invoice processing with the prebuilt-invoice analyzer to extract structured data from an invoice document.

Why the other options are incorrect:

A. transcription workflow in Azure Speech is for converting audio to text, not invoice field extraction.

B. OCR-only document processing can extract text but does not meet the requirement for structured fields and nested values by schema.

D. Azure AI Search is for indexing and querying content, not defining invoice extraction schemas.

Therefore, the correct answer is C. an analyzer in Azure Content Understanding in Foundry Tools .

A system prompt, also called a system message, is used to guide how a generative AI model behaves, including its tone, role, response style, and output format. Microsoft states that system messages help steer an Azure OpenAI chat model toward the desired behavior, tone, and output format.

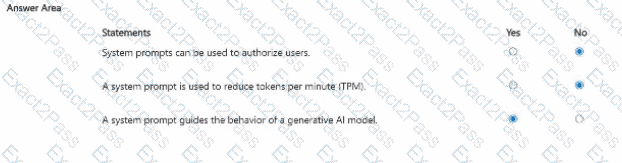

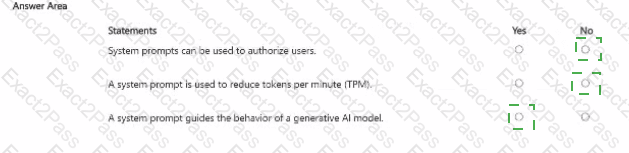

Statement 1: System prompts can be used to authorize users. = No

Authorization is handled by application identity, access control, authentication, and security configuration. A system prompt can guide model behavior, but it is not an authorization mechanism.

Statement 2: A system prompt is used to reduce tokens per minute (TPM). = No

TPM is a quota or throughput setting for model deployments. A system prompt does not reduce or configure TPM.

Statement 3: A system prompt guides the behavior of a generative AI model. = Yes

This is correct. Microsoft documentation says system messages help steer the model’s behavior, tone, and output format.

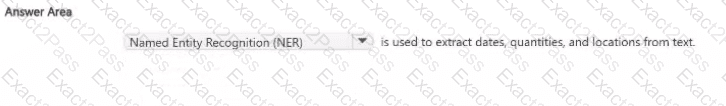

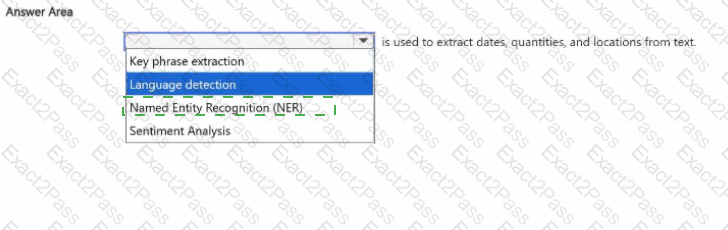

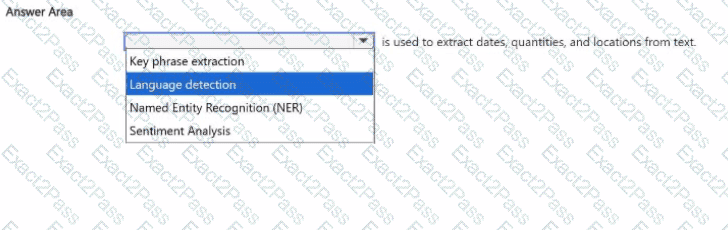

Named Entity Recognition (NER) is used to extract dates, quantities, and locations from text.

Named Entity Recognition identifies and categorizes entities in text, such as people, organizations, locations, dates, times, quantities, currencies, and other structured information.

The other options are incorrect:

Key phrase extraction identifies important phrases or main topics.

Language detection identifies the language of the text.

Sentiment Analysis identifies positive, negative, neutral, or mixed sentiment.

A recycling machine that uses cameras to identify bottles of the correct shape and reject other items requires analysis of visual input. This is a computer vision workload.

Computer vision is used for image and video analysis tasks such as object detection, classification, shape recognition, and visual inspection.

The other options are incorrect:

A. knowledge mining extracts insights from large collections of documents or data.

B. natural language processing analyzes or generates language.

C. generative AI creates new content, but the requirement is to inspect camera images and identify objects.

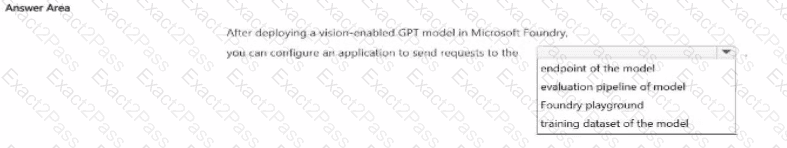

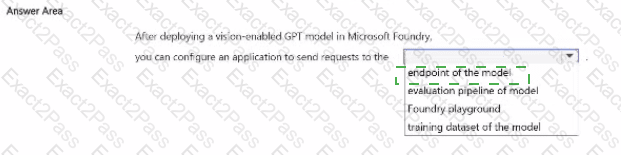

The correct answer is endpoint of the model . After a vision-enabled GPT model is deployed in Microsoft Foundry, the deployment exposes an inference endpoint that applications can call programmatically. The application sends requests containing text and, when required, image content to the deployed model through the appropriate chat-completions API endpoint. Microsoft’s documentation explicitly states that to use vision-enabled models, you call the Chat Completion API against a supported model that has been deployed.

The Foundry playground is primarily an interactive environment for testing prompts, model behavior, and multimodal inputs during development. It is not the production interface that an external application uses to submit inference requests. An evaluation pipeline is used to assess model or application quality against defined metrics and datasets, while a training dataset is associated with model training or fine-tuning rather than serving inference traffic.

Microsoft Foundry provides the endpoint and required authentication information after deployment. Applications then invoke that endpoint using an SDK or REST API, passing text and image inputs as part of the request payload.
