Technical explanation

cilium config set debug true follows the supported Cilium CLI configuration syntax and sets the debug configuration key to true . The cilium config set command accepts a key/value pair and, by default, restarts the Cilium pods so that the changed configuration is applied. The Cilium configuration documentation defines debug as the setting that enables full debug mode. This increases agent logging verbosity and causes eBPF programs to emit additional visibility events for diagnostic use.

Options A, B, and D do not match documented Cilium CLI command structures. There is no cilium log level --set=debug command in the Cilium CLI hierarchy, and neither cilium logging.level=debug nor cilium logging debug is valid configuration syntax. A Helm-managed installation may also enable debugging through the chart value debug.enabled=true , but that does not make any of the alternative commands correct.

Debug mode should be enabled deliberately because it increases log volume and may generate additional datapath visibility information. After troubleshooting, operators should normally restore the previous setting to avoid unnecessary operational overhead.

The supplied answer key incorrectly identifies B. The verified answer is C.

Official references

Cilium configuration ; Cilium CLI `config set` ; Helm values .

Study Guide topic: Installation and Configuration.

Technical explanation

In Cilium’s default policy-enforcement mode, an endpoint initially permits ingress and egress traffic. Enforcement changes independently for each direction when a policy selects that endpoint. If a selecting rule contains an ingress section, the endpoint enters default-deny mode for ingress. If a selecting rule contains an egress section, it enters default-deny mode for egress. Only traffic explicitly permitted by the applicable policy rules remains allowed in the restricted direction.

This per-direction behavior is important. An ingress-only policy does not automatically restrict egress, and an egress-only policy does not automatically restrict ingress. Options A and B reverse the relationship between the rule section and the direction being enforced. Option C incorrectly states that selection places the endpoint into default-allow mode; default allow describes the endpoint’s condition before it is selected by an enforcing policy.

Cilium also supports always and never enforcement modes. In always , enforcement applies even to endpoints not selected by policy. In never , policy enforcement is disabled. Policies can additionally use enableDefaultDeny for specialized visibility configurations, but those controls do not change the normal default behavior described in the question.

Official references

Policy Enforcement Modes .

Study Guide topic: Network Policy.

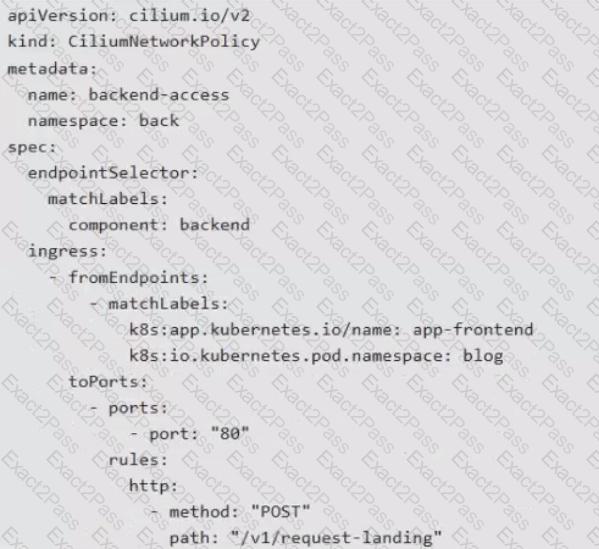

Technical explanation

The policy attaches an HTTP Layer 7 rule to port 80 but omits protocol: TCP from the associated ports entry. HTTP policy is layered on a Layer 4 TCP rule, and the documented Cilium form explicitly identifies TCP before specifying the HTTP method and path. D therefore identifies the configuration defect intended by the question.

The cross-namespace source selection is valid. The policy resides in namespace back and selects backend pods there. Its fromEndpoints selector explicitly includes k8s:io.kubernetes.pod.namespace: blog , allowing it to select matching app-frontend endpoints in that other namespace. Option A is consequently not an error.

The k8s: source prefix in k8s:app.kubernetes.io/name is also valid Cilium label syntax and identifies the Kubernetes label source, making B false. Port 80 may be used in a Cilium policy; the privileged-port restriction concerns which processes may bind low-numbered ports under operating-system permissions, not whether a network policy can reference them.

The corrected port entry should contain port: "80" together with protocol: TCP .

Official references

Cilium Layer 7 Policies , Kubernetes Constructs in Cilium Policy

Study Guide topic: Combining Layer 4 port rules with Layer 7 HTTP policies.

Technical explanation

The host entity represents the local node on which the selected Cilium endpoint resides. It also includes processes and containers using the local host network namespace. Therefore, A reproduces the official entity definition accurately.

The remote-node entity does not represent arbitrary unmanaged endpoints. It represents hosts other than the local node across the local cluster and connected clusters, including host-networked containers on those nodes. Unmanaged endpoints instead have the reserved unmanaged identity.

Option C gives the definition of the separate kube-apiserver entity, not cluster . The cluster entity is the logical collection of endpoints and reserved identities inside the local cluster, including Cilium-managed endpoints, unmanaged local endpoints, hosts, remote nodes, health, ingress, initialization, and kube-apiserver identities. Current documentation separately provides a cluster-mesh entity for endpoints in connected clusters.

Option D confuses all with world . world represents endpoints outside the cluster. all covers all identities and is not simply equivalent to the IPv4 CIDR 0.0.0.0/0 , particularly in identity-aware, node, and IPv6 contexts.

Official references

Cilium Layer 3 Policy Entities , Cilium Reserved Identities

Study Guide topic: Reserved entities and identity-based Layer 3 policies.

Technical explanation

D is the accurate general description because eBPF programs can attach at kernel and application-related hook points where data may already be decrypted, depending on the program and the selected hook. The statement says “could,” not that every packet-processing eBPF program automatically decrypts TLS. Cilium’s documented TLS-aware inspection uses controlled TLS termination and a userspace Envoy proxy; the broader point is that eBPF is not restricted to observing encrypted wire-format packets at a single network interface.

The other choices are directly contradicted by Cilium’s eBPF documentation. XDP and traffic-control programs can be replaced atomically at runtime without rebooting the host or restarting network services, so A is false. Traffic-control BPF supports both ingress and egress hook points, making B false. Cilium also applies eBPF-based security to the host through its Host Firewall and host-policy capabilities; therefore, eBPF security is not inherently confined to container traffic, and C is false.

A critical distinction is that inspecting application plaintext depends on where the program attaches and where encryption occurs. Cilium’s ordinary L3/L4 datapath does not magically decrypt TLS, while its documented TLS interception workflow explicitly terminates and re-originates selected connections to expose application-layer content.

Official references

Cilium eBPF program types ; eBPF datapath introduction ; Inspecting TLS Encrypted Connections .

Study Guide topic: eBPF.

Technical explanation

Cilium derives an endpoint’s security identity from its security-relevant labels rather than from its current IP address. When multiple endpoints possess the same relevant label set, they receive and share the same numeric security identity. This enables policies to follow an application as pods are recreated, rescheduled, or scaled across nodes.

In Kubernetes, the Cilium agent obtains workload metadata through the Kubernetes API and associates the pod’s labels with the corresponding Cilium endpoint. Identity allocation converts the relevant label set into a cluster-wide identity. Policy enforcement then matches that identity in the eBPF datapath instead of depending exclusively on short-lived pod addresses.

Option A incorrectly makes the IP address the source of identity and says that identities cannot be shared. Option B incorrectly identifies annotations as the identity foundation. Annotations may configure behavior, but Cilium’s security model is label-based. Option D is also incorrect because operators do not ordinarily assign each pod’s numeric security identity manually. Identity allocation and lifecycle management are automatic.

Official references

Cilium Terminology and Identities , Limiting Identity-Relevant Labels

Study Guide topic: Label-derived identities and identity-based policy enforcement.

Technical explanation

cilium config view is the Cilium CLI command intended to display the current configuration. It reads the configuration associated with the selected Kubernetes context, Cilium namespace, and Helm release and presents the relevant settings for inspection. This makes D the direct answer.

cilium status performs a different function. It reports the health and readiness of Cilium components such as the agent DaemonSet, operator, Envoy, Hubble Relay, and Cluster Mesh. Although status output may reveal a small amount of deployment information, it is not a complete configuration-viewing command.

cilium sysdump collects a comprehensive troubleshooting archive containing Kubernetes resources, component logs, command output, configuration data, and other diagnostic evidence. It is appropriate when preparing a support bundle, but it is unnecessarily broad for simply consulting the current configuration. cilium context deals with Kubernetes context selection or inspection rather than displaying Cilium’s configured values.

The Cilium CLI organizes configuration operations under the cilium config command group. Related subcommands include set , delete , and view . Because the requested action is read-only inspection of the existing settings, view is the appropriate subcommand.

Official references

Cilium CLI `config view` .

Study Guide topic: Installation and Configuration.

Technical explanation

Cilium tunnel mode supports VXLAN and Geneve encapsulation. In this routing model, Cilium nodes form an overlay mesh, and traffic exchanged between nodes is carried inside UDP-encapsulated packets. VXLAN is the default tunnel protocol and normally uses UDP port 8472. Geneve is the alternative and normally uses UDP port 6081. Operators select the protocol through the tunnel-protocol configuration setting, whose documented values are vxlan and geneve .

Encapsulation reduces the requirements placed on the underlying network. The underlay only needs to provide IP connectivity between the Kubernetes nodes and permit the selected UDP tunnel port. It does not need to learn or route individual PodCIDRs. Cilium also uses the tunnel metadata to carry information such as the source security identity, avoiding an additional identity lookup on the receiving node.

MPLS, OTV, STT, and EVPN are not supported values for Cilium’s tunnel-protocol setting. EVPN may be used in broader data-center network designs, and MPLS is a carrier-routing technology, but neither is a Cilium overlay encapsulation choice. Therefore, B is the only supported pair.

Official references

Cilium Routing ; System Requirements .

Study Guide topic: Architecture.

Technical explanation

Layer 7 protocol visibility redirects traffic matching the relevant L7 rules to Cilium’s node-local proxy, which is Envoy. Envoy parses supported application protocols and supplies the resulting request or response metadata to Cilium’s observability pipeline. Therefore, C correctly identifies the architectural consequence of enabling this visibility.

The feature requires L7 proxy support and an appropriate CiliumNetworkPolicy containing Layer 7 rules. A standard Kubernetes NetworkPolicy is limited to Layer 3 and Layer 4 concepts and cannot express Cilium’s HTTP, DNS, or generic application-protocol rules, so B is incorrect.

A is also incorrect. DNS policy and visibility are commonly applied to pod egress queries, and Cilium’s model is not restricted to ingress-only DNS visibility. D overstates protocol coverage. Cilium supports defined L7 parsers and policy types—most prominently HTTP, DNS, Kafka, and supported generic Envoy-based protocols—but it does not promise arbitrary visibility for every application protocol. SSH, Telnet, and FTP cannot simply be assumed to receive native semantic parsing.

An operational caveat is that L7 visibility rules also affect policy enforcement: they are not merely passive packet logging instructions.

Official references

Layer 7 Protocol Visibility , Cilium Envoy

Study Guide topic: L7 proxy redirection, CiliumNetworkPolicy, protocol parsing, and Hubble visibility.

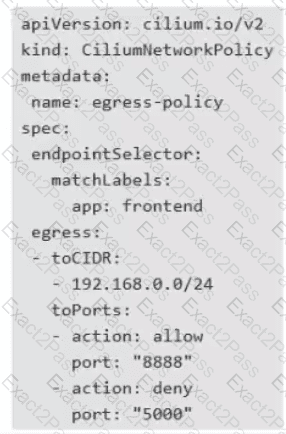

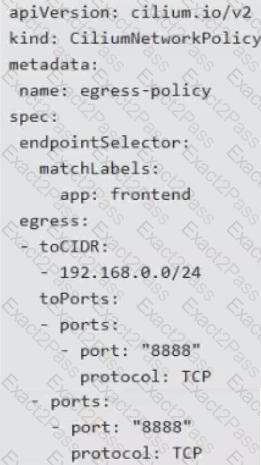

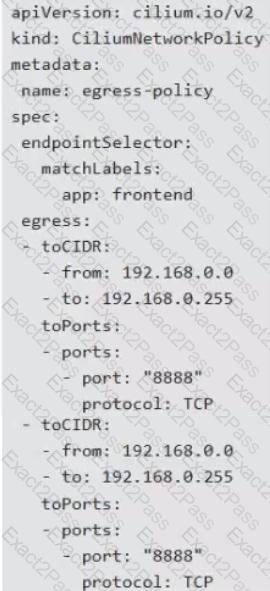

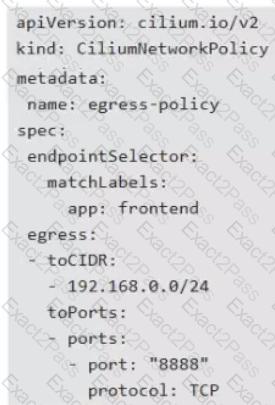

Technical explanation

Option C has the correct Cilium policy structure. It selects pods labeled app: frontend , creates an egress rule with a valid CIDR entry, and combines that destination constraint with toPorts , port 8888 , and protocol TCP . Because the CIDR and port restriction are in the same egress rule, traffic must meet both conditions.

Option A uses an unsupported address-range structure with from and to fields rather than CIDR notation. Option B initially resembles the correct form but contains an additional malformed ports item at the egress-rule level. Option D uses unsupported action: allow and action: deny fields inside toPorts ; Cilium allow and deny behavior is expressed through policy sections such as egress and egressDeny , not per-port action properties.

The item is nevertheless defective. The prose and examples indicate 192.168.9.0/24 , while all displayed CIDR-based options specify 192.168.0.0/24 ; the source text itself shows the corrupted 192.168.e.e/24 . If 192.168.9.0/24 is authoritative, none of the exhibits permits the stated example. The supplied key B is structurally incorrect under the displayed manifests.

Official references

Cilium Layer 3 and CIDR Policies

Study Guide topic: CIDR selectors, Layer 4 ports, and rule composition.
