According to the FortiClient EMS Administrator Study Guide and official Technical Tips from Fortinet, when the web console is inaccessible (e.g., timing out), the administrator must use tools available directly on the server's operating system (CLI) to gather diagnostic information.

1. Why the CLI Diagnostic Tool (Answer A) is the Correct Choice:

Availability during Outage: When the GUI is unreachable, the standard "Generate Diagnostic Logs" option within the EMS interface is also unavailable.

Windows-based EMS: The administrator can manually run the EMSDiagnosticTool.exe located at C:\Program Files (x86)\Fortinet\FortiClientEMS\. This tool collects server information, Windows events, and EMS-specific logs into a compressed file for investigation.

Linux-based EMS (v7.4+): For newer versions running on Linux, the administrator can use the CLI command: sudo /opt/forticlientems/bin/diagnostic_tool -o /tmp/diag to generate a diagnostic package.

Service Verification: The CLI also allows administrators to verify if critical services (like fcems, apache2, or postgres) are running or if remote access has been disabled using the emscli utility.

2. Why Other Options are Incorrect:

B. Download webserver logs from PostgreSQL: PostgreSQL is the database engine for EMS, not the web server. While database logs are useful, they are not the primary method for gathering general "diagnostic information" and would typically be collected as part of the CLI diagnostic tool output rather than downloaded directly from the DB.

C. Diagnostic logs option from the GUI: This option is impossible to use if the administrator has lost web access and the page is timing out.

D. Download log generator from support site: While Fortinet provides various tools on their support site, the EMS Diagnostic Tool is natively installed with the FortiClient EMS software and is the primary, documented method for troubleshooting the EMS server itself.

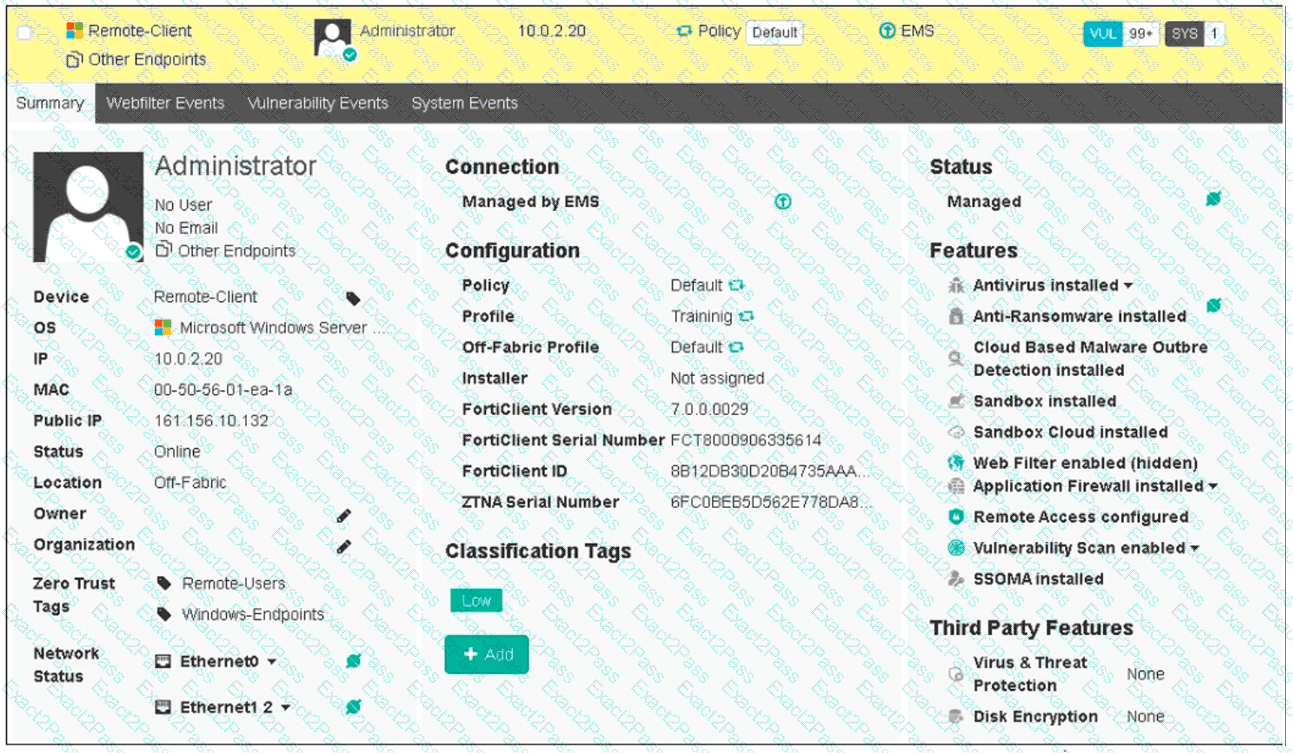

Based on the Remote-Client status shown in the exhibit:

Endpoint Policy: The "Policy" field shows "Default," indicating that the endpoint has been assigned the Default endpoint policy.

Connection Status: The "Location" field shows "Off-Fabric," meaning that the endpoint is currently off the corporate network (off-net).

Therefore, the two conclusions that can be made are:

The endpoint has been assigned the Default endpoint policy.

The endpoint is currently off-net.

References

FortiClient EMS 7.2 Study Guide, Endpoint Summary Information Section

Fortinet Documentation on Endpoint Policies and Status Indicators

Understanding ZTNA:

Zero Trust Network Access (ZTNA) requires defining tags for identifying and managing endpoint access.

Evaluating Components:

FortiClient EMS is responsible for managing and defining ZTNA tag information within the Security Fabric.

Conclusion:

The correct component that defines ZTNA tag information in the Security Fabric integration is FortiClient EMS.

Block Malicious Website has nothing to do with infected files. Since Realtime Protection is OFF, it will be allowed without being scanned.

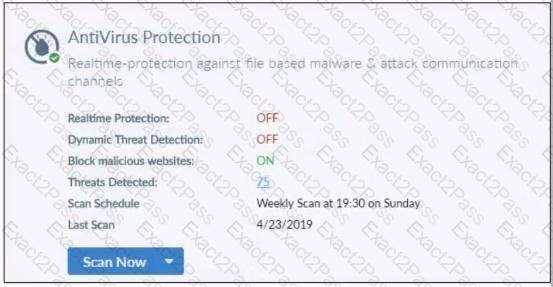

Based on the settings shown in the exhibit:

Realtime Protection: OFF

Dynamic Threat Detection: OFF

Block malicious websites: ON

Threats Detected: 75

The "Realtime Protection" setting is crucial for preventing infected files from being downloaded and executed. Since "Realtime Protection" is OFF, FortiClient will not actively scan files being downloaded. The setting "Block malicious websites" is intended to prevent access to known malicious websites but does not scan files for infections.

Therefore, when a user tries to download an infected file, FortiClient will allow the file to download without scanning it due to the Realtime Protection being OFF.

References

FortiClient EMS 7.2 Study Guide, Antivirus Protection Section

Fortinet Documentation on FortiClient Real-time Protection Settings

For adding user authentication to the ZTNA access for remote or off-fabric users, the following FortiGate feature is required in addition to ZTNA:

FortiGate explicit proxy allows FortiGate to intercept web traffic for authentication purposes.

ZTNA integrates with various FortiGate features to provide secure access and ensure that users are authenticated before accessing resources.

By using an explicit proxy, FortiGate can handle web traffic and enforce authentication policies for remote users who are not directly on the corporate network (off-fabric).

Thus, the correct feature to use for this requirement is the FortiGate explicit proxy.

References

FortiGate Security 7.2 Study Guide, ZTNA and Proxy Configuration Sections

Fortinet Documentation on FortiGate Explicit Proxy and ZTNA Integration

Understanding Quick Scan Function:

The quick scan option on FortiClient is designed to scan certain elements of the system quickly for threats.

Evaluating Scan Scope:

The quick scan specifically targets executable files, DLLs, and drivers that are currently running, providing a rapid assessment of the active components of the system.

Conclusion:

The correct answer is D, as it accurately describes the function of the quick scan option on FortiClient.

Connecting FortiClient EMS to FortiGate:

The administrator needs to establish a connection between FortiClient EMS and FortiGate as a fabric connector.

Prerequisites for Connection:

A key prerequisite is the import and verification of the FortiClient EMS tool CA certificate on FortiGate to ensure a trusted connection.

Conclusion:

The correct prerequisite for a successful connection is to import and verify the FortiClient EMS tool CA certificate on FortiGate.

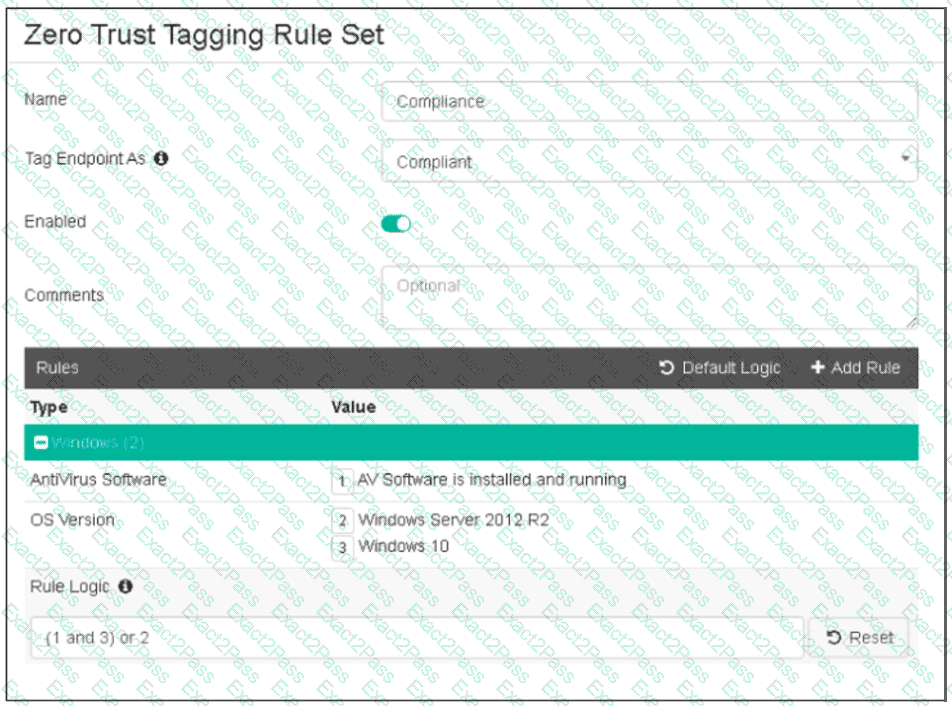

Based on the Zero Trust Tagging Rule Set configuration shown in the exhibit:

The rule set includes two conditions:

AV Software is installed and running

OS Version is Windows Server 2012 R2 or Windows 10

The Rule Logic is specified as "(1 and 3) or 2," meaning:

The endpoint must have antivirus software installed and running and must be running Windows 10.

Alternatively, the endpoint must be running Windows Server 2012 R2.

Therefore, the endpoint must satisfy either:

Antivirus is installed and running and Windows 10 is running.

Windows Server 2012 R2 is running.

References

FortiClient EMS 7.2 Study Guide, Zero Trust Tagging Rule Set Configuration Section

Fortinet Documentation on Configuring Zero Trust Tagging Rules and Logic

Understanding FortiClient Features:

FortiClient endpoint security includes several features aimed at protecting and managing endpoints.

Evaluating Feature Set:

Vulnerability management is a key feature of FortiClient, helping to identify and address vulnerabilities (B).

IPsec is supported for secure VPN connections (D).

Real-time protection is crucial for detecting and preventing threats in real-time (E).

Eliminating Incorrect Options:

Data Loss Prevention (DLP) (A) is typically managed by FortiGate or FortiMail.

L2TP (C) is a protocol used for VPNs but is not specifically a feature of FortiClient endpoint security.
