Aruba Central Support Mode is a specialized state that allows an administrator or TAC engineer to bypass the typical " Central is the Source of Truth " write-lock on the local CLI.

The Workflow: Normally, if a switch is managed by Central, local configuration commands are blocked. By enabling aruba-central support-mode, the local CLI becomes writable.

Synchronization Logic: Once the changes are made and the support mode session is closed, the AOS-CX switch communicates the new configuration back to the Central platform. Central recognizes these changes and updates its internal database for that specific device.

Local Override: In Central ' s UI, these changes often appear as " Local Overrides. " This ensures that the next time Central performs a configuration audit or a sync, it doesn ' t view the local change as a " conflict " and overwrite it; instead, it incorporates it into the device-level record.

Key Exam Point: AOS-CX was designed specifically to handle this " bi-directional " sync during support sessions to ensure that troubleshooting done by TAC is not lost the moment the switch reconnects to the cloud.

When deploying a new Aruba CX 8325 switch to provide gateway and routing services, the L3-apg profile (Layer 3 Aggregation Profile) should be selected instead of the factory default. This profile is designed for switches acting as aggregation or core routers, enabling Layer 3 routing capabilities and optimized configurations for such roles.

The Spine profile (factory default) is optimized for leaf/spine architectures, but may not be ideal for aggregation gateways.

Leaf and L3-core profiles are targeted for different roles.

Using the L3-apg profile helps to ensure the switch is correctly optimized for Layer 3 gateway functions.

When configuring a Multi-Chassis Link Aggregation Group (MC-LAG) in a VSX environment, the two physical switches must act as a single logical entity to the connected device (the Gateway).

The Concept of Multi-Chassis (Option A): In many networking architectures, including Aruba ' s legacy AOS-Switch and the conceptual models taught in certification, a LAG must be explicitly identified as " Multi-Chassis " to enable the coordination between the two physical switches. In AOS-CX , while you don ' t literally type " multi-chassis " on the interface, the term is used in exam contexts to describe the MC-LAG functionality .

The " One Link Up " Problem: If the Gateway only sees one link up, it means the LACP negotiation has failed on one of the two switches. This happens because the two switches are not presenting the same LACP System ID to the Gateway. Without the proper multi-chassis/VSX coordination, Switch 1 and Switch 2 appear as two completely different devices. The Gateway’s LACP process will see two different IDs for what it thinks should be one bundle and will block one of the links to prevent a loop.

Why not B? vsx-sync is used to synchronize the commands between the two switches so you don ' t have to type them twice. While helpful for management, its absence doesn ' t prevent a link from coming up as long as you manually configured both sides identically.

Why not C? lacp mode active on the switch will work perfectly with either active or passive on the Gateway side.

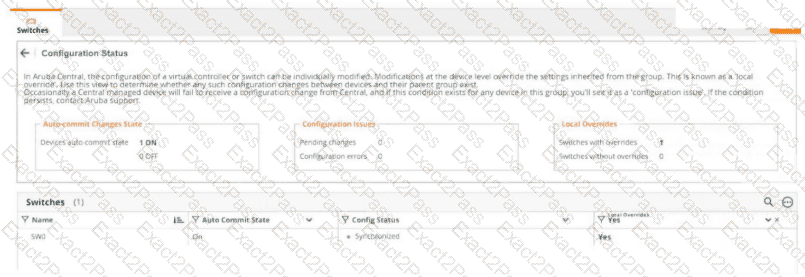

This exhibit displays the Configuration Status dashboard within HPE Aruba Networking Central for a specific switch (SW0).

Interpreting " Local Overrides " : In the Central management model, switches are typically assigned to a Group , and they inherit the configuration of that group (the " inherited settings " ). A Local Override (as explicitly defined in the exhibit ' s header text) occurs when an administrator makes a configuration change at the individual device level within Central. This device-specific configuration takes precedence over the group-level settings.

Analysis of SW0:

The table shows Local Overrides: Yes . This confirms that SW0 has unique configuration parameters applied to it that differ from the baseline configuration of its assigned group.

The Config Status is Synchronized , meaning these device-level changes have already been successfully pushed to the switch.

Evaluating the Options:

Option B (Correct): Having a " Local Override " means that a configuration has been pushed to the switch which deviates from the " default " (inherited group) settings.

Option A: " Local Overrides " in Central refers to the Central UI device-level settings , not changes made directly on the local physical CLI of the switch.

Option C: While Central does track configuration health, this specific screen is showing override and commit status, not the detailed logic for auto-checkpoints.

Option D: The exhibit shows Auto-commit Changes State: ON . This means any change made in Central is automatically committed and pushed to the device; no manual commit action is required by the administrator.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

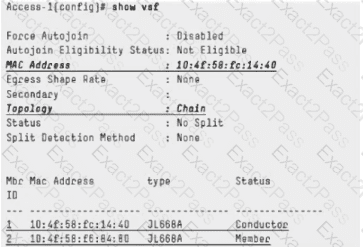

The exhibit shows the output of the show vsf command on a two-member Virtual Switching Framework (VSF) stack. To determine the outcome of a failover, we must look at the assigned roles and the secondary member configuration.

Analyzing the Roles: * Member 1 is the Conductor (the master controller).

Member 2 is a Member (a subordinate switch).

The Secondary Member Requirement: In VSF, high availability is not automatic just by having two switches. You must explicitly designate a Secondary member to act as the " Standby " for the Conductor. In the exhibit, the line Secondary : is blank .

Failure Scenario: * If Member 1 (Conductor) fails, Member 2 will look to see if it is the designated Secondary.

Since no Secondary is configured , Member 2 has no authority to take over the control plane or management functions of the stack.

Member 2 will remain in the " Member " state . Because the Conductor is gone and there is no Standby to promote, the logical stack effectively collapses; Member 2 will likely reboot or lose its configuration context because it has no Conductor to sync with. It certainly will not become the Conductor.

Best Practice Correction: To fix this, an administrator should have run the command vsf secondary-member 2. This would have changed Member 2 ' s status from " Member " to " Standby " (or Secondary), allowing it to transition to " Conductor " if Member 1 failed.

https://arubanetworking.hpe.com/techdocs/AOS-CX/10.16/HTML/high_availability/Content/Chp_BFD/cnf-bfd-bgp-10.htm

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

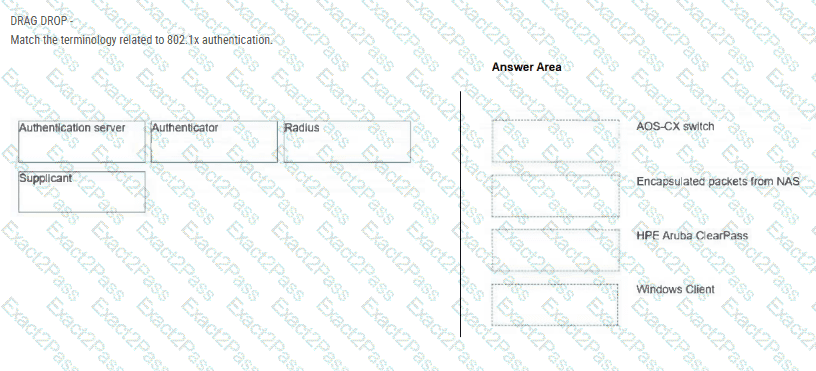

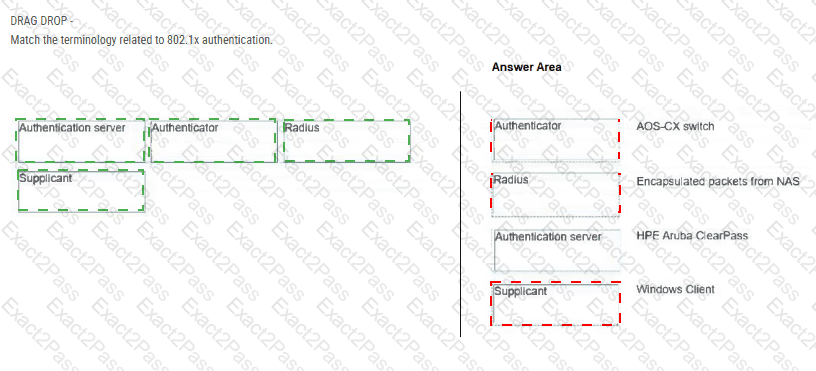

Authenticator: AOS-CX switch

Radius: Encapsulated packets from NAS

Authentication server: HPE Aruba ClearPass

Supplicant: Windows Clien

To master the HPE Aruba Networking Certified Professional - Switching exam, you must clearly distinguish between the roles defined in the IEEE 802.1X standard. These roles dictate how identity-based security is enforced at the edge of the network.

Supplicant (Windows Client): The supplicant is the client device (laptop, phone, or IoT device) that is requesting access to the network. It runs software (a " supplicant " ) that can respond to EAPOL (EAP over LAN) requests from the switch. In a typical office environment, the Windows 10/11 native 802.1X client acts as this role.

Authenticator (AOS-CX switch): The authenticator is the intermediary device, typically an access layer switch. Its job is to control the physical or logical port. It remains in an " Unauthorized " state (blocking all traffic except EAPOL) until it receives a success message from the authentication server. It translates EAPOL packets from the client into RADIUS packets for the server.

Authentication Server (HPE Aruba ClearPass): This is the " brain " of the operation. The server validates the credentials (certificates, usernames/passwords) provided by the supplicant. In the Aruba ecosystem, ClearPass Policy Manager (CPPM) is the primary authentication server. It checks its internal database or an external one (like Active Directory) and sends an " Access-Accept " or " Access-Reject " back to the switch.

Radius (Encapsulated packets from NAS): RADIUS (Remote Authentication Dial-In User Service) is the networking protocol that provides the transport for these exchanges. The switch, acting as a NAS (Network Access Server) , takes the EAP payload from the client and encapsulates it into RADIUS packets to send them across the IP network to ClearPass.

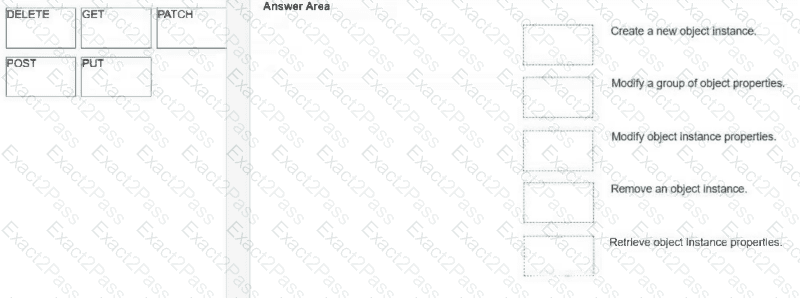

POST: Create a new object instance.

PUT: Modify a group of object properties.

PATCH: Modify object instance properties.

DELETE: Remove an object instance.

GET: Retrieve object instance properties.

AOS-CX is built with a REST-first architecture, where the Web UI and CLI both interact with the same internal database via an API. Understanding these standard HTTP methods is essential for network automation.

POST (Create): Used to create a new resource. For example, creating a new VLAN entry in the database.

GET (Read/Retrieve): Used to fetch information about a resource. It is a " read-only " operation used to check the status of a port or the contents of the routing table.

PUT (Replace/Modify Group): In the Aruba API context, PUT is used for a " complete update. " It essentially replaces the current object with a new set of properties. If you omit properties in a PUT request, they may return to default values.

PATCH (Partial Update/Modify Instance): PATCH is used for incremental changes. It allows you to modify only a specific subset of an object ' s properties (like changing only the description of a port) without having to resend the entire object configuration.

DELETE (Remove): Used to remove a specific resource instance from the switch database (e.g., deleting a VLAN or a static route).
