When line card LEDs do not light up, and the cards are newly installed, the best troubleshooting methodology is Divide and conquer by swapping the line cards. This method isolates the problem by testing hardware in different slots or known working units.

Spot the difference involves comparing configurations, which does not directly isolate hardware failure.

Follow the path is more suited for connectivity issues.

Replace configuration relates to software or config problems.

Hardware issues are best isolated by physically swapping components.

To answer this correctly, it is vital to distinguish between VSF (Virtual Switching Framework) and VSX (Virtual Switching Extension) .

VSF (Virtual Switching Framework) Logic: The CX 6200 and 6300 series use VSF to form a " stack. " In a VSF stack, multiple physical switches operate as a single logical device with a single control plane and a single configuration file.

LAG Configuration in VSF: Because a VSF stack is a single logical entity, creating a Link Aggregation Group (LAG) that spans multiple members is handled exactly like a standard LAG on a single switch. You simply create the interface lag X and then assign physical ports from different members (e.g., member 1 and member 2) to that same LAG ID.

The " multi-chassis " Keyword: The keyword multi-chassis (seen in Options B and D) is specific to VSX , which is used on high-end switches like the CX 6400 and 8000 series. VSX involves two separate control planes that synchronize information. In VSX, you must use the multi-chassis command to let the switches know the LAG is split across two different chassis. In VSF, this keyword is not used and would result in a syntax error on a 6200 switch.

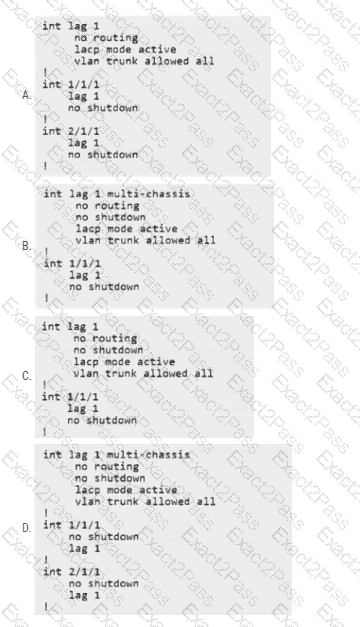

Analyzing the Options:

Option A (Correct): It uses standard interface lag 1 syntax. It assigns port 1/1/1 (from member 1) and port 2/1/1 (from member 2) to the same LAG. This perfectly fulfills the requirement for redundant ports from both switches in a VSF stack.

Option B: Incorrect because it uses the multi-chassis keyword (VSX only).

Option C: Incorrect because it only configures a port from one switch (1/1/1), failing the requirement for redundancy across both switches.

Option D: Incorrect because it uses the multi-chassis keyword (VSX only).

Key Takeaway for the ACP-S Exam: * VSF (6200/6300) = Standard LAG configuration across members.

VSX (6400/8000) = Requires multi-chassis keyword under the LAG interface.

In the HPE Aruba Networking Central monitoring framework, the platform maintains a persistent management connection (via WebSockets) to every managed AOS-CX switch.

The Connectivity Heartbeat: Central continuously monitors the status of this connection. If a switch loses power, its management processor stops functioning immediately. After a short timeout period where the heartbeat is not received, Central marks the device as " Down " and triggers the Switch Disconnected alert.

VSX Architecture in Central: It is important to note that even though two switches are in a VSX (Virtual Switching Extension) pair, Aruba Central treats them as individual managed entities for connectivity purposes. If the Primary switch goes offline, Central sees that specific device ' s management tunnel drop.

Evaluating Other Options:

Option A (Switch Reboot): A reboot alert is typically generated when a switch gracefully restarts or when it checks back into Central after an unexpected power cycle. If the switch remains powered off, it is simply " Disconnected. "

Option B (Switch Stack Conductor Change): This is a specific alert for VSF (Virtual Switching Framework) stacks (like the 6200 or 6300 series). In VSF, a failure of the master results in a role change. In VSX, there is no " Conductor " role; there is a Primary and Secondary, and they are not managed as a single " stack " object in the same way VSF is.

Option D (Switch STP Root Change): While a VSX Primary failure might trigger an STP re-election if that switch was the Root Bridge, the direct management alert from Central regarding the hardware state is " Switch Disconnected. "

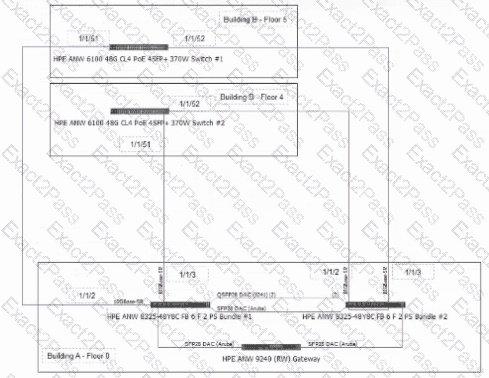

Dynamic Segmentation (DS) requires certain capabilities on the switches to support user role assignment and traffic segmentation based on identity. The CX 6100 series switches do not support Dynamic Segmentation due to hardware and feature limitations. Therefore, they must be replaced with CX 6300 models, which support DS features natively.

Options involving GRE tunnels or VXLAN tunnels relate to traffic forwarding but do not enable DS on unsupported hardware.

Applying licenses does not upgrade hardware capabilities for DS.

LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.

In a hotel environment where a single subnet is used for wired guests, but guest devices in a conference room need to communicate with each other (and with the default gateway), while remaining isolated from other guests elsewhere, Community VLANs are appropriate.

Community VLANs allow hosts within the same VLAN community to communicate with each other and the default gateway but are isolated from hosts in other communities.

Isolated VLANs block communication between ports and only allow communication to the gateway.

Therefore, assigning conference room guests to a community VLAN and the gateway to a primary VLAN allows the desired communication model.

Dynamic ARP Protection (DAP) is a security feature used to intercept and validate ARP packets in a network to prevent " man-in-the-middle " attacks like ARP spoofing.

Validation Source: For the switch to know if an ARP packet is legitimate, it must check the sender ' s IP and MAC address against a trusted database.

Dynamic vs. Static: * In most modern environments, the switch builds this database automatically by using DHCP Snooping . When a client gets an IP from a DHCP server, the switch records the binding.

Static Environments (The Solution): If you have servers or devices with static IP addresses (no DHCP server), DHCP snooping will have no record of them. To prevent these legitimate devices from being blocked by ARP protection, you must manually configure Static IP-to-MAC bindings .

Why Option D is Correct: It correctly identifies that the feature is flexible enough to support non-DHCP environments through manual configuration.

Why others are incorrect: * Option A: While highly recommended, a DHCP server is not strictly required because of the static binding fallback.

Option C: Simply enabling the features isn ' t enough; you must also consider untrusted vs. trusted ports. Furthermore, " full information " is a bit of an overstatement, as static devices still need manual intervention.

Valid Network Analytics Engine (NAE) agent actions include:

Running CLI commands (Option A), allowing automated command execution for remediation or data collection.

Generating local system logs (Option C) for event tracking and audit purposes.

Other options:

Generating SNMP traps (B) and starting/stopping packet captures (D) are not typical NAE actions.

Creating a new TAC case (E) is an external process, not an automated NAE action.

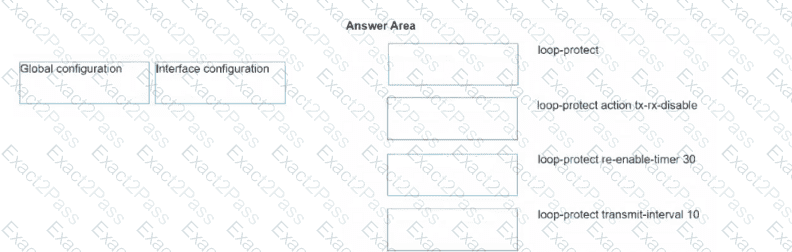

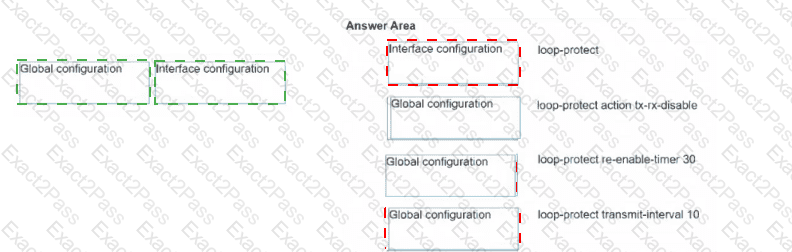

Interface configuration: loop-protect

Global configuration: loop-protect action tx-rx-disable

Global configuration: loop-protect re-enable-timer 30

Global configuration: loop-protect transmit-interval 10

In the AOS-CX operating system, configuration for Loop Protection follows a " Global Parameter, Local Execution " model. This distinguishes it from STP, which often has more per-interface tunable parameters.

Enabling the Feature (Interface configuration): The command loop-protect is entered within the interface context (e.g., interface 1/1/1). This command acts as a " trigger " or toggle that tells the switch to start sending and listening for loop-protection probe packets on that specific physical port or LAG.

Defining the Behavior (Global configuration): The specific way the loop protection " engine " behaves is defined once for the entire switch in the global configuration context .

loop-protect action tx-rx-disable: This sets the universal response if a loop is detected. The switch can be told to simply log the event, or physically disable the port (either just the transmitter, or both transmitter and receiver).

loop-protect re-enable-timer 30: If a port is disabled due to a loop, this global timer defines how many seconds the switch waits before automatically attempting to bring the port back online to see if the loop has been physically removed.

loop-protect transmit-interval 10: This defines how frequently the switch generates the proprietary loop protection packets.

Why this structure exists: This model simplifies administration. You can change the sensitivity (interval) or the severity (action) for the entire switch in one place, while still having the granular control to only enable the feature on " risky " ports where unmanaged switches or hubs might be connected.

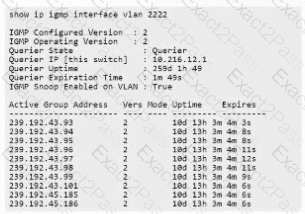

IGMP (Internet Group Management Protocol) supports several message types: Join, Leave, Query, and Report messages to manage multicast group membership.

Join messages indicate a host wants to join a multicast group.

Leave messages indicate a host is leaving a multicast group.

Query messages are sent by routers to discover group members.

Report messages are sent by hosts to indicate membership.

Therefore, the full set of IGMP message types supported includes Join, Leave, Query, and Report.

Options with only Leave and Report or only Join and Query are incomplete.
