In OSPF, when an Autonomous System Boundary Router (ASBR) redistributes routes into the OSPF domain, it assigns them a " Type. " Understanding the difference between Type 1 (E1) and Type 2 (E2) is fundamental for controlling traffic flow out of the network.

Type 2 (E2) Routes (Default): The cost of an E2 route is only the external cost (seed metric) assigned by the ASBR. OSPF does not add the internal path cost to reach the ASBR when comparing two E2 routes.

Tie-Breaking: If two ASBRs advertise the same prefix with the same E2 metric, OSPF then uses the internal cost to the ASBR as a tie-breaker. It will choose the path to the ASBR that is mathematically " closest " in terms of OSPF cost.

Closest Exit Point Strategy (Option D): This is a very common design in Aruba campus networks with multiple Internet or Data Center exits. By configuring all ASBRs to use the same E2 seed metric (the " appropriate " metric), you ensure that every switch in the network will automatically choose its own closest exit point based on the local topology.

Type 1 (E1) Routes: These routes calculate the total cost as External Cost + Internal Path Cost. Use E1 when you want the internal network ' s performance/hops to always influence the path choice, even if external costs differ.

Why other options are incorrect:

Option B: This is the definition of an E1 route, not E2.

Option C: While E2 with the same metric can result in ECMP (Equal Cost Multi-Path), this only happens if the internal costs to both ASBRs are also identical. The more fundamental architectural goal for E2 is favoring the closest exit.

Option A: You can achieve primary/backup with either E1 or E2; it is not a requirement to use E1.

When managing a network through HPE Aruba Networking Central, administrators have access to specialized reporting tools designed for lifecycle management and expansion planning.

Purpose of the Switch Capacity Planning Report: This specific report is engineered to give a clear overview of physical and electrical headroom within the switching infrastructure. When preparing to add new Access Points (APs), two variables are critical:

Port Density: The report identifies the number of available (unused) ports across various speeds (1GbE, 2.5GbE, 5GbE, etc.).

PoE Budgeting: High-performance APs (such as Wi-Fi 6E or Wi-Fi 7 models) require significant Power over Ethernet (PoE) wattage (PoE+ or UPoE). The report calculates the Total PoE Budget vs. the Currently Allocated PoE, allowing you to see if the switch power supplies can handle the additional load.

Evaluating Other Options:

Option A (Infra Inventory): This report focuses on asset management. it provides details like serial numbers, MAC addresses, hardware models, and firmware versions. It does not provide real-time or historical port usage or PoE consumption data.

Option C (Network): This is a broader summary report that typically focuses on connectivity, client counts, and overall network health rather than specific hardware resource limits.

Option D (Resource Utilization): While this report is useful, it generally focuses on System Resources such as CPU usage, Memory (RAM) consumption, and temperature sensors rather than physical port availability or PoE power budgets.

Best Practice: In an Aruba Central environment, running the Switch Capacity Planning report before a hardware refresh or expansion is a mandatory step to avoid " PoE starvation " or physical port shortages during the installation phase.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode, client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode, the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

To capture packets on an HPE Aruba CX switch and view the output remotely in real-time, the best practice is to use a mirror session that forwards traffic to a remote device running a packet analyzer such as Wireshark. ERSPAN (Encapsulated Remote Switched Port Analyzer) allows the mirror traffic to be encapsulated in GRE and sent over an IP network to a remote monitoring station. This method ensures full packet capture with no local resource constraints and provides full visibility to the analyst.

Option B (using tcpdump on the switch) only provides summarized or limited capture locally.

Option C (mirroring to another switch port) only allows local monitoring and does not provide remote real-time viewing.

Option D (mirror to CPU and then use tshark) is less efficient and may be resource-intensive on the switch.

Therefore, configuring ERSPAN to a remote Wireshark host is the recommended and best way.

When deploying a new Aruba CX 8325 switch to provide gateway and routing services, the L3-apg profile (Layer 3 Aggregation Profile) should be selected instead of the factory default. This profile is designed for switches acting as aggregation or core routers, enabling Layer 3 routing capabilities and optimized configurations for such roles.

The Spine profile (factory default) is optimized for leaf/spine architectures, but may not be ideal for aggregation gateways.

Leaf and L3-core profiles are targeted for different roles.

Using the L3-apg profile helps to ensure the switch is correctly optimized for Layer 3 gateway functions.

For the CX 8325 48Y8C , the default interface profile groups the SFP28 front-panel interfaces into groups of 12 contiguous ports , and those groups operate at 25 Gbps by default . Therefore, interface-group 1 encompasses ports 1 through 12 , with its default speed set to 25G , making option D correct. HPE Aruba documents the default profile as group 1 = ports 1–12, group 2 = 13–24, group 3 = 25–36, and group 4 = 37–48. Aruba Networks

The exhibit uses 25GBASE-SR connections from the CX 6300M access layer toward ports 1/1/1 and 1/1/2 on the CX 8325. This matches the CX 8325 ' s default 25G interface-group configuration, so there is no requirement to change group 1 to 10G.

The physical medium is also valid. HPE Aruba specifies that a 25G SFP28 SR transceiver supports up to 100 meters over OM4 multimode fiber . The stated inter-building distance of 90 meters is therefore within the supported optical reach. Aruba Networks

If 1G or 10G optics were instead required on these ports, the entire applicable interface group would need to be changed to 10G-compatible mode; that is not required in this design.

Study Guide References: CX 8325 Interface Groups; Default Port Speeds; SFP28; 25GBASE-SR; OM4 Multimode Fiber; Physical-Layer Design.

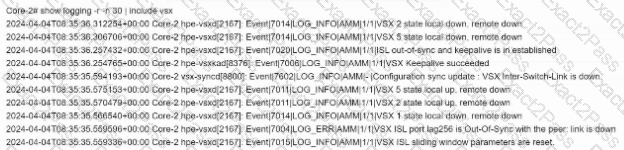

In the context of the HPE Aruba Networking troubleshooting framework, selecting a methodology depends heavily on the trigger event.

The Trigger: A physical change occurred (relocating an AP). In networking, physical changes are synonymous with Layer 1 (Physical Layer) of the OSI model.

Bottom-Up Approach: The " Bottom-up " methodology starts at the Physical Layer and works upward through the Data Link, Network, and Transport layers. Since a technician recently touched the cabling and moved the hardware, starting with the physical layer is the most efficient path. You would first verify the cable integrity, PoE power delivery from the switch, and the physical environment (RF interference in the new location).

Top-Down Approach: Alternatively, starting at the application layer (the video call software) is also a valid " starting point " when the user reports an application-specific failure. Together, the Top-down/Bottom-up model provides a structured way to isolate whether the issue is the physical move or a software configuration that coincided with it.

Why others are less suitable here:

Option B (Divide and conquer): This usually starts at Layer 3 (IP connectivity) to see if you can ping. While useful, it might skip the most likely culprit in a physical relocation: a bad cable or poor signal.

Option C: This is a remediation step, not a diagnostic methodology.

Option D (Follow the path): This is better for complex routing issues where packets are getting lost across multiple hops; it is overkill for a local boardroom connectivity issue.

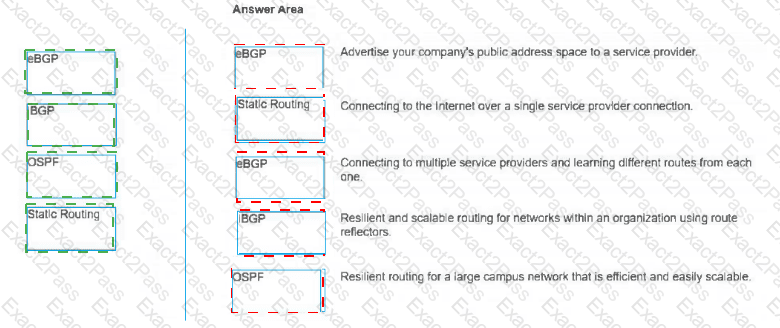

To influence BGP path selection, you must understand the BGP Best Path Selection Algorithm used by AOS-CX. When multiple paths to the same prefix exist, the switch evaluates attributes in a specific order.

The Decision Order:

Highest Weight (Proprietary/Local to the switch).

Highest Local Preference (Standard, used within an AS).

Locally originated.

Shortest AS Path.

Lowest MED (Metric).

Local Preference (LP): Although Local Preference is an attribute that is typically passed between iBGP peers, it is the most common tool used on an ingress (import) policy from an eBGP peer to tell the local switch (and the rest of the AS) " this is our preferred exit/entry point. "

The default Local Preference is 100.

By creating a route-map that sets the Local Preference to 200 and applying it to Peer A on import, the switch will see Peer A ' s route as having a higher LP than Peer B ' s route (which remains at 100).

Local Preference vs. Metric (MED): Local Preference is evaluated before the Metric (MED) in the decision process.

Option C works because LP 200 is higher than 100.

Option B is incorrect because setting a higher Metric (200) actually makes a route less preferred (lower metric wins).

Option D would technically make Peer A preferred (because Peer B would have a higher/worse metric), but because Local Preference is higher in the decision-making hierarchy, Option C is the more robust and standard BGP engineering choice in Aruba architectures.

Example CLI Logic:

Bash

route-map PREFER_A permit seq 10

set local-preference 200

!

router bgp 65001

neighbor < Peer_A_IP > route-map PREFER_A in

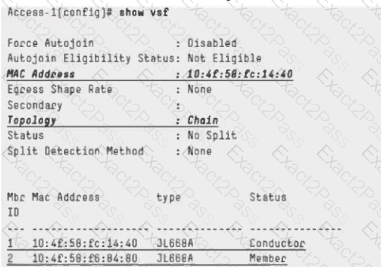

Dynamic Segmentation (DS) requires certain capabilities on the switches to support user role assignment and traffic segmentation based on identity. The CX 6100 series switches do not support Dynamic Segmentation due to hardware and feature limitations. Therefore, they must be replaced with CX 6300 models, which support DS features natively.

Options involving GRE tunnels or VXLAN tunnels relate to traffic forwarding but do not enable DS on unsupported hardware.

Applying licenses does not upgrade hardware capabilities for DS.
