Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 Azure Administration Guide and the Public Cloud Security documentation regarding Azure Gateway Load Balancer (GWLB) integration:

Encapsulation Overhead: Azure Gateway Load Balancer uses VXLAN (Virtual eXtensible LAN) to encapsulate the traffic before sending it to the FortiGate-VM HA cluster. This encapsulation adds a header that typically consists of 50 bytes for regular IPv4 traffic (Ethernet, IP, UDP, and VXLAN headers).

MTU Mismatch (Option A): The default maximum transmission unit (MTU) in Azure is 1500 bytes . If a protected VM sends a packet at the maximum default size (1500 bytes), and the GWLB then adds the 50-byte VXLAN header, the resulting encapsulated packet becomes 1550 bytes .

Packet Drops: If the FortiGate-VM ' s network interfaces are left at the default MTU of 1500 bytes , they will not be able to process the 1550-byte encapsulated frames without fragmentation. Because many network paths or configurations (including Azure ' s fabric for certain flows) may drop packets that require fragmentation or have the Don ' t Fragment (DF) flag set, this results in the observed intermittent connectivity issues and dropped traffic .

Required Resolution: To resolve this issue, administrators must increase the MTU on the FortiGate-VM interfaces (specifically the one receiving GWLB traffic) to at least 1570 bytes to accommodate both IPv4 and IPv6 VXLAN overhead.

Why other options are incorrect:

Option B: While an incorrect health probe port would cause the GWLB to mark the FortiGate as down, it would typically lead to a complete loss of traffic flow through that instance rather than intermittent packet drops within an active flow.

Option C: The GWLB itself is the component adding the overhead; it is the FortiGate ' s inability to receive the larger resulting frame (due to its own default MTU setting) that causes the failure.

Option D: Packet fragmentation by the application is a secondary effect. The primary " intermittent " issue described in GWLB deployments is almost always related to the tunneling overhead exceeding the receiving interface ' s MTU.

According to the FortiOS 7.6 Azure Administration Guide and the Cloud Security 7.4 Public Cloud Study Guide , the integration of FortiGate-VMs with an Azure Gateway Load Balancer (GWLB) requires specific network configurations to ensure packet transit:

IP Forwarding Requirement (Option A): By default, Azure Network Interfaces (NICs) drop any traffic that does not originate from or is not destined for the IP address assigned to that NIC. For a FortiGate to act as a " bump-in-the-wire " or transparent inspector, it must receive traffic destined for other IPs and forward it. This requires the IP Forwarding setting to be explicitly enabled on the FortiGate ' s network interfaces within the Azure portal. If this is disabled, the Azure fabric will discard the traffic being steered through the FortiGate HA cluster by the GWLB.

VXLAN Encapsulation: The Azure GWLB uses VXLAN to encapsulate traffic (adding a VXLAN header with a specific VNI) before sending it to the FortiGate. The FortiGate must terminate this VXLAN tunnel. While the VXLAN configuration is crucial, the underlying infrastructure check for IP Forwarding is the most common cause of traffic being blocked at the NIC level before the FortiOS stack can process the packet.

Why other options are incorrect:

Option B: If health probes fail, the GWLB will typically stop sending traffic to that specific instance. While this affects the HA cluster ' s availability, the question states traffic is not being routed correctly through the firewalls (implying an active flow issue), and the primary mechanism for allowing a VM to process third-party traffic in Azure is IP Forwarding.

Option C: NSGs are typically applied to the NIC or Subnet. While incorrect NSG rules can block traffic, " IP Forwarding " is a specific requirement for the FortiGate to function as a network appliance (NVA) regardless of the NSG state.

Option D: Azure GWLB supports cross-subscription and cross-tenant chaining. The consumer (protected VMs) and the provider (FortiGate HA cluster) do not need to be in the same subscription, provided the GWLB endpoint is correctly mapped.

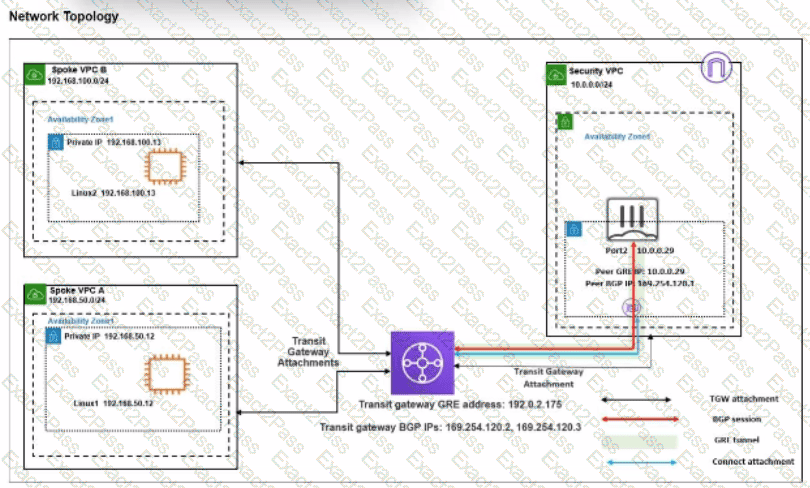

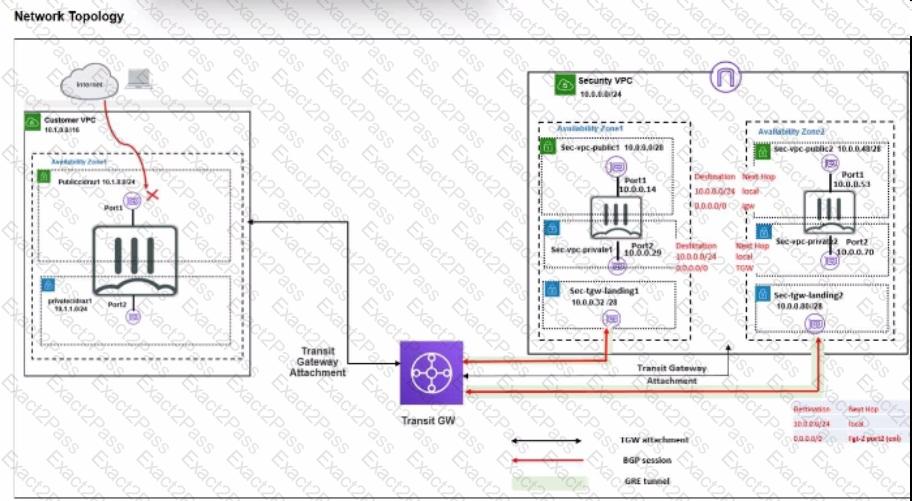

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet Public Cloud Security 7.4 training materials regarding centralized security inspection:

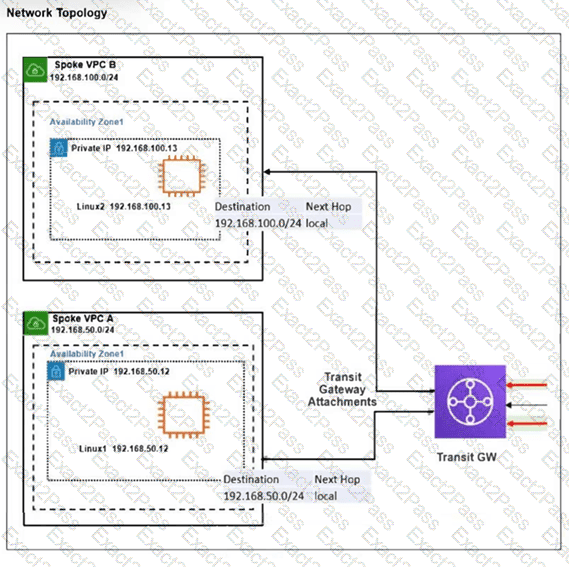

Multiple Route Tables (Option B): A single AWS Transit Gateway is designed to support multiple TGW route tables. By default, there is a soft limit of 20 route tables per Transit Gateway, which allows administrators to implement sophisticated network segmentation and granular routing policies. In a FortiGate-centric " Security Hub " or " Transit VPC " architecture, multiple route tables are used to separate " Spoke " traffic from " Security " traffic, ensuring all inter-VPC traffic is forced through the FortiGate-VM for inspection.

Associations and Propagations: * Association: Each individual TGW attachment (VPC, VPN, or Direct Connect) can be associated with exactly one TGW route table at any given time. This table dictates where packets coming from that attachment will be sent. Because of this 1:1 relationship, Option C is incorrect.

Propagation: An attachment can propagate its routes to one or many TGW route tables. This flexibility allows a VPC ' s prefix to be known in multiple routing domains, meaning that association and propagation do not need to occur in the same table, making Option A incorrect.

Default Route Table Management: When creating an AWS Transit Gateway, the options for " Default route table association " and " Default route table propagation " are enabled by default, but they can be disabled during or after creation. Disabling these is a security best practice when deploying FortiGate-VMs to prevent the TGW from automatically creating a " full-mesh " connectivity that bypasses the firewall, making Option D incorrect.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

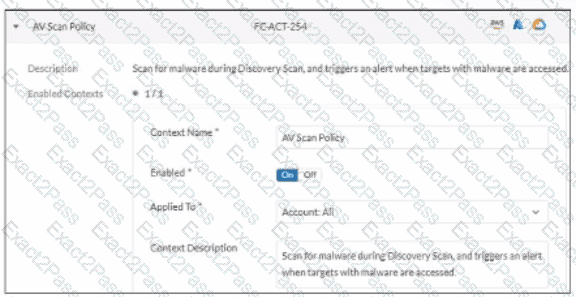

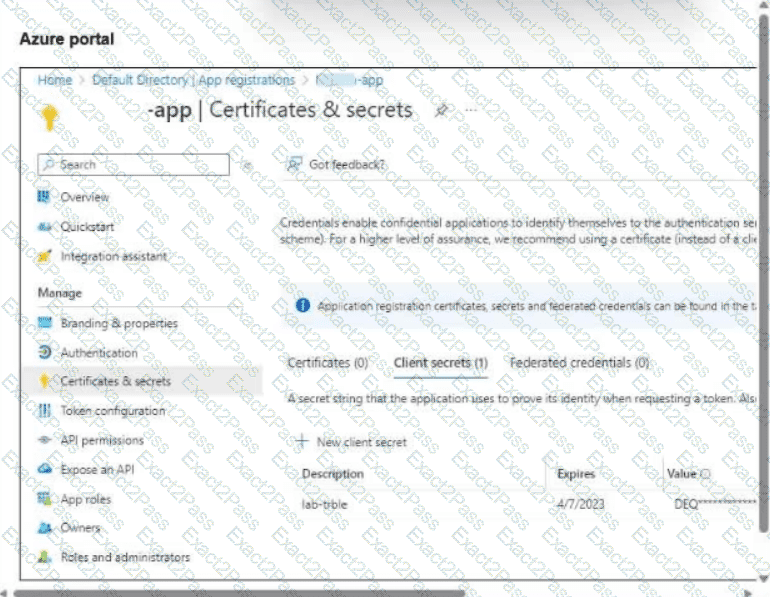

Based on the FortiCNAPP 24.x Administration Guide regarding Microsoft Azure onboarding and feature activation:

Separation of Integration Types (Option D): In FortiCNAPP, onboarding a cloud account via the automated configuration approach often initializes the Cloud Security Posture Management (CSPM) and Cloud Infrastructure Entitlement Management (CIEM) features. However, Workload Scanning (specifically Agentless Scanning) is treated as a distinct integration type within the platform.

Guided Configuration Requirement: Even after the account is onboarded, the administrator must navigate to the Integrations or Onboarding section and specifically add the Workload Scanning integration for that Azure account. This " Guided Configuration " ensures that the necessary additional permissions (such as those required to create snapshots of disks and scan them) and resources (like the scanner VNet or regional scanners) are properly deployed within the Azure environment.

Why other options are incorrect:

Option A & B: Automated onboarding already handles the creation of necessary App Registrations and Service Principals. Manually adding more without following the specific integration workflow will not activate the workload scanning engine.

Option C: Threat policies are used to generate alerts based on existing data. If the raw workload scanning data is not being received from Azure, a policy will have no data to analyze; the issue is at the ingestion/integration layer, not the policy layer.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

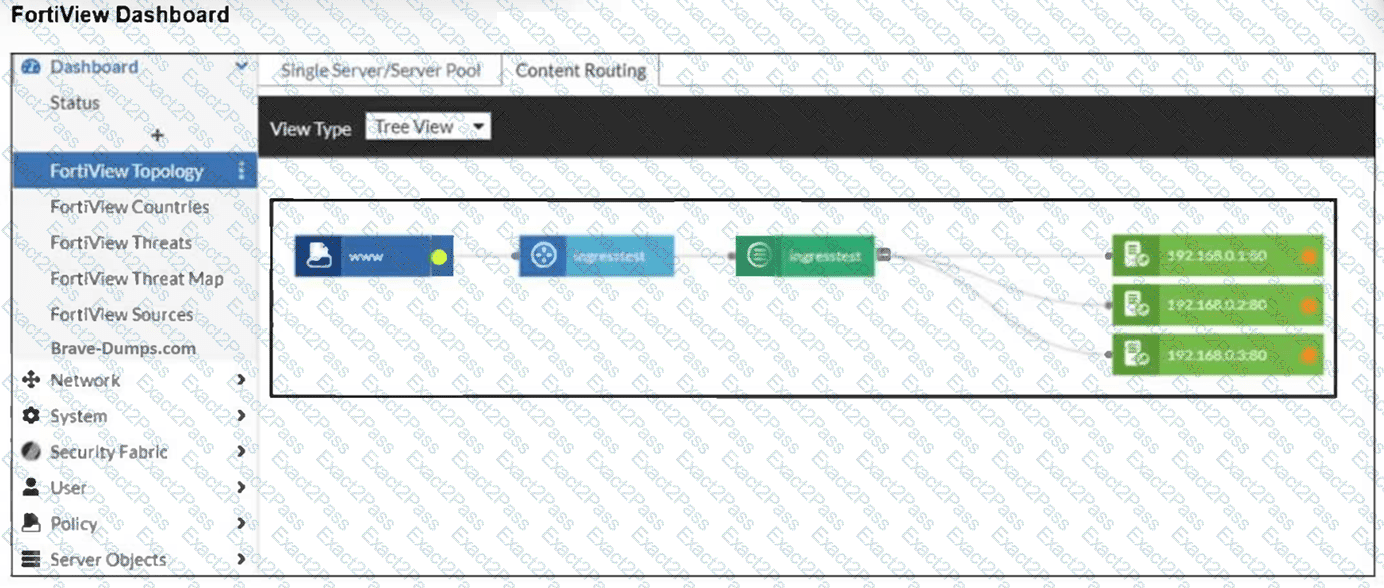

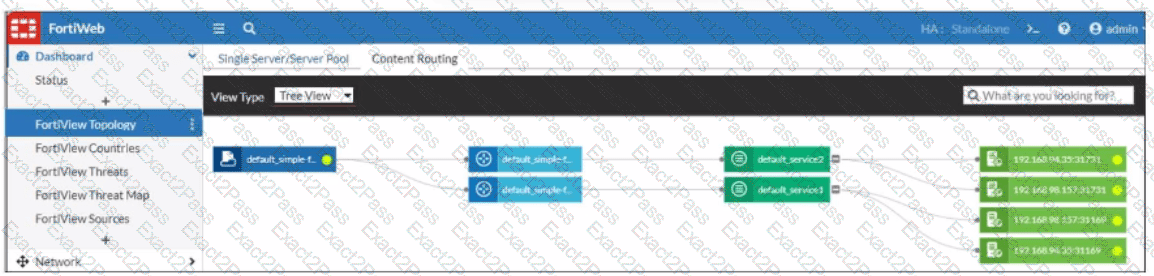

According to the FortiWeb 7.4 Administration Guide and the FortiWeb Ingress Controller Installation Guide , the status of backend servers in the FortiView Topology dashboard is a direct reflection of the health check results.

Interpreting the Status Icon (Orange): In the FortiView Topology view, a green circle indicates that the server is up and responding to health checks, while an orange circle indicates that the server is not running or is unreachable.

Connectivity and Routing (Option B): For the FortiWeb ingress controller to accurately monitor and protect a containerized application, it must have a valid network path to the Kubernetes (K8s) worker nodes. If the FortiWeb VM is missing a route to the specific subnet where the K8s nodes reside, the health check packets will fail to reach their destination. As a result, FortiWeb identifies the backend servers (192.168.0.1, 192.168.0.2, and 192.168.0.3) as " Down, " leading to the orange status shown in the exhibit.

Health Check Failures: When the status is orange, it implies that the Server Health Check (configured in the server pool) is detecting that the web servers are not responsive to connections. While this could be caused by an application-level failure, in a fresh cloud deployment of an ingress controller, the most common underlying cause is a network routing misconfiguration preventing the FortiWeb appliance from reaching the node IPs. 12

Why other options are incorrect: 34

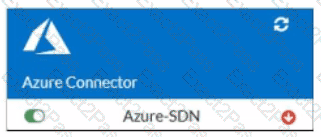

Option A: If the SDN connector were not authenticated correctly, FortiWeb would likely fail to discover the containerized resources entirely, rather than discovering them and repor 5 ting them as " Down " . 6

Option C: While wron 7 g IP addresses would cause a failure, the Ingress Controller ' s job is to dynamically sync these addresses from the K8s API; a manual configuration error in a manifest file regarding IP addresses is less likely in an automated ingress environment.

Option D: The load balancing algorithm (Round Robin, Least Connections, etc.) affects how traffic is distributed, but it does not influence the up/down health status of the individual backend servers.
