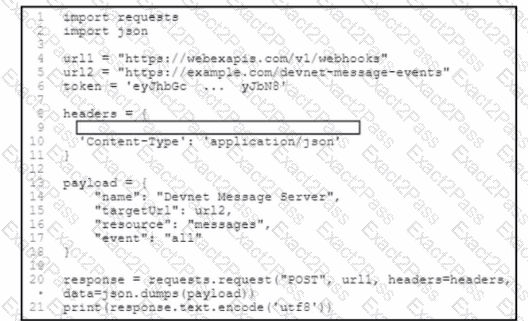

Importing Libraries: The script imports the requests and json libraries necessary for making HTTP requests and handling JSON data.

URLs Definition: The url1 variable holds the Webex API endpoint for creating webhooks, and url2 is the target URL where Webex will send the messages.

Token Handling: The token variable contains the OAuth2 token required for authentication with the Webex API.

Setting Headers: The headers dictionary includes the Content-Type set to applic a tion/json and the correct Authorization header that uses the Bearer token.

Payload Preparation: The payload dictionary contains the necessary information to create the webhook, including its name, target URL, resource type, and event.

Making the Request: The requests.request method sends a POST request to the Webex API endpoint with the specified headers and payload.

Printing the Response: The response from the Webex API is printed out, encoded in ' utf-8 ' .

Simplifying the wording: Webhook enables the app to ( push or receive real time) . The clients Webhooks enable applications to receive real-time data by providing a mechanism for one application to send data to another as soon as an event happens. This is done through HTTP callbacks, where an event in the source system triggers an HTTP POST request to a predefined URL in the destination system. This allows the destination system to process the data immediately, ensuring real-time updates.

The Waterfall model is a linear and sequential approach to software development. In Waterfall, all requirements are specified at the beginning of the project, and each phase (e.g., design, i m plementation, testing) must be completed before moving on to the next. This makes it less adaptable to changes once the project is underway.

Agile, on the other hand, is an iterative approach that allows for flexible responses to changes in requirements. Agile development is organized into small, incremental cycles called sprints, which typically last 1-4 weeks. During each sprint, a small portion of the project is developed, and changes can be incorporated based on feedback and evolving requirements.

During the integration step of the CI/CD pipeline, code from multiple developers is combined. This step involves compiling the code and running tests to ensure that the different components work together correctly. It is a critical phase for identifying integration issues early in the d e velopment cycle.

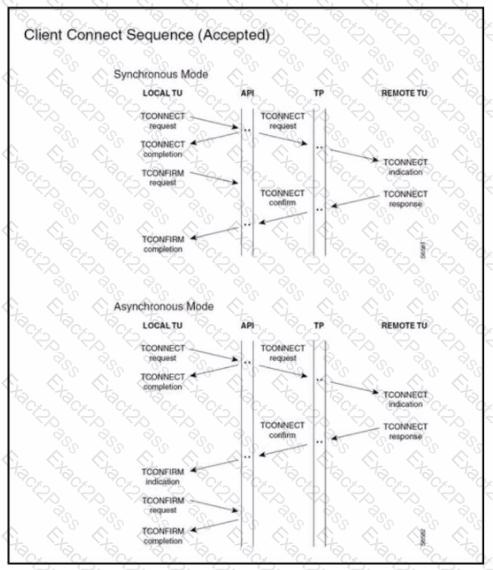

The TCONNECT protocol is part of the OSI transport layer, where TCONNECT confirm is the API called when the remote transport user (TU) responds to a connection request from the local TU.

TCONNECT confirm: This is the final step in establishing a transport connection, where the remote TU confirms the connection request from the local TU.

Sequence: The sequence typically involves TCONNECT request, TCONNECT indication, TCONNECT response, and finally TCONNECT confirm.

In Test-Driven Development (TDD), the process starts with writing tests before writing the a c tual code. The primary purpose of running tests before writing the code is to ensure that the tests fail initially. This failure demonstrates that the tests are correctly identifying the absence of the desired functionality or the presence of bugs. Once the tests are verified to fail for the expected reasons, the developer then writes the minimal code necessary to pass the tests, ensu r ing that the new functionality works as intended and that the codebase is continuously tested.

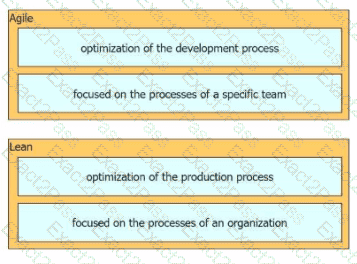

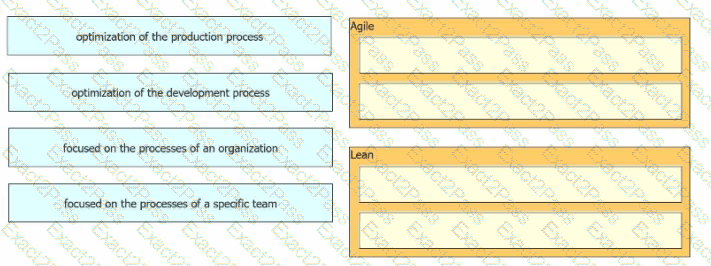

Agile :

Optimization of the development process

Focused on the processes of a specific team

Lean :

Optimization of the production process

Focused on the processes of an organization

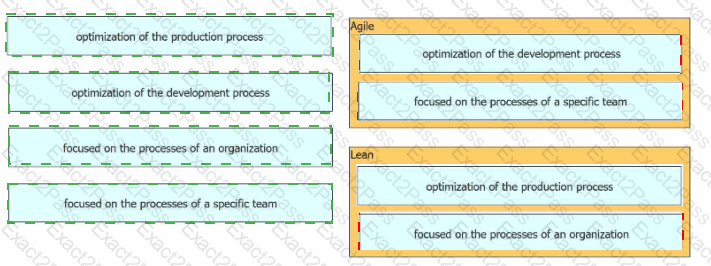

Agile Methodology :

Optimization of the Development Process : Agile focuses on improving and optimi z ing the software development process through iterative and incremental development, conti n uous feedback, and adapting to changes quickly.

Focused on the Processes of a Specific Team : Agile practices are typically impl e mented within specific development teams, emphasizing collaboration, flexibility, and team autonomy.

Lean Methodology :

Optimization of the Production Process : Lean aims to streamline the production process by eliminating waste, improving efficiency, and delivering value to the customer with the least amount of resources.

Focused on the Processes of an Organization : Lean principles can be applied across the entire organization, not just within individual teams, to improve overall processes and workflow efficiency.

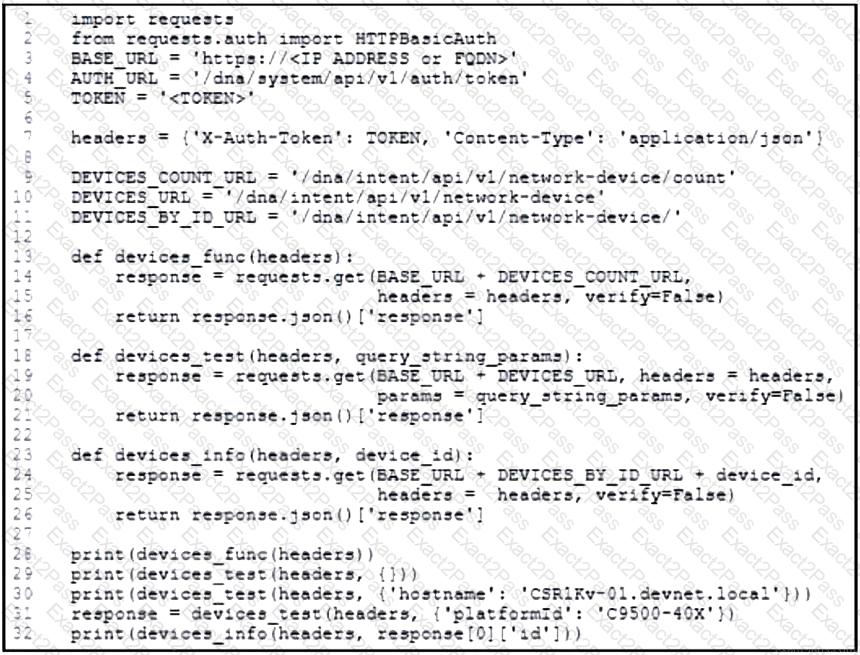

The Python script shown in the exhibit is designed to interact with Cisco DNA Center APIs. Here ' s a step-by-step breakdown of what the script does:

It imports necessary libraries and sets the BASE_URL , AUTH_URL , and TOKEN for authe n tication.

It defines the headers to include the authentication token and content type.

It constructs URLs for fetching the device count, all devices, and devices by ID.

The devices_func function makes a GET request to fetch the total count of devices.

The devices_test function fetches a list of network devices based on query param e ters.

The devices_info function retrieves detailed information about a specific device u s ing its ID.

The script then prints the total count of devices, all devices, and filtered device info r mation based on the hostname and platform ID.

In the final step, after executing the script, it fetches devices with the hostname " CSR1Kv-01.devnet.local " and then filters the list by platform ID " C9500-40X " . This results in displa y ing the filtered information about the device that matches both the hostname and platform ID criteria.

Latency refers to the delay between a client request and a server response. A large distance b e tween a client device and a host server increases the latency due to the time it takes for data to travel over the network.

Latency: The time delay experienced in a system, particularly in networking, where it refers to the time taken for data to travel from the source to the destination.

Impact: High latency can result in slow response times, negatively impacting the pe r formance of applications, especially those requiring real-time interactions.
