Network Time Protocol (NTP) is used to synchronize the clocks of network devices to a co m mon reference time. This is crucial for ensuring accurate time stamps in logs, coordinating time-sensitive operations, and maintaining consistent time across all devices in a network.

NTP : Synchronizes clocks of network devices to ensure they have the same time, which is essential for accurate event logging and coordination.

Other Protocols :

DNS : Resolves domain names to IP addresses.

SNMP : Used for monitoring network devices.

NAT : Translates private IP addresses to public IP addresses.

The Administrative XML Layer (AXL) API in Cisco Unified Communications Manager (CUCM) allows for various administrative tasks, including the ability to authenticate users. It enables applications to interact with CUCM, retrieving user information, and authenticating users based on their credentials stored in CUCM.

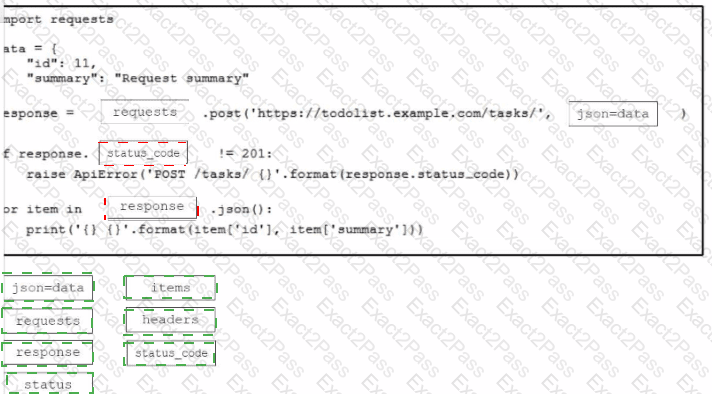

import requests

data = {

" id " : 11,

" summary " : " Request summary "

}

response = requests.post( ' https://todolist.example.com/tasks/ ' , json=data)

if response.status_code != 201:

raise ApiError( ' POST /tasks/ {} ' .format(response.status_code))

for item in response.json():

print( ' {} {} ' .format(item[ ' id ' ], item[ ' summary ' ]))

Importing the Requests Library :

The requests library is used to make HTTP requests in Python. It is a popular third-party library that simplifies interactions with web APIs.

Creating the Data Payload :

The data dictionary contains the information to be sent in the body of the POST request. It includes an id and a summary.

Making the POST Request :

The requests.post method is used to send a POST request to the specified URL (https://todolist.example.com/tasks/). The json=data parameter automatically converts the data dictionary to a JSON-formatted string and sets the appropriate headers.

Checking the Response Status Code :

The script checks if the status_code of the response is not equal to 201. A status code of 201 indicates that the request was successful and a resource was created.

If the status code is not 201, an ApiError is raised with a message that includes the status code.

Processing the JSON Response :

The response.json() method is used to parse the JSON response into a Python dictionary.

The script iterates over the items in the JSON response and prints the id and summary of each item.

DevOps emphasizes collaboration between development and operations teams, breaking down organizational silos to improve workflow and communication (C). Additionally, DevOps f o cuses on automating processes to increase efficiency, reduce manual effort, and minimize e r rors, often prioritizing automation over extensive documentation (E).

Routing protocol traffic is handled on the control plane of a network device. The control plane is responsible for the exchange of routing information, the computation of the best paths, and the creation of the routing table. Protocols such as OSPF, BGP, and EIGRP operate at the control plane level to ensure that routers have the necessary information to make forwarding decisions. The data plane, on the other hand, is responsible for the actual forwarding of packets based on the routing table created by the control plane. More information on network planes can be found in the Cisco Networking Basics.

The HTTP status code 204 means that the server has successfully processed the request, but there is no content to send in the response. This status code is typically used when the server fulfills the request, but no further information is needed to be returned to the client. The 204 status is used to indicate that the request was successful and that the client should not refresh or change the current page view. For example, this might be used when a form submission is processed without requiring any update to the client.

The Bash script provided in the exhibit performs two find commands:

find /home/user/backup -mtime +30 -type f -print : This command searches for files in the /home/user/backup directory that have been modified more than 30 days ago and prints their names.

find /home/user/backup -mtime +30 -type f -delete : This command searches for files in the /home/user/backup directory that have been modified more than 30 days ago and deletes them.

Thus, the workflow being automated by this Bash script is the deletion of backup files that are older than 30 days.

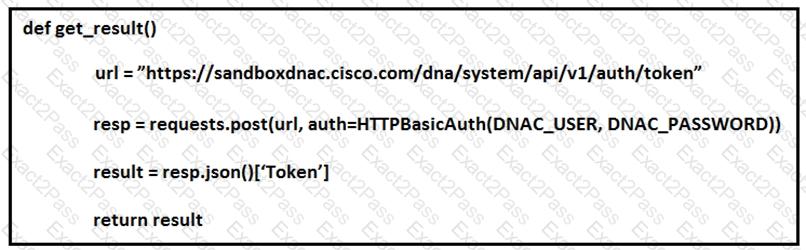

The Python function shown in the exhibit performs the following operations:

It defines a function get_result() .

Inside the function, it sets the url variable to the Cisco DNA Center (DNAC) API en d point for authentication tokens.

It makes a POST request to the specified URL with HTTP Basic Authentication using the credentials DNAC_USER and DNAC_PASSWORD .

The response from the POST request is expected to be in JSON format.

It extracts the value associated with the key ' Token ' from the JSON response.

Finally, it returns this token.

This function ' s purpose is to obtain and return an authorization token from the Cisco DNA Center API, which can be used for subsequent API requests.

Model-driven programmability leverages models to represent the desired state of network co n figurations, allowing for programmatic and standards-based management. This approach e n sures that configurations can be written consistently and automatically across different network devices, simplifying network management and reducing the risk of configuration errors.

An IP (Internet Protocol) address is a unique identifier assigned to each device connected to a network that uses the IP for communication. It serves two main functions: identifying the host or network interface and providing the location of the host in the network. This unique ID a l lows devices to locate and communicate with each other over an IP-based network, ensuring that data sent across the network reaches the correct destination.
