Comprehensive and Detailed Explanation

BGP Flowspec allows routers to distribute traffic-filtering rules using BGP NLRI.

To enable Flowspec, after neighbors are configured, the essential next step is:

✔ Activate the Flowspec address-family under BGP

Example:

router bgp 65000

address-family ipv4 flowspec

neighbor X.X.X.X activate

exit-address-family

This enables:

FlowSpec NLRI exchange

Distribution of drop rules (rate-limit, redirect, null route, etc.)

Automatic ACL/class-map/policy-map generation on edge routers

Why the other options are incorrect:

B. Set BGP routing process → already done when neighbors were configured

C. Activate neighbors → only makes sense inside an address-family; flowspec AF must be enabled first

D. Configure route reflector → optional and not required for Flowspec to operate

Thus, the correct next step is A. Configure Flowspec for the BGP address-family .

Comprehensive and Detailed Explanation (Cisco SP Cloud Knowledge)

The requirement describes:

Secure communication between sites or devices

Protection from eavesdropping over the Internet

Cryptographic tunnels

End-to-end authentication and encryption

This exactly matches the purpose of an IPsec VPN , which provides:

Encrypted secure tunnels

Authentication and integrity protection

Confidentiality even across untrusted networks such as the Internet

Other options do not provide encrypted peer-to-peer channels:

AWS Direct Connect → private link to AWS, not peer-to-peer encryption

Segment Routing → traffic engineering, not security

Transit VPC → routing architecture, not encryption

Thus the correct answer is IPsec VPN .

Comprehensive and Detailed Explanation (Cisco NFVI / Virtualization Knowledge)

SR-IOV (Single Root I/O Virtualization) allows a VM to access the network interface hardware directly , without going through the hypervisor’s virtual switch.

This is achieved by:

Assigning Virtual Functions (VFs) directly to VMs

Allowing high-performance, low-latency packet I/O

Bypassing the hypervisor datapath

Therefore, SR-IOV does not bypass the guest OS; it bypasses the hypervisor I/O virtualization layer , delivering near-native performance.

Thus the correct answer is C .

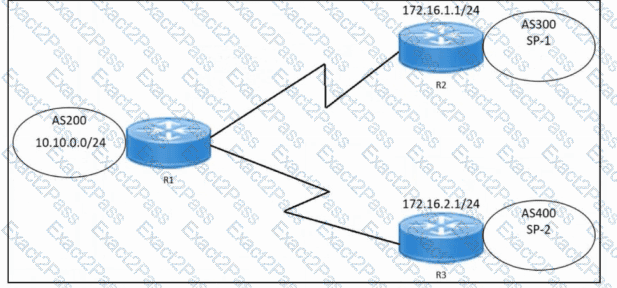

R1 (AS 200) is multihomed to:

SP-1 in AS 300 via neighbor 172.16.1.1

SP-2 in AS 400 via neighbor 172.16.2.1

R1 must:

Advertise only locally originated prefixes (its own network 10.10.0.0/24).

NOT become a transit AS —i.e., R1 must not advertise routes learned from one provider to the other.

The configuration includes AS-path access-lists:

ip as-path access-list 1 permit ^$

ip as-path access-list 200 permit ^200

ip as-path access-list 300 permit ^300

ip as-path access-list 400 permit ^400

^$ in AS-path ACL 1 matches locally originated routes (empty AS-path).

ACLs 200, 300, and 400 match routes whose first AS in the path is 200, 300, or 400 respectively (used if we needed to match those provider or customer routes).

To ensure each upstream provider only receives locally originated routes, we apply AS-path ACL 1 as an outbound filter-list on each external BGP neighbor:

router bgp 200

neighbor 172.16.1.1 remote-as 300

neighbor 172.16.1.1 filter-list 1 out ← only advertise local prefixes to SP-1

neighbor 172.16.2.1 remote-as 400

neighbor 172.16.2.1 filter-list 1 out ← only advertise local prefixes to SP-2

This way:

Routes learned from SP-1 (AS 300) will not be advertised to SP-2 (AS 400) because their AS-path will begin with 300, not empty, so they fail ACL 1.

Similarly, routes from SP-2 will not be sent to SP-1.

Only R1’s own prefixes are exported, preventing AS 200 from becoming a transit network.

From Cisco’s EVPN VXLAN multihoming design requirements, port-active multihoming uses a single LAG (EtherChannel / Bundle-Ether) between the host/router and the pair of leaf switches. All physical interfaces participating in that bundle must be configured with:

bundle id < number > mode active

This command:

Associates the physical interfaces (g1/0 and g1/1) with Bundle-Ether1 .

Uses LACP active mode, which is required for EVPN port-active multihoming.

Enables the host-facing port-channel required to support EVPN multihomed connectivity.

In the exhibit, R1 already has:

interface Bundle-Ether1

description "Bundle to Leaf-1"

interface Bundle-Ether1.10

ip address 192.168.10.1 255.255.255.0

This confirms that the engineer intends to bundle g1/0 and g1/1 together into Bundle-Ether1 , and the missing step is adding the interfaces into that bundle.

The correct configuration is:

interface g1/0

bundle id 1 mode active

interface g1/1

bundle id 1 mode active

Why the other options are incorrect

A. evpn ethernet-segment 1 This command is used on EVPN leaf switches (not R1) to define an ESI for multihoming. R1 is not an EVPN VTEP.

B. switchport mode trunk R1 is a router, not a switch. L3 interfaces do not use switchport.

C. encapsulation dot1q 1 This applies only to subinterfaces, not physical interfaces, and is unrelated to building a LAG for port-active multihoming.

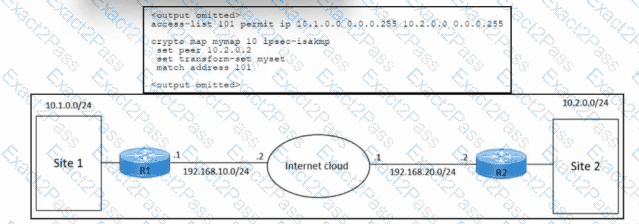

For a site-to-site IPsec VPN , each peer must point to the reachable IP address of the remote VPN endpoint —that is, the IP address on the WAN/Internet-facing interface of the remote router.

From the diagram:

R1 outside (toward Internet): 192.168.10.1

R2 outside (toward Internet): 192.168.20.2

Inside LANs:

Site 1: 10.1.0.0/24

Site 2: 10.2.0.0/24

The crypto map on R1 uses:

crypto map mymap 10 ipsec-isakmp

set transform-set myset

match address 101

set peer < REMOTE_PEER_IP >

The < REMOTE_PEER_IP > must be the IP address where R1 can actually reach the IPsec peer, which is R2’s Internet-facing interface 192.168.20.2 .

If the peer were configured with a LAN IP such as 10.2.0.1 (site 2’s internal gateway), IKE packets would never reach the remote router because that address is not routable over the Internet.

Therefore, the correct command to bring up the VPN is:

set peer 192.168.20.2

Option A (10.1.0.1) – local LAN IP (R1’s side), not the remote endpoint.

Option C (192.168.10.1) – R1’s own WAN IP, not the remote peer.

Option D (10.2.0.1) – remote LAN IP, not reachable directly over the Internet.

Carrier-neutral facilities allow customers to connect to multiple telecom carriers , providing:

Physical path diversity

Redundancy

Competitive options

High availability for interconnects

Thus, path diversity on multiple carriers is the primary benefit.

Comprehensive and Detailed Explanation From Cisco NFVI + VIM Architecture

Cisco VIM (Virtual Infrastructure Manager) operates as part of Cisco NFVI and requires specific mandatory network segments to deploy OpenStack-based NFVI environments.

The essential required networks for Cisco VIM include:

✔ Provisioning network

Used during bare-metal install of compute and controller nodes

Handles PXE boot, image deployment, and VIM’s management reachability

✔ Storage network

Used for Cinder, Swift, Ceph, and Glance back-end storage replication

Ensures predictable latency and bandwidth for NFVI workloads

Other networks exist in VIM (Management, API, Tenant, External), but the question asks for the required foundational segments.

Why the other options are incorrect:

Data plane (B) – used inside NFV workloads but not a required VIM infrastructure network.

Heartbeat (C) – not a defined VIM network segment.

Host network (D) – not a Cisco VIM terminology; provisioning network handles host onboarding.

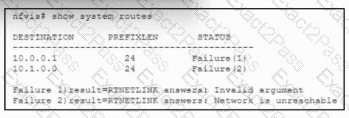

Cisco NFVIS follows strict security controls. After a fresh deployment:

The default admin credentials are considered insecure .

NFVIS requires the administrator to reset the default password on first login (typically via console or SSH).

Until the password is changed, REST API and web-portal access are denied , and attempts to access the portal or API return HTTP 401 Unauthorized , even if the default credentials are provided.

This mechanism prevents use of factory-default passwords in production and is explicitly documented as a mandatory post-install step.

The other options are not the cause of a 401 error:

Enabling portal via SSH (B) is not required; HTTPS access is enabled by default once credentials are valid.

Restarting Tomcat (C) would address service availability issues (e.g., 5xx errors), not authentication.

Browser certificates (D) affect trust warnings (e.g., HTTPS certificate errors), not 401 Unauthorized.

Comprehensive and Detailed Explanation From Exact Extract from my knowledge of Designing and Implementing Cisco Service Provider Cloud Network Infrastructure Outlines without Any External URL or Links:

Cisco+ Hybrid Cloud is Cisco’s as-a-service consumption model that offers pay-as-you-go infrastructure. For a hybrid workplace , the focus is on giving users secure desktop environments from anywhere, with the ability to rapidly deploy and scale up or down based on the number of users or partners.

Cisco+ Hybrid Cloud for Virtual Desktop Infrastructure (VDI) specifically delivers desktop and app workspaces as an on-demand service. It allows partners to consume desktops elastically, paying for capacity as needed and scaling the underlying compute, storage, and networking without rebuilding the environment.

Bare Metal Compute and Virtualization offers flexible infrastructure but are aimed at app/workload hosting rather than user desktop workspaces.

Service Provider Networking addresses network services, not end-user hybrid workplace desktops. Therefore, for a pay-as-you-go, rapidly deployable, elastic solution in a hybrid workplace, Cisco+ Hybrid Cloud for Virtual Desktop Infrastructure is the correct choice.
