Question # 4

A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue? (Choose two.)

A.

Configure the NVE interfaces to be Up on both switches.

B.

Set a different distributed gateway virtual MAC address.

C.

Set a different secondary IP addresses on NVE source-interface.

D.

Configure the same VNI to multicast group maping.

E.

Set a different primary IP addresses on NVE source-interface.

Full Access
Question # 5

Refer to the exhibit.

RBAC is configured on the MDS switch for a new SAN administrator engineer to work on the FSPF configuration. However, after the configuration is applied the engineer who was assigned the FSPF_Admin role cannot perform any configuration changes. Which action resolves the issue?

A.

Write rule 2 before rule 1

B.

Remove rule 1 from the role

C.

Configure the switch license for RBAC

D.

Reload the switch

Full Access
Question # 6

Refer to the exhibit.

After an unexpected reload of the Cisco Nexus 9000 Series Switch, the network administrator noticed that one of the Software Maintenance Upgrades (SMU) images is inactive. The engineer must ensure that the package remains active after the switch is reloaded in the future. Which action accomplishes this goal?

A.

Commit the package using the install commit command.

B.

Save the running configuration after activating the package.

C.

Deactivate and uninstall the active core package.

D.

Copy the SMU package file on the bootflash.

Full Access
Question # 7

An engineer is troubleshooting a fabric discovery failure. Which two requirements must an engineer verify about switch connectivity to solve the problem? (Choose two.)

A.

A Cisco APIC must be attached to a spine node only.

B.

A Cisco APIC must be attached to leaf nodes.

C.

Spine nodes must connect to other spine nodes.

D.

A Cisco APIC must be dual-attached to two separate spine nodes.

E.

Leaf nodes must connect to spine nodes only.

Full Access
Question # 8

A network engineer discovers a DNS resolution problem on a device that is using the Cisco Nexus Bash shell.

The device name is app with an IP address of 10.10.10.1. The primary server IP address is 172.16.10.1 and

the secondary server IP address is 172.16.10.2. When the abc.com resolution fails, it should attempt to use

efg.com. Which settings must be added to resolv.conf file to resolve the issue?

A.

Option A

B.

Option B

C.

Option B

D.

Option D

Full Access
Question # 9

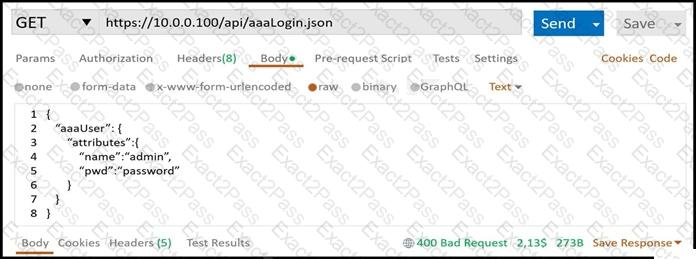

Refer to the exhibit.

The cURL command fails to complete. Which action resolves the problem?

A.

Remove ".json\" from the URL.

B.

Include -p "password" in the command.

C.

Add -H "X-Auth-Token" to the command.

D.

Change ".json" to ".xml" at the end of the URL.

Full Access
Question # 10

Refer to the exhibits. An engineer is implementing the SAN based on the Cisco MDS 9000 Series Switches. When operating the environment, the engineer encounters the error shown. Which action resolves the issue?

A.

Copy VSAN 101 to the fabric binding database on the MDS-1 switch

B.

Add the World Wide Name of the neighboring switch to the MDS-1 switch

C.

Configure the port security feature on the MDS-1 switch

D.

Enable VSAN 101 on the peer MDS 2 switch fabric interconnect

Full Access
Question # 11

Refer to the exhibit.

A blade that is connected to FI-B fails to boot from a SAN LUN. The boot policy is configured to boot by using vHBA1 as the SAN Primary. Which set of actions resolves the issue?

A.

• Set ESX01_B zone to VSAN 20.

• Create a new vHBA and assign VSAN 20.

B.

• vHBA1 to VSAN 20 in Service Profile.

• VMware Adapter Policy on vHBA1.

C.

•Apply VMware Adapter Policy on vHBA1

•Change vHBA1 to VSAN 20 in Service Profile

D.

• Set ESX01_B zone to VSAN 20.

• Change vHBA1 to VSAN 20 in Service Profile

Full Access
Question # 12

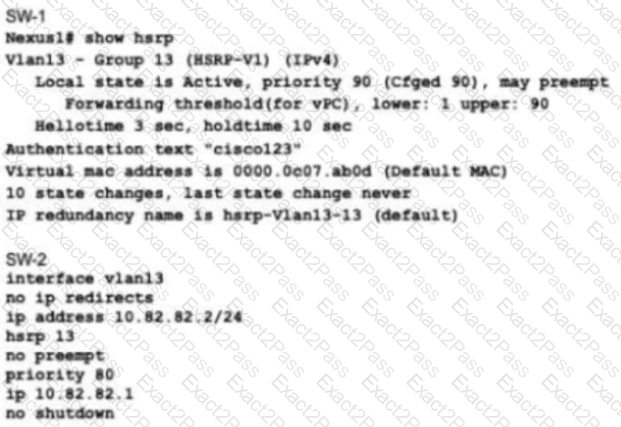

A network engineer notices a sudden interruption to the HSRP adjacency between the switches. The packet loss is reported on the servers for which the default gateway is set as the virtual IP of the HSRP. AII servers on

the VL AN can exchange ping messages. Which configuration set must be applied on the HSRP peers to resolve the adjacency issue?

A.

key 0 send-lifetime 00:00:00 Oct 01 2018 23:59:59 Sep 01 2020

B.

key 1 send-lifetime 00:00:00 Jun 01 2018 23:59:59 Sep 01 2022

C.

key1 accept-lifetime 00:00:00 Jun 01 2018 23:59:59 Sep 01 2020

D.

key 0 accept-lifetime 00:00:00 Oct 01 2018 23:59:59 Sep01 2020

Full Access
Question # 13

The VXL AN fabric is deployed with this configuration:

●The VL AN 50 interface has no IP address on VTEP1 and VTEP4.

●The VLAN 100 interface has no IP address on VTEP2 and VTEP3.

● nve1 interface is configured on all VTEPs.

Host A experiences timeouts when attempting to ping host B. Which set of actions allows host A to reach host B7

A.

On VTEP1, associate VNI 30000 to Test_ Telco VRF.

On VTEP4, associate VNI 20000 to Test_ Telco VRF.

B.

On VTEP2, associate VNI 55000 to Test Telco VRF.

On VTEP4, associate VNI 50000 to Test Telco VRF.

C.

On VTEP1, associate VNI 50000 to Test Telco VRFOn VTEP4, associate VNI 50000 to Test Telco VRF.

D.

On VTEP2, associate VNI 30000 to Test Telco VRF

On VTEP4, associate VNI 20000 to Test Telco VRF

Full Access
Question # 14

One of Cisco Nexus Series interfaces has become errdisabled with the error message “DCX-No ACK in 100 PDUs”. What is the cause of this error?

A.

The host has not responded to the Control Sub-TLV DCBX exchanges of the switch.

B.

The acknowledgement number in the server response has not incremented for 100 exchanges.

C.

Cisco Discovery Protocol is disabled on the switch.

D.

LLDP is disabled on the switch.

Full Access
Question # 15

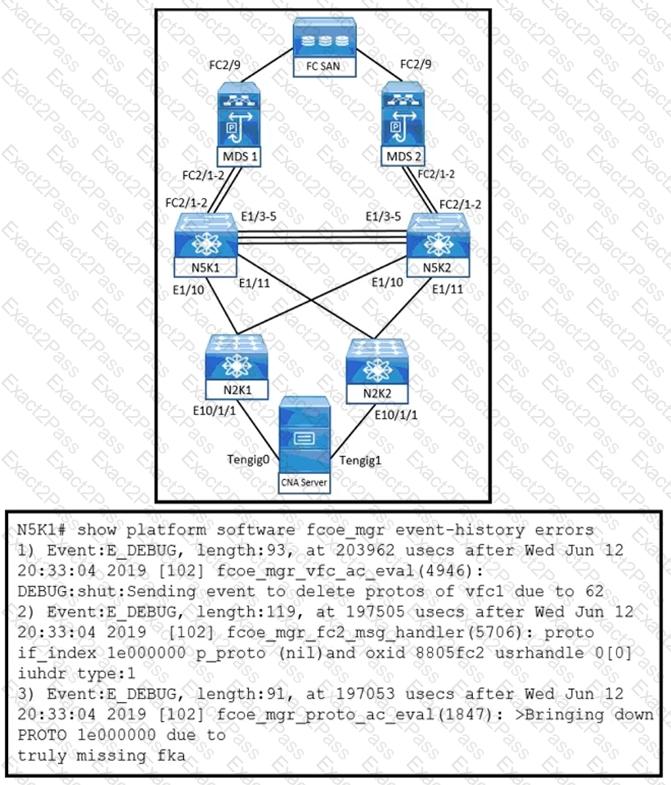

Refer to the exhibits.

An engineer troubleshoots switch N5K1, which fails to receive traffic from the file server Which set of actions resolves this problem?

A.

Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.

B.

Assign native VLAN 10 with vfc111 and allow VLAN 1101 in trunk configuration.

C.

Bind native VLAN 10 with Ethemet10/1/1 and allow VLAN 10 in trunk configuration

D.

Assign native VLAN 10 with fc2.'l - 2 and allow VLAN 10 in trunk configuration.

Full Access
Question # 16

An engineer discovers that an NPV/NPIV uplink experiences a heavy load and plans to add more uplinks. Which statement about what occurs when the new uplinks are added is true?

A.

Only new connections use the new uplinks automatically.

B.

Paths must be defined before new connections can use the new uplinks.

C.

All connections must be reset before the new uplinks can be used.

D.

New and existing connections use the new uplinks automatically.

Full Access
Question # 17

Refer to the exhibit.

An engineer performs a POST operation using REST API on the Cisco Nexus switch to retrieve a managed object, but the operation fails. Which configuration resolves the issue?

A.

https://172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=full &rsp-prop-include=config-only

B.

icurl -k-v https:// 172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=modified=config-only

C.

https:/ 172.16.10.1/api/node/mo/uni/tn-Test1.xml? rsp-subtree=modified=config-only

Full Access
Question # 18

Refer to the exhibit.

Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?

A.

Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.

B.

Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.

C.

Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.

D.

Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

Full Access
Question # 19

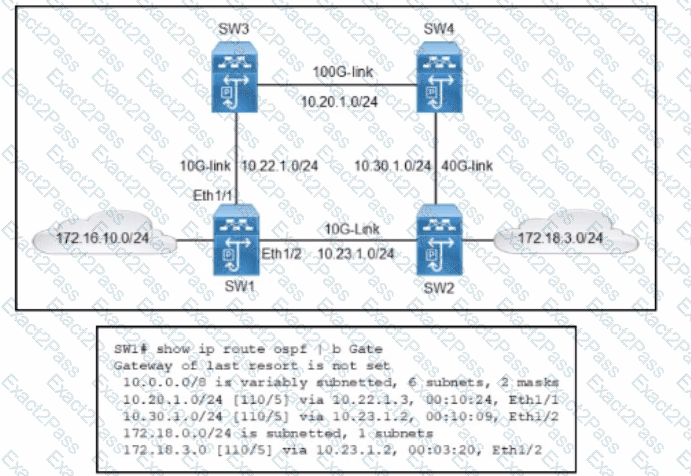

Refer to the exhibit.

A network engineer is implementing a pair of Cisco Nexus 9000 Series Switches. During the OSPF configuration, the engineer discovers unstable routing in the network. The investigation shows flapping routes after the new switches were introduced. Which set of actions resolves the issue?

A.

Configure a new IP address on the Ethernet interface toward the OSPF neighbor. Clear the OSPF neighbor.

B.

Configure a new IP address on the Ethernet interface toward the OSPF neighbor. Clear the OSPF process.

C.

Configure a new OSPF priority on the Ethernet interface toward the OSPF neighbor. Clear the OSPF neighbor.

D.

Configure a new IP address on the Loopback interface for the OSPF process. Clear the OSPF process

Full Access
Question # 20

Refer to the exhibit.

An engineer is investigating a role mapping issue on a switch. The users report that they cannot view the IP addresses under the tenant “corp”. Which action resolves the issue?

A.

Add the users to the RADIUS server.

B.

Update the UNIX ID.

C.

Configure the correct secret password between the APIC and the RADIUS server.

D.

Add the updated avpair to include/corp/admin/

Full Access
Question # 21

An engineer is troubleshooting issues in Cisco UCS Director. Drag and drop the possible causes from the left onto the correct issues on the right.

Full Access
Question # 22

An engineer is troubleshooting a custom AV pair that was created by a client on an external authentication server to map a read-only role for a specific security domain. Which AV pair solves the problem?

A.

shell:domains=Security_Domain_1//Read_Role_1|Read_Role_2

B.

shell:domains=Security_Domain_1/Write_Role_1|Read_Role_2

C.

shell=Security_Domain_1/Read_Role_1|Read_Role_2

D.

shell:domains=Security_Domain_1/Read_Role_1|Read_Role_2

Full Access
Question # 23

An engineer is recovering a fabric interconnect from a failed upgrade. The engineer booted the fabric interconnect to the switch(boot)# prompt and copied all the required images. Which image must be linked to nuova-sim-mgmt-nsg.O. 1.0.XXXXXXXXX1 bin to make the management image compliant with the Cisco UCS Manager?

A.

Kickstart

B.

System

C.

UCS Manager

D.

Cisco IMC

Full Access
Question # 24

Refer to the exhibit.

An engineer must connect N2K-Fex-1 and N5K-Core-1 so that the traffic flow between the two devices uses load balancing. After inspecting the statistics of the interconnecting interfaces, the engineer concludes that only one link is used. Which action resolves the problem?

A.

Configure source-destination load balancing on N5K-Core-1.

B.

Configure each uplink to be a member of a separate LACP port channel.

C.

Configure the pinning max-link as 2.

D.

Configure destination-mac load balancing on N5K-Core-1

Full Access
Question # 25

Refer to the exhibit.

The FCoE traffic fails to traverse the vfc2 interface. The VSAN 102 is configured for vfc2. Which action resolves the issue?

A.

Enable LLDP on the interface vfc2

B.

Activate DCBX on the N9K switch

C.

Activate DCBX on the interface e101/1/2

D.

Enable LLDP on the neighbor switch

Full Access
