Cisco Intersight REST API requires a secure authentication process that involves creating a SHA256 hash of the message body and headers. This ensures that the message integrity is maintained and verifies that the message has not been tampered with during transit. Even if the message body is empty, a SHA256 hash is still required.  Additionally, the use of RSA private keys enhances security, but the specific key size requirement was not mentioned in the provided resources 6

To isolate a new package from the main code base, creating a new virtual environment is the best practice. This allows for the installation and testing of the new package without affecting the existing code or dependencies. Performing a pip install of the new package within this isolated environment ensures that any potential issues or conflicts are contained.  References  :=

General best practices in software development for package management and virtual environments.

To enable the REST API browser within Cisco UCS Director, a user must edit their profile to enable developer options. This action provides access to the REST API browser, which is a powerful tool for automating tasks and operations within the Cisco UCS Director environment.

References  :=  Implementing Automation for Cisco Data Center Solutions (DCAUI)

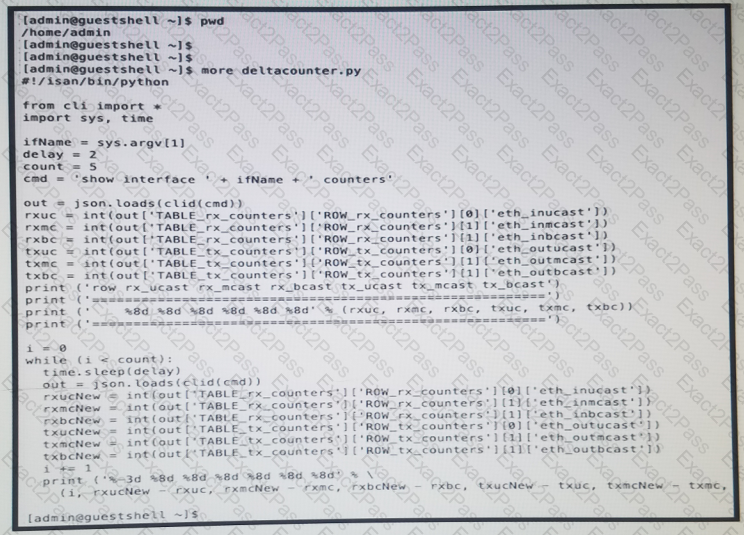

The correct command to execute a Python script within the Guest Shell container on a Cisco NX-OS switch is  guestshell run , followed by the path to the Python script. In this case, the script  deltacounters.py  is located in  /home/admin/ , so the full command would be  guestshell run python /home/admin/deltacounter.py ethernet1/1 . This command initiates the Guest Shell, which is a secure, Linux-based environment designed to run custom Linux applications, including Python scripts, on Cisco NX-OS platforms. By specifying  python  after  guestshell run , we are instructing Guest Shell to use its Python interpreter to execute the given script with ‘ethernet1/1’ as an argument passed to it.

References :

Cisco Guest Shell Configuration Guide

Implementing Automation for Cisco Data Center Solutions (DCAUI)

The ACI CNI plug-in is designed to provide intent-based networking for containers, allowing them to be managed from the same interface as VMs and bare-metal servers. This integration facilitates consistent policy enforcement, automation, and visibility across all types of workloads.  References : Cisco ACI documentation and training materials.

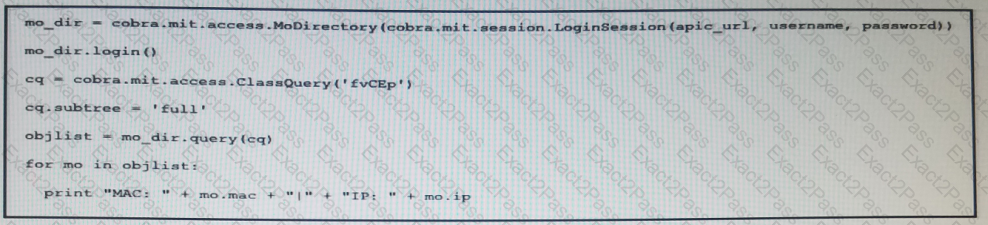

The ACI Cobra SDK is a Python library provided by Cisco for interacting with the Application Centric Infrastructure (ACI). The code in the image uses this SDK to log into an APIC controller, which is the central management entity for the ACI fabric. After logging in, it creates a class query for ‘fvCEp’, which stands for Fabric Endpoint. This class contains information about endpoints within the ACI fabric, including their MAC and IP addresses.

The ‘subtree’ property set to ‘full’ indicates that the query will return all objects within this class’s subtree, meaning it will retrieve detailed information about each endpoint. The  mo_dir.query(cq)  method executes this query against the APIC.

Finally, for each object returned by the query (each endpoint), it prints out two attributes: ‘mac’ and ‘ip’. These attributes correspond to the MAC address and IP address of each endpoint in the ACI fabric. Therefore, option C is correct as this code prints all endpoint MAC and IP addresses.

References :

Implementing Automation for Cisco Data Center Solutions (DCAUI)

Cisco Learning Network - Data Center Training Videos

Consistency of Systems Configuration : Network configuration tools like Ansible and Puppet ensure that configurations across multiple devices in a data center are uniform.  This consistency reduces the risk of errors that can occur when configurations are applied manually, leading to a more stable and reliable network infrastructure 1 2 .

Automation of Repetitive Tasks : These tools automate routine tasks such as deploying updates, applying configurations, and provisioning systems.  By automating these tasks, data center operations become more efficient, reducing the time and effort required for manual configuration and increasing productivity

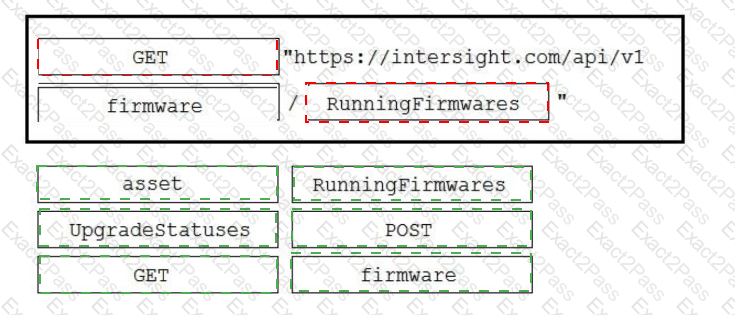

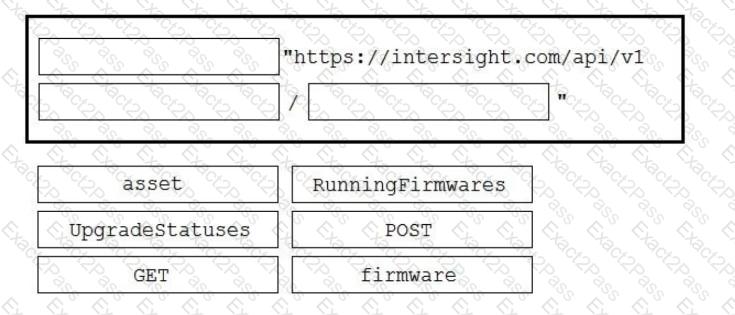

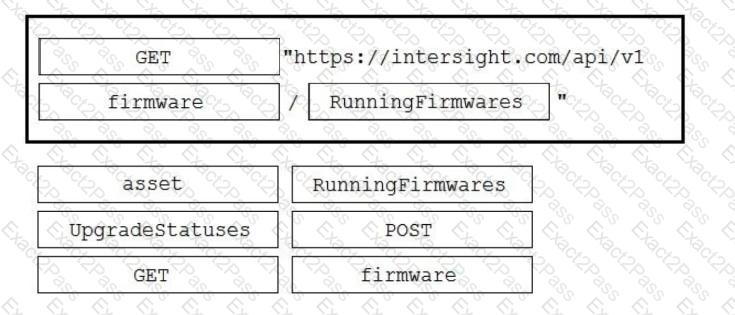

GET, firmware, RunningFirmwares
