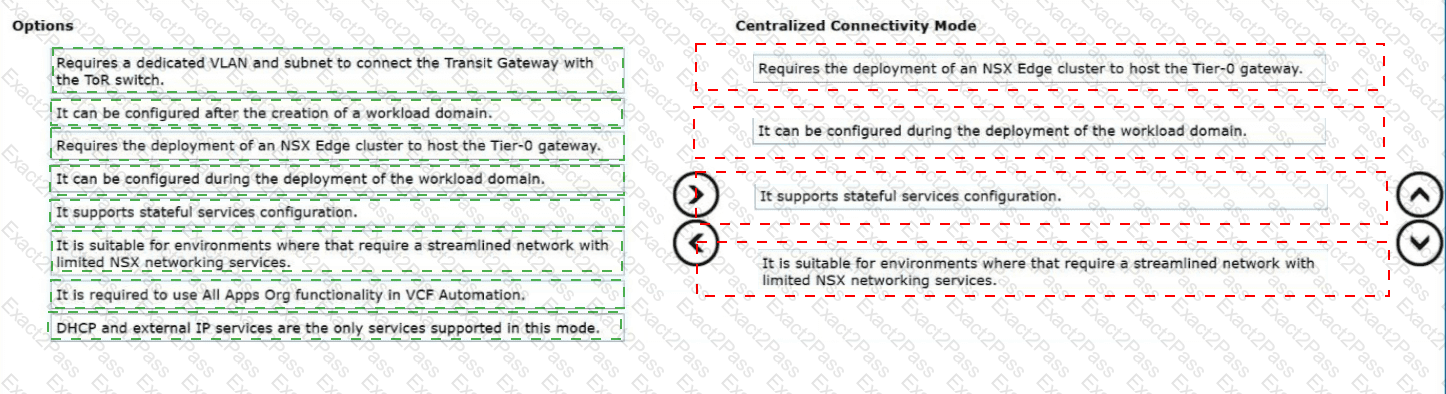

Requires the deployment of an NSX Edge cluster to host the Tier-0 gateway.

It can be configured during the deployment of the workload domain.

It supports stateful services configuration.

It is suitable for environments that require a streamlined network with limited NSX networking services.

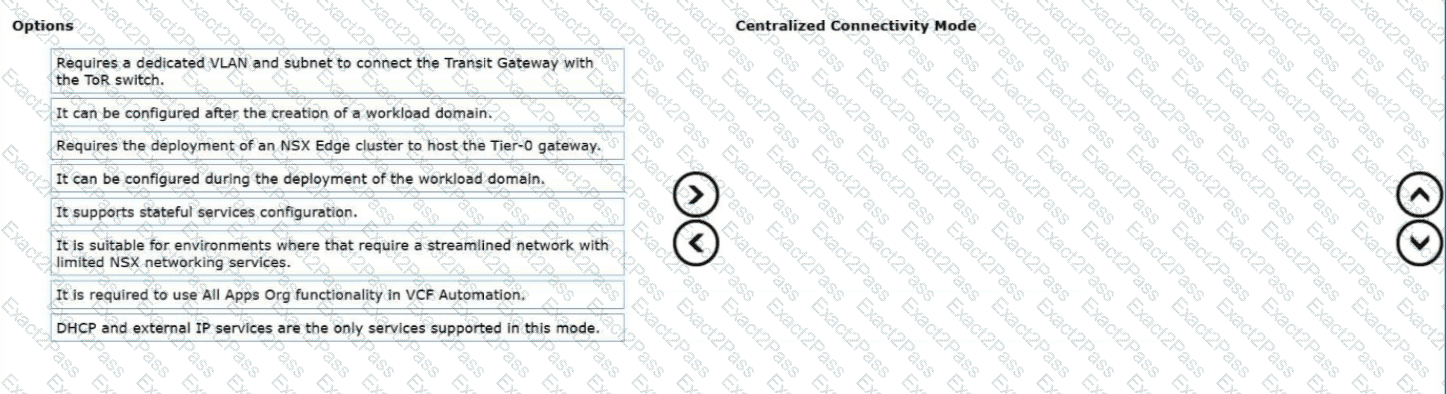

In VMware Cloud Foundation (VCF) 9.0 , the networking architecture introduces specialized connectivity modes to cater to different organizational needs, with Centralized Connectivity Mode being a primary option for streamlined deployments. This mode is fundamentally anchored to the physical infrastructure via localized resources rather than distributed components across the entire cluster.

The most critical technical requirement for this mode is that it requires the deployment of an NSX Edge cluster to host the Tier-0 gateway . Unlike distributed models, centralized connectivity funnels North-South traffic through specific Edge nodes that serve as the demarcation point between the virtual overlay and the physical Top-of-Rack (ToR) switches. This centralization is what enables the next key characteristic: it supports stateful services configuration . Because traffic is anchored to specific Service Routers (SR) on Edge nodes, stateful operations such as NAT, Load Balancing, and stateful firewalls can maintain session persistence, which is not natively possible in a purely distributed Active/Active ECMP environment without specialized configuration.

From a lifecycle perspective, this mode is highly integrated into the SDDC Manager workflows and can be configured during the deployment of the workload domain . This allows architects to define the networking posture of a new domain at "Day 0," ensuring that the necessary Edge resources and Tier-0/Tier-1 hierarchies are provisioned automatically to meet the domain's specific requirements.

Finally, Centralized Connectivity Mode is suitable for environments that require a streamlined network with limited NSX networking services . It provides a "cloud-lite" approach to networking, offering the necessary isolation and security of NSX without the complexity of managing a full-scale distributed fabric. This makes it an ideal choice for smaller workload domains, specialized labs, or legacy application environments that do not require the massive scale of a distributed transit gateway but still need robust stateful security and simplified North-South egress.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the unified architecture of VMware Cloud Foundation (VCF) 9.0 , the management paradigm has shifted towards a more centralized "Fleet Management" approach. Historically, in VCF 4.x and 5.x, updates were primarily managed via the SDDC Manager using the Lifecycle Management (LCM) engine. However, with the integration advancements in version 9.0, VCF Operations (formerly part of the Aria/vRealize suite) has taken on a more direct role in the orchestration of updates across the entire VCF "Fleet."

To comply with the VCF operational model, administrators no longer apply patches directly within the component managers (like NSX Manager or vCenter) if they wish to remain within the supported, automated framework. Instead, the workflow begins by downloading the bundle or patch to VCF Operations . This ensures that the update is validated against the current Bill of Materials (BOM) and that all dependencies—such as compatibility with the underlying ESXi versions or the management vCenter—are checked before any changes are committed.

Once the patch is available in VCF Operations, the administrator utilizes Fleet Management to apply it. This service orchestrates the update across all NSX Managers and Transport Nodes (Edges and Hosts) in a controlled, non-disruptive manner. If the administrator were to apply the patch directly in NSX Manager (Option D), the SDDC Manager and VCF Operations databases would go out of sync, leading to a "configuration drift" where the system no longer knows which version is actually running, potentially breaking future automated lifecycle tasks. Therefore, the centralized download and application through VCF Operations Fleet Management is the verified procedure for maintaining a healthy and compliant VCF 9.0 environment.

===========

In NSX Multi-Tenancy (Projects), the Enterprise Admin acts as the provider-level administrator who owns global objects in the default space. This ensures central control over resources that are shared across different projects.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

A critical requirement for the backup and restore process in VMware NSX (and by extension, VCF) is version parity. The NSX Manager backup contains the database schema, configuration files, and state information specific to the version of the software that was running at the time the backup was taken.

When performing a restore into a "clean" environment, the NSX documentation explicitly states that the target NSX Manager appliance must be of the exact same build version as the appliance that generated the backup. If an administrator attempts to restore a backup from version 4.1.x onto a newly deployed manager running version 4.2.x or 9.0 (as implies by "latest version"), the restore process will fail because the database schema of the newer version is incompatible with the older data structure.

In a VCF environment , while SDDC Manager (Option B) handles the lifecycle and replacement of failed nodes, the actual "Restore from Backup" workflow is an NSX-native operation. If the entire cluster is lost, the recovery procedure involves:

Identifying the build number from the backup metadata.

Deploying a single "Discovery" node of that exact build.

Pointing that node to the backup repository (SFTP/FTP).

Executing the restore.

Once the primary node is restored to the correct version, the administrator can then add additional nodes to reform the cluster. Attempting to use the API (Option C) or changing the passphrase (Option A) will not bypass the fundamental requirement for version alignment between the backup file and the installed binary.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the NSX multi-tier routing architecture used by VCF, a Tier-1 Gateway is composed of two primary components: the Distributed Router (DR) and the Service Router (SR) . The DR runs as a kernel module on every ESXi host in the transport zone, facilitating East-West traffic. The SR resides on the NSX Edge nodes and provides centralized services like North-South connectivity and stateful services.

Communication between the DR (on the ESXi host) and the SR (on the Edge node) occurs over a hidden internal segment known as the Router Link . This link is encapsulated in Geneve just like VM-to-VM traffic. When a VM attempts to reach an external destination, the packet is first routed by the DR on the local host. The DR then encapsulates the packet and sends it across the overlay to the TEP (Tunnel Endpoint) of the Edge node hosting the SR.

If the MTU (Maximum Transmission Unit) is misconfigured on the physical network or the virtual switches, large encapsulated packets will be dropped. However, small packets (like pings between VMs on the same host) might still succeed. In this scenario, the fact that the VM can ping the local DR but cannot reach the SR —and therefore cannot reach external networks—points to a failure in the transport between the host and the Edge.

If the Geneve-encapsulated packet containing the ping request to the SR's internal interface exceeds the physical network's MTU, it will fail. Since VCF 5.x/9.0 requires a minimum MTU of 1600 (ideally 9000 ) for the overlay to account for the Geneve overhead, a mismatch anywhere in the fabric will break the DR-to-SR "backplane" communication. This prevents the Tier-1 from passing any traffic to its Tier-0 uplink, effectively isolating the workloads from North-South traffic.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the architecture of VMware Cloud Foundation (VCF) and its networking component, NSX, the Tier-0 Gateway serves as the critical demarcation point between the virtualized overlay network and the physical infrastructure. To facilitate this communication, BGP is the industry-standard protocol utilized.

BGP is fundamentally designed as an Exterior Gateway Protocol (EGP) . While it can be used internally (iBGP), its primary role in a VCF deployment is to exchange routing information between the SDDC and the physical Top-of-Rack (ToR) switches or core routers (eBGP). This allows the physical network to learn about the virtual subnets (overlay segments) and allows the virtual environment to receive a default route or specific external prefixes. This confirms that BGP is utilized as an EGP in these designs.

Furthermore, as global IP networking has evolved, the traditional 2-byte Autonomous System (AS) numbers (ranging from 1 to 65,535) were found to be insufficient for the number of organizations requiring them. Modern NSX versions integrated into VCF 5.x and 9.0 fully support 4-byte Autonomous System numbers (ranging from 1 to 4,294,967,295). This support is essential for service providers and large enterprises that have been assigned 4-byte ASNs by regional internet registries.

Option A is incorrect because EIGRP is a proprietary Cisco protocol and is not used by NSX. Option C describes OSPF (Open Shortest Path First), which uses "Areas," whereas BGP uses "Autonomous Systems." Therefore, the ability to act as an EGP and support for 4-byte ASNs are the verified characteristics of BGP within the VCF networking stack.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

This scenario describes a classic "Overlapping IP" or "Fenced Network" challenge in a private cloud environment. In many development or lab use cases, users need to deploy identical environments where the internal IP addresses (e.g., 192.168.1.10) are the same across different instances to ensure application consistency.

To allow these identical environments to access the public internet simultaneously without causing an IP conflict on the external physical network, Source Network Address Translation (SNAT) is required. According to VCF and NSX design best practices, the Tier-0 Gateway is the most appropriate place for this translation when multiple tenants or labs need to share a common pool of external/public IP addresses.

When a VM in Lab A sends traffic to the internet, the Tier-0 Gateway intercepts the packet and replaces the internal source IP with a unique public IP (or a shared public IP with different source ports). When Lab B (which uses the same internal IP) sends traffic, the Tier-0 Gateway translates it to a different unique public IP (or the same shared public IP with different ports). This ensures that return traffic from the internet can be correctly routed back to the specific lab instance that initiated the request.

Option A (DNAT) is used for inbound traffic (allowing the internet to reach the lab), which doesn't solve the outbound connectivity requirement for overlapping IPs. Option B (Isolation) would prevent communication entirely. Option C (Firewall) controls access but does not solve the routing conflict caused by identical IP addresses. Thus, SNAT rules on the Tier-0 gateway are the verified solution for providing internet access to overlapping lab environments.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a VMware Cloud Foundation (VCF) environment, particularly with the high-performance requirements of North-South routing, BGP and BFD (Bidirectional Forwarding Detection) are used in tandem to ensure rapid failure detection. A common but subtle issue in fresh or modified environments is an MTU (Maximum Transmission Unit) mismatch on the physical or virtual uplinks.

When BGP establishes a neighborship, it initially exchanges small keepalive packets. These small packets easily pass through interfaces even if there is an MTU mismatch (e.g., the Edge is set to 9000 bytes but a physical switch in the path is limited to 1500 bytes). However, once the BGP state reaches "Established," the routers begin exchanging full routing tables. These BGP Update packets are often large and will be fragmented or dropped if they exceed the MTU of any hop in the path.

The symptom described—where the session is stable for a few minutes (during the initial handshake) and then flaps—is the hallmark of an MTU issue. The "Detect Time Expired" diagnostic in BFD occurs because the BGP hold timer expires when it fails to receive the large update packets, or the BFD packets themselves are delayed/lost due to the congestion caused by retrying large, failed transmissions. According to VMware NSX troubleshooting documentation, if pings (small packets) succeed but the BGP session fails specifically when traffic load or route counts increase, the MTU should be the first setting verified.

VCF 9.0 and 5.x designs mandate consistent MTU settings (typically 9000 MTU for the overlay and at least 1500+ for the uplinks) across the entire path, including the virtual switch (VDS), the Edge VM vNICs, and the physical ToR switches. A mismatch here prevents the completion of the BGP state machine's full synchronization, leading to the cyclic "flapping" observed by the administrator.

===========
