InInstall mode, thepackages.conffile plays a crucial role in the boot process of Cisco IOS XE Software. It specifies the list of software packages to be loaded and the sequence in which they should be initialized during system startup. This file ensures that all necessary components are correctly loaded, providing a modular and flexible approach to software management.​

Contrary to the other options:​

Thepackages.conffile does not extract the bin file; it references already extracted packages.

It does not contain the entire bundled image; that's characteristic of Bundle mode.

While it resides in the flash memory, it is not a subdirectory but a configuration file.​

In theInfrastructure as a Service (IaaS)model, the cloud provider is responsible for managing and maintaining the underlying infrastructure components, including:

Networking: The cloud provider handles all aspects of network configuration, hardware, and virtual networking.

Storage: The cloud provider supplies and manages the physical and virtual storage infrastructure required to support the consumer’s data needs.

The customer is responsible for managing:

Operating Systems

Applications

Data

This model offers flexibility while shifting infrastructure maintenance responsibilities to the service provider.

OnCisco Meraki switches,Stack Port 1(along with Stack Port 2) is used to form aphysical stacking connectionbetween multiple switches. These stack ports arededicated high-speed interconnectsthat enable multiple switches to operate as a single logical switch.

The stacking topology depends on the number of switches, but Stack Port 1 serves as one side of this high-speed inter-switch communication channel — not for management or cloud access.

To ensurehigh availability and fault tolerancein Cisco data center designs, two effective strategies include:

Redundant Supervisor Engines and Fabric Modules: These provide failover capabilities, so if one supervisor or fabric module fails, another can take over, maintaining network operations without interruption.

Virtual Port Channels (vPCs): vPCs allow connections to be made to two physical switches while appearing as one logical switch. This prevents loops and adds redundancy and load balancing, which is critical in high-availability environments.

Other options may enhance performance (e.g., high-density Ethernet) or extend functionality (e.g., FCIP), but do not directly contribute to fault tolerance and high availability in the same way.

On Cisco Catalyst 8000 Series Edge platforms, removing the chassis cover provides access to internal components such asDIMMs (Dual In-line Memory Modules)andSSDs (Solid-State Drives). These components are located internally and require the removal of the chassis cover for maintenance or replacement.​

DIMMsare used for system memory and are essential for the router's operation.

SSDsprovide storage for system software and configurations.​

Other components likeNetwork Interface Modules (NIMs)andtransceiversare typically accessible externally and do not require chassis cover removal.​

In theFLDTEC curriculum, technicians are trained on physical tools essential for support in the field. These tools and their uses are explained as follows:

Flash Card Reader:Used with removable CompactFlash cards commonly found in older Cisco routers and switches. These cards hold the IOS image or config files.

USB Thumb Drive:Used for transferring IOS files or configs directly to and from Cisco devices that support USB storage. Convenient for portable backups.

RJ-45 Ethernet Loopback Connector:A diagnostic tool that loops the signal back into the port. Helps verify port functionality by simulating a live Ethernet connection.

RJ-45 Coupler:Allows two patch cables to be connected, effectively extending the reach of a cable — useful in setups where a single cable is not long enough.

Theshow interface statuscommand offers a succinct overview of switch port characteristics, including:​

Port ID

VLAN assignment

Duplex mode

Speed

Media type​

This command is particularly useful for quickly assessing theoperational status and configuration of switch ports, aiding in troubleshooting and verification tasks.​

In contrast:​

show cdp neighborsdisplays information about directly connected Cisco devices.

show controllersprovides low-level hardware information.

show ip interface briefoffers a summary of IP-related interface information.​

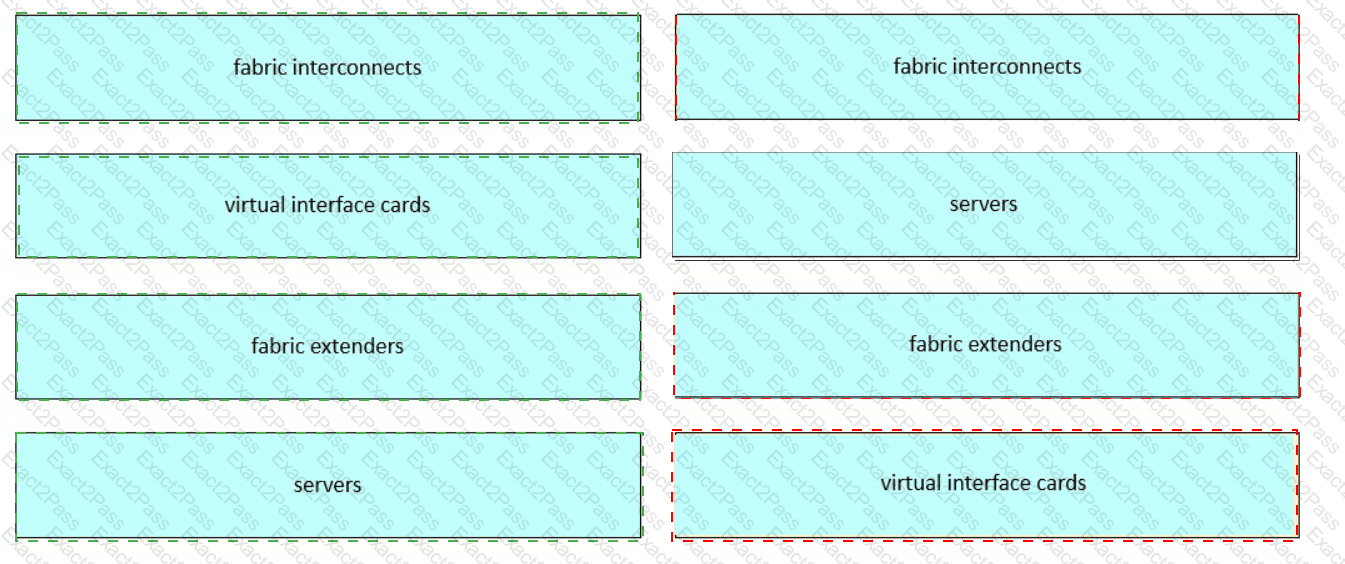

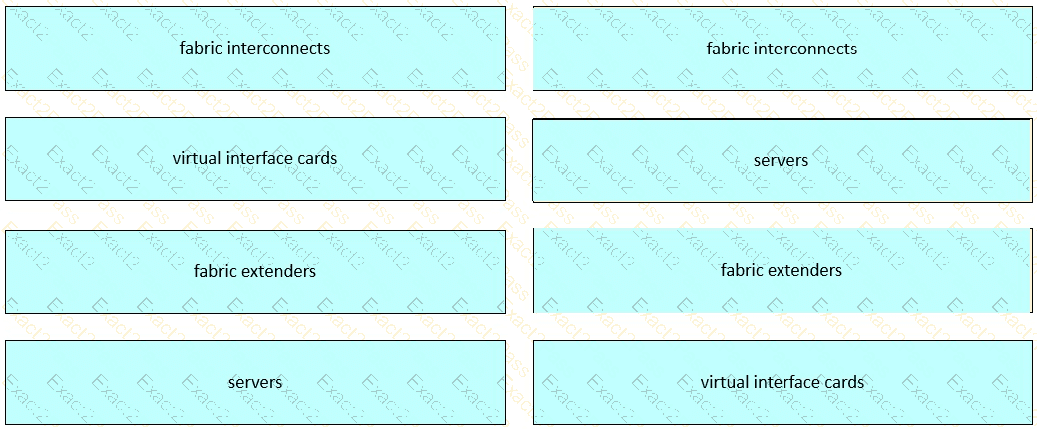

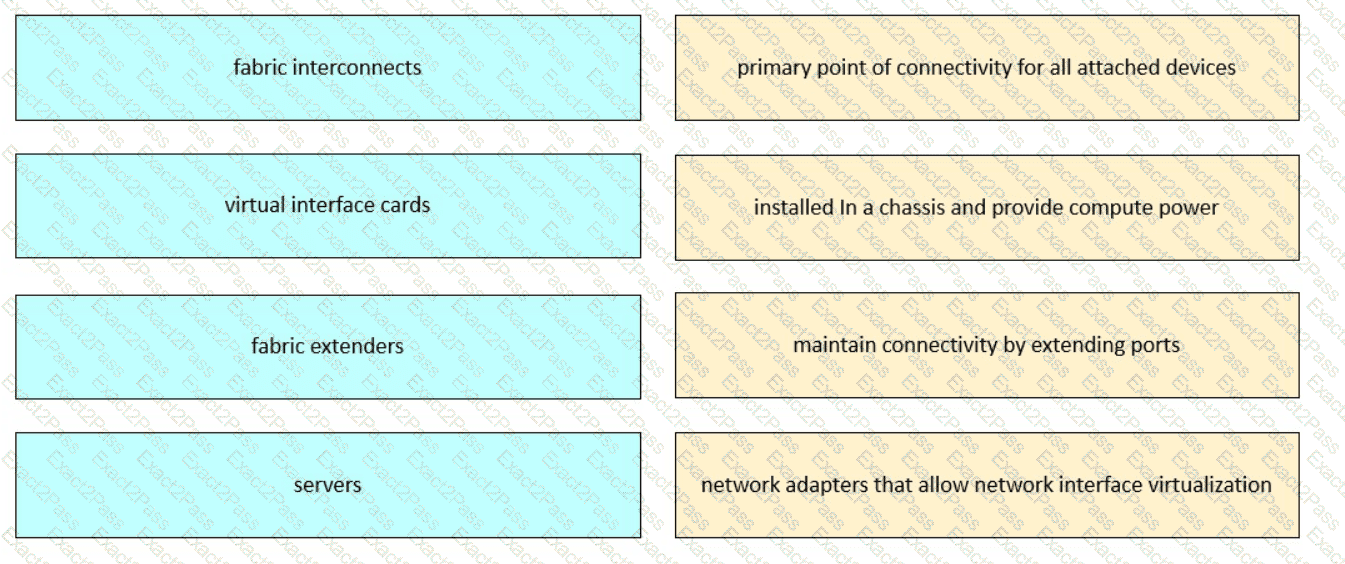

According toFLDTEC documentation and Cisco UCS architecture guides, each of these elements plays a distinct and essential role:

Fabric Interconnects (FI)– Act as the central switching and management point for the UCS domain, connecting servers to LAN and SAN.

Virtual Interface Cards (VICs)– Installed in servers, these adapters supportvirtualization of multiple NICs and HBAs, enabling dynamic profile assignment.

Fabric Extenders (FEXs)– Extend the I/O fabric from the FI to the chassis, reducing complexity and consolidating management.

Servers– Provide the actual compute resources and run workloads. These can bebladeorrack servershoused in the UCS chassis.

This structure is critical to theCisco Unified Fabric approach, which simplifies data center management through integration and automation.

During the password recovery process on Cisco devices, ROMMON (ROM Monitor) mode is utilized to perform specific actions that facilitate the recovery. Two critical actions typically performed in ROMMON mode are:​

Change the Configuration Register:The configuration register is modified to instruct the device to ignore the startup configuration during the next boot. This is commonly achieved by setting the configuration register to0x2142. This action prevents the device from loading the saved configuration, allowing access without requiring the existing passwords.​

Reboot the Device:After changing the configuration register, the device is rebooted to apply the new settings. This reboot enables the device to bypass the startup configuration, facilitating the password recovery process.​

These steps are essential in the password recovery procedure, allowing administrators to regain access to the device without erasing the existing configuration.​

During password recovery on Cisco devices, the configuration register is modified to instruct the device to bypass the startup configuration stored in NVRAM. This allows administrators to access the device without being prompted for existing passwords. The standard procedure involves changing the configuration register value to0x2142, which tells the device to ignore the startup configuration during the next boot. Once access is gained, the administrator can reset passwords and then restore the original configuration by resetting the configuration register to its default value, typically0x2102.​
