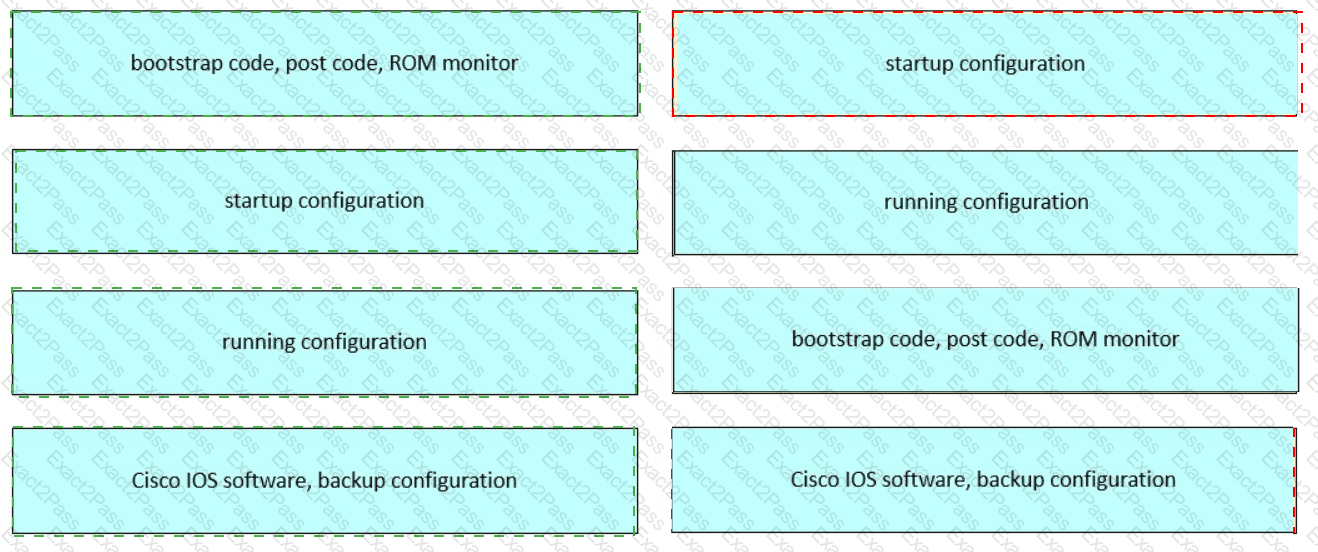

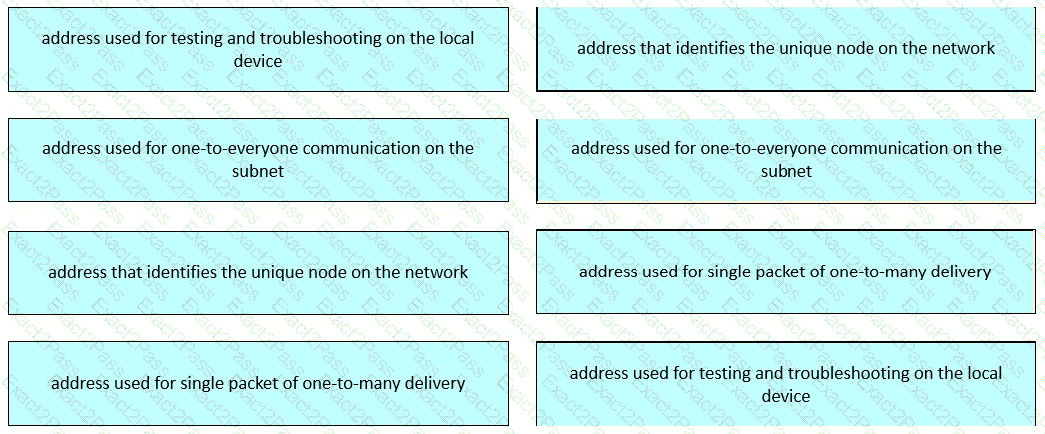

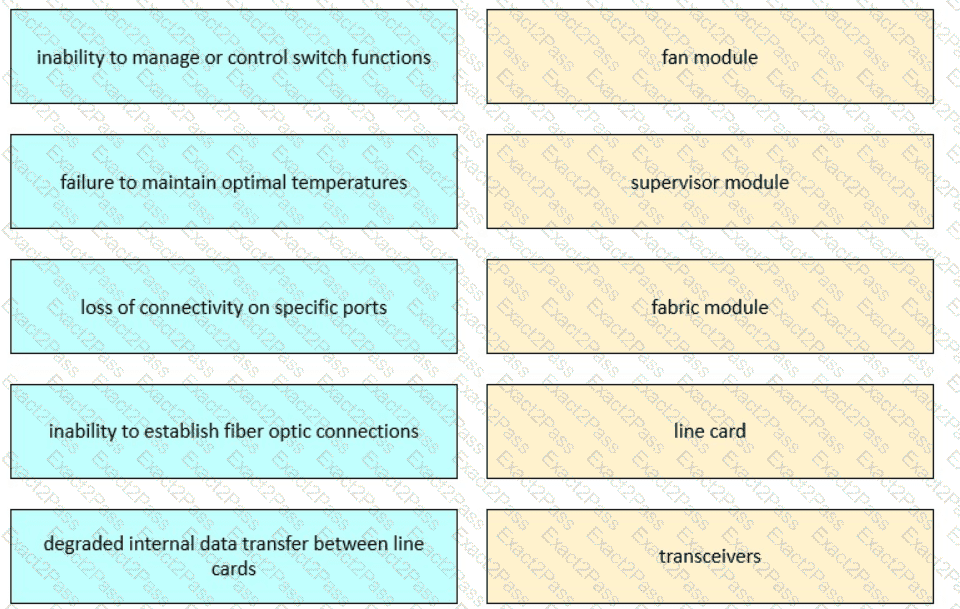

In a Cisco Nexus switch with dual power supplies , the recommended method is to connect each power supply to a separate power source (Option C). This ensures power redundancy and fault tolerance.

If one power source fails (e.g., due to a power outage or circuit failure), the switch can continue operating uninterrupted using the second power source. Connecting both to a single source (Option D) defeats the purpose of redundancy.

In the context of Wide Area Networks (WANs) , the key objective is to connect geographically separated networks using service provider infrastructure. The FLDTEC course emphasizes that WAN environments typically involve devices that can handle different physical transmission mediums and protocols.

Modems :

Modulate and demodulate analog signals to digital signals.

Used in WAN environments to connect over analog lines like DSL or leased lines.

Essential for interfacing between digital routers and analog telephone networks.

Optical Fiber Converters :

Also known as media converters , they are used to convert electrical signals to optical signals (and vice versa) for fiber transmission.

Common in WAN scenarios where long-distance high-speed transmission over fiber is required.

Incorrect Options:

A. Hubs : Obsolete Layer 1 devices used in LANs, not suitable for WANs.

D. Network Interface Cards (NICs) : Used in end devices for LAN connectivity.

E. Wireless Access Points : Typically used in WLANs within local premises, not WAN infrastructure.

This aligns with Cisco’s WAN architecture fundamentals as highlighted in FLDTEC under “Cisco Equipment and Related Hardware.”

The show inventory command is used on Cisco devices to display detailed information about the hardware components installed, including:

Product Identifier (PID)

Version Identifier (VID)

Serial Number (SN)

Description of the component

In the exhibit, the output clearly shows:

NAME: " Chassis " , DESCR: " Cisco ISR4451-X/K9 "

PID: ISR4451-X/K9, VID: V01, SN: FCW2134L0SH

This confirms that show inventory is the correct command to retrieve the serial number and hardware inventory details.

show version provides some system information and sometimes includes serial numbers, but it ' s not as reliable or detailed for component-level hardware info.

show idprom is not commonly used and not supported on all platforms.

show platform provides platform-specific info but not typically the serial number.

The Wireless LAN Controller (WLC) plays a central role in Cisco’s Unified Wireless Network solution by providing centralized management, configuration, and monitoring for multiple access points (APs). It allows for streamlined policy enforcement, seamless mobility, load balancing, and security management across wireless networks.

While WLCs facilitate wireless connectivity indirectly, their main role is to centrally manage and control access points — not to function as Layer 3 routers or format data frames.

Cloud-based management is a core feature of Cisco Meraki switches and significantly simplifies the device replacement process. When a failed switch is replaced:

The new hardware can be claimed in the Meraki dashboard.

The previously assigned configuration is automatically applied to the replacement device.

This eliminates the need for local reconfiguration and ensures continuity with minimal manual effort.

This centralized approach ensures that configurations are stored securely and consistently applied across devices.

When replacing a fabric interconnect in a Cisco Unified Computing System (UCS), the recommended procedure to minimize traffic disruption is to use the fabric evacuation procedure on the subordinate fabric interconnect . This ensures that traffic is redirected to the other (active) fabric interconnect, allowing the system to maintain connectivity while one interconnect is replaced.

High availability should remain enabled to preserve redundancy.

Powering down both interconnects would cause a complete outage.

Disconnecting cables without graceful evacuation can result in traffic loss.

In enterprise networking, remote sites or branch offices connect to the central campus network using:​

WAN Links: These are dedicated communication paths that connect geographically dispersed networks. WAN links can be leased lines, MPLS circuits, or other forms of long-distance connectivity that facilitate reliable data transmission between remote sites and the main campus.​

IPsec VPN Tunnels: Internet Protocol Security (IPsec) VPNs provide secure, encrypted tunnels over the public internet, allowing remote sites to connect to the enterprise network securely. This method is cost-effective and widely used for connecting branch offices to the central network infrastructure.​

Access layer switches (Option A) and LAN core switches (Option E) are components within a local network and do not facilitate remote connectivity. Ad hoc Wi-Fi networks (Option D) are temporary and lack the security and reliability required for enterprise-level remote connections.​

A crossover UTP (Unshielded Twisted Pair) cable is used to connect two similar devices directly. This includes:​

Switch to switch

Router to router

PC to PC​

The crossover cable reverses the transmit and receive pairs, allowing for proper communication between like devices without the need for an intermediary device.​

Conversely, a straight-through cable is used to connect dissimilar devices, such as:​

PC to switch

Router to switch

PC to router​

This cable maintains the same wiring on both ends, suitable for connecting different types of devices.​

Therefore, when connecting electrically like devices, a crossover cable is appropriate.​

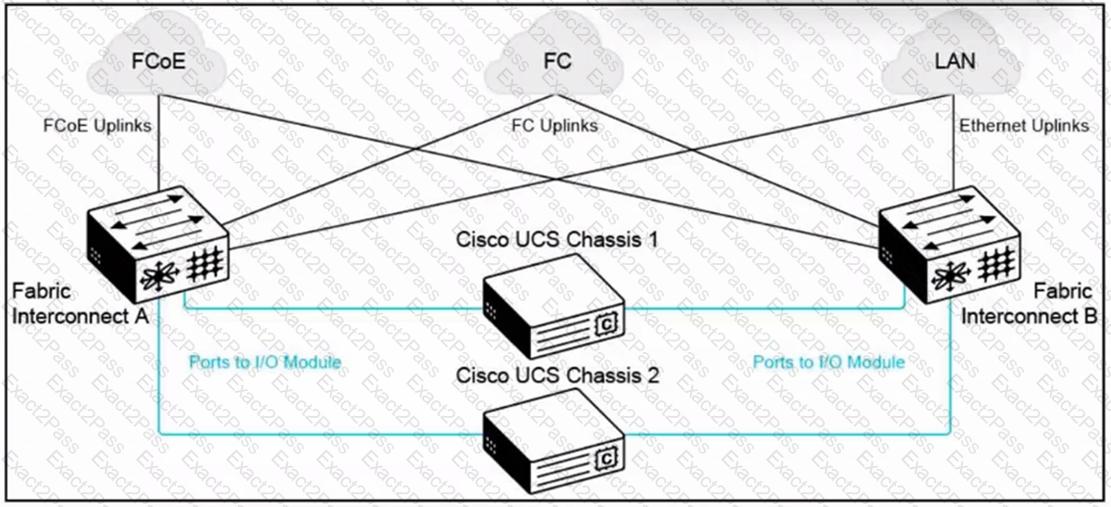

In the provided Cisco UCS architecture diagram , the infrastructure consists of:

Two Fabric Interconnects (A and B) , each connecting to:

Ethernet (LAN)

Fibre Channel (FC)

FCoE (Fibre Channel over Ethernet)

Both Fabric Interconnects are independently connected to both Cisco UCS Chassis 1 and 2 through I/O Modules (IOMs).

This is the classic active-active UCS design , providing full path redundancy for all traffic types:

LAN uplinks are handled separately by Fabric Interconnect B.

SAN traffic is distributed through FC uplinks and FCoE uplinks via Fabric Interconnects A and B.

Each server in the chassis can fail over its traffic to the alternate fabric if one interconnect fails.

This architecture guarantees no single point of failure , which is essential in mission-critical environments like data centers and enterprise server farms.

The serial number for Cisco switches is typically found on a label located on the rear panel near the power supplies . This positioning allows technicians to quickly access identification information even when the device is not powered on.

This label is essential for inventory tracking, RMA procedures, and registration for support. Serial numbers are not typically placed on the top or bottom surfaces for devices mounted in a rack, as those areas are less accessible.
