Transitional cell carcinoma (TCC) typically presents as a non-mobile, polypoidal, focal intraluminal mass projecting from the bladder wall. Mobility of the lesion helps differentiate TCC from blood clots or debris.

According to Rumack’s Diagnostic Ultrasound:

“Bladder TCC most often appears as a non-mobile, polypoid mass attached to the bladder wall.”

The main pancreatic duct (duct of Wirsung) runs through the central portion of the pancreas, medial and slightly posterior to the superior mesenteric vein (SMV). It converges with the common bile duct near the ampulla of Vater.

According to Moore’s Clinically Oriented Anatomy:

“The main pancreatic duct runs centrally within the gland and lies medial to the superior mesenteric vein.”

The arcuate arteries are located at the corticomedullary junction, arching over the base of the renal pyramids. They form as the interlobar arteries reach the boundary between the cortex and medulla. The arcuate arteries give rise to the interlobular arteries, which supply the renal cortex.

Segmental arteries (A) branch directly from the renal artery.

Interlobar arteries (B) course between the renal pyramids.

Interlobular arteries (D) extend into the cortex from the arcuate arteries.

Reference Extracts:

Moore KL, Dalley AF, Agur AM. Clinically Oriented Anatomy. 7th ed. Lippincott Williams & Wilkins, 2013.

Rumack CM, Wilson SR, Charboneau JW, Levine D. Diagnostic Ultrasound. 5th ed. Elsevier, 2017.

—

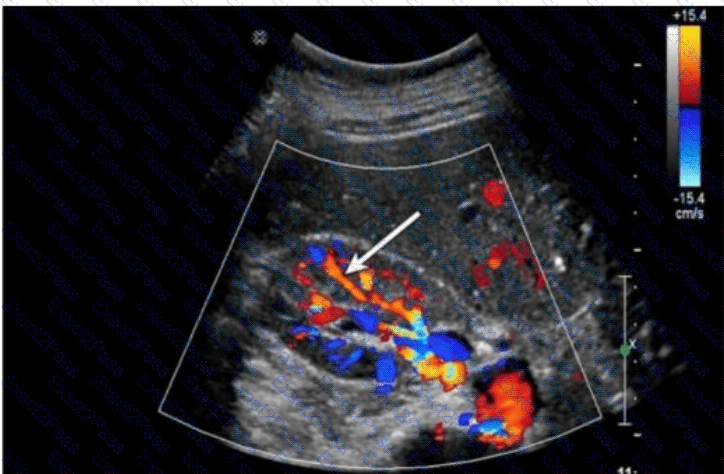

The arrow in this Doppler ultrasound image of the kidney is pointing to vessels located at the corticomedullary junction, arching over the bases of the medullary pyramids. This vascular pattern is characteristic of the arcuate arteries.

Renal arterial anatomy follows a specific branching hierarchy:

Segmental arteries branch off the main renal artery.

Interlobar arteries travel between renal pyramids.

Arcuate arteries arch over the base of the pyramids at the corticomedullary junction.

Interlobular arteries extend into the cortex from the arcuate arteries.

Key characteristics of arcuate arteries on ultrasound:

Located at the corticomedullary junction (between the medullary pyramids and renal cortex).

Run perpendicular to the long axis of the kidney, often forming an arching or curving pattern.

Commonly targeted in Doppler studies to assess resistive index (RI) in renal perfusion studies.

Comparison of answer choices:

A. Interlobular arteries are smaller vessels that extend perpendicularly from the arcuate arteries into the cortex—not visible at this level.

B. Arcuate — Correct. The arrow is indicating these vessels arching over the medullary pyramids.

C. Segmental arteries are larger and deeper, branching off the renal artery near the hilum.

D. Interlobar arteries course between the pyramids but do not arch along their base.

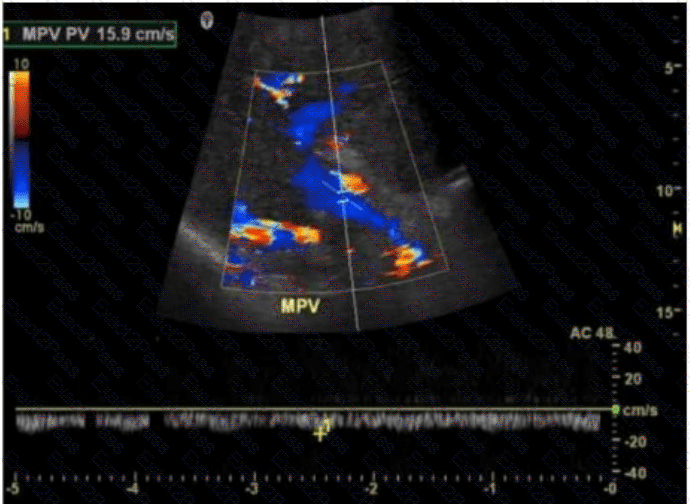

The image shows a color Doppler ultrasound of the main portal vein (MPV), which appears irregular and replaced by multiple small, serpiginous vascular channels — a hallmark of cavernous transformation. Cavernous transformation of the portal vein is a late complication of chronic portal vein thrombosis, in which collateral vessels develop around the thrombosed portal vein to bypass the obstruction.

Key Doppler ultrasound features of cavernous transformation:

Absence of a normal portal vein

Multiple tortuous vessels in the porta hepatis

Color Doppler shows hepatopetal flow in these channels

Low velocity, continuous waveform flow in collateral vessels

Differentiation from other options:

B. Portal vein thrombosis: Would show an absence of color flow within the portal vein lumen and possibly echogenic material within the vessel. There would be no serpiginous collateral vessels yet if it's an acute process.

C. Portal hypertension: Often diagnosed with other sonographic findings (e.g., splenomegaly, reversed portal flow, varices) but not characterized by the replacement of the portal vein by collateral vessels.

D. Tumor extension: Typically appears as echogenic intraluminal material within the portal vein with arterial waveforms on Doppler due to neovascularity. Tumor thrombus can be seen in hepatocellular carcinoma or pancreatic cancer, not multiple small collateral vessels.

The ultrasound image demonstrates a fluid-filled structure in the posterior knee region, consistent with a Baker cyst (also called a popliteal cyst). A Baker cyst is a synovial fluid-filled sac arising from the posterior medial aspect of the knee joint, typically extending between the medial head of the gastrocnemius and the semimembranosus tendon.

The history of delayed-onset claudication (pain in the calf when walking) two weeks after this image was obtained is strongly suggestive of a ruptured Baker cyst. When a Baker cyst ruptures, synovial fluid may track inferiorly into the calf, producing pain, swelling, and clinical symptoms that mimic deep vein thrombosis (DVT) or arterial insufficiency (e.g., pseudothrombophlebitis syndrome).

Ultrasound findings consistent with a ruptured Baker cyst:

Complex fluid collection tracking along muscle fascial planes (hypoechoic to anechoic)

Posterior calf swelling and tenderness

Absence of thrombus in the deep venous system

Crescent-shaped fluid may be seen between muscle compartments

Why the other choices are incorrect:

A. Neuropathy: Would not show fluid-filled structures on ultrasound and would not present with calf swelling.

B. Infected hematoma: May appear complex, but would require a history of trauma or anticoagulation and systemic signs (fever, redness).

C. Thrombophlebitis: Involves a thrombosed superficial vein with wall thickening and surrounding inflammation, which is not seen in this image.

Von Hippel-Lindau (VHL) syndrome is a genetic disorder associated with multiple pancreatic cysts, pancreatic neuroendocrine tumors, and other systemic neoplasms. While cystic fibrosis can produce thickened pancreatic secretions, it rarely causes true pancreatic cysts.

According to Rumack’s Diagnostic Ultrasound:

“Multiple pancreatic cysts are strongly associated with Von Hippel Lindau syndrome.”

The correct sequence of renal arterial branching is: renal artery → segmental arteries → interlobar arteries → arcuate arteries → interlobular arteries. This branching pattern is important for understanding renal perfusion and evaluating vascular disorders.

According to Moore’s Clinically Oriented Anatomy:

“Renal arteries divide into segmental branches, which give rise to interlobar arteries, then arcuate arteries, and finally interlobular arteries.”

The FAST exam is primarily used to detect free intraperitoneal or pericardial fluid in trauma patients, serving as a rapid, bedside assessment tool. While organ injuries may be suspected, the FAST exam is not primarily designed to assess for solid organ lacerations.

According to AIUM and ACEP guidelines:

“The primary goal of the FAST exam is to detect the presence of free fluid suggestive of hemorrhage in trauma patients.”

A common bile duct (CBD) measuring up to 5 mm is considered normal in most patients under age 60. Some references allow for up to 6 mm, especially post-cholecystectomy or in older individuals. Significant dilation (suggestive of obstruction) typically exceeds these measurements.

According to Rumack’s Diagnostic Ultrasound:

“The normal common bile duct measures up to 5–6 mm, with slight increases considered normal after cholecystectomy or with advancing age.”
