During dobutamine stress testing, a normal physiological response includes increased myocardial contractility leading to a decrease in left ventricular (LV) cavity size during systole due to more effective ejection. Concurrently, systolic blood pressure increases due to the inotropic and chronotropic effects of dobutamine.

An increase in LV cavity size during stress would suggest impaired contractility or ischemia, which is abnormal.

This normal response is detailed in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Stress Echocardiography and Hemodynamic Responses 【 20:400-405†Textbook of Clinical Echocardiography 】 .

In the calculation of the shunt ratio Qp/Qs, Qp represents pulmonary blood flow, which is calculated as the stroke volume of the right ventricular outflow tract (RVOT). Stroke volume is obtained by measuring the RVOT cross-sectional area and the RVOT time velocity integral (VTI).

Qp (pulmonary flow) divided by Qs (systemic flow) quantifies the magnitude of left-to-right shunting in atrial septal defects and other congenital heart diseases.

This method is described in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Shunt Quantification and Flow Calculations 【 20:360-365†Textbook of Clinical Echocardiography 】 .

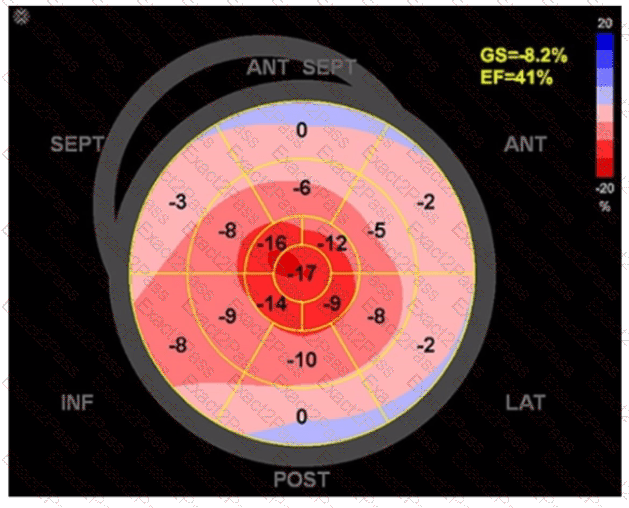

The first image shows a bullseye plot of global longitudinal strain (GLS) with marked reduction in strain values (less negative numbers) most prominently in the apical segments (central red zone), with an overall GLS of -8.2% (normal is about -20%) and a reduced ejection fraction of 41%. This pattern is characteristic of Takotsubo cardiomyopathy, which typically demonstrates regional wall motion abnormalities that predominantly involve the apex and mid segments of the left ventricle with basal sparing.

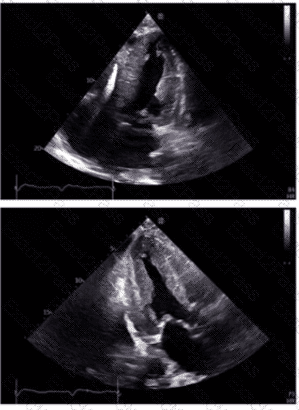

The 2D echocardiographic images show apical ballooning, a hallmark of Takotsubo cardiomyopathy, where the apex is akinetic or dyskinetic and the basal segments contract normally or hypercontract. Doppler images show findings consistent with impaired ventricular function.

In contrast:

Apical hypertrophic cardiomyopathy (HCM) would show increased wall thickness localized to the apex but not apical ballooning or reduced strain in that typical pattern.

Hypertrophic obstructive cardiomyopathy (HOCM) involves basal septal hypertrophy with outflow obstruction, not apical akinesis or ballooning.

Restrictive cardiomyopathy from amyloidosis involves diffuse infiltration and generally a different strain pattern with more uniform reduction and “apical sparing” rather than apical involvement.

This interpretation aligns with the diagnostic criteria and echocardiographic features described in the adult echocardiography literature, including the " Textbook of Clinical Echocardiography " (Chapter on Cardiomyopathies) and ASE guidelines, which highlight apical ballooning and regional strain abnormalities as diagnostic features of Takotsubo cardiomyopathy 【 16:Cardiomyopathy Chapter†Textbook of Clinical Echocardiography, 6e 】【 12:ASE Guidelines on Strain Imaging†p.130-135 】 .

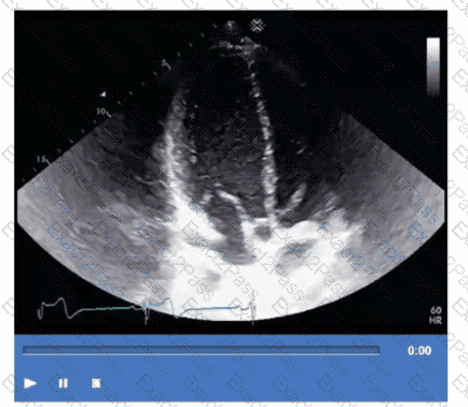

The echocardiographic image/video shows decreased brightness and penetration in the near field, making the anterior cardiac structures poorly visualized while deeper structures appear brighter. This indicates under-gain in the near field.

Increasing the time gain compensation (TGC) in the near field enhances the signal strength of superficial structures without affecting deeper tissues. This adjustment improves image quality by balancing the brightness across the field.

Increasing compression or decreasing overall gain would reduce the signal globally and are not specific for near field optimization. Decreasing TGC in the far field would reduce brightness deeper but does not address near-field issues.

This principle is outlined in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Image Optimization and Technical Settings 【 20:70-75†Textbook of Clinical Echocardiography 】 .

The mitral valve filling pattern characterized by a long deceleration time and a reduced E/A ratio (less than 1, such as 0.6) is consistent with impaired relaxation. This pattern is typically seen in early diastolic dysfunction, where there is slowed ventricular relaxation, resulting in reduced early diastolic filling (E wave) and a compensatory increase in atrial contraction contribution (A wave).

Impaired relaxation pattern shows:

E/A ratio < 1 (e.g., 0.6)

Prolonged deceleration time ( > 200 ms)

Prolonged isovolumic relaxation time (IVRT)

This pattern differs from restrictive filling, which has a high E/A ratio ( > 2), shortened deceleration time ( < 150 ms), and elevated left atrial pressures. Pseudonormal filling has a normal or near-normal E/A ratio but elevated filling pressures that mask underlying dysfunction and requires further evaluation with tissue Doppler or pulmonary venous flow for diagnosis. Normal filling has a typical E/A ratio around 1 to 1.5 with normal deceleration times.

The textbook details that impaired relaxation is the earliest sign of diastolic dysfunction and describes the prolongation of the deceleration time and reduced E/A ratio as hallmark findings of this stage.

Assessment of left ventricular diastolic function by echocardiography involves evaluating mitral inflow velocities with pulsed wave Doppler (E and A waves), pulmonary venous flow patterns (systolic and diastolic waves), and tissue Doppler imaging of the mitral annulus to measure early diastolic (e ' ) velocities.

This combination allows differentiation of normal versus abnormal relaxation, elevated filling pressures, and grading of diastolic dysfunction. The myocardial performance index evaluates global ventricular function but does not specifically require these Doppler measures. Systolic function is assessed mainly by ejection fraction and wall motion. Mitral regurgitation severity uses color Doppler and vena contracta measurements.

This multiparameter diastolic function evaluation is outlined in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Diastolic Function Assessment 【 20:210-220†Textbook of Clinical Echocardiography 】 .

Severe mitral regurgitation (MR) is typically characterized by significant left atrial dilation due to volume overload, and systolic flow reversal in the pulmonary veins caused by retrograde flow from the left ventricle into the left atrium during systole.

An eccentric mitral regurgitant jet is common in severe MR, often due to leaflet prolapse or flail, resulting in directed jets that hug the atrial wall.

Mitral regurgitant jet velocity, however, is usually significantly higher in severe MR due to the high pressure gradient between the left ventricle and left atrium during systole. A jet velocity less than 0.5 cm/sec is extremely low and inconsistent with severe MR. Typically, MR jet velocities are in the range of several meters per second.

Thus, a mitral regurgitant jet velocity less than 0.5 cm/sec is NOT associated with severe MR.

This is detailed in echocardiography literature discussing MR quantification and Doppler findings, emphasizing high-velocity regurgitant jets in severe MR and hemodynamic consequences seen on pulmonary vein flow and LA size .

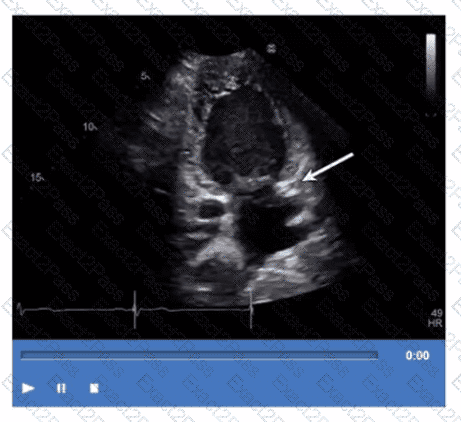

The arrow points to the coronary sinus, which is a venous structure located posteriorly in the atrioventricular groove, emptying into the right atrium. It appears as a circular anechoic structure near the left atrium in echocardiographic images.

Left lower pulmonary vein enters the left atrium more superiorly. Descending aorta is posterior to the heart but not in this location. Left atrial appendage is an anterior finger-like projection of the left atrium, separate from the coronary sinus.

This anatomy is described in the " Textbook of Clinical Echocardiography, 6e " , Chapter on Cardiac Venous Anatomy 【 20:140-145†Textbook of Clinical Echocardiography 】 .

Pulmonary artery end-diastolic pressure (PAEDP) can be estimated noninvasively by measuring the end-diastolic velocity of pulmonary regurgitation (pulmonary insufficiency) using continuous-wave Doppler. The pressure gradient between the pulmonary artery and right ventricle at end-diastole is calculated using the modified Bernoulli equation from this velocity.

Tricuspid insufficiency is used to estimate right ventricular systolic pressure. Tricuspid inflow and pulmonary inflow velocities provide information on diastolic function but not direct pressure gradients.

This method is well validated and included in ASE guidelines for pulmonary hypertension assessment and Doppler hemodynamics 【 16:Textbook of Clinical Echocardiography, 6e†p.300-305 】【 12:ASE Doppler Guidelines†p.110-115 】 .

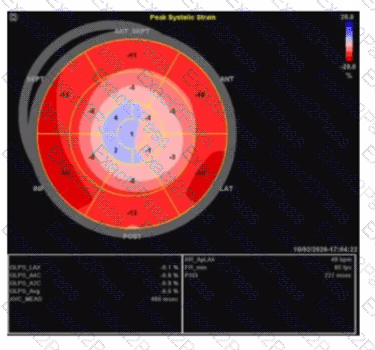

The strain imaging shown is a classic example of the " apical sparing " pattern, highly characteristic of cardiac amyloidosis. In cardiac amyloidosis, the basal and mid segments of the left ventricle show markedly reduced longitudinal strain (represented here by more positive or less negative strain values), while the apical segments retain relatively preserved strain (more negative strain values). This " cherry on top " or " bull ' s eye " pattern with apical strain preserved distinguishes amyloidosis from other causes of LV dysfunction.

This pattern is not typical of apical hypertrophy, which would show focal thickening and abnormal strain limited to the apex. Non-ischemic cardiomyopathy generally has a more diffuse and uniform reduction in strain without the apical sparing. Right coronary artery infarcts affect the inferior and posterior walls and would have segmental strain abnormalities corresponding to the infarct distribution, not the typical apical sparing.

The left ventricular global longitudinal strain (GLS) in amyloidosis is typically severely reduced, but the relative preservation of apical strain is a hallmark useful for diagnosis, as described in the " Textbook of Clinical Echocardiography, 6e " (Chapter on strain imaging and infiltrative cardiomyopathies) .
