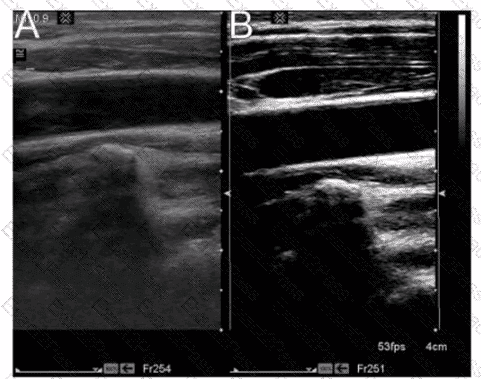

When the depth of imaging is increased, the time it takes for the ultrasound pulses to travel to and from the deeper structures also increases, which can reduce the frame rate. To maintain the same frame rate, one effective adjustment is to decrease the image width. Narrowing the image width reduces the number of scan lines required to create each frame, allowing the system to maintain a higher frame rate despite the increased depth.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

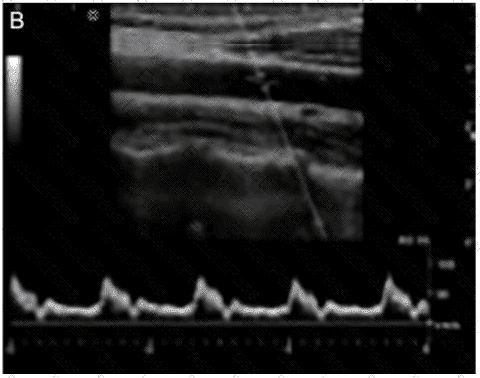

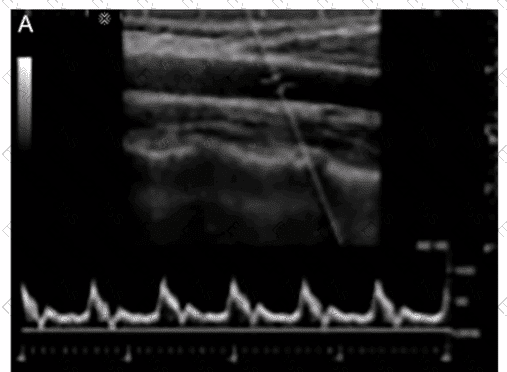

The wall filter, also known as the high-pass filter, is used in Doppler ultrasound to remove low-frequency signals, which are typically associated with clutter artifacts. Clutter artifacts can be caused by tissue motion or vessel wall movement, and they appear as low-frequency signals that can obscure the desired blood flow signals. By increasing the wall filter setting, these low-frequency signals are filtered out, thus reducing the clutter artifact and providing a clearer depiction of the blood flow.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

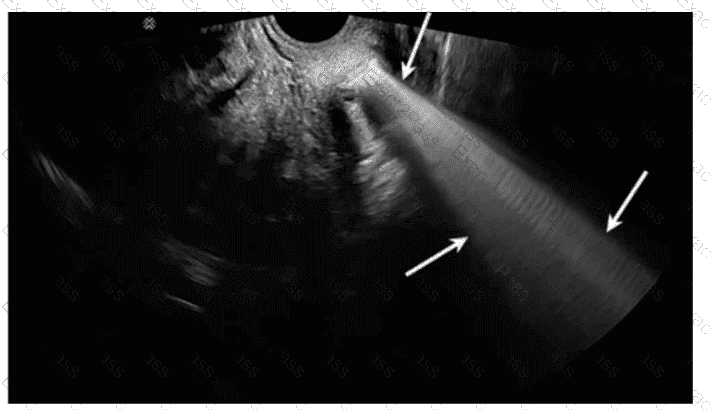

Enhancement artifact occurs when an anechoic (or low-attenuation) structure, such as a cyst or fluid-filled structure, allows the ultrasound beam to pass through it with minimal attenuation. As a result, the tissues located distal to this anechoic structure appear brighter (increased echo amplitude) on the ultrasound image because the sound waves are less attenuated by the anechoic structure, leading to higher intensity echoes returning from the distal tissue. This increased brightness beyond the anechoic area is known as enhancement.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

The imaging depth is limited by the frequency of the transducer because higher frequency sound waves attenuate more rapidly as they penetrate tissue, reducing maximum depth capability.

According to Principles and Instrumentation:

" Higher frequencies provide better resolution but have increased attenuation, limiting penetration depth. Lower frequencies penetrate deeper but at the cost of resolution. "

Propagation speed is relatively constant in soft tissue (~1540 m/s), amplitude affects signal strength but not depth limit directly, and focal depth is an adjustable beam parameter.

Therefore, the correct answer is B: Frequency.

QUESTION NO15

Which color Doppler setting adjustment would likely demonstrate color flow in the normal vein seen in this image?

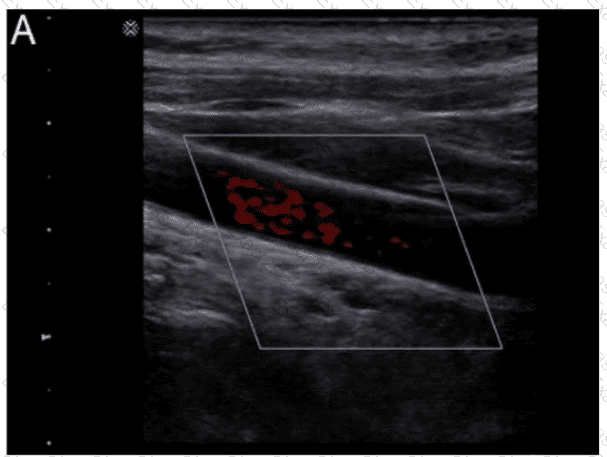

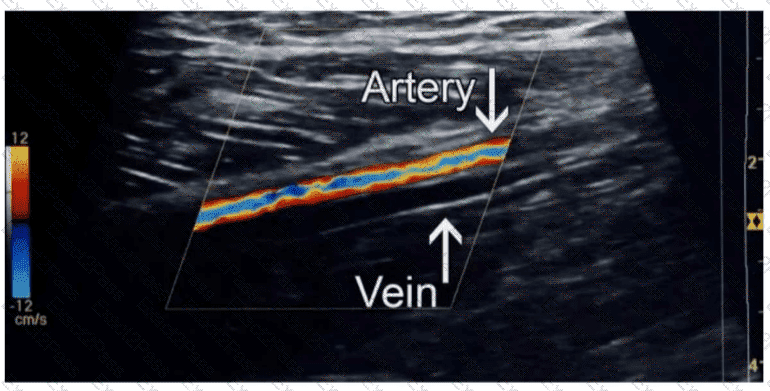

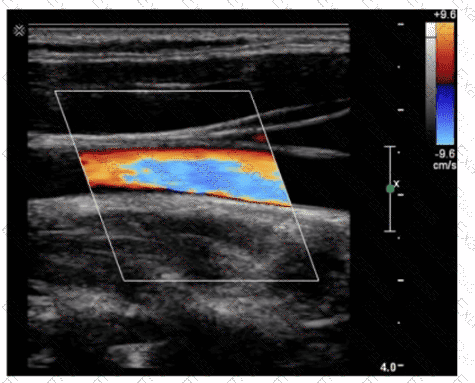

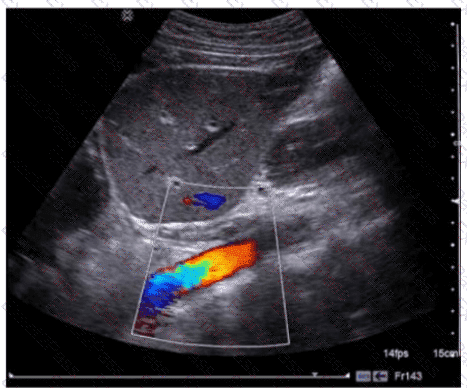

An ultrasound image of veins and veins Description automatically generated

A. Decreasing scale

B. Increasing scale

C. Decreasing persistence

D. Increasing persistence

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

Veins generally exhibit low-velocity flow. The color scale (or velocity range) must be low enough to detect these slow flows. Decreasing the scale lowers the Nyquist limit, allowing the machine to display lower velocities that may otherwise be undetectable.

Principles and Instrumentation state:

" Reducing the scale increases sensitivity to low-velocity flows such as venous flow, while high scales may suppress these signals. "

Therefore, the correct answer is A: Decreasing scale.

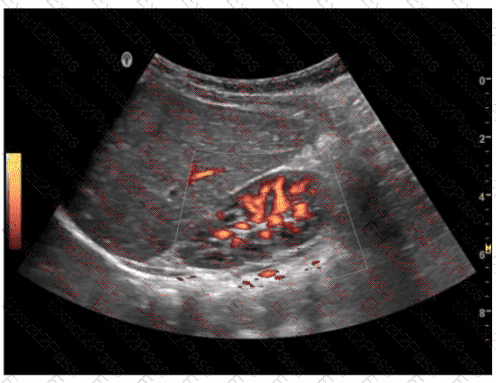

The Nyquist limit, which is the maximum detectable velocity before aliasing occurs, is directly related to the pulse repetition frequency (PRF). Increasing the color scale on the ultrasound machine effectively increases the PRF. When the PRF is increased, the Nyquist limit is also increased, allowing for the measurement of higher velocities without aliasing.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

When a reflector (such as red blood cells) is moving toward the sound source, the frequency of the reflected sound waves increases. This phenomenon is known as the Doppler effect. The frequency shift occurs because the motion of the reflector compresses the sound waves, leading to a higher frequency than the emitted frequency. This increased frequency is what the Doppler ultrasound system detects and uses to calculate the velocity of the moving reflector.

ARDMS Sonography Principles and Instrumentation guidelines

Hoskins, P. R., Thrush, A., Martin, K., & Whittingham, T. A. (2010). Diagnostic Ultrasound: Physics and Equipment.

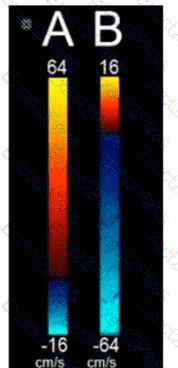

Aliasing in color Doppler occurs when the velocity of blood flow exceeds the Nyquist limit, which is half the PRF. To reduce aliasing, the PRF must be increased. This raises the Nyquist limit, allowing higher velocities to be measured without wrapping around the baseline. Increasing PRF reduces the occurrence of aliasing artifacts by expanding the range of detectable velocities before aliasing occurs.

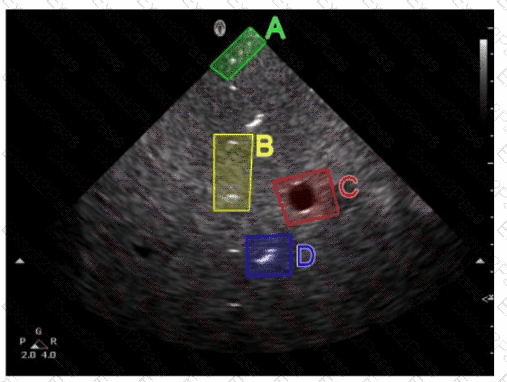

Acoustic Shadowing: This artifact occurs when a structure absorbs or reflects most of the ultrasound waves, causing a shadow behind the structure. It does not cause improper positioning of a reflector on the display.

Speckle: This is a form of noise in ultrasound imaging that appears as granular texture. It can affect image quality but does not lead to improper positioning of reflectors.

Enhancement: This artifact occurs when the area behind a weakly attenuating structure appears brighter. It affects the brightness of the image but does not affect the position of reflectors.

Range Ambiguity: This occurs when an echo is received after the next pulse has been sent out, causing the reflector to be placed at an incorrect depth on the display. This is because the system assumes the echo came from the most recent pulse.

Range ambiguity artifact occurs when echoes from one pulse are received after the next pulse has been emitted, leading to the incorrect placement of echoes at shallower depths than their true location. This artifact typically happens when the PRF is set too high, causing the ultrasound system to interpret delayed echoes as coming from the current pulse rather than the previous one. This results in reflectors appearing closer to the transducer than they actually are.

Comprehensive and Detailed Explanation From Exact Extract:

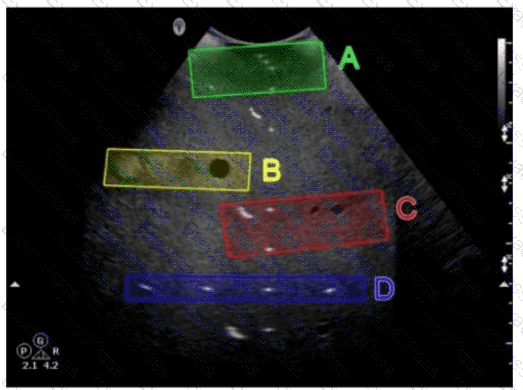

Axial resolution is primarily determined by the spatial pulse length (SPL), which depends on both wavelength and the number of cycles per pulse. A shorter pulse length provides better axial resolution. The Principles and Instrumentation documents state:

" Axial resolution = SPL/2. To improve axial resolution, the pulse duration must be shortened — achieved by decreasing the pulse length. "

Note: While increasing frequency also improves axial resolution (because it shortens wavelength), in this question, decreasing pulse length directly targets SPL, making it the most precise answer.

Therefore, the correct answer is C: Pulse length.

QUESTION NO6

In this image, which artifact is demonstrated?

A close-up of a sound wave Description automatically generated

A. Mirroring

B. Aliasing

C. Range ambiguity

D. Spectral broadening

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

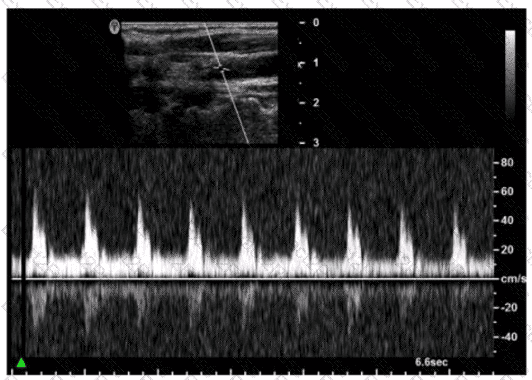

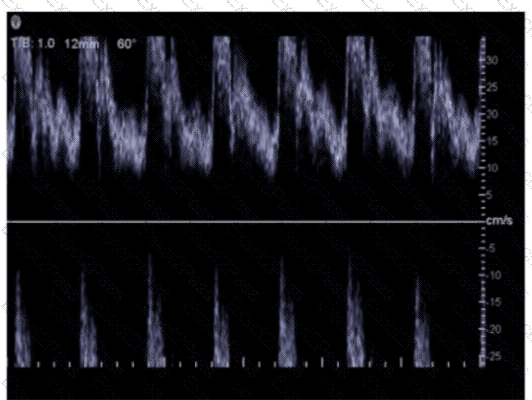

The provided image shows a pulsed-wave Doppler spectral display. There are two identical Doppler spectra present — one on the top and an inverted one on the bottom — a classic appearance of the mirroring artifact.

Mirroring occurs when the strong Doppler signal reflects off a highly reflective interface and produces a duplicate signal on the opposite side of the baseline. The mirrored signal mimics the original spectral waveform but appears as a reversed, symmetric version.

According to official sonography Principles and Instrumentation references:

" Mirror image artifact in Doppler (also called cross-talk) occurs when a strong signal is incorrectly displayed on both sides of the baseline, producing a duplicated waveform. "

Aliasing would show wrap-around of velocities beyond the Nyquist limit, typically producing a cutoff and color reversal — not seen here.

Range ambiguity produces overlapping signals from different depths — also not applicable here.

Spectral broadening would result in widening of the Doppler spectral trace — which is not evident here.

Therefore, the correct answer is A: Mirroring.

—
