A hybrid cloud deployment model is most suitable given the requirements. This model combines on-premises infrastructure (or private cloud) with public cloud services, providing geographic dispersion while allowing local access to data. It also facilitates the use of legacy applications that might not be well-suited for a full public cloud environment.

The hybrid model is a fundamental concept within the CompTIA Cloud+ curriculum, under the section of Cloud Concepts, that explains deployment models.

Object storage is ideal for cost-effective and highly scalable unstructured data. It allows for the storage of massive amounts of unstructured data in a flat namespace and is not constrained by the rigid structures of file or block storage. Object storage is highly durable and designed for high levels of scalability and accessibility.

The suitability of object storage for unstructured data and scalability is a part of cloud storage technologies covered in CompTIA Cloud+ materials.

Part 1: Router 2

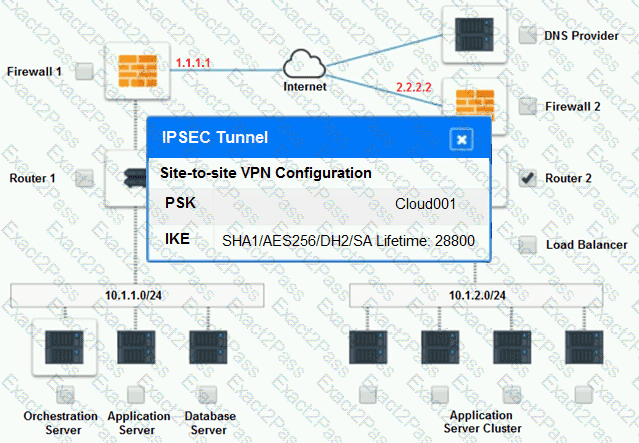

The problematic device is Router 2, which has an incorrect configuration for the IPSec tunnel. The IPSec tunnel is a secure connection between the on-premises datacenter and the cloud provider, which allows the traffic to flow between the two networks. The IPSec tunnel requires both endpoints to have matching parameters, such as the IP addresses, the pre-shared key (PSK), the encryption and authentication algorithms, and the security associations (SAs) .

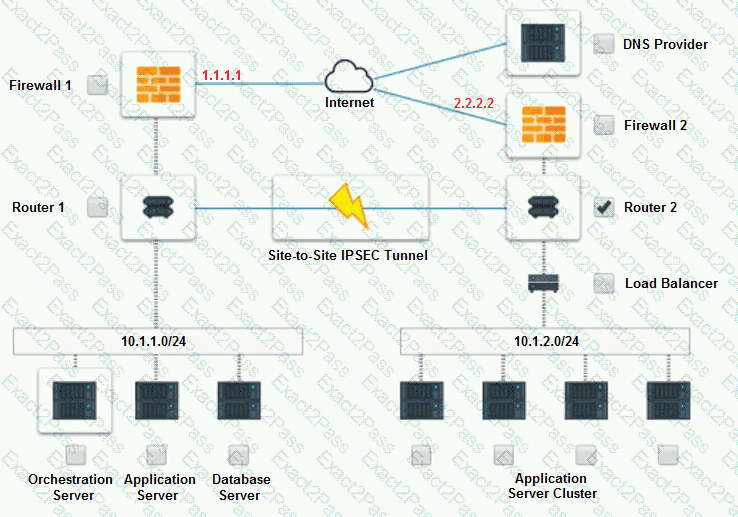

According to the network diagram and the configuration files, Router 2 has a different PSK and a different address space than Router 1. Router 2 has a PSK of “1234567890”, while Router 1 has a PSK of “0987654321”. Router 2 has an address space of 10.0.0.0/8, while Router 1 has an address space of 192.168.0.0/16. These mismatches prevent the IPSec tunnel from establishing and encrypting the traffic between the two networks.

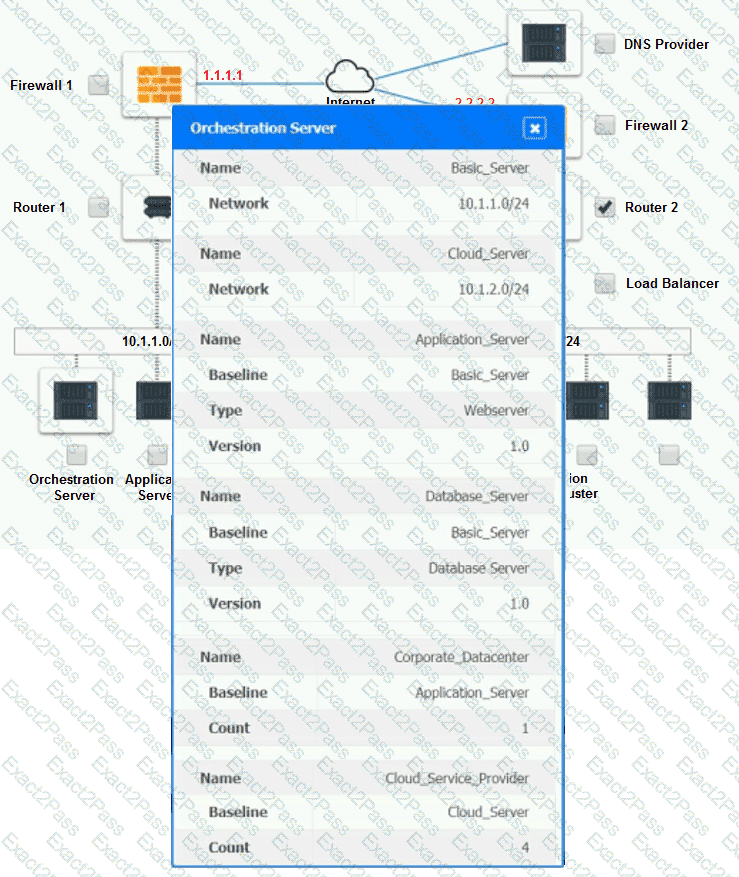

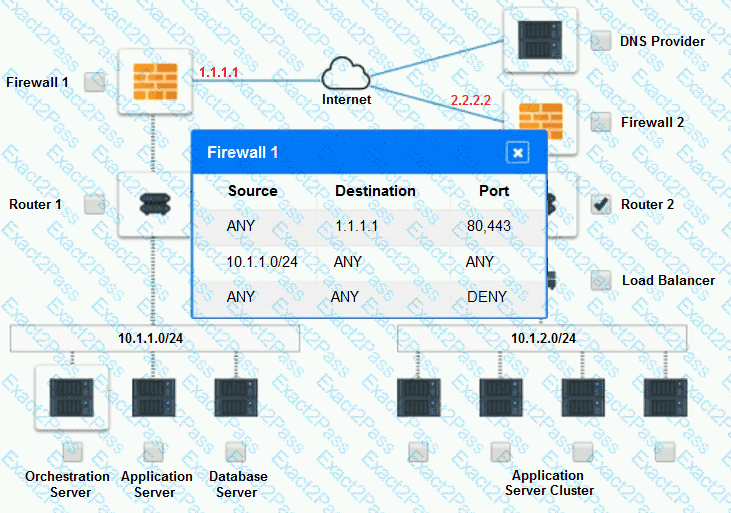

The other devices do not have any obvious errors in their configuration. The DNS provider has two CNAME records that point to the application servers in the cloud provider, with different weights to balance the load. The firewall rules allow the traffic from and to the application servers on port 80 and port 443, as well as the traffic from and to the VPN server on port 500 and port 4500. The orchestration server has a script that installs and configures the application servers in the cloud provider, using the DHCP server to assign IP addresses.

Part 2:

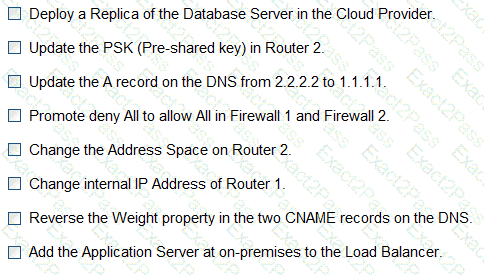

The correct options to provide adequate configuration for hybrid cloud architecture are:

Update the PSK in Router 2.

Change the address space on Router 2.

These options will fix the IPSec tunnel configuration and allow the traffic to flow between the on-premises datacenter and the cloud provider. The PSK should match the one on Router 1, which is “0987654321”. The address space should also match the one on Router 1, which is 192.168.0.0/16.

B. Update the PSK (Pre-shared key in Router2)

E. Change the Address Space on Router2

Platform as a Service (PaaS) is the best cloud service model for deploying code directly in the cloud without provisioning additional infrastructure. PaaS provides a platform allowing customers to develop, run, and manage applications without the complexity of building and maintaining the infrastructure.

The PaaS model and its benefits for application deployment are covered under the Cloud Concepts domain in the CompTIA Cloud+ certification.

The main difference between public and private container repositories lies in access control. Public repositories allow users to download and use container images without requiring any authorization, making them accessible to anyone. On the other hand, private repositories require users to have proper authorization, usually through credentials, to access the container images, thus providing a level of privacy and security control. References: CompTIA Cloud+ Guide to Cloud Computing (ISBN: 978-1-64274-282-2)

Refactoring is the process of restructuring existing computer code without changing its external behavior. In cloud computing, it often means modifying the application to better leverage cloud-native features and services. This can address user demand and reduce maintenance costs by making the application more scalable, resilient, and manageable. References: CompTIA Cloud+ Certification Study Guide (Exam CV0-004) by Scott Wilson and Eric Vanderburg

Archive storage is the most cost-effective type of tiered storage for retaining data that is infrequently accessed and only when required for compliance reasons. It is designed for long-term storage and offers lower storage costs compared to hot, cold, or warm storage tiers.

Understanding data storage and the various tiers, including archival storage, is part of cloud storage strategies covered in the CompTIA Cloud+ certification.

CompTIA Cloud+ (CV0-004) highlights using automation and Infrastructure as Code (IaC) to deploy consistent environments across on-premises and cloud. Terraform is specifically designed for template-based provisioning and deployment using declarative configuration files. It can orchestrate infrastructure and services across multiple providers and platforms, which is essential for hybrid environments. For containerized workloads, Terraform can deploy and configure the underlying components needed to run containers—such as Kubernetes clusters, networking, load balancers, storage, and IAM—both on-prem and in the cloud, using reusable templates and modules. This aligns directly with the requirement: “template-based” and “on premises and on the cloud.”

Docker (A) is primarily a container runtime and image/build tool; it helps create and run containers, but it is not the best choice for broad template-based deployment across hybrid infrastructure. Jenkins (C) is a CI/CD automation server that runs pipelines, but it does not serve as the infrastructure templating tool itself. Git (D) is version control, which supports managing templates but does not deploy them. Therefore, Terraform is the best match.

A Virtual Private Network (VPN) is the most cost-effective solution for extending on-premises services to a public cloud while ensuring secure remote connectivity. VPNs can be configured to avoid IP address conflicts and overlap by using IP address translation and tunneling techniques, making them suitable for connecting disparate environments without significant changes to the existing network infrastructure.
