The 12VHPWR connector can supply up to 600 watts of power, designed for high-end graphics cards.

Why Not A (400W): This is less than the connector’s maximum capability.

Why Not B (MOW): This is an invalid option.

Why Not D (700W): The maximum supported power is 600W.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.4, power supply and connectors​.

A valid public IP address must fall outside the private IP address ranges:

10.0.0.0 to 10.255.255.255

172.16.0.0 to 172.31.255.255

192.168.0.0 to 192.168.255.255

66.157.195.20 is outside these ranges, making it a public IP address.

Why Not A, C, D: These IPs fall within private IP address ranges.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, IP addressing​.

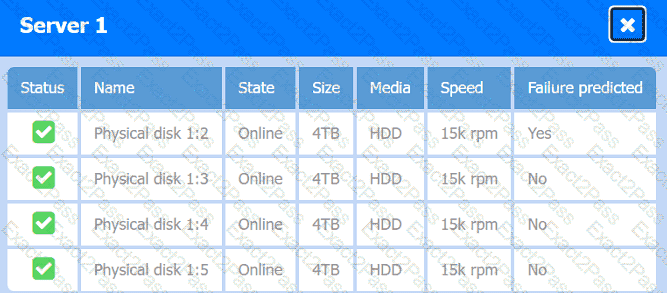

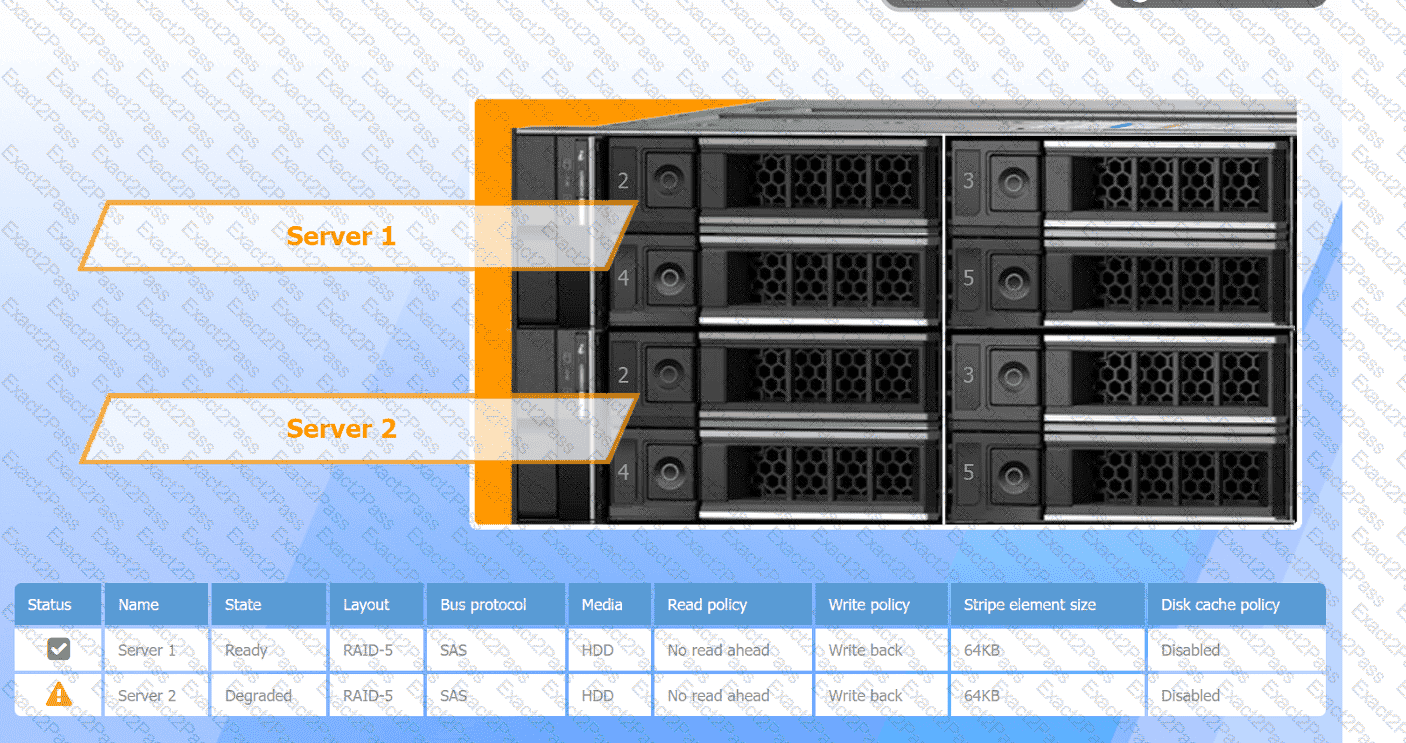

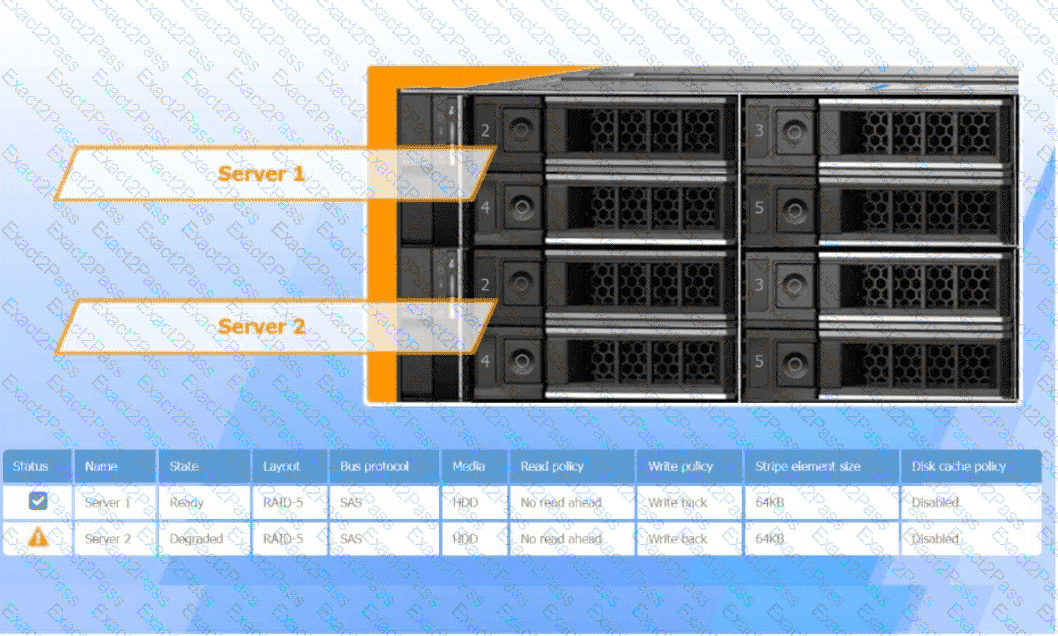

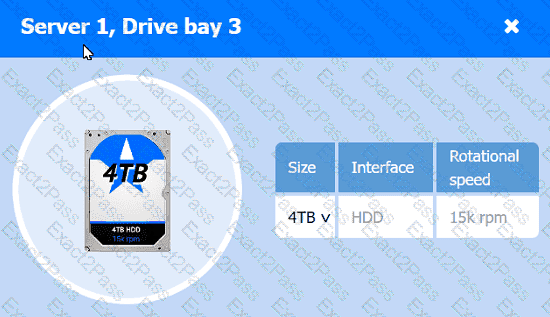

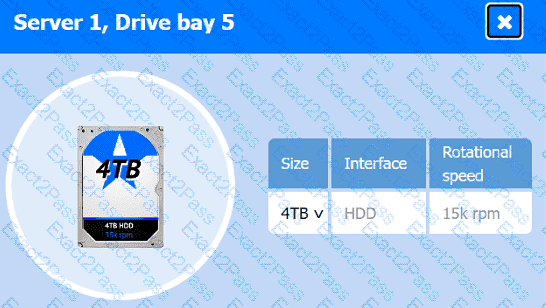

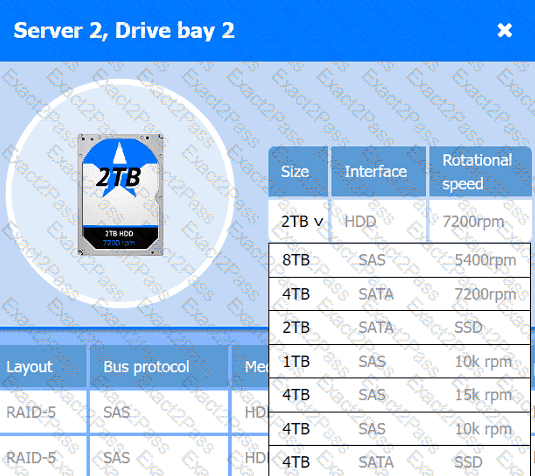

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

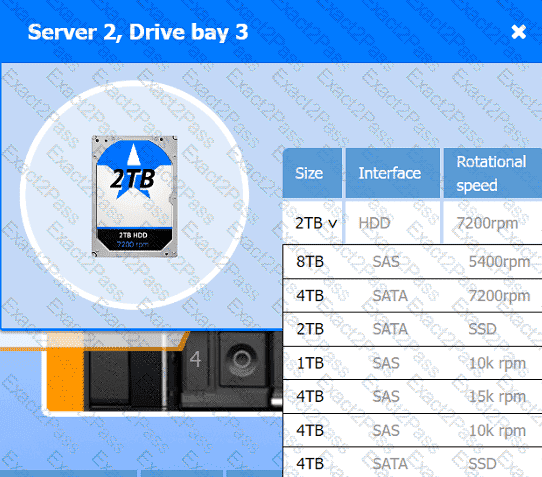

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

Virtual Desktop Infrastructure (VDI)hosts desktop environments on centralized servers. Thisallowsrapid deployment and consistent configurationacross multiple users, minimizing manual setup and easing IT management.

Option A:VDI still uses standard authentication methods.

Option B:Licensing can actually be more expensive due to virtualization software and backend servers.

Option D:VDI centralizes the desktop environment — viruses would affect the virtual session, not be "contained locally."

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

Reasoning: Projectors have air filters that prevent dust from entering the internal components. A clogged filter can cause the projector to overheat, resulting in shutdowns and even strange smells due to overheating components. Cleaning the filter is a standard troubleshooting step when projectors exhibit overheating symptoms.

Why the Other Options Are Incorrect:

A. Replace the bulb:

While a failing bulb may eventually cause issues, it would not typically result in a strange smell or repeated shutdowns after a fixed period. Bulb issues usually manifest as dim or flickering images.

B. Check the projector configuration:

Configuration settings, such as resolution or input options, would not cause overheating or shutdowns. This option does not address the described symptoms.

D. Adjust the gamma settings:

Gamma settings affect display brightness and contrast but have no impact on overheating or strange smells.

Practical Example:

Dust accumulation in projectors is a common issue, especially in environments with poor air circulation. A clogged filter causes restricted airflow, leading to overheating and automatic shutdowns to protect internal components. Cleaning the filter typically resolves this issue.

CompTIA A+ Exam Objective Alignment:

Objective 5.5: Troubleshoot common video, projector, and display issues.

Asandboxis an isolated virtual environment used totest or run applications securelywithout risk to the host or network. It prevents the VM from communicating with external systems, making it ideal for testing malware or suspicious software.

Option A (VDI):Virtual Desktop Infrastructure allows network communication; it does not restrict it.

Option B (Private cloud):Refers to a cloud deployment model, not a communication barrier.

Option D (Type 1 hypervisor):Runs VMs directly on hardware and doesnotinherently block communication.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

Channel configuration(e.g.,dual-channel,quad-channel) determines how memory modules communicate with the memory controller. Usingmatched pairs in dual- or quad-channel setupscan significantlyincrease memory bandwidth, improving performance — especially for gaming and video-intensive tasks.

Option A (Error correction):ECC RAM is used in servers for reliability, not performance or gaming.

Option B (RAM voltage):Affects compatibility and overclocking but not bandwidth.

Option D (Physical size):Refers to module form factor (e.g., DIMM, SO-DIMM) and does not impact bandwidth.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.2: Given a scenario, install RAM types.

Tethering refers to sharing a mobile phone’s internet connection with another device, such as a laptop, either through USB, Bluetooth, or Wi-Fi. Tethering effectively turns the mobile phone into a personal hotspot for internet access.

Option A (IR): Incorrect. Infrared (IR) is used for short-range communication, such as remote controls, but it does not support internet sharing.

Option B (NFC): Incorrect. Near-field communication (NFC) is used for close-proximity data transfer, not for internet sharing.

Option C (Wi-Fi Direct): Incorrect. Wi-Fi Direct enables device-to-device communication but does not inherently provide internet sharing.

Identifying changes made to the system is the next step to troubleshoot why an application no longer launches, as recent changes often cause such issues.

Why Not A (Research the symptoms): Research is broader and should come after identifying changes.

Why Not C (Determine which steps need to be performed): This comes after identifying the issue.

Why Not D (Check the vendor's website): This is a later step if further guidance is needed.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​.

D. POST Code Beeps:

During the Power-On Self-Test (POST), the BIOS performs checks on system hardware, including RAM. If the RAM is faulty, POST may produce a series of beep codes indicating memory issues.

These beep codes are often the first sign of RAM-related problems, especially if the BSOD occurs randomly.

Incorrect Options:

A. Wrong BIOS configurations: Incorrect BIOS settings may cause boot errors, but they are less likely to cause random BSODs.

B. Continuous reboots: Continuous reboots could result from multiple hardware or software issues but do not specifically point to RAM.

C. Distended capacitors: Faulty capacitors typically affect the motherboard, not the RAM.

Key Takeaway: POST beep codes are a common diagnostic tool for identifying RAM-related issues.

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

The system date/time is maintained by the CMOS battery when the PC is powered off. If this battery fails, time resets will occur. Additionally, since the system is connected to a UPS, ensuring the UPS is functioning correctly (i.e., the backup power source) is essential.

Infrastructure as a Service (IaaS) provides virtualized computing resources over the internet. This includes virtual servers, storage, and networking. Deploying server machines falls under IaaS since the organization is responsible for managing the OS and applications on top of the infrastructure.

A managed switch provides advanced features such as traffic monitoring and VLAN configuration, allowing a technician to view network statistics for devices on the local subnet.

Why Not B (Router): A router connects different networks and directs traffic between them but does not provide detailed subnet-level statistics.

Why Not C (Access point): Access points provide wireless connectivity but lack traffic monitoring features.

Why Not D (Firewall): A firewall filters traffic but is not used for monitoring detailed statistics on a local subnet.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, network monitoring tools​.

A Hardware Security Module (HSM) securely manages cryptographic keys, including those used to protect credit card chips.

Why Not A (TLS): TLS secures data in transit, not encryption key storage.

Why Not B (AMD): AMD refers to processors, not security modules.

Why Not D (ARM): ARM is a processor architecture, not a cryptographic security solution.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, cryptographic hardware​.

Color gamut refers to the range of colors a display can accurately reproduce. For tasks like graphic design or photo editing, ensuring the screen's colors match the printed output is critical. Monitors with wide and accurate color gamuts (e.g., Adobe RGB) are preferred for these applications.

Option B (Pixel density): Incorrect. Pixel density affects image sharpness, not color accuracy.

Option C (Refresh rate): Incorrect. Refresh rate impacts motion smoothness but is unrelated to color matching.

Option D (Resolution): Incorrect. Resolution determines clarity and detail but does not influence color accuracy.

If the system reports“Bootable device not found”, and the BIOS is configured correctly, the next step is torun diagnostics on the hard driveto check for physical or logical failure. It could be a sign of afailing drive or corrupt boot sector.

Option A:Reformatting the drive would erase data — not a diagnostic step.

Option C:RAM does not affect whether a drive is bootable.

Option D:Replacing the drive should only be doneafter diagnostics confirm failure.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

A spam gateway filters unsolicited emails at the server level, significantly reducing spam before it reaches user inboxes.

Why Not A (Load balancer): Load balancers distribute traffic but don’t filter spam.

Why Not C (Mail forwarding): Forwarding doesn’t filter spam.

Why Not D (Proxy servers): Proxies control web traffic, not email filtering.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.10, email security controls​.

Abulging tablet casingis a classic sign of aswollen lithium-ion battery, often caused by age, overheating, or overcharging. This is adangerous condition, as swollen batteries can rupture or catch fire. It also explains why the tablet only works when plugged in — the battery is no longer holding a charge.

Option A:Power supply issues wouldn’t cause physical bulging.

Option B:A bad charge port wouldn’t cause screen damage or physical distortion.

Option D:A broken screen could cause display issues, but not the bulging chassis.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.4: Given a scenario, configure settings and use cases for laptops and mobile devices.

===========

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

SMB (Server Message Block)is a protocol used to access files and printers over a network, including across shared network folders. It enables the user to access and print files stored remotely on a shared directory.

Option A (ADF):Automatic Document Feeder — hardware, not a network protocol.

Option B (USB):Used for direct physical connections, not for printing over networks.

Option C (PCL):Printer Command Language — relates to printer drivers, not file sharing or access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

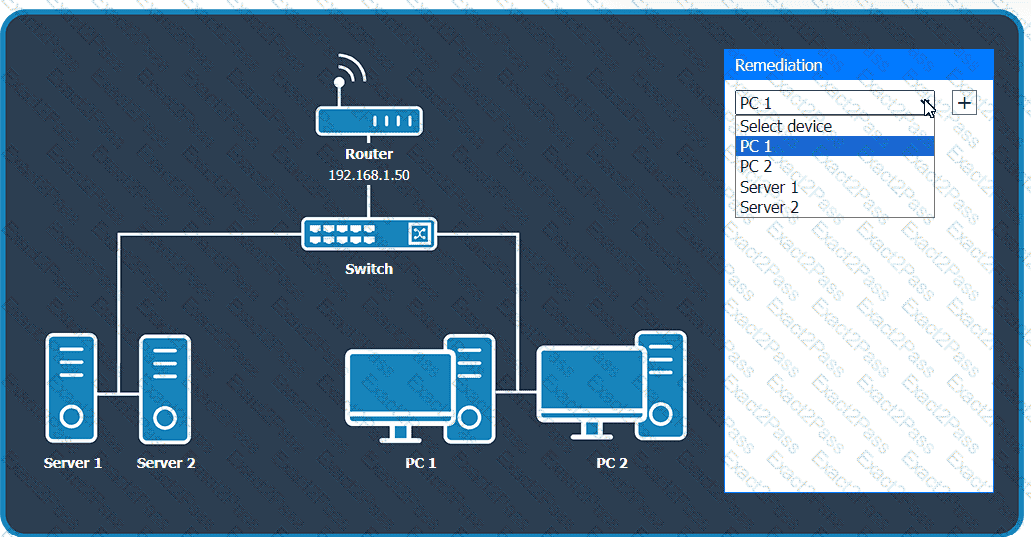

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

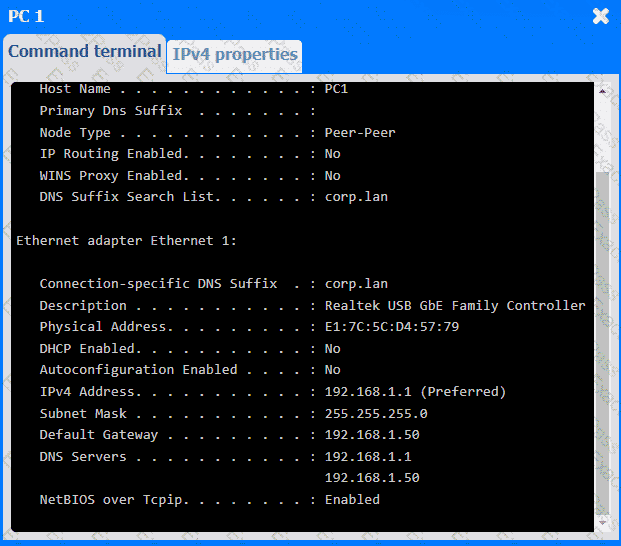

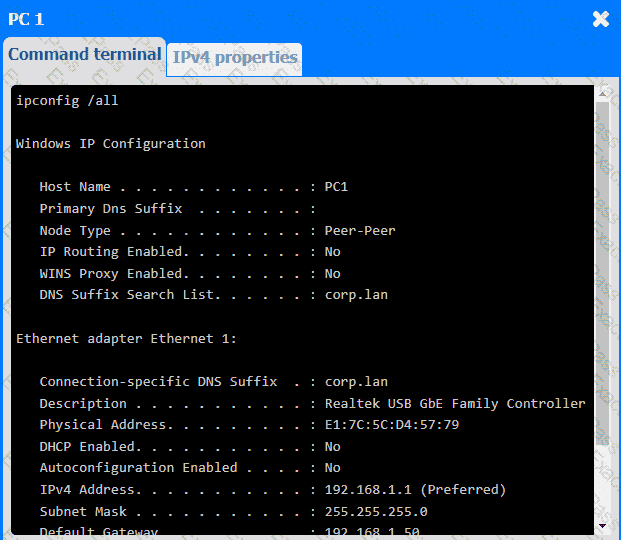

1. PC 1

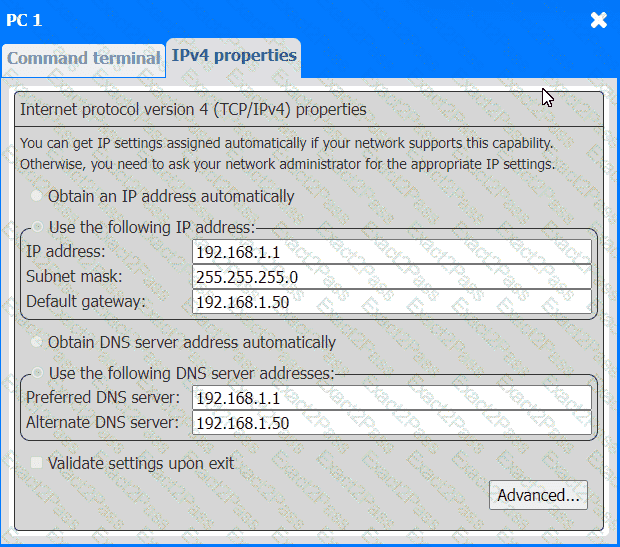

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

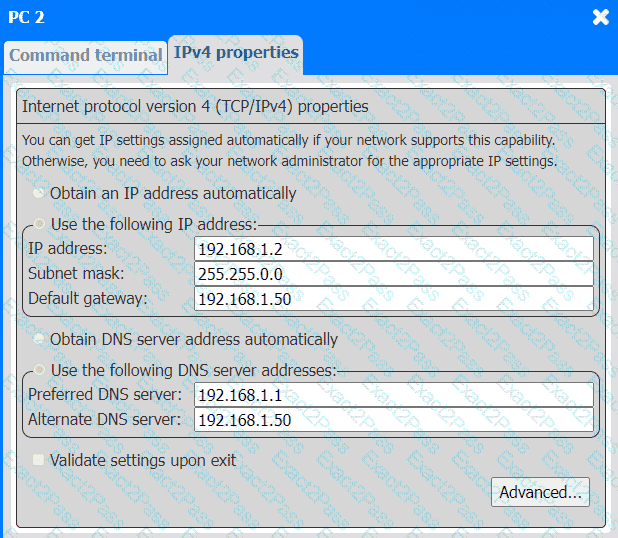

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

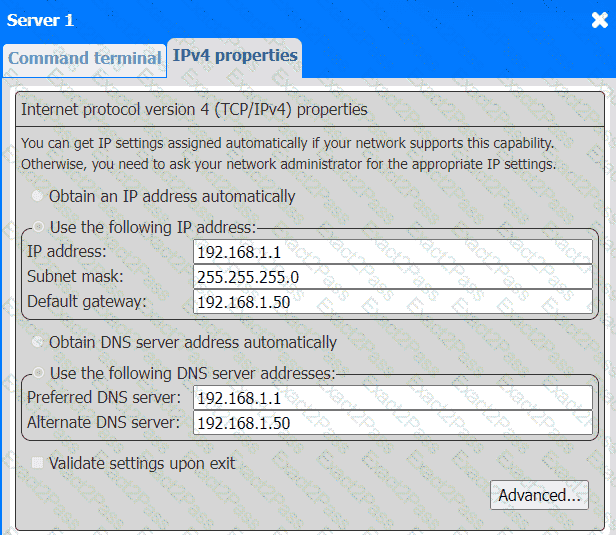

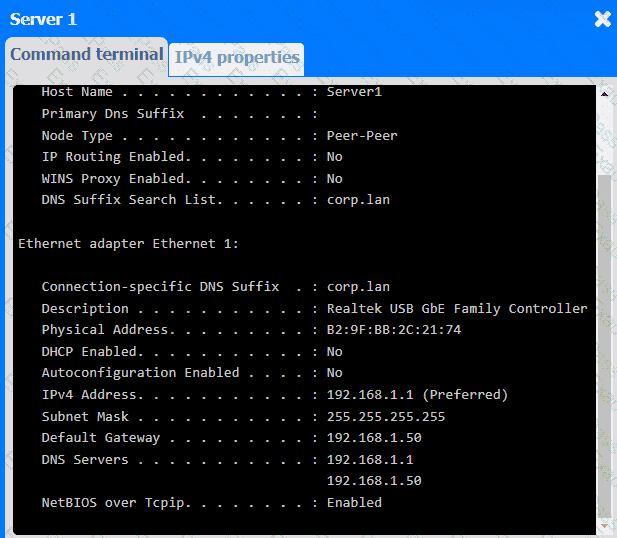

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

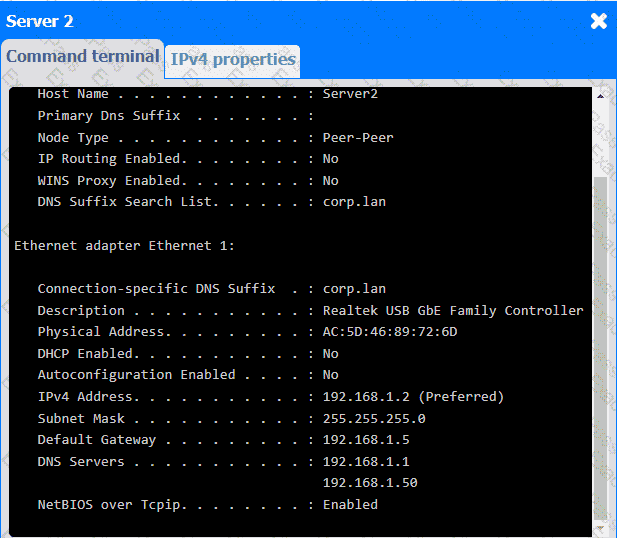

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

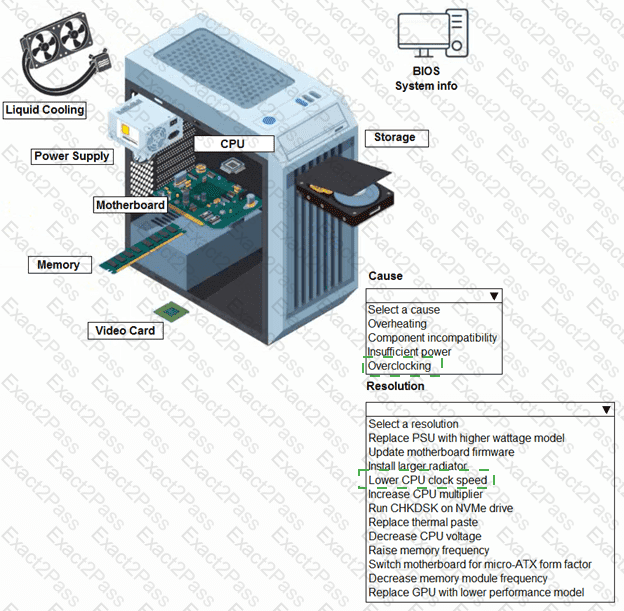

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

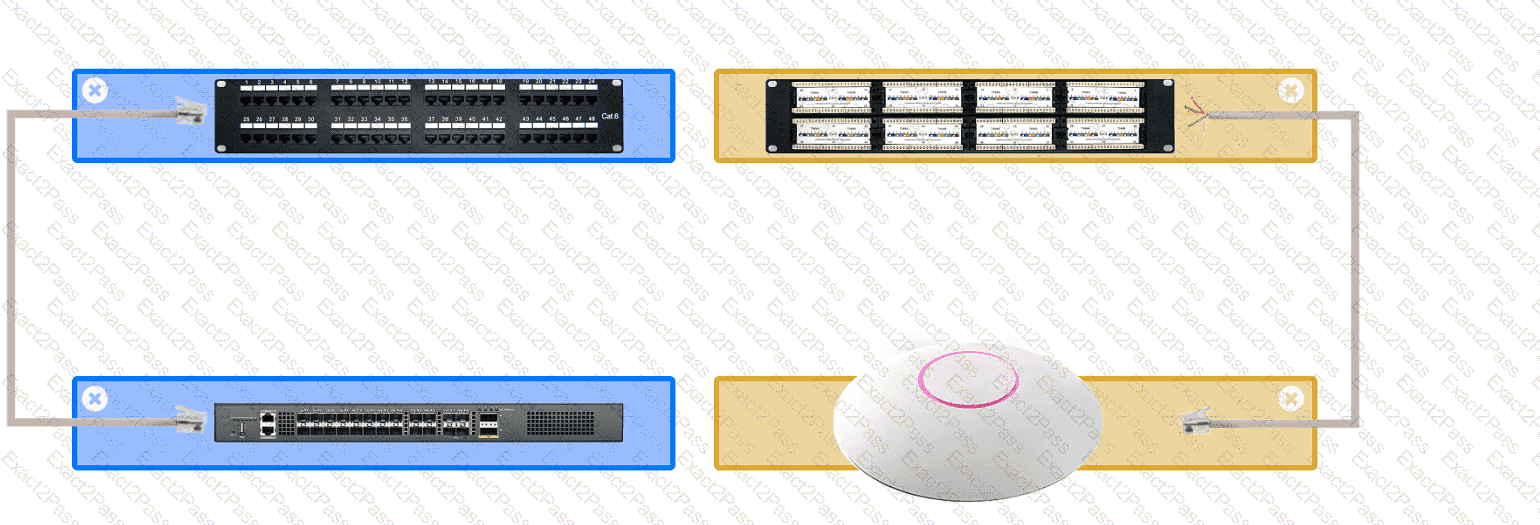

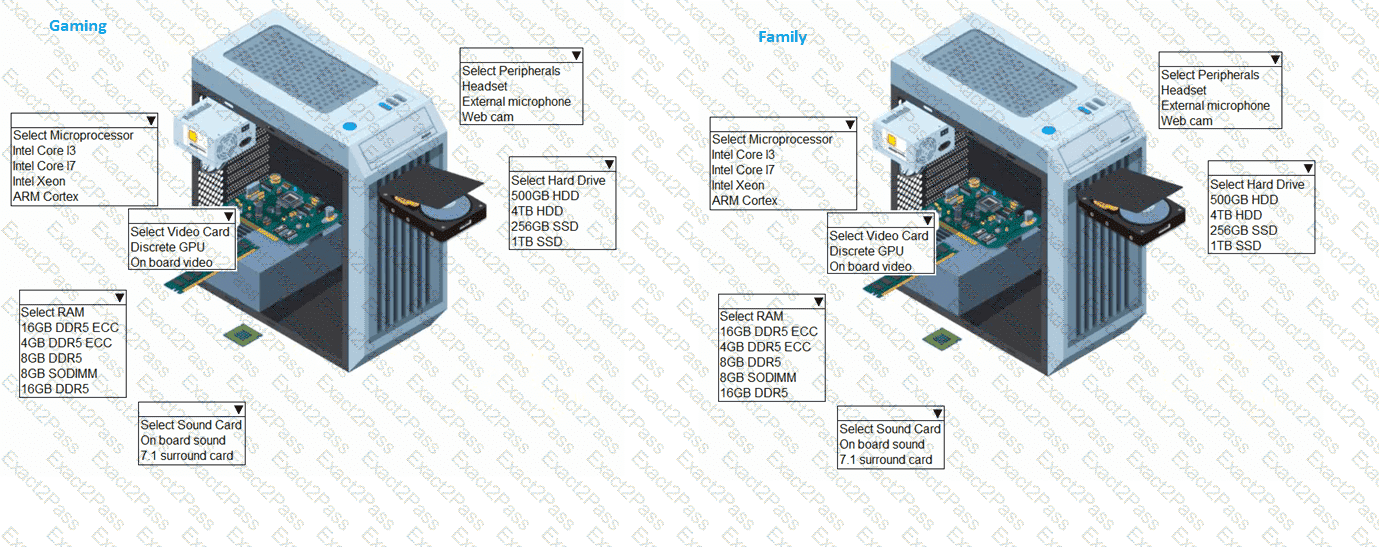

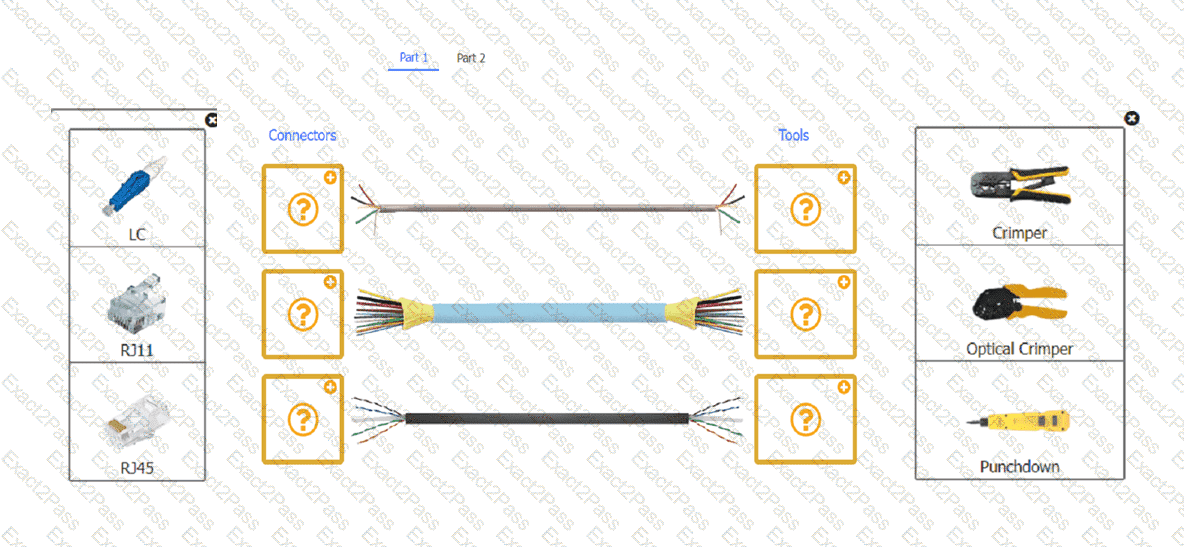

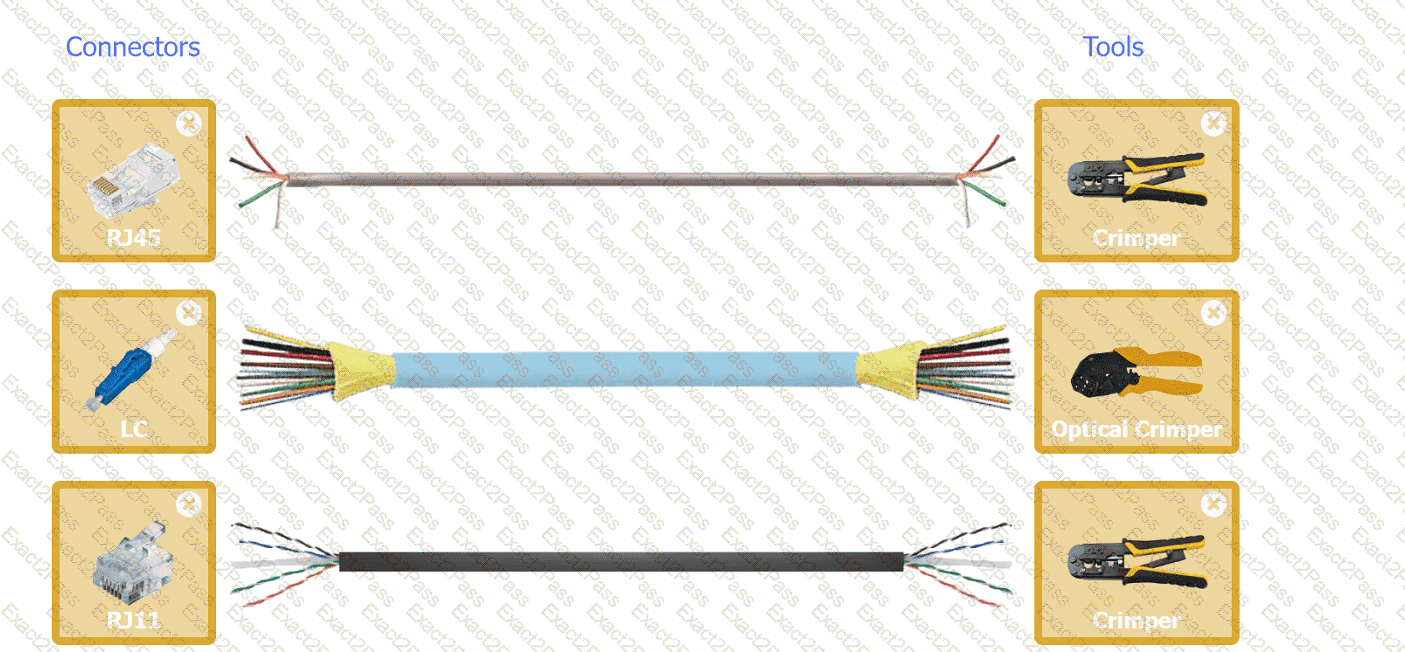

Check the exhibit diagram for both parts.

A close-up of several cables AI-generated content may be incorrect.

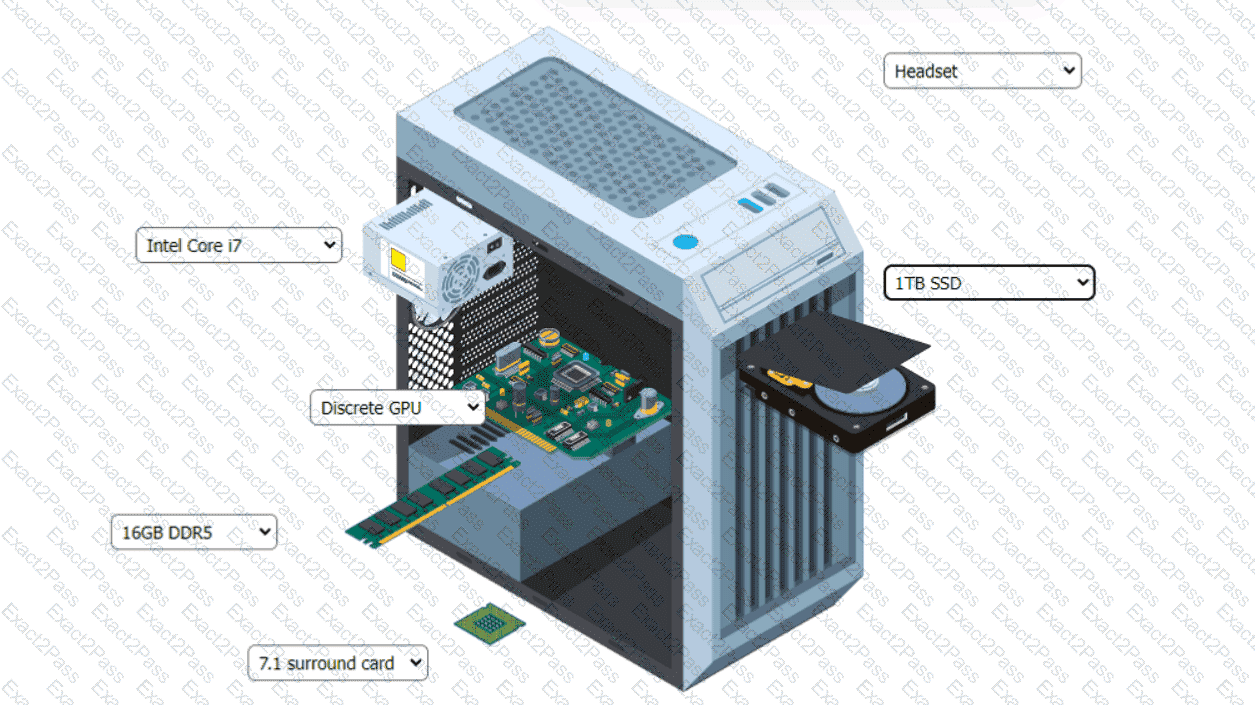

Part 2

A group of different colored rectangular objects AI-generated content may be incorrect.

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

A computer tower with a computer and a hard drive AI-generated content may be incorrect.
