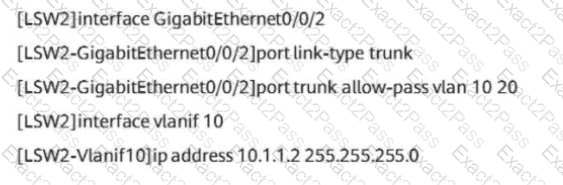

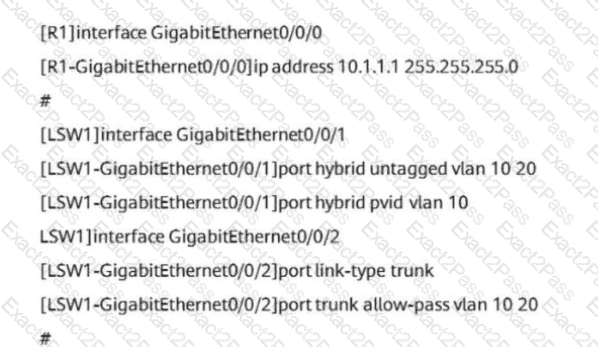

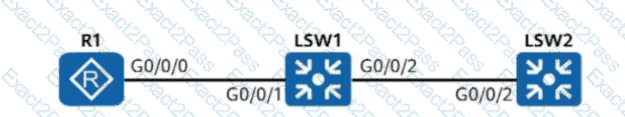

Comprehensive Explanation: In this configuration, LSW1 and LSW2 have trunk links that allow VLAN 10 to pass between them. When a ping is sent from R1, the frame is tagged with VLAN 10 on LSW2, and this tagged frame is forwarded to LSW1. Since the trunk allows VLAN 10, the tagged data frame is successfully received and processed by LSW1.

Comprehensive Explanation: Static NAT (Network Address Translation) can implement both one-to-one and many-to-one mappings. In a one-to-one mapping, each private IP address is mapped to a unique public IP address. However, in some cases, static NAT can be configured to map multiple private addresses to a single public address, particularly for services that do not require incoming connections. This flexibility allows for more efficient use of limited public IP address space.

Comprehensive Explanation: The " -i " parameter in the Ping command on Huawei VRP (Versatile Routing Platform) is used to specify the source IP address for sending an Echo Request (ping) packet. This is useful in cases where the router has multiple interfaces and you want to control which interface is used to initiate the ping. By defining the source IP address, the ping request can be sent from a specific interface on the router, enabling network administrators to test connectivity from that interface.

Detailed Explanation:OSPF (Open Shortest Path First) uses protocol number 89 at the network layer. This distinguishes OSPF packets from other protocols such as TCP (protocol number 6) and ICMP (protocol number 1) .
