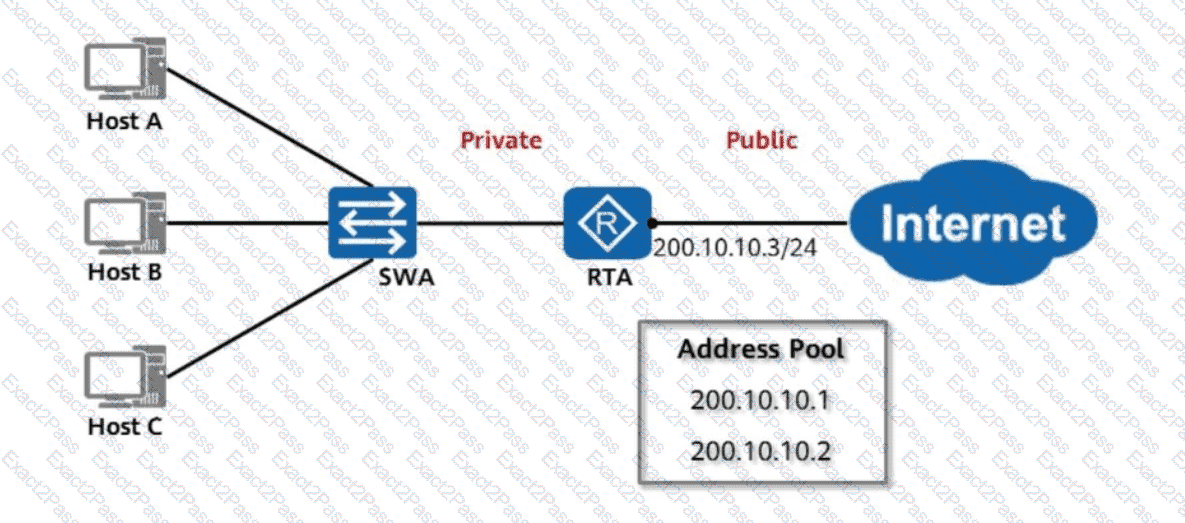

In a many-to-many non-NAPT (Network Address Port Translation) configuration, each private host requires a unique public IP address from the address pool. If only two public IP addresses are available and both are already in use by Host A and Host B, no IP will be available for Host C, preventing it from accessing the public network​.

Comprehensive and Detailed In-Depth Explanation:

ESS (Extended Service Set) remains the same across multiple access points (APs) within the same WLAN.

BSS (Basic Service Set) & BSSID (MAC address of AP) change because the STA connects to a new AP.

VLAN may change depending on network policies.

An AP (Access Point) radio can support multiple SSIDs, allowing segmentation of different types of traffic on the same wireless network. Each SSID can have unique security and access policies, enabling flexible wireless network configurations for different user groups​.

In RSTP, both alternate and backup ports do not forward user traffic, but they can still receive and process BPDUs (Bridge Protocol Data Units). This allows the network to quickly reconfigure if the active path fails, as these ports are already participating in spanning tree calculations​.

Detailed Explanation:To manage a router in a remote branch office, Telnet is a suitable option as it allows remote access over a network. Unlike a console connection, which requires physical access, Telnet enables remote management as long as the administrator has network connectivity to the router. FTP is used for file transfer, and DHCP is used for dynamic IP address allocation, not for management​​.

An access port is a switch port assigned to a single VLAN and used to connect end devices (such as PCs or printers).

Access ports do not send VLAN tags. They remove the VLAN tag before forwarding frames to the connected device because most end devices do not support VLAN tagging.

Option A (Incorrect): Tagged frames are sent only by trunk ports, not access ports.

Option B (Correct): The access port strips the VLAN tag before forwarding the frame to ensure compatibility with non-VLAN-aware devices.

Option C (Incorrect): VLAN tags are not exchanged between inbound and outbound ports.

Option D (Incorrect): The access port does not attach PVID information to the frame when sending it out.

Thus, the correct answer is B.

Huawei devices support different authentication modes:

authentication-mode local: Requires a username and password stored locally.

authentication-mode hwtacacs: Uses Huawei TACACS+ authentication, which requires a username and password.

authorization-mode hwtacacs: Refers to authorization (not authentication).

authentication-mode none: Does not require a username or password, meaning no authentication is needed.

Thus, the correct answer is D.

Comprehensive and Detailed Explanation:

STP (Spanning Tree Protocol) Port States:

Blocking → Listens for BPDUs but does NOT forward traffic.

Listening → Starts sending BPDUs but still does NOT forward traffic.

Learning → Learns MAC addresses but still does NOT forward traffic.

Forwarding → Learns MAC addresses and forwards traffic.

Explanation of options:✅ A is correct → Forwarding ports can send BPDUs.✅ B is correct → Forwarding ports can receive BPDUs.❌ C is incorrect → Forwarding ports do learn MAC addresses.✅ D is correct → Forwarding ports can forward frames.

✅ Reference: HCIA-Datacom Switching Guide – STP Port States

This explanation was already provided earlier. Please refer to QUESTION NO: 13 at the start.

CAPWAP (Control and Provisioning of Wireless Access Points) is a protocol that enables centralized control of Fit APs by an AC (Access Controller).

Option A (Incorrect): CAPWAP tunnels only control traffic, while data traffic can be sent via direct forwarding or tunneled forwarding.

Option B (Incorrect): A Fit AP can discover an AC via multiple methods, including broadcast, static configuration, or DHCP Option 43.

Option C (Correct): APs encapsulate user data into CAPWAP packets and send them to the AC for further processing.

Option D (Incorrect): CAPWAP is based on UDP, not TCP, for better efficiency and lower latency.

Thus, the correct answer is C.
