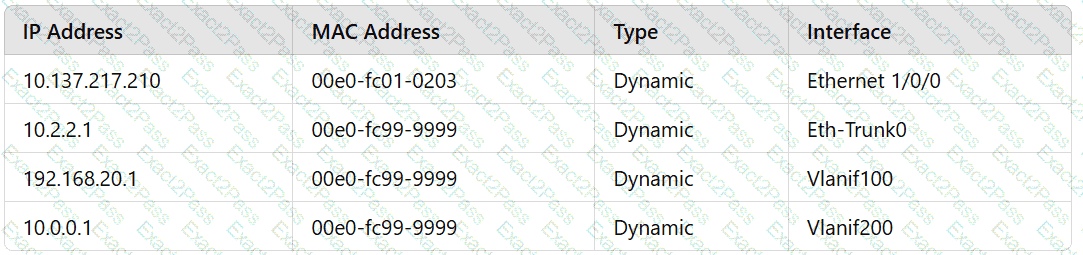

Understanding ARP Entries:

Each ARP entry associates a MAC address with an IP address dynamically or statically.

In the table, the MAC address 00e0-fc99-9999 is linked to multiple IP addresses across different interfaces.

Dynamic MAC Address Assignment:

As the host changes its IP address, the MAC address remains consistent.

Conclusion:

The statement is TRUE because the MAC address 00e0-fc99-9999 appears with three different IP addresses dynamically.

In trunk mode, the interface can forward frames tagged with VLANs specified in the allow-pass list (here, VLAN 100) without removing tags. However, if an untagged frame is received, it is assigned to the PVID (here, VLAN 200). This configuration allows both tagged and untagged traffic, with the PVID determining the VLAN for untagged frames​.

In VRP, the " -a " parameter in the ping command allows specifying a source IP address for the echo request. This can be helpful in testing connectivity from a specific interface on the device, which is useful in verifying path accessibility or troubleshooting issues with certain network segments​.

Comprehensive Explanation: In STP (Spanning Tree Protocol), ports can be in several states, including:

Discarding: The port is not forwarding traffic, either because it is in a blocking state or not participating in active forwarding.

Listening: The port is processing BPDUs and is preparing to transition to either the learning or forwarding state. No data frames are forwarded during this state.

Forwarding: The port is actively forwarding traffic as part of the active network topology.

The " Disabled " state is not part of the STP protocol but rather represents a port that is administratively shut down or not participating in the STP process.

Router Functionality:Routers operate at the Network Layer (Layer 3) of the OSI model. They use IP addresses to forward packets between different networks and determine the best path for data transmission based on routing tables​​.

Analysis of Options:

Option A: " Network layer " is correct, as routers are Layer 3 devices.

Option B: " Transport layer " handles end-to-end communication and reliability (e.g., TCP/UDP), not routing.

Option C: " Data link layer " is for local node-to-node data transfer (e.g., MAC addresses), handled by switches.

Option D: " Application layer " is for user-facing software interactions (e.g., HTTP, FTP).

Correct Answer:Routers work at the A (Network layer).

Comprehensive Explanation: In RSTP (Rapid Spanning Tree Protocol), the Alternate Port is the backup path to the root bridge. If the current root port fails, the Alternate Port immediately transitions to the forwarding state, providing a new path to the root bridge with minimal delay. This rapid transition is one of the key improvements of RSTP over the older STP protocol. Backup ports, on the other hand, provide redundancy on the same switch, and edge ports are used to connect directly to end devices.
