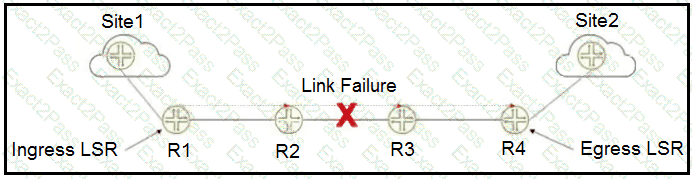

Upon a link failure in an RSVP-signaled LSP, the router upstream of the failure (R2) sends a PathTear message upstream to the ingress router (R1), and the router downstream of the failure (R3) sends a ResvTear message downstream to the egress router (R4). These messages signal the failure and initiate tear down of the LSP state in the respective directions.

tunnel-end-point name {

ipv4 {

source-address 10.255.1.1;

destination-address 10.255.2.0/25;

}

gre {

key 9;

}

}

https://www.juniper.net/documentation/us/en/software/junos/routing-policy/topics/ref/statement/tunnel-end-point-edit-firewall.html

The ip and gr interface types are used as endpoints for various tunneling protocols. ip is a generic term that can refer to any IP-based tunnel, while gr specifically refers to Generic Routing Encapsulation (GRE) tunnel interfaces in Junos.

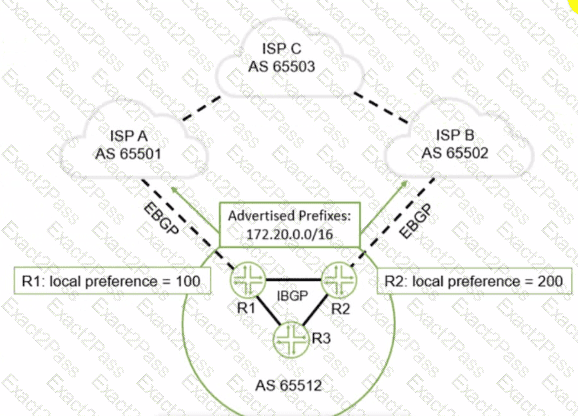

To influence ISP C to prefer the path through R2 for the 172.20.0.0/16 network, R2 should make its path less preferable to ISP B by prepending its AS number multiple times. This makes the path through R2 appear longer and less desirable to ISP C, which would receive these updates from ISP B. AS path length is a well-known attribute in BGP and is used to determine the best path; paths with a longer AS path are considered less preferable.

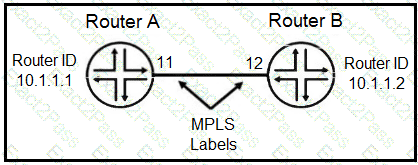

The diagram you provided shows two routers, Router A and Router B, with MPLS labels between them. In the context of segment routing with MPLS, each router advertises a set of SIDs (Segment Identifiers). These SIDs can be node SIDs, which are associated with the router itself, or adjacency SIDs, which are associated with the links between routers.

Given the information from the exhibit:

Router A has a Router ID of 10.1.1.1 and is associated with the MPLS label 11.

Router B has a Router ID of 10.1.1.2 and is associated with the MPLS label 12.

The adjacency SID in segment routing is used to identify a specific adjacency between two routers. In this case, the question is asking for the adjacency SID that Router B advertises to Router A. This would be the label that Router B tells Router A to use to send packets directly to Router B over their shared adjacency.

So, the adjacency SID that Router B advertises would be associated with the link that Router A would use to send traffic to Router B, which is labeled with the number 12 in the exhibit.

Therefore, the answer to the question is:

D. 12

This is the label that packets would carry when being sent from Router A to Router B to identify the specific adjacency between the two routers in the context of segment routing.

IPv6 link-local addresses are automatically generated for each interface and have a prefix of fe80::/10. The interface ' s MAC address is typically used as part of the process to create the Interface Identifier (IID) in the link-local address, following the EUI-64 format.

References

Juniper Networks Technical Documentation on IPv6

IPv6 Interface Addresses - Juniper Networks

To prevent a router from participating in the OSPF designated router (DR) and backup designated router (BDR) election process, you set the OSPF priority to 0 on the interfaces of that router. This tells OSPF that the router on those interfaces is not to be considered for election as either DR or BDR, effectively making them DRother routers. The exhibit indicates that this is the desired configuration, and therefore the correct command to issue on the Juniper device would be to set the priority to 0 on the relevant interfaces.

In BGP (Border Gateway Protocol), the Update message is used to advertise new routes to a peer or to withdraw previously advertised routes. If there ' s a change in the routing information or if a new route needs to be advertised, BGP uses an Update message. This message is crucial for maintaining the most current and accurate routing information among BGP peers.

The other message types serve different purposes:

Keepalive: This message type is used to maintain the connection between BGP peers and ensure that the link is still active. Keepalive messages are periodically sent between peers when there is no other BGP activity to maintain the session.

Notification: This message is used to indicate errors or other significant events to a BGP peer. If a BGP error condition is detected, a Notification message is sent and the BGP session is typically closed.

Refresh: This is not a standard BGP message type. However, in the context of BGP, Route Refresh is a capability (not a message type) that allows a BGP router to request a full or partial re-advertisement of routes from a peer. This helps in re-synchronizing routing tables without tearing down the BGP session.

The BGP Update message is used to advertise routable destinations and includes route advertisements, route withdrawals, and path attribute modifications. Update messages are used to re-advertise routes that have already been acknowledged.

IS-IS is a link-state routing protocol that uses a Shortest Path First (SPF) algorithm to create a topology map of the network. It floods link-state advertisements (LSAs) to all nodes within the network area to ensure each node has a consistent view of the network topology.

References

Juniper Networks Technical Documentation on IS-IS

Understanding IS-IS - Juniper Networks

When you want to advertise an interface in OSPF but not form an OSPF adjacency over that interface (for example, towards an ISP), you can configure the interface as passive. This will advertise the network on the interface in OSPF without sending OSPF hello packets or forming OSPF neighbor relationships on that interface.

References

Juniper Networks Technical Documentation on OSPF

OSPF Configuration Guide - Juniper Networks

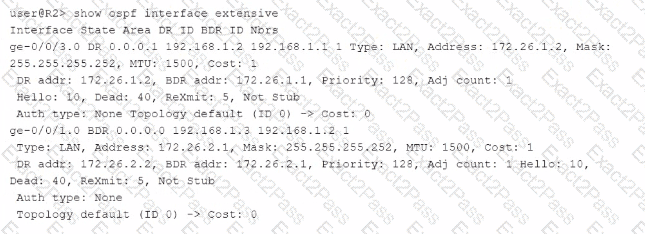

You can see area 0.0.0.1 set for one interface and area 0.0.0.0 for the other interface. This means the router communicates in the backbone and area 1, thus it is an ABR.

Default hello timer and dead intervals are configured

hello-interval—Specifies the length of time, in seconds, before the routing device sends a hello packet out of an interface. By default, the routing device sends hello packets every 10 seconds. The range is from 1 through 255 seconds.

dead-interval—Specifies the length of time, in seconds, that the routing device waits before declaring that a neighboring routing device is unavailable. This is an interval during which the routing device receives no hello packets from the neighbor. By default, the routing device waits 40 seconds (four times the hello interval). The range is 1 through 65,535 seconds.

https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/topic-map/configuring-ospf-timers.html#:~:text=The%20hello%20interval%20and%20the,devices%20on%20a%20shared%20network .

C. The R2 device is shown as having interfaces in two different OSPF areas (Area 0 and another area not specified), which makes it an Area Border Router (ABR).

D. The OSPF hello and dead intervals are set to their default values of 10 and 40 seconds, respectively.
