In Junos OS, the figure-of-merit is an internal numerical value used by the BGP Route Damping mechanism to quantify the stability of a specific BGP route. When a route " flaps " (becomes unstable), the Junos OS increases this value by assigning a specific penalty based on the type of event that occurred:

The route is withdrawn (Option A): When a BGP neighbor sends a withdrawal message for a prefix, Junos assigns a significant penalty—typically 1,000 by default—to the route ' s figure-of-merit.

The route is readvertised (Option C): When a previously withdrawn route is announced again by the neighbor, the Junos OS adds another penalty to the figure-of-merit value to track the continued instability.

The route ' s path attributes changed (Option E): If a route remains reachable but its BGP attributes (such as the AS Path or Community) change, it is considered a flap. Junos assigns a smaller penalty—typically 500 by default—for this attribute change.

As the figure-of-merit accumulates and exceeds a predefined suppress threshold , the route is suppressed and no longer used for forwarding. Over time, the value decreases according to a configured half-life until it falls below a reuse threshold , at which point the route becomes active again. Factors like local preference or the origin (IBGP/EBGP) do not trigger these internal penalty increments for the figure-of-merit.

Junos OS 24.4 provides several server-failover options for 802.1X authentication to maintain network availability when the RADIUS server is unreachable.

Fallback Behavior (Option D): The use-cache fallback action allows the switch to consult its local cache of previously authenticated MAC addresses.

If a device was already authorized and its information is in the cache, the switch will continue to permit access based on those cached credentials.

However, if a new device (not in the cache) attempts to connect while the server is down, the switch cannot verify its credentials and will deny the access attempt. This matches the specific requirement to permit authorized devices while denying new ones.

Other Fallback Options:

permit (Option C): This would allow all devices (even new ones) to access the network, typically in a restricted " guest " or " bypass " VLAN.

deny (Option A): This would drop all traffic from all devices on the port if the server is unreachable.

vlan-name (Option B): This moves authenticated or unauthenticated users into a specific fallback VLAN.

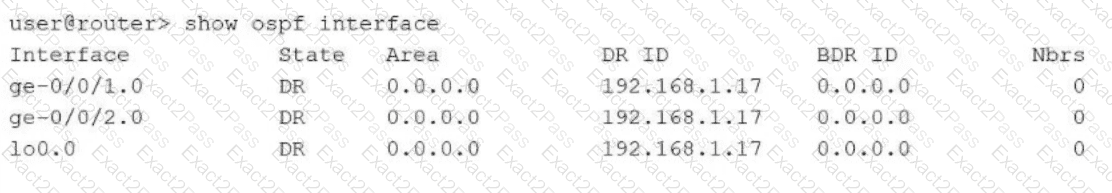

The show ospf interface output provides critical information about the local OSPF state.

Loopback Behavior (Option A): The output shows lo0.0 is in the DR (Designated Router) state with Nbrs 0. In Junos OS, OSPF adjacencies are not formed over loopback interfaces; they are treated as stub networks.

Neighbor State (Option D): Every interface listed (ge-0/0/1.0, ge-0/0/2.0, and lo0.0) shows Nbrs 0. This indicates that the router is not seeing any OSPF neighbors. Since the physical interfaces are in the DR state (meaning the router has elected itself as the DR because no other routers responded), it confirms the router is not receiving OSPF Hello messages from any potential neighbors on those segments.

Router ID: The DR ID 192.168.1.17 is the local router ' s own ID, not a neighbor it is trying to reach.

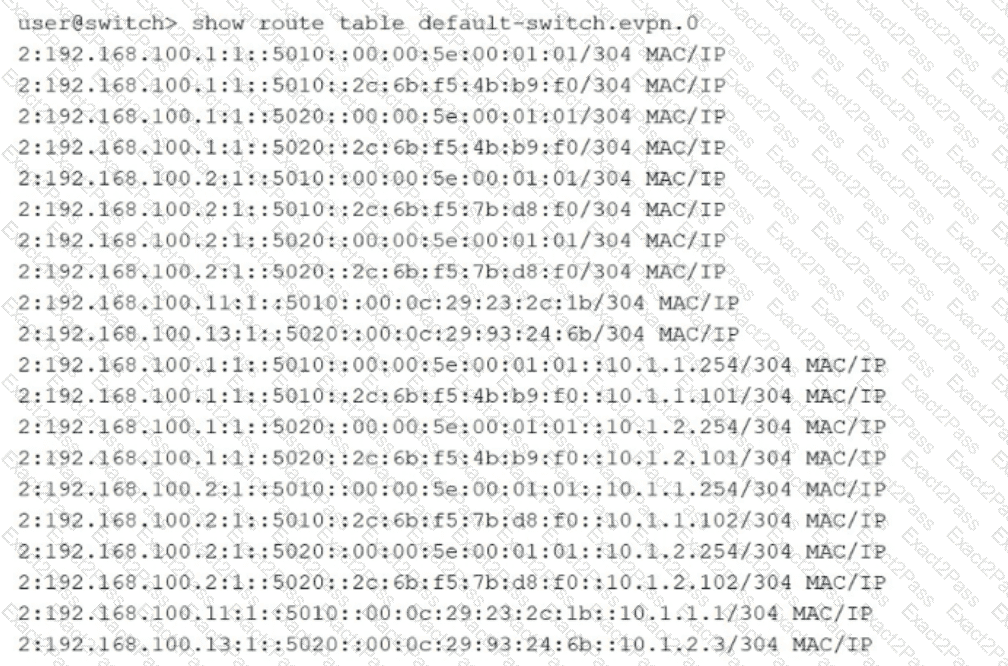

The IETF standards for EVPN-VXLAN define the scalability and forwarding behavior of the architecture.

VXLAN Scale (Statement B): The Virtual Network Identifier (VNI) is a 24-bit field in the VXLAN header. This allows for up to $2^{24}$ unique identifiers, which translates to approximately 16 million distinct VXLAN broadcast domains (segments) within a single fabric. * Forwarding Behavior (Statement D): VXLAN is a MAC-in-UDP encapsulation technology. When a Layer 2 frame enters the tunnel at a VTEP, the original Layer 2 frame (including the original source and destination MAC addresses) is encapsulated into a UDP/IP packet and transported across the IP underlay. When it reaches the egress VTEP, the header is removed and the Layer 2 frame is forwarded unchanged to the destination host.

Why others are incorrect: Statement A is incorrect because EVPN itself can technically support more than 16 million domains, but the data plane (VXLAN) is the limiting factor in this specific deployment scenario. Statement C is incorrect because VXLAN encapsulates Layer 2 frames, not just " IP packets, " and it treats the entire frame as a payload.

OSPF determines the best path to a destination by calculating the metric (cost) of each link. By default, Junos OS uses a reference bandwidth of 100 Mbps to calculate this cost using the formula:

When the reference bandwidth is left at the default 100 Mbps, any interface with a speed of 100 Mbps or higher (including 1 GbE and 10 GbE) is assigned a cost of 1 because the minimum OSPF cost is 1. This results in equal-cost paths, preventing the router from preferring the faster 10 GbE link.

To ensure 10 GbE interfaces are preferred, you must create a cost differential:

Option A (Reference Bandwidth): By increasing the reference bandwidth to 10G (or higher), the calculation changes. For a 10 GbE link, the cost becomes $10,000 / 10,000 = 1$. For a 1 GbE link, the cost becomes $10,000 / 1,000 = 10$. Since OSPF prefers the path with the lowest cumulative cost, the 10 GbE link is now preferred.

Option D (Manual Metric): You can manually override the automatic cost calculation by assigning a higher metric specifically to the 1 GbE interfaces. If a 1 GbE interface is manually set to a cost of 50 and the 10 GbE interface remains at 1 (or is set to a lower value), the router will prioritize the 10 GbE path.

Option B is incorrect because a higher metric makes a path less preferred. Option C is incorrect because a 1G reference bandwidth would still result in both 1 GbE and 10 GbE interfaces having a cost of 1.

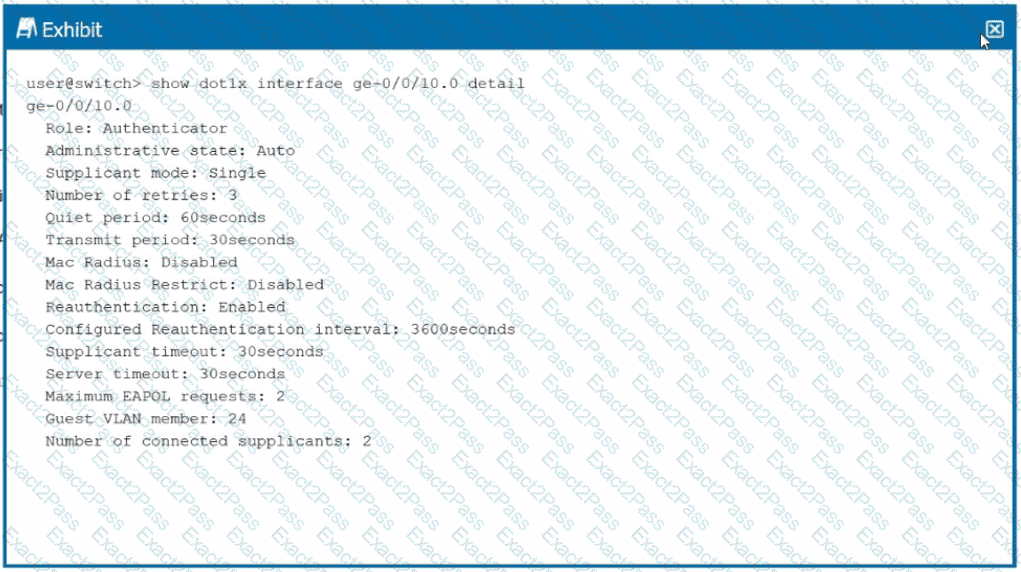

In Junos OS, the supplicant-mode configuration under protocols dot1x determines how the switch handles multiple MAC addresses on a single physical port. According to the exhibit, the current mode is set to Single, and the Number of connected supplicants is 2. This indicates that the port is currently allowing multiple devices, which contradicts the goal of limiting access to only one device at a time.

Here is the breakdown of why Option C is the correct solution based on Juniper’s standard behavior:

Supplicant Mode: Single (Current State): In this mode, the first device to authenticate opens the port for all subsequent devices. As long as the first device remains authenticated, other devices can send traffic through the port without individual authentication. This is why the exhibit shows 2 connected supplicants despite the mode being " Single. "

Supplicant Mode: Single-Secure (The Solution): This mode strictly limits the port to only one MAC address. Once a device successfully authenticates via 802.1X, the switch drops any traffic coming from any other MAC address on that port. If the authenticated device logs off or the session times out, the port becomes available for a new device, but never more than one simultaneously. * Supplicant Mode: Multiple (Option B): This mode allows multiple supplicants to authenticate individually. Each MAC address must go through its own authentication process. This would allow more than one device, which is the opposite of the user ' s requirement.

MAC RADIUS Restrict (Option A): This feature is used to force MAC-based authentication and does not inherently limit the number of devices to one in the same way that changing the supplicant mode does.

Maximum EAPOL requests (Option D): This parameter defines how many times the switch will send an EAP-Request/Identity frame to a supplicant before giving up. Changing this to 1 does not restrict the number of devices allowed on the port; it only changes the retry logic for a single authentication attempt.

Configuration Example for Junos OS 24.4: To implement this change, you would use the following command: set protocols dot1x edit interface ge-0/0/10.0 supplicant-mode single-secure

In BGP path selection, the Local Preference attribute is one of the most common ways to influence outbound traffic from an Autonomous System (AS). It is a well-known discretionary attribute that is propagated throughout the AS to tell internal routers which path is preferred for a specific destination.

Priority Rule: In the BGP selection algorithm, a higher local preference value is always preferred over a lower one. The default value in Junos OS is 100.

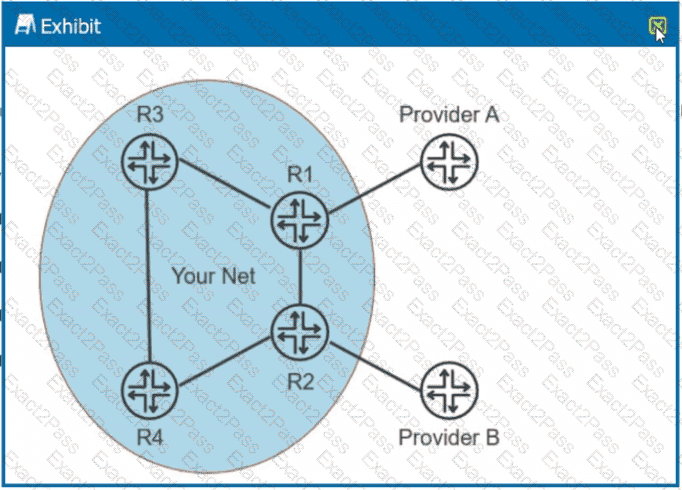

Influencing Outbound Traffic (Option A): To ensure that Provider A is always preferred, you would apply an import policy on R1 (the router connected to Provider A) to set the local preference of all received routes to a value higher than the default (e.g., 200). Since 200 > 100, R3 and R4 will prefer the path via R1.

Alternative Method (Option C): Conversely, you can achieve the same result by applying an import policy on R2 (the router connected to Provider B) to set the local preference to a value lower than the default (e.g., 50). Since the routes from R1 remain at the default of 100, and 100 > 50, the path via R1 (Provider A) is preferred.

Why B and D are incorrect: Setting a higher local preference on R2 (Option B) would make Provider B the preferred exit point. Setting a lower local preference on R1 (Option D) would make Provider A the least preferred exit point.

In External BGP (EBGP), there is a default safety mechanism that requires the peer ' s next hop to be on a directly connected network.

TTL Constraint: By default, EBGP packets are sent with a Time-to-Live (TTL) value of 1. If the next hop is not directly connected (e.g., when peering via loopback interfaces or across a multi-hop path), the packet will expire before reaching the destination, causing the route to be discarded or the session to fail.

The Multihop Solution (Option B): To override this behavior, you must configure the multihop statement under the BGP neighbor or group hierarchy. This allows the BGP session to establish by increasing the TTL (typically to 64 or a user-defined value) and bypasses the " directly connected " check.

Incorrect Options: Option A (accept-remote-nexthop) is used in internal BGP or specific routing-instance scenarios to resolve next hops that aren ' t in the local routing table, but it doesn ' t solve the EBGP TTL/direct-connection requirement. Option C (advertise-inactive) allows BGP to advertise routes that are not the best path in the routing table, which is irrelevant to next-hop reachability. Option D (multipath) is used for load-sharing across multiple paths.

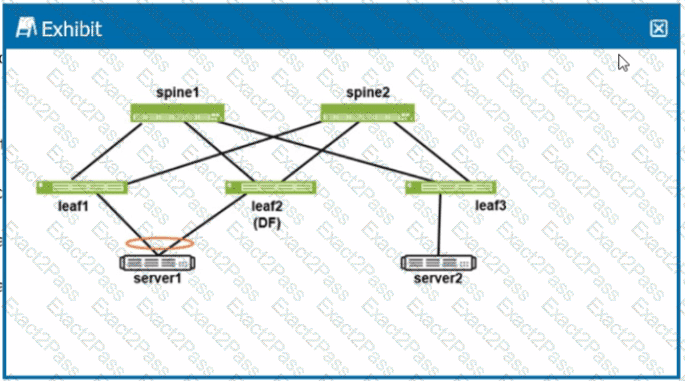

In an EVPN-VXLAN environment using ESI-LAG (Ethernet Segment Identifier Link Aggregation) , the Core Isolation feature is a safety mechanism designed to prevent traffic blackholing. When a leaf switch (acting as a VTEP) loses its BGP peering or its link to the IP fabric core, it assumes it is " isolated " from the rest of the network. To protect the network, the switch automatically shuts down its local member links of any multi-homed ESI-LAG to force traffic to the peer switch that still has core connectivity.

However, during a migration or in specific transitional topologies where the core might be temporarily unreachable or not yet fully established, this feature can cause the leaf switches to shut down all downstream IDF (Intermediate Distribution Frame) connections, leading to a total loss of connectivity.

The Solution (Option C): By enabling the no-core-isolation statement under the [edit protocols evpn] hierarchy, you instruct the switch to disable this automatic shutdown behavior . This ensures that even if the BGP session or core links are not yet stable during the migration process, the ESI-LAG interfaces remain Up , allowing the IDFs to maintain connectivity to their local default gateways or other local resources.

Why others are incorrect: Enabling EVPN-VXLAN before migration (Option A) does not address the isolation logic. Removing MC-LAG/Virtual Chassis links prematurely (Option B) would cause an immediate outage. The network-isolation-profile (Option D) is typically used for different loop prevention scenarios and does not override the specific core-isolation check that affects multi-homed ESIs.

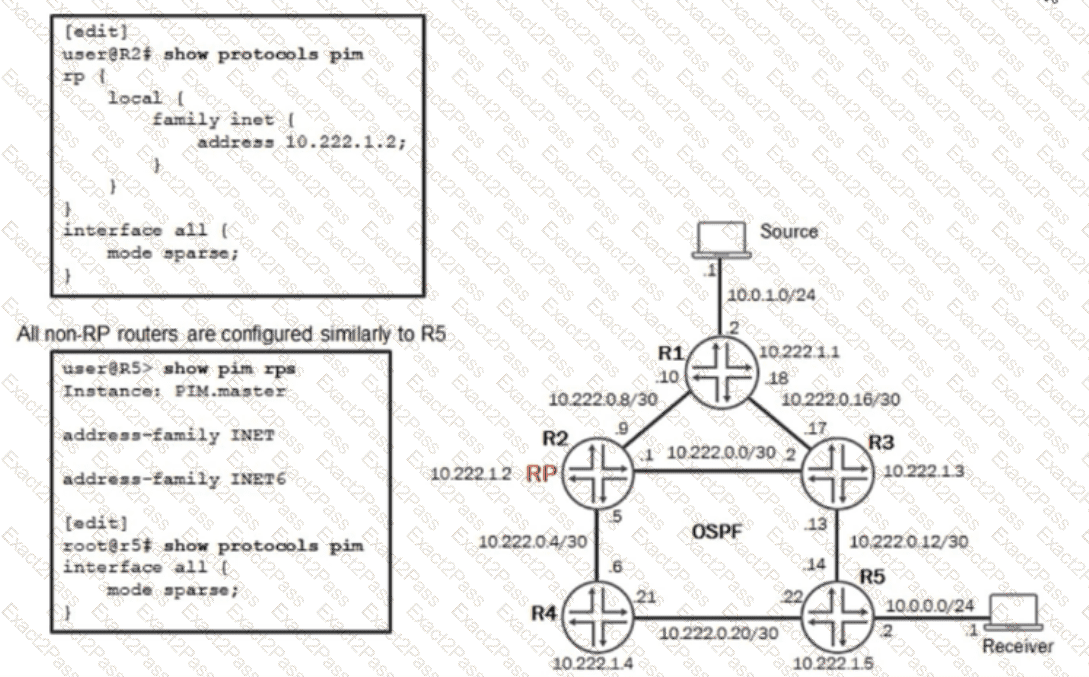

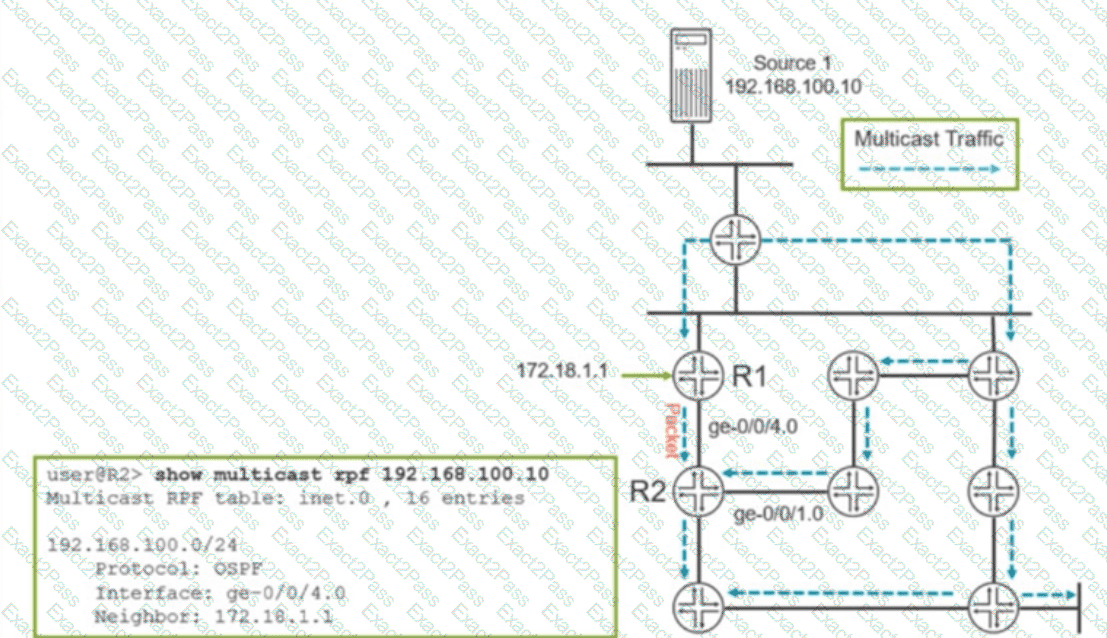

In a standard Layer 2 switch environment without specific multicast optimizations, multicast traffic is treated similarly to broadcast traffic and is flooded out of all ports within a VLAN (except the port where it was received). This is inefficient as it consumes unnecessary bandwidth on ports where no receivers are present.

To optimize this, IGMP Snooping is the standard solution.

How it works: The switch " snoops " or monitors IGMP (Internet Group Management Protocol) messages between hosts and routers.

Result: When a receiver sends an IGMP Membership Report (Join) for a specific multicast group, the switch records which port that request came from. It then builds a Layer 2 multicast forwarding table so that traffic for that group is only forwarded to the specific ports that have active listeners.

Junos OS 24.4 Configuration: On modern Juniper switches, you enable this globally or per VLAN using the set protocols igmp-snooping vlan < vlan-name > command.

Option A (Promiscuous mode) is used for monitoring or specific security configurations (like Private VLANs) and would not limit multicast flooding. Option B (Spanning Tree) manages loop prevention and does not differentiate between traffic types for forwarding optimization. Option D (IRB interface) is used for Layer 3 routing between VLANs but does not inherently provide Layer 2 multicast optimization within a single VLAN.
