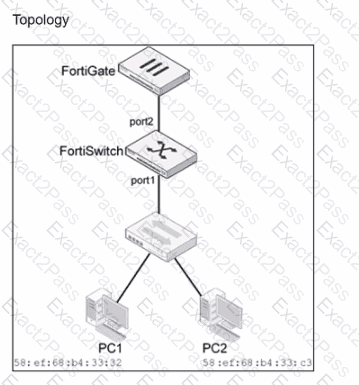

Layer 2 flooding caused by Ethernet frames with all bytes in the destination MAC address set to FF refers to broadcast frames. Here’s why:

Broadcast Ethernet Frame (A):

Address Specification: In Ethernet networking, a broadcast frame has a destination MAC address of FF:FF:FF:FF:FF:FF , which instructs network devices to forward the frame to all devices within the broadcast domain.

Network Behavior: This causes Layer 2 flooding as the frame is sent to all ports in the VLAN, except the originating port, ensuring that the broadcast reaches all network segments.

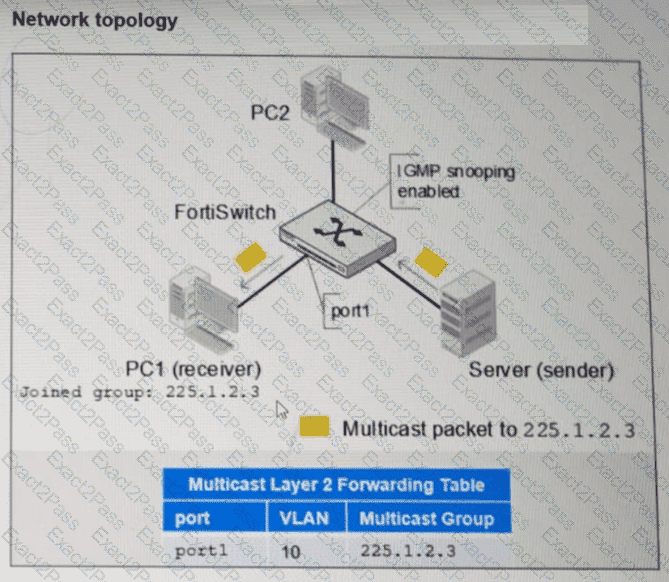

Other Frame Types:

Unicast (B) targets a single device.

Multicast (C) targets a group of devices.

Anycast (D) is not used in Ethernet but rather in IP-based routing to route to the nearest of multiple destinations, typically in internet addressing.

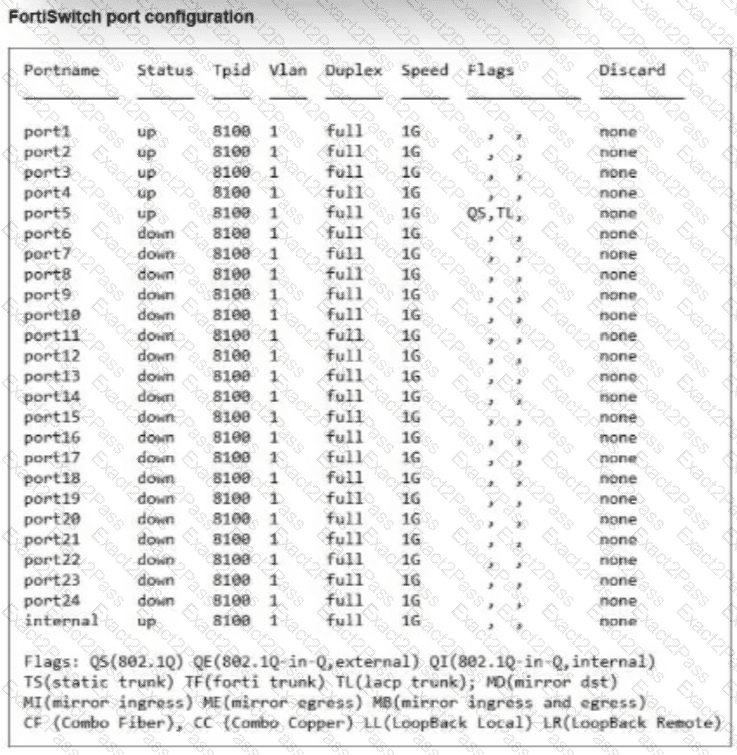

The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C. A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization. This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D. FortiLink authorization sets the FortiSwitch management mode to FortiLink. Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , Multichassis Link Aggregation (MCLAG) and standard Link Aggregation Groups (LAG) are designed to provide link-level and node-level redundancy while presenting a simplified logical view to the Spanning Tree Protocol (STP).

In the provided topology:

Logical Switch View (Option D): Switch 1 and Switch 2 are configured as MCLAG peers connected via an Inter-Chassis Link (ICL). From the perspective of downstream devices and STP, these two physical switches act as a single logical entity. This prevents STP from seeing a loop between the two switches and the downstream Switch 3, as the redundant physical paths are bundled into a single logical MCLAG trunk.

Logical Interface View (Option B): The exhibit shows Switch 4 connected to Switch 3 via two physical links bundled into a LAG , and Switch 3 connected to the MCLAG peers via split links. In both cases, STP treats the aggregated physical links as a single logical interface . Because the multiple physical paths are managed by the Link Aggregation Control Protocol (LACP) as one trunk, STP does not block individual ports to prevent loops; instead, it sees one high-bandwidth path.

Regarding the incorrect options: Option A is false because Switch 3 is an MCLAG client , not a peer in the group. Option C is incorrect because Switch 3 and Switch 4 are separate physical and logical nodes; they are not seen as a single client entity by the core.

According to the FortiOS 7.6 Administration Guide and the FortiManager 7.6 Study Guide , the most efficient and scalable method for deploying standardized configurations across a high volume of sites (such as 100 branch offices) is Zero-Touch Provisioning (ZTP) through FortiManager .

ZTP allows administrators to create Model Devices and Provisioning Templates within FortiManager before the physical hardware is even unboxed. When a factory-reset FortiGate at a branch office is connected to the internet, it automatically reaches out to FortiCloud (FortiDeploy) to discover its assigned management entity. Once redirected to the central FortiManager , the FortiGate retrieves its full configuration, including the FortiLink settings required to manage the local FortiSwitch.

The 7.6 documentation highlights that because the FortiSwitch is managed via FortiLink, its configuration is technically part of the FortiGate's managed objects. Therefore, by using FortiManager to push a single template that includes both the FortiGate settings and the Switch Controller configurations, the team can ensure that every branch office is configured identically and without manual CLI intervention. This method significantly reduces the risk of human error and ensures rapid, consistent deployment across the entire fabric. Options A and B refer to cloud management platforms that are effective but do not offer the same level of integrated, template-driven orchestration for large-scale enterprise ZTP as FortiManager. Option D is incorrect as "FortiSwitch Manager" is not the primary orchestration tool for branch-wide ZTP in a FortiLink-integrated environment.

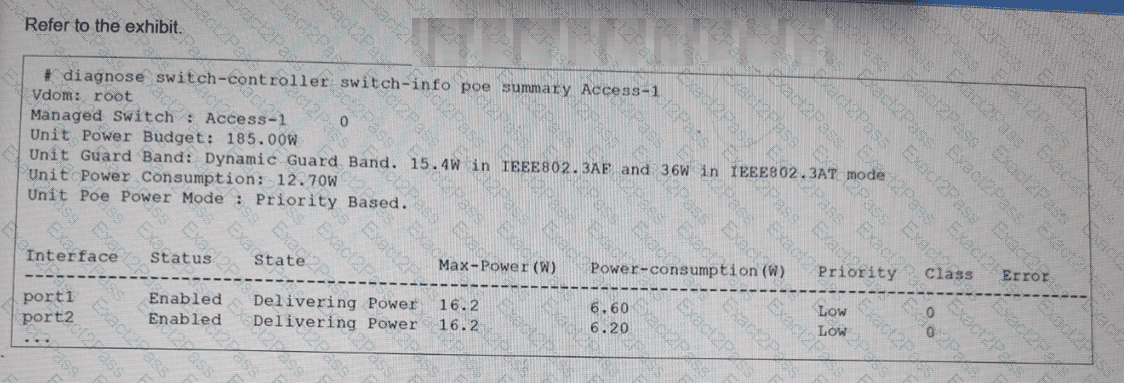

According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , the primary physical constraint when deploying PoE devices is the total power capacity of the switch's internal power supply unit (PSU). The provided exhibit shows the PoE status for Access-1 , highlighting three critical metrics: the Unit Power Budget (185.00W) , the current Unit Power Consumption (12.70W) , and the Unit Guard Band .

The Unit Power Budget represents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that the total PoE consumption does not exceed this budget . If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.

In this specific exhibit, the Unit Poe Power Mode is set to Priority Based . This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as "Low" for port1 and port2) to decide which devices to keep powered. The Guard Band (set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.

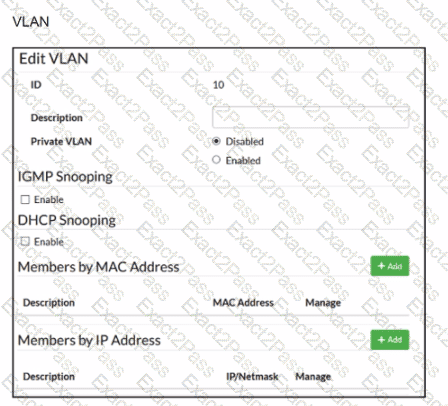

According to the FortiSwitchOS 7.6 Administration Guide and the FortiLink 7.6 Study Guide , DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network. Once enabled for a specific VLAN, the switch differentiates between trusted and untrusted ports to regulate DHCP traffic.

Trusted Ports and DHCP Replies (Option A): In a managed FortiSwitch environment, all ports are untrusted by default . To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port as trusted . DHCP snooping validates incoming packets; it allows DHCP server messages (such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.

Option 82 Data Insertion (Option C): FortiSwitch supports DHCP Option 82 (also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) to DHCP request packets . When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.

Regarding the incorrect options: Option B is false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data. Option D is incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.

According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6.1 Administration Guide—Standalone Mode , FortiSwitch units support two primary methods for processing Layer 3 traffic: software-based routing and hardware-based routing. To maximize performance, the documentation specifies that Hardware-based routing (Option A) is the superior choice for high-speed environments.

The primary technical reason for this performance advantage is the use of Application-Specific Integrated Circuits (ASICs) . In hardware-based routing, the routing table and forwarding information are programmed directly into the switch's specialized hardware silicon. This allows the FortiSwitch to perform packet lookups and forwarding decisions at "wire speed," which refers to the full throughput capacity of the physical ports. By offloading these tasks to the ASIC, the switch minimizes latency and prevents the performance bottlenecks associated with general-purpose CPU processing.

In contrast, software-based routing (Options B and D) requires the main system CPU and kernel to process every packet, which is significantly slower and can lead to high CPU utilization during heavy traffic loads. Option C is factually incorrect because hardware-based routing specifically avoids the kernel's software path to increase speed. Therefore, for a deployment focused on maximizing routing performance, especially in a backbone or high-density branch environment, utilizing the ASIC-driven hardware forwarding path is the recommended approach in FortiSwitchOS 7.6.

According to the FortiSwitchOS 7.6 Administration Guide and the NSE 5 FortiSwitch 7.6 Administrator Study Guide , FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet's journey through the switch. 1 The documentation identifies three primary stages for ACL application: Prelookup , Ingress , and Egress .

Prelookup (Option D): This is the earliest stage in the switching pipeline. The documentation explicitly states that Prelookup ACLs are processed before any Layer 2 or Layer 3 lookups are performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.

Ingress (Option A): This stage occurs after the switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups but before the packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.

Egress (Option C): This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.

Therefore, to achieve the goal of applying actions before any Layer 2 or Layer 3 processing occurs, the Prelookup stage is the technically correct and recommended choice in FortiSwitchOS 7.6. Forwarding (Option B) is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.

Layer 3 routing can be configured on FortiSwitch, while managed by FortiGate (D) : FortiSwitch, when managed by FortiGate, supports Layer 3 routing capabilities. This allows for routing between VLANs directly on the switch, enhancing network efficiency by reducing the need to pass traffic through higher network layers for inter-VLAN communication. This configuration enables more sophisticated network setups and efficient routing directly at the switch level.

In FortiSwitchOS 7.6, Dynamic ARP Inspection (DAI) is tightly integrated with DHCP snooping to provide Layer 2 protection against ARP spoofing and man-in-the-middle attacks. DAI relies on the DHCP snooping binding table , which contains trusted IP-to-MAC-to-port mappings learned from legitimate DHCP transactions. Because of this dependency, the trust model for DAI is directly inherited from DHCP snooping.

According to the FortiSwitchOS 7.6 Administrator Guide, when a switch port is configured as trusted for DHCP snooping , that same port is automatically treated as trusted by DAI . No additional configuration is required. This implicit trust relationship exists because trusted DHCP snooping ports are assumed to be connected to legitimate infrastructure devices such as DHCP servers, routers, or upstream network devices that must be allowed to send valid ARP replies.

On untrusted ports, DAI inspects ARP packets and validates them against the DHCP snooping database. If an ARP packet does not match an existing binding, it is dropped. On trusted ports, ARP packets bypass DAI inspection to ensure normal network operation and to avoid blocking valid infrastructure traffic.

The other options are incorrect. There is no separate CLI command required to trust a port for DAI (Option A). IP Source Guard (Option C) is another Layer 2 security feature that also depends on DHCP snooping but is not required to establish DAI trust. Static MAC learning (Option D) is unrelated to DAI trust behavior.

Therefore, once a port is configured as trusted for DHCP snooping, DAI implicitly trusts the port , making Option B the correct and fully verified answer based on FortiSwitchOS 7.6 documentation.
