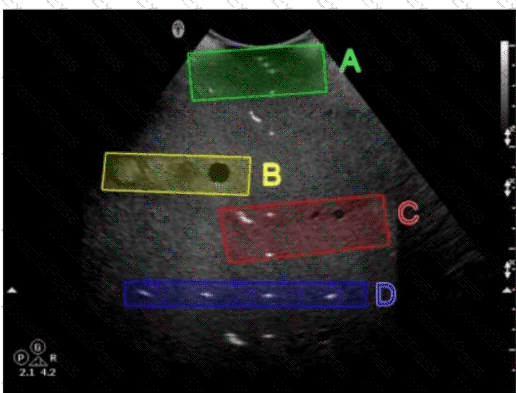

Gray-scale evaluation in a tissue-mimicking phantom involves assessing the uniformity and accuracy of the gray-scale representation of the tissues.

Option C typically contains structures designed to test the machine ' s ability to accurately depict varying levels of echogenicity, which is essential for proper gray-scale evaluation.

This area will have a range of echo intensities that help in determining the contrast resolution and the ability of the system to distinguish between different tissue types based on their gray-scale values.References:

ARDMS Sonography Principles and Instrumentation guidelines on tissue-mimicking phantoms and image quality evaluation.

Comprehensive and Detailed Explanation From Exact Extract:

Temporal resolution refers to the system ' s ability to accurately track moving structures over time (i.e., frame rate). Temporal resolution improves when:

The number of focal zones is reduced (fewer focal zones = faster frame rate).

The imaging depth is reduced (shallower depth = faster frame rate).

According to sonography instrumentation references:

“Fewer focal zones and shallow imaging depth optimize temporal resolution by decreasing the time required for each frame, resulting in a higher frame rate.”

Therefore, the correct answer is C: Fewer focal zones and shallower depth.

55

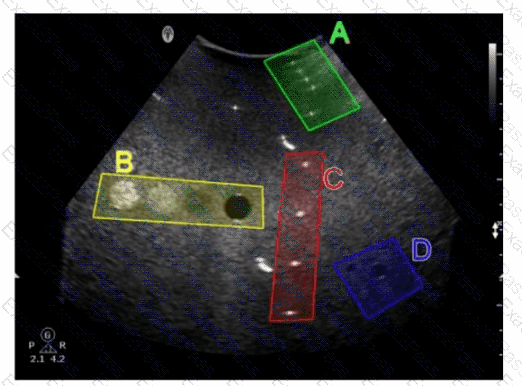

Which region of this image from a sector phantom is evaluating the dead zone?

A close-up of a ultrasound Description automatically generated

A. Region A

B. Region B

C. Region C

D. Region D

Answer: A

Comprehensive and Detailed Explanation From Exact Extract:

The dead zone in ultrasound refers to the shallow area immediately beneath the transducer where no useful data can be collected due to the transducer ' s ring-down and the time required for the system to switch from transmit to receive mode.

In a sector phantom image, the area closest to the transducer (superficial portion) is used to evaluate the dead zone. In this image, Region A is located at the top of the image, closest to the transducer surface.

According to sonography instrumentation reference:

“The dead zone is assessed by evaluating the area immediately beneath the transducer. This area is used to test the system ' s near-field performance and transducer surface integrity.”

Therefore, the correct answer is A: Region A.

—

Noise in the Doppler waveform can often be attributed to excessive gain settings. Decreasing the Doppler gain reduces the amplification of both the signal and the noise, thus providing a clearer and more accurate Doppler waveform. Excessive gain can cause speckling and clutter, which obscure the true Doppler signals. By reducing the gain, the noise level is minimized, resulting in a cleaner Doppler signal representation.

Comprehensive and Detailed Explanation From Exact Extract:

Overall gain amplifies the strength of all returning echoes equally, regardless of depth. It does not affect the transmitted pulse or selectively compensate for attenuation; it simply amplifies received signals uniformly.

According to sonography instrumentation reference:

“Overall gain controls the amplification of all returning echoes across the entire image, increasing brightness uniformly at all depths.”

Therefore, the correct answer is B: Amplification of signals from all depths.

—

Comprehensive and Detailed Explanation From Exact Extract:

Transmit focus narrows the ultrasound beam width at specific depths, improving lateral resolution — the ability to distinguish two objects side-by-side.

According to Principles and Instrumentation:

" Lateral resolution depends on beam width and is improved by focusing, which narrows the beam in the lateral dimension. "

Axial resolution depends on pulse length.

Elevational resolution depends on slice thickness.

Temporal resolution relates to frame rate.

Therefore, the correct answer is C: Lateral.

QUESTION NO17

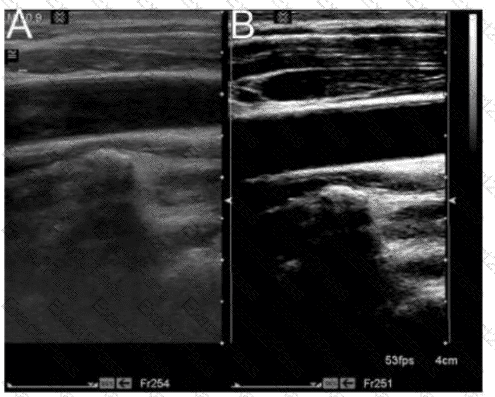

Which statement characterizes the primary difference between image A and image B?

A close-up of a medical scan Description automatically generated

A. Image A demonstrates a better axial resolution.

B. Image A demonstrates a lower overall gain setting.

C. Image A demonstrates a shallower field of view.

D. Image A demonstrates a wider scale of contrast.

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In image A, the structures appear darker with less overall brightness compared to image B. This indicates that the overall gain (receiver amplification) is set lower in image A, resulting in a dimmer image. Gain controls how much the returning echoes are amplified after detection.

According to Principles and Instrumentation:

" Overall gain amplifies all returning echoes equally. A lower gain setting results in a darker image, while higher gain brightens the display. "

Axial resolution (A) is primarily dependent on frequency and pulse length, not visible here.

Field of view (C) appears similar between both images.

Contrast scale (D) refers to dynamic range, not directly indicated here.

Therefore, the correct answer is B: Image A demonstrates a lower overall gain setting.

—

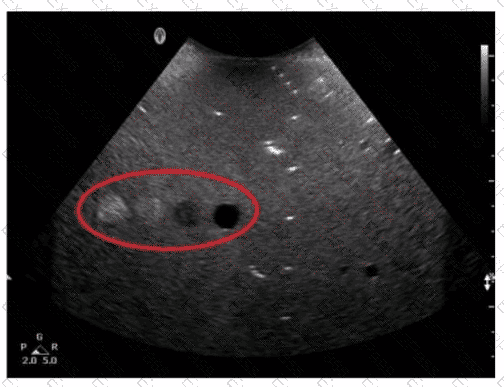

The tissue-equivalent phantom image with the red oval indicates an area where axial resolution can be evaluated. Axial resolution refers to the ability to distinguish between two structures that are close together along the axis of the ultrasound beam. It is determined by the spatial pulse length (SPL) of the ultrasound wave. In phantoms, this is typically tested by observing the ability to separate closely spaced targets along the beam ' s path.

M-mode (Motion mode) is used in ultrasound to measure and display the movement of structures over time.

This mode is particularly useful in cardiac imaging to assess the motion of heart walls and valves.

M-mode provides a one-dimensional view of the motion of tissues and is often used in conjunction with 2D imaging for a comprehensive assessment.

It is essential in evaluating the dynamic function of organs, especially in cardiology, where precise measurements of cardiac structures ' movement are crucial.References:

ARDMS Sonography Principles and Instrumentation guidelines on modes of ultrasound imaging and their clinical applications.

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution refers to the ability to distinguish two structures that are located along the path of the ultrasound beam. It is directly related to the spatial pulse length (SPL), which is the product of the number of cycles per pulse and the wavelength. A shorter SPL leads to better axial resolution.

According to sonography instrumentation reference:

“Axial resolution improves as spatial pulse length decreases because shorter pulses can better differentiate structures lying close together along the beam axis.”

Therefore, the correct answer is B: Spatial pulse length.

—

Comprehensive and Detailed Explanation From Exact Extract:

Ideal imaging transducers have broad bandwidths (allowing multiple frequencies for better axial resolution and flexibility) and a low quality factor (which indicates efficient damping, leading to short pulses and better image quality).

According to sonography instrumentation reference:

“Imaging transducers operate with broad bandwidth and low quality factor to achieve short pulse duration and optimal axial resolution.”

Therefore, the correct answer is B: Broad bandwidth; low quality factor.

—

Comprehensive and Detailed Explanation From Exact Extract:

When color Doppler gain is set too high, the system amplifies noise signals, leading to random color speckles appearing within anechoic or hypoechoic areas where no true flow exists. This artifact is known as " color bleeding " or " color noise. "

According to sonography instrumentation reference:

“Excessive color Doppler gain can cause noise to overwrite areas without flow, resulting in false color signals within fluid-filled or hypoechoic structures.”

Therefore, the correct answer is D: Color gain set too high.

62

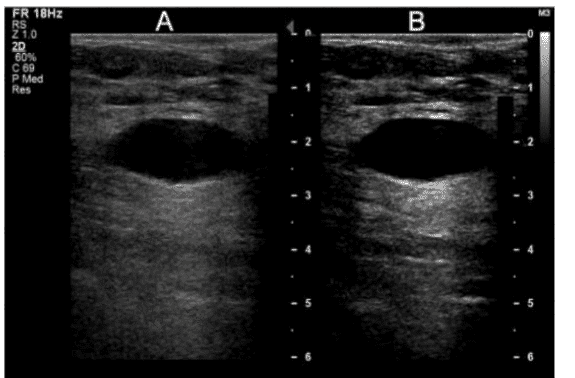

Which adjustment was made to change image A to produce image B?

A close-up of an ultrasound Description automatically generated

A. Increased overall gain

B. Decreased overall gain

C. Increased dynamic range

D. Decreased dynamic range

Answer: D

Comprehensive and Detailed Explanation From Exact Extract:

In Image B, compared to Image A, you can observe a higher contrast image with darker darks and brighter brights, indicating that dynamic range has been reduced. Decreasing dynamic range results in less grey scale, creating a more black-and-white appearance and emphasizing contrast differences.

According to sonography instrumentation reference:

“Reducing dynamic range increases image contrast by narrowing the range of displayed echo intensities, making the image appear more black and white.”

Therefore, the correct answer is D: Decreased dynamic range.

—
