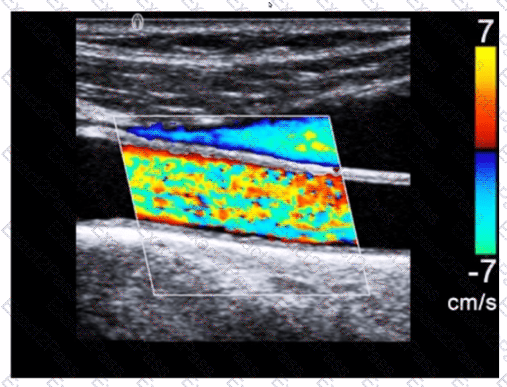

Increasing the pulse repetition frequency (PRF) helps to optimize the color Doppler imaging by reducing aliasing.

Aliasing occurs when the PRF is too low to accurately sample the rapid blood flow velocities, leading to incorrect color representation.

By increasing the PRF, the system can more accurately measure higher velocities without distortion, improving the overall quality of the color Doppler image.References:

ARDMS Sonography Principles and Instrumentation guidelines on Doppler imaging and techniques to reduce aliasing.

Spectral Doppler mirroring, also known as crosstalk, occurs when the Doppler signal appears on both sides of the baseline. This can be caused by excessively high Doppler gain, which amplifies the signal and creates artificial mirror images. Decreasing the Doppler gain reduces the signal amplitude, thereby minimizing the mirroring artifact.

ARDMS Sonography Principles and Instrumentation guidelines

Hoskins, P. R., Thrush, A., Martin, K., & Whittingham, T. A. (2010). Diagnostic Ultrasound: Physics and Equipment.

Temporal resolution is improved by increasing the frame rate. One way to increase the frame rate is by decreasing the packet size (also known as ensemble length) in color Doppler imaging. The packet size refers to the number of pulses used to determine the Doppler shift at each location. A smaller packet size means fewer pulses are required, which allows for quicker data acquisition and thus a higher frame rate. Increasing the field of view, decreasing transmit frequency, and increasing line density would all decrease the frame rate and thus degrade temporal resolution.

Damping in a pulsed-wave transducer primarily affects the pulse duration. Damping refers to the process of reducing the vibration of the transducer crystal after the initial excitation. When damping is applied, it shortens the length of the ultrasound pulse by quickly reducing the vibration. This results in a shorter pulse duration, which is important for improving axial resolution. Damping does not directly affect the pulse repetition frequency, beam focus, or beam penetration, although it can have indirect effects on image quality and resolution.References:

ARDMS Sonography Principles and Instrumentation guidelines

" Diagnostic Ultrasound: Principles and Instruments " by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

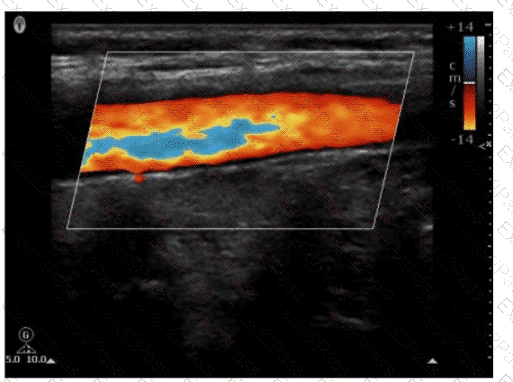

In color Doppler imaging, the default color map assigns red and blue to represent flow direction relative to the transducer (usually red toward, blue away). The color invert control reverses this assignment.

According to sonography Principles and Instrumentation:

" The color invert control reverses the baseline of the color map, swapping red and blue assignments for flow direction. "

Color priority adjusts the overlay of color vs grayscale.

Color gain controls amplification of the Doppler signal.

Color threshold sets minimum amplitude to display color.

Therefore, the correct answer is D: Color invert.

—

The primary difference between Image A and Image B is the overall gain setting. Gain controls the amplification of the received echoes. A lower gain setting results in a darker image with less overall brightness, which is evident in Image A compared to Image B. Image B appears brighter, indicating a higher gain setting that amplifies the echoes more, making the structures appear more prominently.

ARDMS Sonography Principles and Instrumentation guidelines

Hedrick, W. R., Hykes, D. L., & Starchman, D. E. (2005).Ultrasound Physics and Instrumentation.

The propagation speed of sound in a medium is determined by the medium ' s elasticity and density. Elasticity refers to the ability of the medium to return to its original shape after deformation, while density is the mass per unit volume of the medium. The speed of sound increases with higher elasticity and decreases with higher density. This relationship is described by the equation???? =???? ???? v=ρE​​, where???? vis the propagation speed,???? Eis the elasticity (or modulus of elasticity), and???? ρis the density.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

" Diagnostic Ultrasound: Principles and Instruments " by Frederick W. Kremkau

Aliasing in pulsed-wave Doppler occurs when the sampled Doppler frequency exceeds the Nyquist limit, which is half of the pulse repetition frequency (PRF). This results in an incorrect representation of the blood flow velocities, causing the waveform to wrap around and appear on the opposite side of the baseline. To correct aliasing, the PRF should be increased, which raises the Nyquist limit and allows for accurate measurement of higher velocities without aliasing. Increasing the PRF effectively reduces the likelihood of aliasing artifacts in the Doppler signal.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Attenuation in ultrasound is directly proportional to the path length. If the path length is doubled, the amount of attenuation is also doubled. Attenuation refers to the reduction in the amplitude and intensity of the ultrasound wave as it travels through tissue, primarily due to absorption, reflection, and scattering. The relationship is linear, so doubling the distance the sound wave travels will result in twice the amount of attenuation.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Power Doppler, unlike color Doppler, is less angle dependent because it detects the strength of the Doppler signal rather than the velocity of the blood flow. This means it is more sensitive to detecting low-velocity flow and flow in smaller vessels, regardless of the angle between the ultrasound beam and the flow direction. Color Doppler provides information on flow direction and velocity but is highly dependent on the angle of insonation, making it less reliable when the angle is suboptimal.

ARDMS Sonography Principles and Instrumentation guidelines

Zwiebel, W. J., & Pellerito, J. S. (2017).Introduction to Vascular Ultrasonography. Elsevier.
