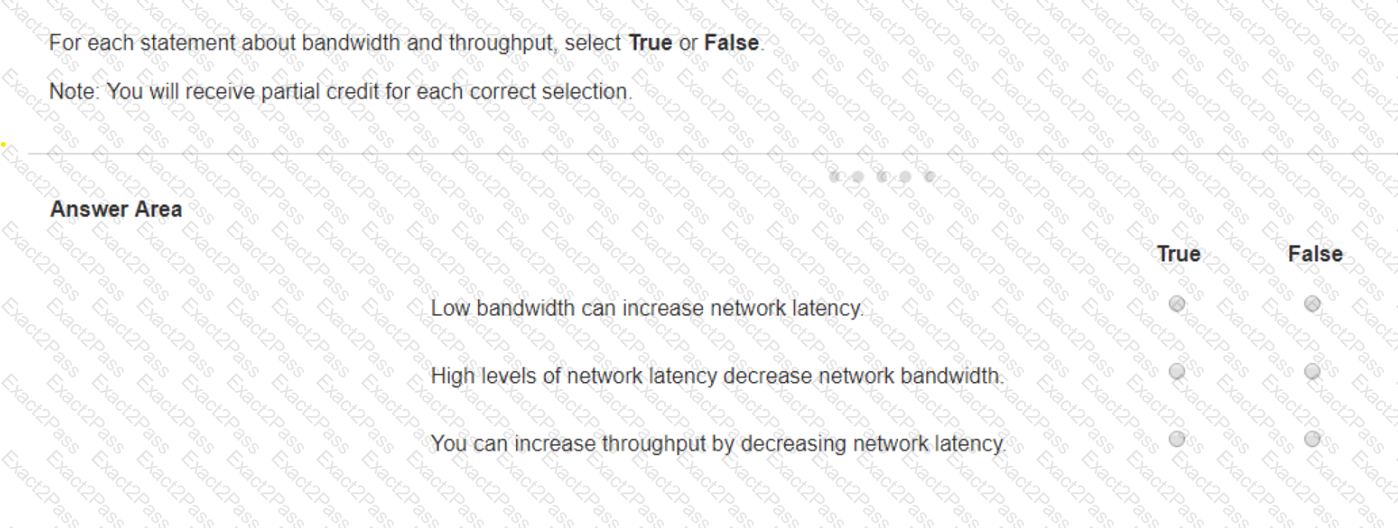

Statement 1 : Low bandwidth can increase network latency.

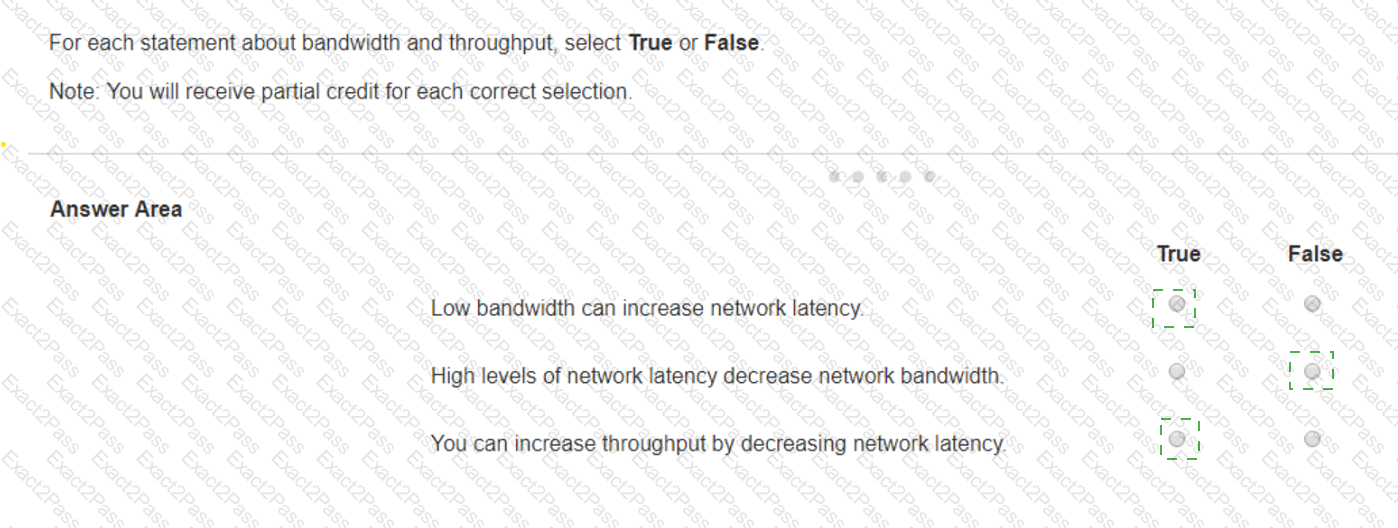

True : Low bandwidth can result in increased network latency because the network may become congested, leading to delays in data transmission.

Statement 2 : High levels of network latency decrease network bandwidth.

False : High levels of network latency do not decrease the available network bandwidth, but they do affect the perceived performance and throughput of the network.

Statement 3 : You can increase throughput by decreasing network latency.

True : Decreasing network latency can increase throughput because data can be transmitted more quickly and efficiently without delays.

Bandwidth vs. Latency : Bandwidth refers to the maximum rate at which data can be transferred over a network path. Latency is the time it takes for a data packet to travel from the source to the destination.

Low bandwidth can cause network congestion, which can increase latency as packets wait to be transmitted.

High latency does not reduce the actual bandwidth but can affect the overall performance and efficiency of data transmission.

Reducing latency can lead to higher throughput because the network can handle more data in a given period without delays.

References :

Network Performance Metrics: Cisco Network Performance

Understanding Bandwidth and Latency: Bandwidth vs. Latency

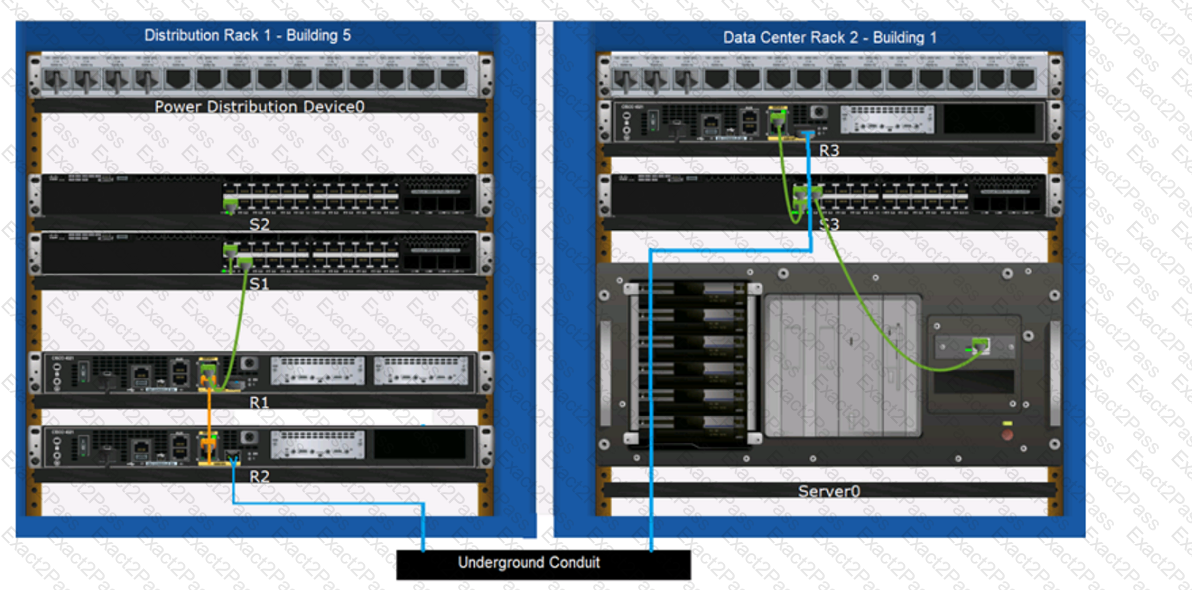

Based on the image description provided, here are the cable types matched with the appropriate connection descriptions:

Connects Switch S1 to Router R1 Gi0/0/1 interface Cable Type : = Straight-through UTP Cable

Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit Cable Type : = Fiber Optic Cable

Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1 Cable Type : = Crossover UTP Cable

Connects Switch S3 to Server0 network interface card Cable Type : = Straight-through UTP Cable

The choices are based on standard networking practices where:

Straight-through UTP cables are typically used to connect a switch to a router or a network interface card.

Fiber optic cables are ideal for long-distance, high-speed data transmission, such as connections through an underground conduit.

Crossover UTP cables are used to connect similar devices, such as router-to-router connections.

These matches are consistent with the color-coded cables in the image: green for switch connections, yellow for router-to-router connections within the same rack, and blue for inter-rack connections. The use of these cables follows the Ethernet cabling standards.

Connects Switch S1 to Router R1 Gi0/0/1 interface :

Cable Type : Straight-through UTP Cable

Explanation: A straight-through UTP cable is typically used to connect different types of devices, such as a switch to a router.

Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit :

Cable Type : Fiber Optic Cable

Explanation: Fiber optic cables are used for long-distance connections, such as those through an underground conduit between buildings.

Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1 :

Cable Type : Crossover UTP Cable

Explanation: A crossover UTP cable is typically used to connect similar devices directly, such as router to router connections.

Connects Switch S3 to Server0 network interface card :

Cable Type : Straight-through UTP Cable

Explanation: A straight-through UTP cable is typically used to connect a switch to an end device, such as a server.

Straight-through UTP Cable : Used to connect different devices (e.g., switch to router, switch to server).

Crossover UTP Cable : Used to connect similar devices directly (e.g., router to router, switch to switch).

Fiber Optic Cable : Used for long-distance and high-speed connections, often between buildings or data centers.

References :

Network Cable Types and Uses: Cisco Network Cables

Understanding Ethernet Cabling: Ethernet Cable Guide
