The ns_allow expression always evaluates to true, which means it allows all users access through the vServer. The ns_disallow and ns_false expressions always evaluate to false, which means they deny all users access. The ns_true expression is not a valid policy expression1

1: Citrix ADC 13.0 - Policy Expressions

Machine Creation Services creates several disk components for every machine in a catalog. One of these is the identity disk, used to store machine-specific configuration such as machine identity, domain information, and MCS-related identifiers.

Citrix documentation specifies that the identity disk size varies depending on the hypervisor type. For Microsoft Hyper-V, the identity disk created by MCS is 256 MB. This is a fixed value used consistently for Hyper-V–based MCS catalogs.

Other sizes listed (16 MB, 1024 MB, 2048 MB) are not used by Citrix MCS for Hyper-V identity disk creation.

Documentation References:

Citrix Virtual Apps and Desktops → MCS Storage and Disk Structure

Citrix MCS Identity Disk Requirements for Hypervisors

Citrix Studio provides a feature called Limit Visibility, which allows administrators to hide specific published resources (apps or desktops) from chosen users or groups. This is the correct method to selectively exclude users from seeing or launching certain apps without removing them from the Delivery Group.

Correct Approach:

To prevent HR10 from seeing or accessing APP_A, the administrator should configure Limit Visibility so that only HR1–HR9 are allowed visibility for APP_A.

This ensures:

The entire HR group still receives all published apps

Only HR10 is restricted from APP_A

The Delivery Group configuration remains intact

Why the other options are incorrect:

A. Remove HR10 from the Delivery Group:This would remove HR10’s access to all Delivery Group applications, not just APP_A.

C. Remove APP_A from the Delivery Group:This removes the app for everyone, not just HR10.

D. Limit visibility on APP_A to HR10:This would assign visibility only to HR10, the opposite of what is needed.

Documentation References

Citrix Virtual Apps and Desktops → Application Publishing and Visibility

Citrix Studio → App Properties → “Limit Visibility” Feature

Citrix App Assignment Best Practices

According to Citrix documentation, to make a configuration change for a StoreFront server group, the change should be made on one StoreFront server in the group, and then the Propagate Changes feature should be used to synchronize the change across the group1

Citrix Director provides a feature under the Trends section where administrators can configure and review application faults. This allows them to monitor and analyze applications that have crashed, helping to identify patterns or recurring issues.

In Citrix Virtual Apps and Desktops, administrators can use tag restrictions to specify which machines within a Delivery Group are affected by certain power management actions. By applying tags to a subset of machines, the administrator can ensure that only those tagged machines are restarted daily during non-peak hours, while the rest follow the weekly restart schedule.

 A resource location is a collection of resources that you use to deliver applications and desktops to users. It can include Citrix ADC, VDA, Active Directory Domain, and Hypervisor. These resources are required for hosting and managing the machines that deliver apps and desktops to users1. StoreFront, Citrix Director, Citrix Provisioning, and Database are not part of a resource location, but are components of the Citrix Cloud service2.

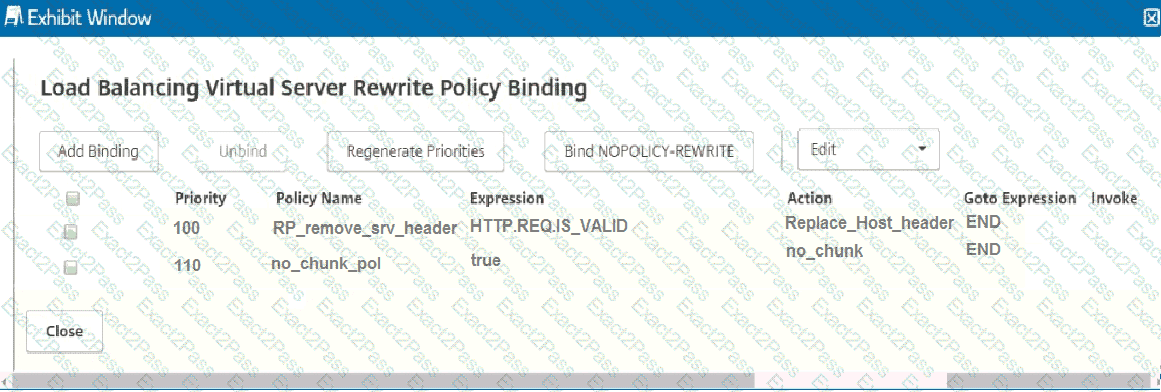

The issue is caused by the policy expression of the no_chunk_pol being ‘true’ and ‘NOT HTTP.REQ.IS_VALID’. This means that the policy will always be true and thus, always be invoked, preventing the other policy from being used. This is explained in the Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS-215) course, under the section “Load Balancing Virtual Server Rewrite Policy Binding”.

According to the Proxy modes | Citrix Secure Web Gateway 12.1 - NetScaler document, to configure a Content Switching virtual server for implementing the Citrix Secure Web Gateway in the transparent proxy mode, the command should be:

add cs vserver < name > PROXY < ipaddress > < port >

The document also provides an example of the command:

add cs vserver swgVS PROXY 192.168.10.1 80

Therefore, the correct answer is C, which matches the format and the example given in the document. The other options are incorrect because they either use asterisks (*) instead of an IP address, or they do not specify a port number.

According to the Citrix documentation1, the triggerMonitor parameter specifies the conditions under which the service monitor is invoked. The possible values are:

ALWAYS: The service monitor is always invoked.

MEPDOWN: The service monitor is invoked only when Metric Exchange Protocol (MEP) has marked the service as DOWN for any reason.

MEPSUSPECT: The service monitor is invoked only when MEP has marked the service as SUSPECT.

NONE: The service monitor is never invoked.

Therefore, the command set gslb site SiteB –triggerMonitor MEPDOWN will set the triggerMonitor value to MEPDOWN for SiteB, which means the service monitor is invoked only when MEP has marked the service as DOWN for any reason.

1: https://docs.citrix.com/en-us/citrix-adc/13/gslb/configure-gslb-site.html
