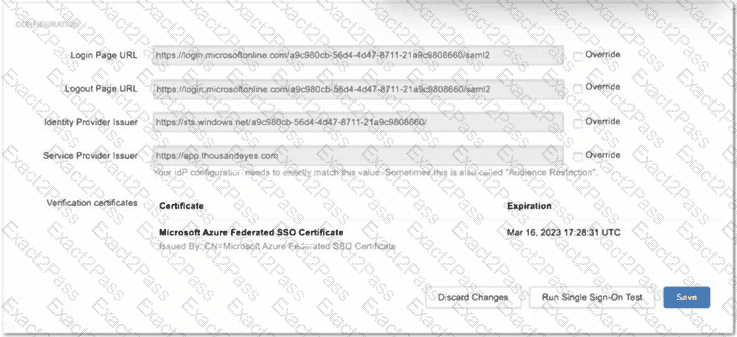

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, secure administrative access via Single Sign-On (SSO) is a critical component of platform governance. The exhibit illustrates the ThousandEyes SSO configuration panel being integrated with Microsoft Entra ID (formerly Azure AD). When configuring SAML-based authentication, the " Identity Provider Issuer " (Option D) is a unique identifier provided by the IdP (Microsoft) that must match exactly between the two systems.

According to ENNA implementation guidelines, ThousandEyes populates default fields based on standard SAML metadata. However, Microsoft Entra ID often utilizes a specific GUID-based format for the Issuer URL (e.g., https://sts.windows.net/tenant-id/) that may differ from the generic URL format expected by the platform ' s initial auto-fill. To ensure a successful SAML handshake, the engineer must select the " Override " checkbox next to the Identity Provider Issuer field. This action unlocks the field, allowing the engineer to manually paste the exact string provided in the Entra ID Federation Metadata document. If this value is not overridden and matched precisely, the SAML assertion will be rejected, resulting in a failed authentication attempt.

While the Login and Logout URLs (Options B and C) are also critical, they are typically correctly identified during the initial setup or metadata import; the Identity Provider Issuer is the most frequent point of mismatch requiring an manual override in Entra ID environments due to its strict " Audience Restriction " requirements. The Service Provider Issuer (Option A) is generally a fixed value (https://app.thousandeyes.com) that rarely requires overriding as it defines ThousandEyes ' own identity to the IdP.

Therefore, selecting the override for the Identity Provider Issuer is the necessary step to complete the integration and allow enterprise users to authenticate securely using their corporate credentials.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, the integration between ThousandEyes and Webex Control Hub provides a streamlined troubleshooting experience for collaboration services. For the VoIP team to access the specific ThousandEyes network telemetry—such as latency, loss, and jitter—they must navigate to the Network Path (Option B) section within the Troubleshooting tab of the Control Hub. 15

The Network Path visualization is a direct result of the ThousandEyes Endpoint Agent data being pulled into the Webex interface. 16 When a user or RoomOS device experiences poor audio or video quality during a meeting, the Control Hub ' s troubleshooting view displays a " Network Path " line under the participant ' s details. 17 By clicking on this line, the VoIP team can see a hop-by-hop breakdown of the entire route from the collaboration device to the Webex media node. This view highlights specific hops where performance is " Poor " (red), " Fair " (yellow), or " Good " (green) based on predefined thresholds for latency ( > 400ms) or loss ( > 5%).

While " Devices " (Option A) is where the agents are activated, and " Users " (Option C) allows for selecting a specific participant, the actual telemetry metrics and the visualization of the network route are strictly located in the Network Path view. This integration eliminates the need for the VoIP team to leave the Webex environment for initial triage, as they can identify if a problem is local to the branch office or deep within a service provider ' s network directly from the " Network Path " dashboard.

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework highlights the integration between ThousandEyes and Cisco Meraki as a solution for " cross-domain assurance " . 5 The primary purpose of this integration is to monitor external applications and services from SD-WAN sites (Option B).

In a distributed Meraki environment, IT teams often struggle with visibility into the " Internet as a WAN, " where performance issues may occur outside the local network perimeter. By embedding ThousandEyes Enterprise Agents natively within Meraki MX appliances , organizations can bridge the gap between internal LAN metrics and external service health. 6 This integration allows for proactive monitoring of SaaS platforms (like Microsoft 365, Salesforce, and Webex) and other public-facing dependencies using synthetic probes. It complements the native Meraki Insight (MI) , which provides passive monitoring of real user traffic, by adding active path visualization and hop-by-hop analysis across the Internet.

Key advantages of this integration include:

One-Click Activation: Enabling the ThousandEyes agent directly from the Meraki Dashboard without additional hardware. 7

Pre-configured Templates: Using built-in test templates for common SaaS applications to accelerate troubleshooting. 8

Isolation of Fault Domains: Quickly determining if a user ' s lag is caused by a local Wi-Fi issue (via Meraki wireless metrics) or an ISP routing problem (via ThousandEyes path data). 9

While ThousandEyes does provide visibility for VPN and security, Options A, C, and D are not the primary focus of the specific Meraki-ThousandEyes integration architecture, which is centered on extending application performance assurance to distributed branch locations.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical design consideration is the impact of the monitoring solution on the production environment. The primary advantage of passive monitoring (Option B) is its non-intrusive nature; it provides insights into network performance and traffic composition without injecting additional " synthetic " overhead into the data plane.

Passive techniques—such as Cisco Meraki Insight (MI) , NetFlow, and SNMP—rely on the telemetry generated by existing user traffic or the device ' s own control plane. For example, Meraki Insight analyzes HTTP/S flows as they naturally pass through a Meraki MX appliance to derive application performance scores, rather than sending separate probes. 5 This ensures that the monitoring tool itself does not consume bandwidth or contribute to network congestion, which is particularly vital in bandwidth-constrained branch environments or on high-utilization links.

In contrast, active monitoring (Options A and C) requires the deliberate generation of synthetic traffic, which can potentially skew results if the volume is too high or if the network is already at capacity. While active monitoring is essential for proactive troubleshooting (measuring performance before users complain), passive monitoring is the preferred method for long-term historical analysis of real user experience and infrastructure utilization because it captures what is actually happening on the wire. Option D is a shared capability; both types can measure specific services, but only passive monitoring does so while remaining transparent to the network load. Therefore, the lack of added traffic is the definitive advantage of the passive approach.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices for collaboration monitoring, Microsoft Teams (as well as Webex and Zoom) is monitored using a combination of Scheduled and Dynamic tests (Option D).

Scheduled Tests: These are used to proactively monitor the reachability and performance of the Microsoft Teams infrastructure. The Teams template typically includes scheduled HTTP Server tests to teams.microsoft.com and login.microsoftonline.com, along with network-layer tests to the Teams Transport Relay (e.g., worldaz.tr.teams.microsoft.com). These provide a continuous baseline of connectivity regardless of whether a user is currently in a call.

Dynamic Tests: These are a unique feature for collaboration monitoring. When an Endpoint Agent detects that the Teams application has initiated a real-time media session (audio or video call), it automatically triggers a Dynamic Test to the specific IP and port being used for that call. This allows IT teams to see the exact network path—including hop-by-hop latency and loss—of the actual call traffic while the session is active.

Real User Tests (Option C) are generally not used for Teams monitoring in the same way they are for web-based SaaS apps. Because most users utilize the Teams desktop client rather than the browser, the RUM browser extension cannot capture the rich telemetry of the desktop application ' s internal signaling and media streams. Therefore, the specialized " Automated Session Testing " provided by Dynamic Tests , combined with the proactive health checks of Scheduled Tests , constitutes the complete assurance strategy for Microsoft Teams.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, identifying routing anomalies such as BGP Hijacking is a critical aspect of external network assurance. A BGP Hijack occurs when an Autonomous System (AS) illegitimately announces a prefix it does not own, causing traffic intended for the rightful owner to be misdirected.

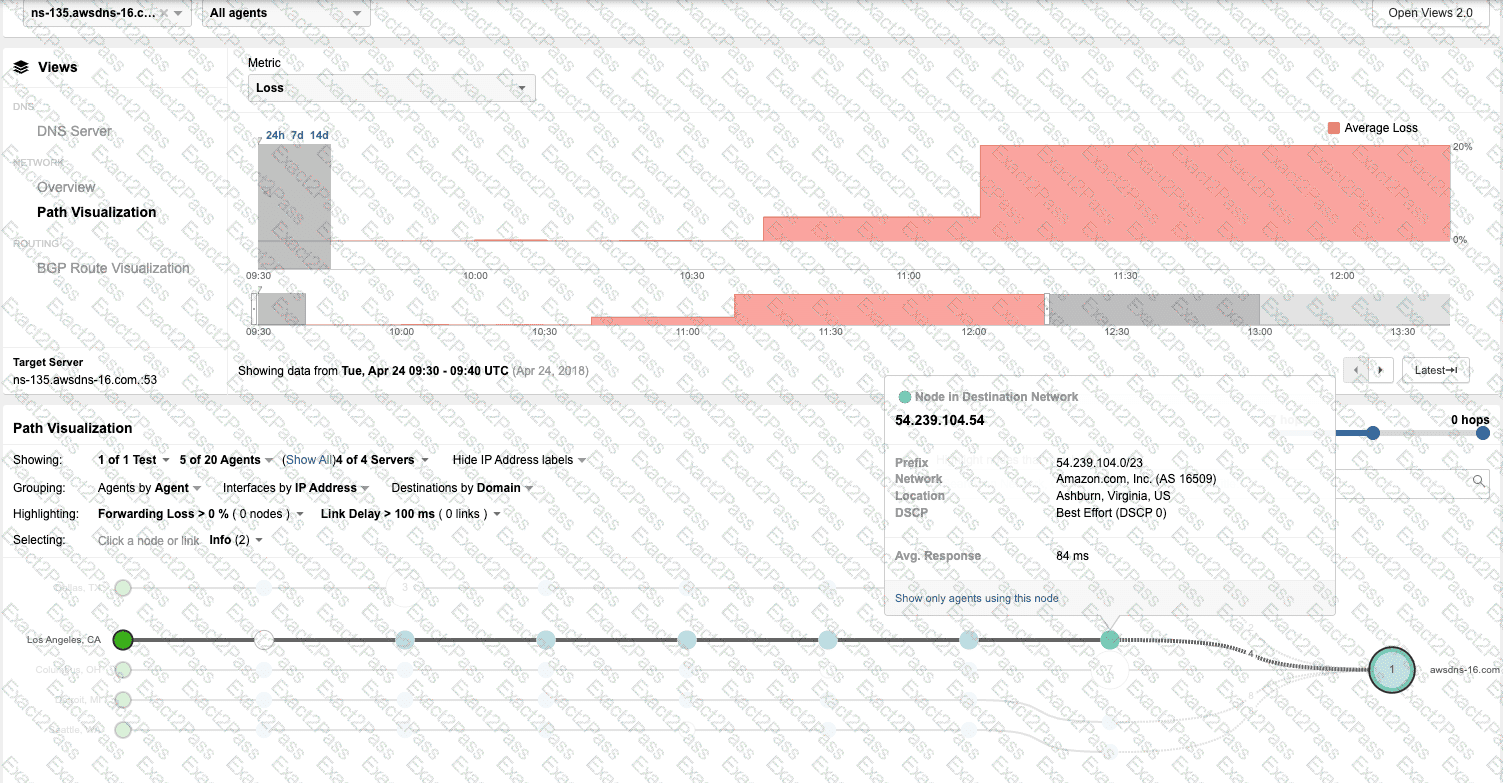

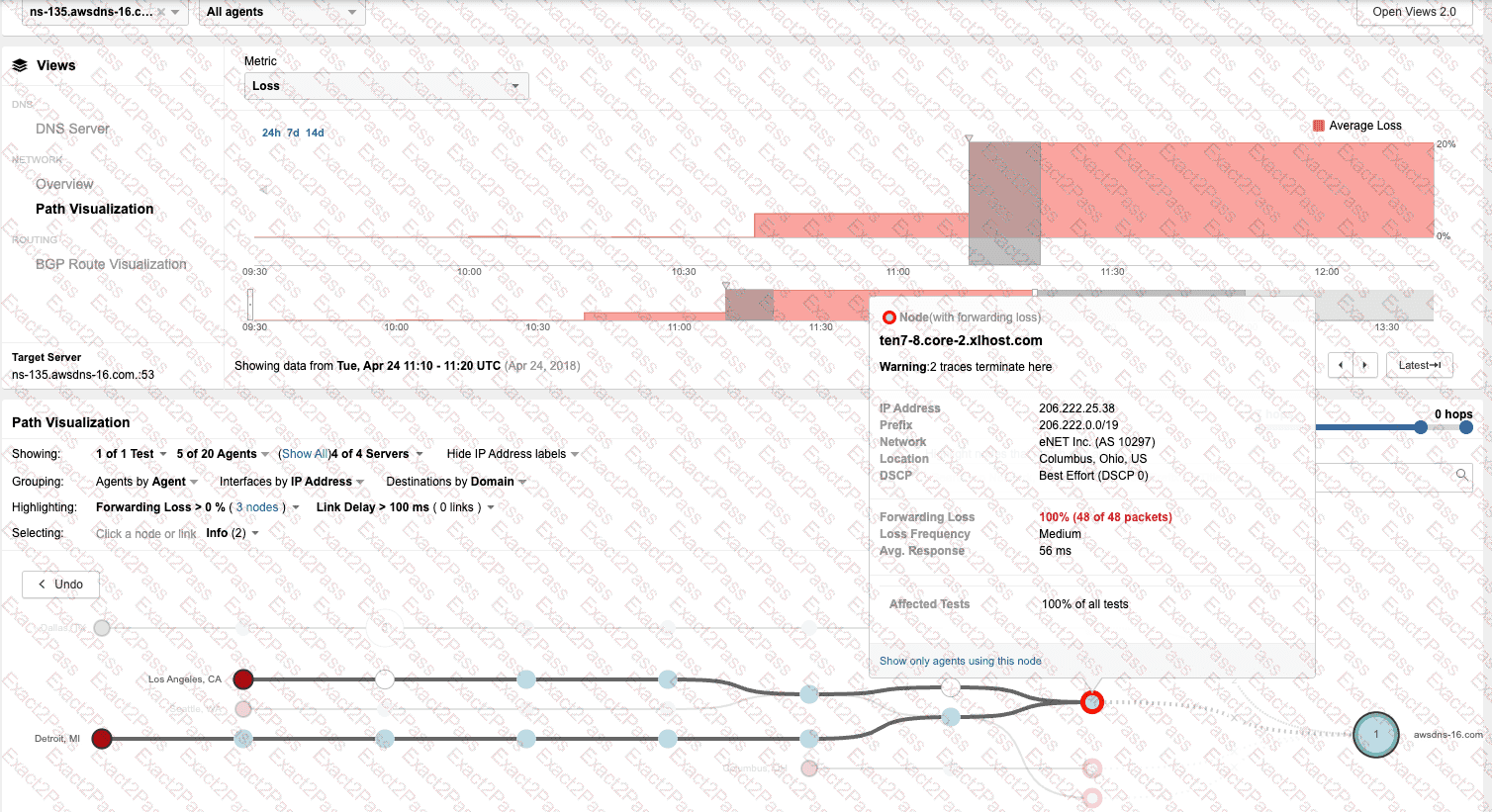

By contrasting Exhibit 3.4-1 (Before the Outage) and Exhibit 3.4-2 (During the Outage), a definitive change in the routing path is observed. In the baseline view (Exhibit 3.4-1), traffic from the Los Angeles agent reaches the destination network 54.239.104.0/23, which is correctly associated with Amazon.com, Inc. (AS 16509) . However, during the outage (Exhibit 3.4-2), the path visualization shows the traffic being redirected into a different network: eNET Inc. (AS 10297) . At this new location, the traffic encounters 100% Forwarding Loss at the node ten7-8.core-2.xlhost.com.

The change in the Autonomous System (AS) number from 16509 to 10297 (Option B) is the most concrete indicator of a BGP Hijack. While symptoms such as Availability Drop (Option A), Response Delay (Option C), and Packet Loss (Option D) are clearly visible in the ThousandEyes telemetry, these symptoms are generic and could be caused by various other issues like physical link failures or congestion. The shift in the AS path—specifically to an AS that does not legitimately host the target ' s IP prefix—provides the forensic evidence needed to identify the root cause as a routing takeover. This visualization allows network administrators to bypass internal troubleshooting and immediately focus on external remediation with upstream providers.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, baselining is the process of establishing a " normal " performance profile for network infrastructure to enable the detection of anomalies. When the metric of interest is the internal health of a physical device, such as CPU utilization on a core router, SNMP (Simple Network Management Protocol) is the industry-standard data source.

SNMP provides direct visibility into the device ' s control plane and hardware performance. By polling specific Object Identifiers (OIDs) from the router ' s Management Information Base (MIB), a monitoring system like Cisco Catalyst Center or a third-party NMS can collect granular data on CPU cycles, memory allocation, and temperature. This " inside-out " telemetry is essential for baselining because it reflects the actual resource consumption of the router during various traffic loads.

Conversely, ThousandEyes tests (Options A, B, and D) provide " outside-in " synthetic data. While DNS resolution time (Option A), HTTP response times (Option B), and Path Visualization (Option D) are excellent for measuring end-to-end service delivery and network transit health, they do not report on the router ' s internal hardware state. For instance, a router could have 99% CPU utilization (indicating a potential crash), yet a ThousandEyes path test might still show a " green " path if the data plane (ASICs) is still forwarding packets efficiently. Therefore, to establish a reliable baseline for hardware-specific metrics like CPU, SNMP data (Option C) is the only appropriate source among the choices.

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , capacity planning requires accurate baselining of interface bandwidth against its theoretical and provisioned limits. Analyzing Exhibit 4.5 Question 4 (image_79d4fc.jpg) reveals a significant discrepancy between the physical reality of the link and its configuration within the monitoring tool.

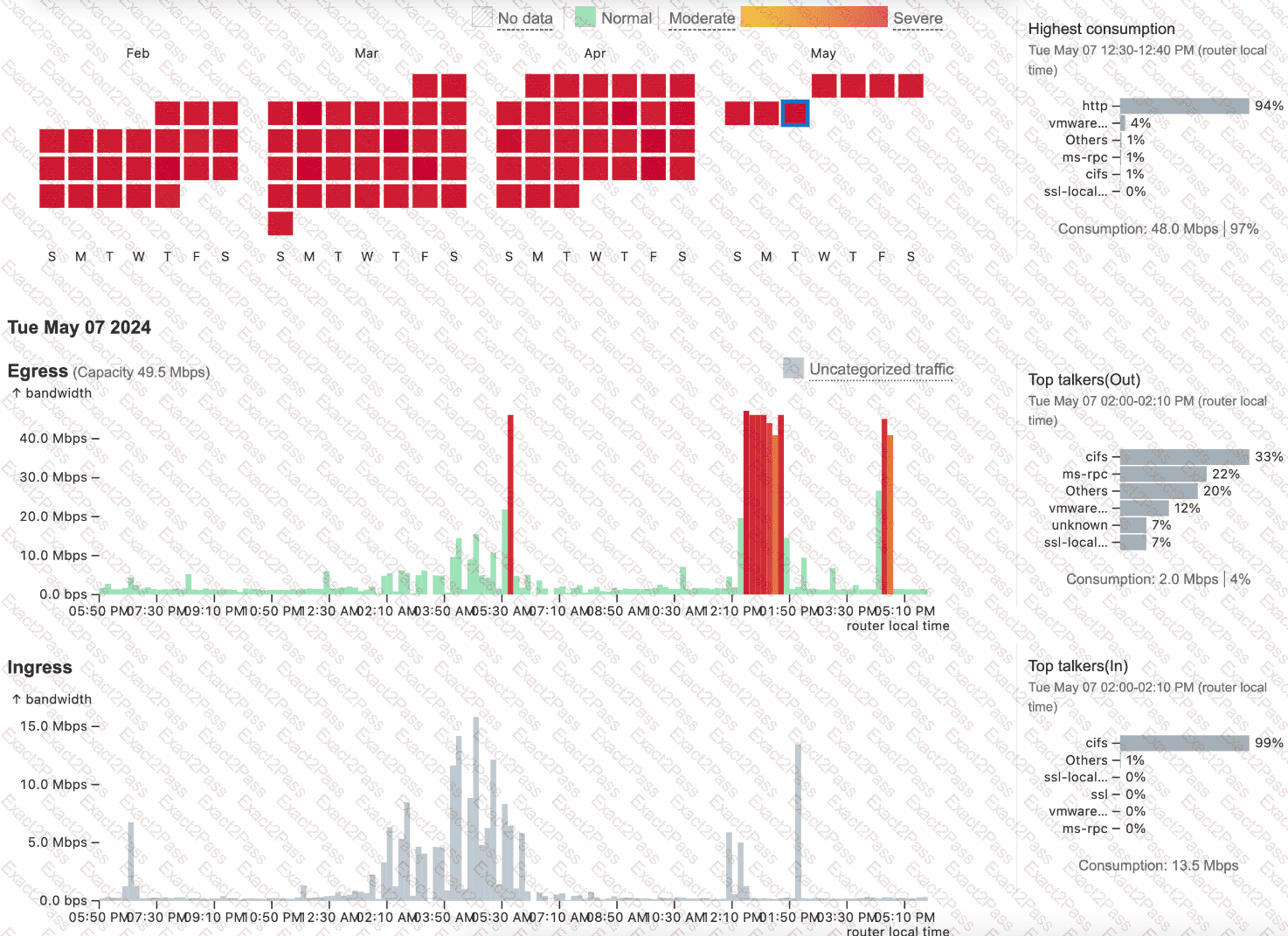

The exhibit displays a capacity planning dashboard with a calendar heatmap and traffic graphs. The heatmap for February through May shows a high frequency of " Severe " (red) utilization blocks. Looking at the Egress graph for Tue May 07 2024 , the traffic spikes clearly exceed 40.0 Mbps. Crucially, the dashboard indicates an " Egress Capacity " of 49.5 Mbps and reports that the " Highest consumption " was 48.0 Mbps, representing 97% of the available bandwidth.

However, the question states that the ISP provides a 1 Gbps (1000 Mbps) connection . Since the actual traffic being sent is less than 50 Mbps, the link is nowhere near physical saturation. The " Severe " alerts and high utilization percentages are occurring only because the monitoring software (likely ThousandEyes or a similar NMS) is configured with a Maximum Capacity of only 49.5 Mbps for this interface. This misconfiguration causes the tool to calculate utilization based on a much smaller " pipe " than what actually exists, leading to false-positive alerts.

Therefore, the most likely action to fix this observed behavior is to reconfigure maximum capacity for the interface (Option B) to match the 1 Gbps specification.

Option A is unnecessary because the current link is only being utilized at ~5% of its 1 Gbps potential.

Option C is a restrictive policy change that is not justified given the actual available headroom.

Option D might shift how data is displayed but will not fix the underlying mathematical error in utilization calculations.

Detailed Explanation:

This analysis requires extracting two specific browser-rendering metrics from the IT Operations Dashboard. By placing the cursor over the latest metrics data points:

Page Load time: 1479.6 ms.

DOM load time: 1354.3 ms.

By subtracting the DOM time from the Page Load time ($1479.6\text{ ms} - 1354.3\text{ ms} = 125.3\text{ ms}$), the engineer identifies the duration spent rendering the page after the initial document structure was established.
