An LTM Specialist defines a receive string in the HTTP monitor and then assigns it to the HTTP pool. The monitor has an interval of 5 seconds and a timeout of 16 seconds.

If the receive string is NOT seen in the the HTTP payload after 20 seconds, how does the LTM device mark the monitor status?

A BIG-IP Administrator wants to add a new Self IP to the BIG-IP device. Which item should be assigned to the new Self IP being configured?

-- Exhibit –

-- Exhibit --

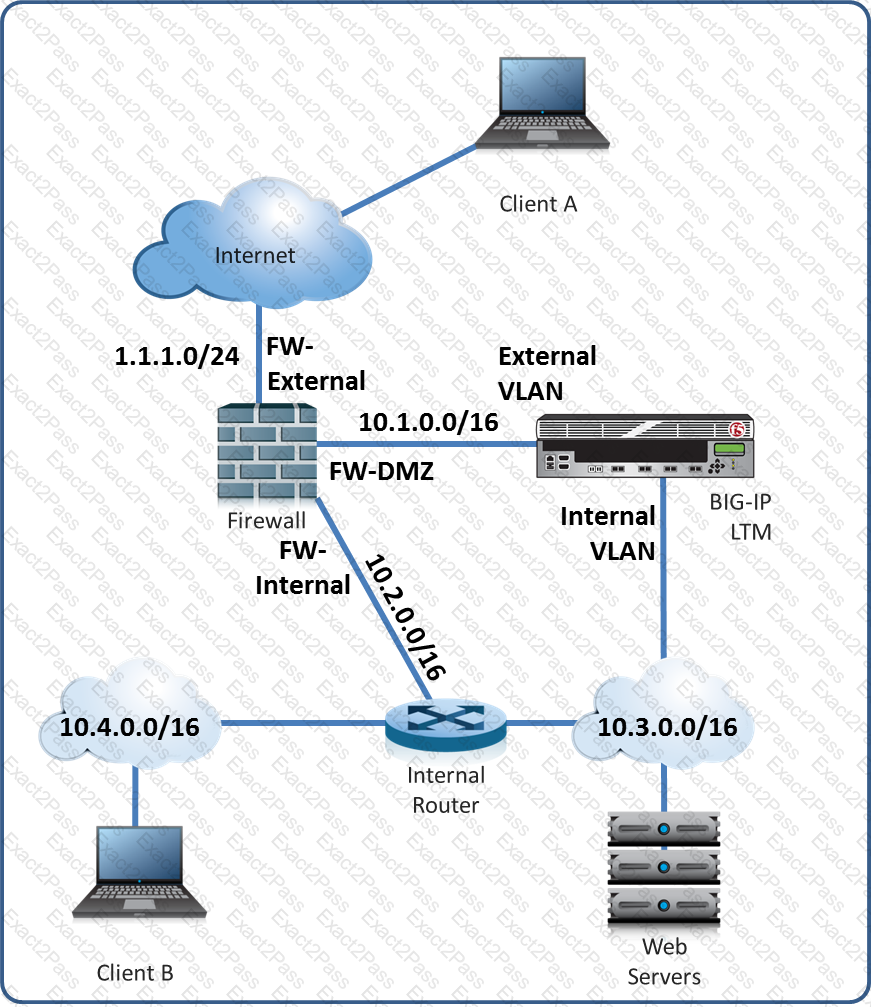

Refer to the exhibit.

A layer 2 nPath routing configuration has been deployed. A packet capture contains a client connection packet with the following properties:

Source IP: < Virtual Server >

Destination IP: < Client A >

At which two locations could the packet capture have been taken? (Choose two.)

The LTM device is configured for RADIUS authentication. Remote logins are failing and the LTM Specialist must verify the RADIUS configuration.

How should the LTM Specialist check the RADIUS server and shared secret configured on the LTM device?

An LTM Specialist needs to deploy a virtual server that will load balance traffic targeting https://register.example.com to a set of three web servers. Persistence needs to be ensured. No persistence mirroring is allowed SSL offloading is required.

A fourth web server with fewer resources will be used to handle requests from engine bots to https://register.example.comvrobots.txt by an iRule. The (Rule will use the HTTP_REQUEST event. .

What are the required profile and persistence settings to implement this

-- Exhibit –

-- Exhibit --

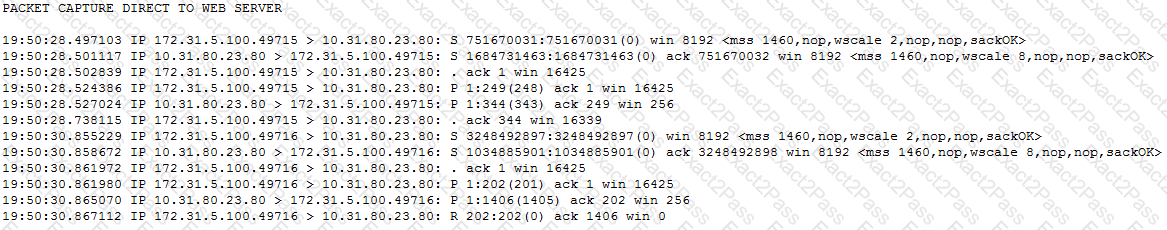

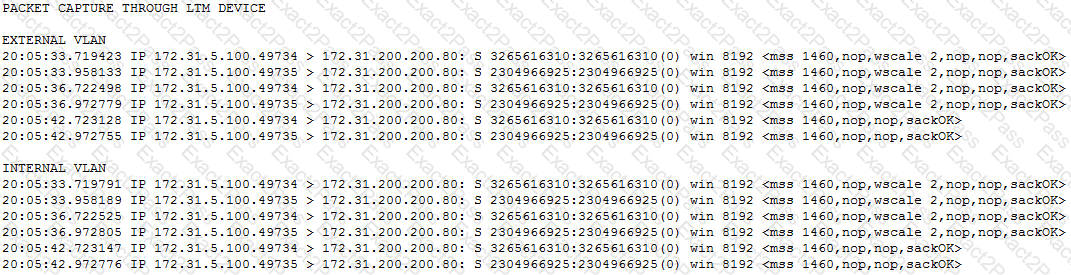

Refer to the exhibits.

Users are able to access the application when connecting directly to the web server but are unsuccessful when connecting to the virtual server.

What is the cause of the application access problem?
